LiDAR (Light Detection and Ranging)

LiDAR (Light Detection and Ranging)

Keywords: LiDAR, 905nm, 16-line, Light Detection and Ranging
Mar 27, 2025 View: 137 Data Sheet

Mechanical LiDAR, 905nm, Pulsed laser, Intrinsically Safe Explosion-Proof LiDAR, Solid-State 128-Line LiDAR,

STTM Series LiDAR

1. Mechanical LiDAR

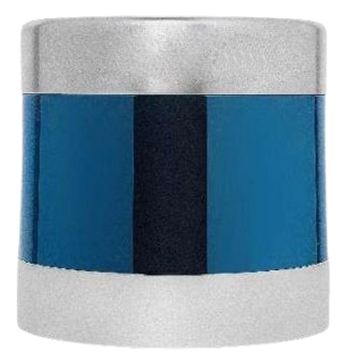

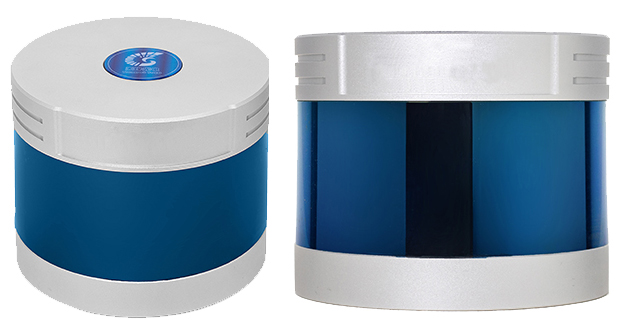

1.1 16-line LiDAR

LiDAR

Specifications

ModelSTTM-905-16
Laser Wavelength905nm
Lines16 line
Laser ModePulsed laser
Laser Safety LevelClass 1 eye-safe
Detection Capability for GlassTransparent glass detectable (optional)
Echo ModeSingle echo/double echo, (mode optional)
Frequency of Points320,000 (single echo), 640,000 (double echo)
Minimum Detection Distance0.2m
Maximum Detection Distance150m (at 30% reflectivity)
Rotation Frequency5Hz/10Hz/20Hz
Horizontal Field of View360°
Vertical Field of View30°(-15°~+15°)
Horizontal Angle Resolution0.09°(5Hz), 0.18°(10Hz), 0.36°(20Hz)
Vertical Angle Resolution
Accuracy±2cm (>0.5m); ±5cm (0.2m~0.5m)
Data OutputUDP/IP Ethernet (100Mbps)
Voltage+12V~+24V
Power ConsumptionTypical value 8W
Working Temperature-40℃~+85℃
Protection LevelIP67
Dimension≤84mm*φ102mm
Weight≤860g (airborne models≤650g)

LiDAR

LiDAR

1.2 32-line LiDAR

LiDAR

Specifications

ModelSTTM-905-32
Laser Wavelength905nm
Lines32 lines
Laser ModePulsed laser
Laser Safety LevelClass 1 Eye-Safe
Echo ModeSingle echo /double echo (mode optional)
Frequency of Points576,000 Points per second
Minimum Detection Distance0.2m
Maximum Detection Distance150m (at 30% reflectivity)
Rotation Frequency5Hz/10Hz/20Hz
Horizontal Field of View360°
Vertical Field of View31° (-15° ~ +16°)
Horizontal Angle Resolution0.1° (5Hz), 0.2° (10Hz), 0.4° (20Hz)
Vertical Angle Resolution
Accuracy±2cm (> 0.5m), ±5cm (0.2m~ 0.5m)
Data OutputUDP/IP Ethernet (100Mbps)
Voltage+12V~+24V
Power ConsumptionTypical value 12W
Working Temperature-40°C~ +85°C
Protection Level1P67
Dimension≤84mm*Φ102mm
Weight≤950g (airborne models < 700g)

LiDAR

LiDAR

2. Intrinsically Safe Explosion-Proof LiDAR

2.1 16-line Intrinsically Safe Explosion-Proof LiDAR

LiDAR

Specifications

ModelSTTM-905-GSTTM-905-120
Laser Wavelength905nm
Lines16 lines
Laser ModePulsed laser
Scanning MethodMechanical rotation
Laser LevelClass1 eye-safe
Echo ModeSingle echo / double echo (mode select-able)
Frequency of Points320,000 (single echo), 640,000 (double echo)
Minimum Detection Distance0.3m
Maximum Detection Distance120m (at 30% reflectivity)
Rotation Frequency5Hz/10Hz/20Hz
Horizontal Field of View360°
Vertical Field of View30° (-15° ~ +15°)
Horizontal Angle Resolution0.09° (5Hz), 0.18° (10Hz),0.36° (20Hz)
Vertical Angle Resolution
Accuracy(0.3m-20.00m) ±0.03
     (20.01m-120.00m) ± 0.3
(0.2m-0.5m) (50m-150m)
     ± 0.05,(0.5m-50m) ± 0.02
Voltage+12V~+24V
Power ConsumptionTypical value 9W
Working Temperature-0°C~+40°C-20°C~+55°C
Protection LevelIP67
Dimension≤(84mm*Φ100mm)
WeightAbout 1135g
Explosion Proof LevelClass IClass II, Class III

LiDAR

2.2 32-line Intrinsically Safe Explosion-Proof LiDAR

LiDAR

Specifications

ModelSTTM-905-G150STTM-905-320
Laser Wavelength905nm
Lines32 lines
Laser ModePulsed laser
Scanning MethodMechanical rotation
Laser Safety LevelClass1 Eye-Safe
Echo ModeSingle echo / double echo (mode select-able)
Frequency of Points576,000 points per second
Minimum Detection Distance0.2m
Maximum Detection Distance150m (at 30% reflectivity)
Rotation Frequency5Hz/10Hz/20Hz
Horizontal Field of View360°
Vertical Field of View31° (-15° ~ +16°)
Horizontal Angle Resolution0.1° (5Hz) /0.2° (10Hz) /0.4° (20Hz)
Vertical Angle Resolution
Accuracy(0.5m-150m)±0.02, (0.2m-0.5m)±0.05
Voltage+11V~+24V
Power ConsumptionTypical value 12W
Working Temperature-0°C~+40°C-20C~+55°C
Protection LevelIP67
Dimension≤84mm*Φ102mm
WeightAbout 1300g
Explosion Proof LevelClass IClass Ⅱ, Class Ⅲ

LiDAR

3. Solid-State 128-line LiDAR

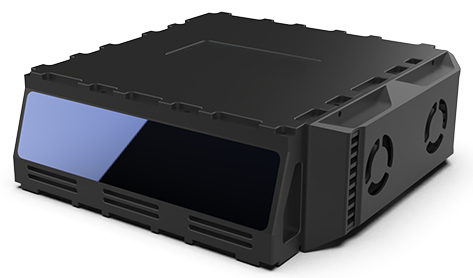

3.1 Automotive-Grade Hybrid Solid-State 128-line LiDAR

LiDAR

Specifications

ModelSTTM-905-128
Laser Wavelength905nm
Lines128 lines
Scanning MethodPrism rotation
Laser modePulsed laser
Laser LevelClass 1 Eye-Safe
Echo ModeSingle echo/double echo (mode optional)
Frequency of Points768,000 Points per second (Single echo)
     1,536,000 Points per second (double echo)
Minimum Detection Distance0.3m
Maximum Detection Distance200m (at 30% reflectivity)
Rotation Frequency5Hz/10Hz/20Hz
Horizontal Field of View120°(-60.0°~ +60.0°)
Vertical Field of View25° (-18°~ +7°)
Horizontal Angle Resolution0.1° (5Hz), 0.2° (10Hz), 0.4° (20Hz)
Vertical Angle Resolution0.2°
Accuracy+3cm @1 sigma2
Data OutputUDP/IP Ethernet (100Mbps)
Voltage+9V~+36V
Power ConsumptionTypical value 15W
Working Temperature-40°C~ +85°C
Storage Temperature-40°C~+105°C
Protection LevelIP69K
Dimension130x88.5x70mm
Weight≤1000g

LiDAR

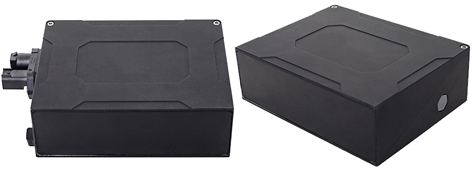

3.2 Automotive-grade Hybrid Solid-State 1550nm LiDAR

LiDAR

Specifications

ModelSTTM-1550-L1
Laser Wavelength1550nm
Laser LevelClass1(IEC-60825)
Laser ModePulsed laser
Frequency of Points1,200,000 points per second
Maximum Detection Distance600m (250m 10% reflectivity)
Frame Rate10Hz
Horizontal Field of View120°(-60°~+60°)
Vertical Field of View25°(-12.5°~+12.5°)
Horizontal Angle Resolution0.05°(Non global)
Vertical Angle Resolution0.05°(Non global)
Accuracy±2cm
Data OutputUDP/IP Ethernet( 1000Mbps)
Voltage+9V~+36V
Power ConsumptionTypical value 30W
Working Temperature-40℃~+60℃
Protection LevelIP67
Dimension≤228*220*48mm
Weight≤3000g
