We supply the laser cutting heads with auto-focusing function and you can easily cut uneven surface metals.
Laser cutting head is one of most important parts of laser cutting machines. The traditional cutting head only includes focusing lens and nozzle and does not have auto-focus function.If there is no auto-focus, the spacing between the focus lens and workpiece will not be same, which results in different focused beam diameters and then different power densities at different positions. Thus the cutting quality may be different at the positions.
Based on the requirements from the market, we have developed self-floating laser cutting heads. By using capacitive sensor and auto motor moving system, the spacing between the focus lens and workpiece will be kept same at any position of the cutting field. The response time is millisecond range only and the system is stable and reliable.

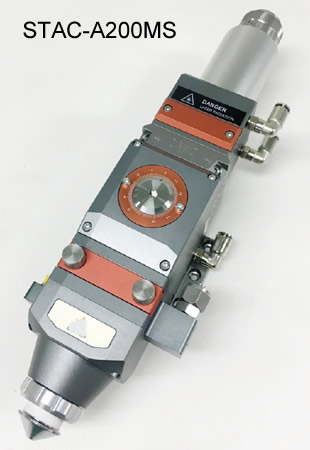

STAC-A200MS series fiber laser cutting heads, designed for laser power within 2000w, is a wonderful solution for medium power of laser flat cutting application.
Precision optical element
Perfect water-cooling system
High grade dustproof design
Precision machined parts
Wide range of focus adjustment (12mm)
Speifications:
Part number: STAC-A200MS
Max. laser power: 2000W
Fiber connector: QBH
Focusing lens: Dia=30mm,F=125mm
Collimating lens: F=100mm
Max. beam aperture: 26mm
Laser wavelength: 1064nm
Nozzle’s exit beam dia.: 1mm~4mm
X & Y adj. range: ±1mm
Z-axis adj.: -6mm~6mm
Head weight: 2.5kg
Dimension: Dia. 99 x 346mm

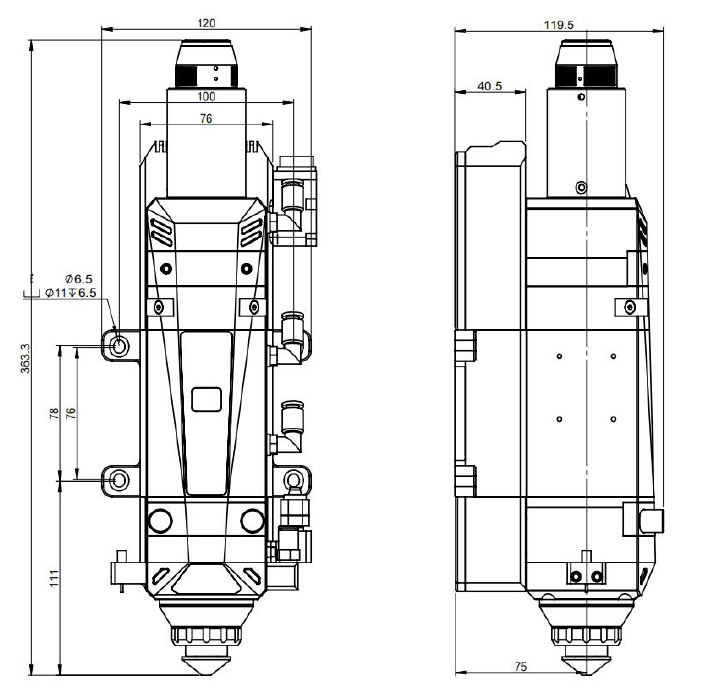

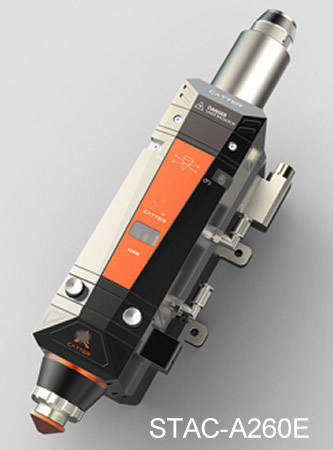

STAC-A260E/A280E electric fiber laser cutting head, supporting electric auto-focus adjustment, is designed for medium/high power of laser cutting. With sensor unit, controlling unit and driving unit integrated inside, it is a wonderful solution for achieving complete automatic cutting when working with our motion control board STAC-MCC series and CNC cutting software STAC-SC series.
A motor is used to move the focal lens up/down to adjust the focusing. It can be driven via our control board STAC-MCC3721.
| Part number | STAC-A260E | STAC-A280E |
| Max Laser Power | 2000W | 4000W |
| Focus Lens | D=30mm,F=125/150mm | D=30mm, F=125/150mm |
| Collimator Lens | D=30mm,F=100mm | D=30mm,F=100mm |
| Z-axis Adjustment range | -10mm~+8mm | -10mm~+8mm |
| Focus adjustment mode | RS 485/DA | RS 485/DA |
| Focus accuracy | ±0.1mm | ±0.1 mm |
| Focus adjustment speed | 150mm/s | 300mm/s |
| Focus acceleration | 10m/s* | 10m/s2 |
| Head weight | -3kg | -3kg |
| Dimension | Dia 120 x 363mm | Dia 120 x 363mm |
| Pressure sensor | Optional | Optional |
| Temperature sensor | Optional | Optional |
| Indicate light | Standard | Standard |

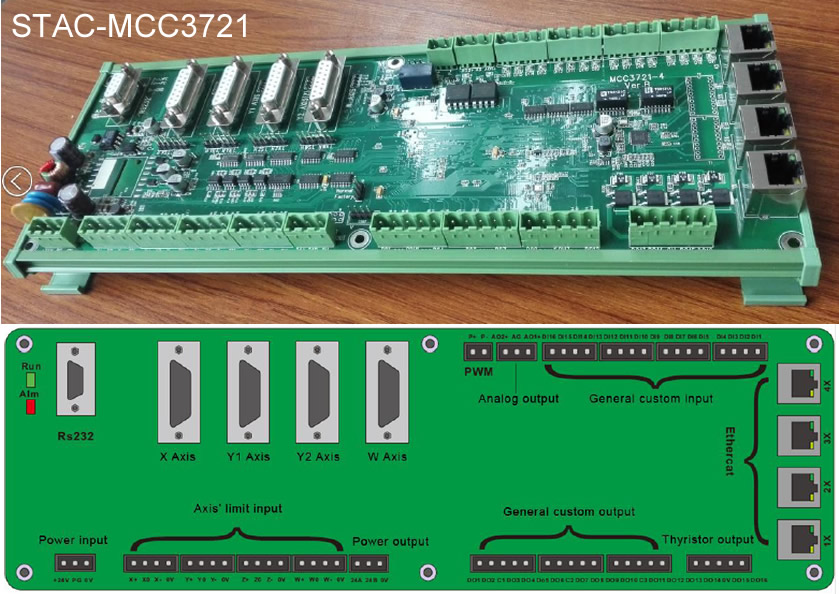

The control boards used to control lasers, laser cutting heads, XYZW motion and capacitor height sensor in the cutting heads. STAC-MCC3721H is to control XYZ 3-axis motion and STAC-MCC3721NC is to control XYZW 4-axis motion.
The I/O ports are defined as following table.
| Port | Function | Remark | |
| Power input | +24V | DC24V input + end | 24V/10A DC. Recommend to use DC 24V/10A power supply |
| PG | protective ground | ||
| 0V | DC input - end, power GND | ||
| Axis’ limit input | X+ | X Axis’ positive limit input, special signal, low-level propagation is effective. | X Axis’ limit input |
| X0 | X Axis’ origin signal, special signal, low-level propagation is effective. | ||
| X- | X Axis’ negative limit input, special signal, low-level propagation is effective. | ||
| 0V | GND, X Axis’ limit signal COM port | ||
| Y+ | Y Axis’ positive limit input, special signal , low-level propagation is effective. | Y Axis’ limit input | |
| Y0 | Y Axis’ origin signal， special signal， low-level propagation is effective. YY Axis’ negative limit input， special signal， low-level propagation is effective. 0V GND, Y Axis’ limit signal COM port | ||
| Y- | Y Axis’ origin signal， special signal， low-level propagation is effective. YY Axis’ negative limit input， special signal， low-level propagation is effective. 0V GND, Y Axis’ limit signal COM port | ||
| 0V | Y Axis’ origin signal， special signal， low-level propagation is effective. YY Axis’ negative limit input， special signal， low-level propagation is effective. 0V GND, Y Axis’ limit signal COM port | ||
| Z+ | Z Axis’ positive limit input， special signal， low-level propagation is effective. | Z Axis (standby ) input | |
| Z0 | Z Axis’ origin signal，special signal，low-level propagation is effective. | ||
| Z- | Z Axis’ negative limit input，special signal，low-level propagation is effective. | ||
| 0v | GND, Z Axis’ limit signal COM port | ||
| W+ | W Axis’ positive limit input，special signal，low-level propagation is effective. | W Axis(Rotation Axis / standby ) input | |
| W0 | W Axis’ origin signal，W | ||
| W- | W Axis’ negative limit input，special signal，low-level propagation is effective. | ||
| 0v | GND, W Axis’ limit signal COM port | ||
| Axis’ controlling ports | X | X Axis’ controlling signal | DB15female |
| Y1 | Y1 Axis’ controlling signal | ||
| Y2(Z) | Y2（Z）Axis’ controlling signal | If Y Axis is set up as dual - drive mode, it is Y2Axis; if Y Axis is set up as single drive mode, it is Z Axis’ controlling port( standby ). | |
| W | W Axis’ controlling signal | Rotation Axis( standby ) | |
| General custom outputs | DO1 | DO1 general output port | The function of output port can be set up arbitrarily by software. Passive output port has the same output TTL with COM port. |
| DO2 | DO2 general output port | ||
| COM1 | general output COM port | ||
| DO3 | DO3 general output port | ||
| DO4 | DO4 general output port | ||
| DO5 | DO5 general output port | ||
| DO6 | DO6 general output port | ||
| COM2 | general output COM port | ||
| DO7 | DO7 general output port | ||
| DO8 | DO8 general output port | ||
| DO9 | DO9 general output port | ||
| DO10 | DO10 general output port | ||
| COM3 | General output COM port | ||
| DO11 | DO11 general output port | ||
| DO12 | DO12 general output port | ||
| Thyristor output | DO13 | DO13 thyristor output port | DCV output: 24V, drive current: 1A |
| DO14 | DO14 thyristor output port | ||
| COM4 | Thyristor output COM port | ||
| DO15 | DO15 thyristor output port | ||
| DO16 | DO16 thyristor output port | ||
| Power output | 24A | The first DC24V output +end | Can be used as Axis’ limit switch/general output port can supply standard TTL |
| 24B | The 2nd DC24V output +end | ||
| 0V | The GND for DC24V output | ||
| PWM output | P+ | PWM signal output +end | The TTL of PWM output is 24V/5, which can be configured by the jumper nearby. |
| P- | PWM signal output -end | ||
| Analog output | AO1+ | Analog output port +end | The voltage of analog output is from 0V to 10V, which can be configured by software. |
| AG | The GND for analog output | ||
| AO2+ | Analog outpot port +end | ||
| AI | Analog input | ||
| General input | DI1 | general input port, low-level propagation is effective (Default) | |
| DI2 | general input port, low-level propagation is effective (Default) | ||
| DI3 | general input port, low-level propagation is effective (Default) | ||
| DI4 | general input port, low-level propagation is effective (Default) | ||
| DI5 | general input port, low-level propagation is effective (Default) | ||
| DI6 | general input port, low-level propagation is effective (Default) | ||
| DI7 | general input port, low-level propagation is effective (Default) | ||
| DI8 | general input port, low-level propagation is effective (Default) | ||
| DI9 | general input port, low-level propagation is effective (Default) | ||
| DI10 | general input port, low-level propagation is effective (Default) | ||
| DI11 | general input port, low-level propagation is effective (Default) | ||
| DI12 | general input port, low-level propagation is effective (Default) | ||
| DI13 | general input port, low-level propagation is effective (Default) | ||
| DI14 | general input port, low-level propagation is effective (Default) | ||
| DI15 | general input port, low-level propagation is effective (Default) | ||
| 0V | Signal input public port | ||
| Ethernet | 1X | Industrial Ethernet interface | These four ports can be arbitrarily configured |
| 2X | Industrial Ethernet interface | ||
| 3X | Industrial Ethernet interface | ||
| 4X | Industrial Ethernet interface | ||
| General serial port | RS232 | RS232 serial port | It can butt-joint with laser |
STAC-SC2000 CNC cutting software is designed for flat fiber laser cutting which includes graphic drawing and editing, cutting process dealing, cutting process controlling, system monitoring, components monitoring and debugging, and so on.
Features:
1) Simple Operations, Powerful Functions.
Developed based on RIBBON framework, the design is unique and the software is easy to be operated.
UI design is more humanized, which is easier to use even without training.
With powerful CAM functions based on AUTOCAD design, support graphic import, graphic drawing, graphic editing, and graphic transformation, graphic optimized and so on.
Intelligent capturing, which makes drawing more convenient and accurate.
Unique properties option design, which helps user to design the cutting graphic more easily.
Support various sort methods, auto sort can recognize the film inside or outside the graphic to make sure the path planning optimized.
Powerful lead line function, support various ways to lead line, auto added suitable lead line based on graphic nested relations. Support check/revise interfered lead line by one click.
2) Complete cutting process, debugging easily.
Support all kinds of cutting process: Section drill, gradual drill, multi stages drill, cutting with film, fix height cutting, and predrill and so on.
Support laser’s power/frequency adjusted with speed, to decrease or avoid the problem of firing corners when cutting carbon steel.
Support multilayer cutting or marking, and other sorts of processing ways.
Support micro-joint, gap, over-cutting, bridge, kerf-compensation and so on.
Powerful material database, which can save all sorts of material cutting process.
Support complex functions: Edge seeking, fly-cutting and so on.
Support breakdown position tracking/forward/backward and so on.
3) Rea-time alarm, stable and reliable.
Support running error measurement, it can check the error between running orbit and graphic error.
Real-time alarming the status of capacitive height controller, laser source, auxiliary gas of electric laser cutting head and other equipment, make sure the security during cutting.
More than 50 different kinds of alarms, to secure the equipment in whole aspect, avoid user’s wrong operation.

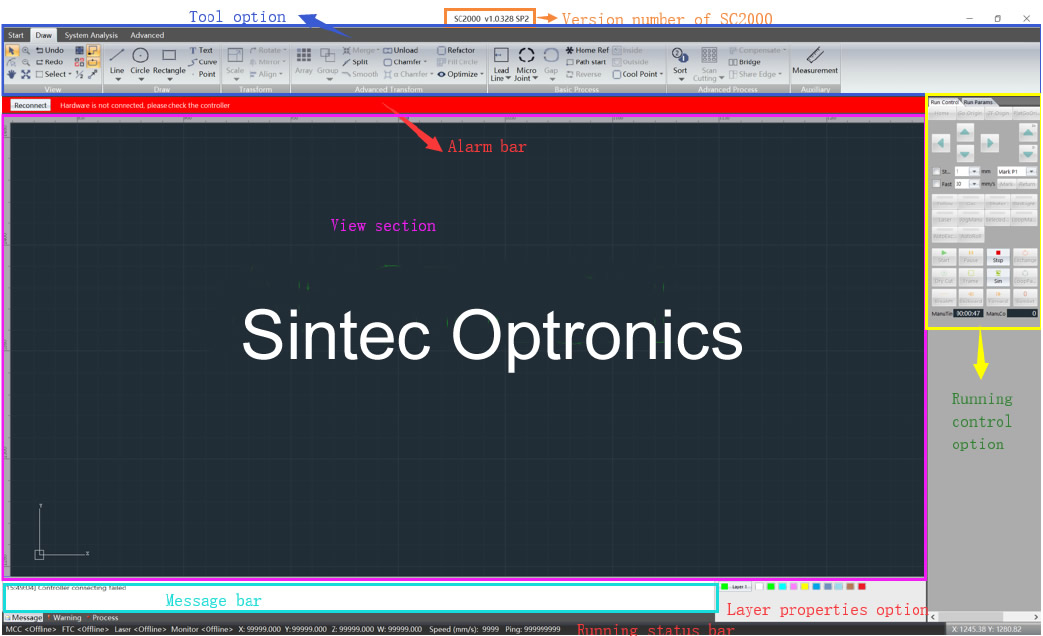

UI design is very clear, from up to down: title option, tool option, alarm option, view option, running control option, message bar, graphic parameters option, and status bar. The functions of each section shows as below:
| Section | Function | Remark |
| Tittle bar | Display software’s name and version number. | |
| Tool option | Mainly collects the tools needed for software operation, it has five submenu: Start/Draw/System Analysis/Advanced/Nest. User can do graphic drawing, graphic editing, graphic transformation, adding lead line, monitoring running status, configuration machine tool. | |
| Alarm bar | Display the current system alarm. | Alarm will be displayed in pop-up window, and once the alarm is cleared, the pop-up window will be gone. |
| View section | Graphic drawing/displaying section, displaying section of the machine’s cutting area. | |
| Running control option | Run all kinds of cutting actions by software. | |
| Message bar | Display the current running status in scrolling to attract user’s attention. | |
| Layer properties option | Set up layer properties such as layer process, graphic transformation and so on. | |
| Running status | Display the running status, running location, cutting speed and so on. |

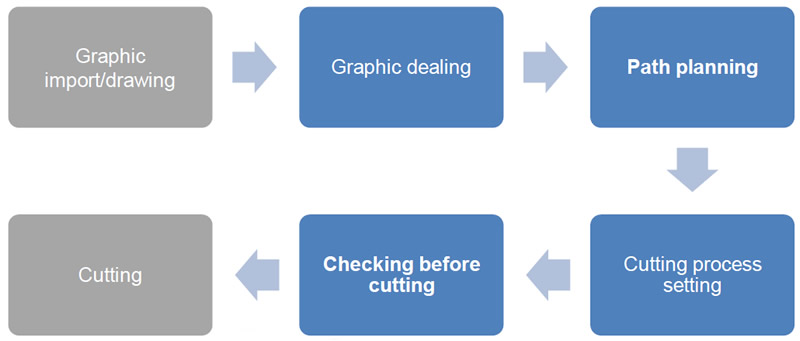

Operation flowchart:

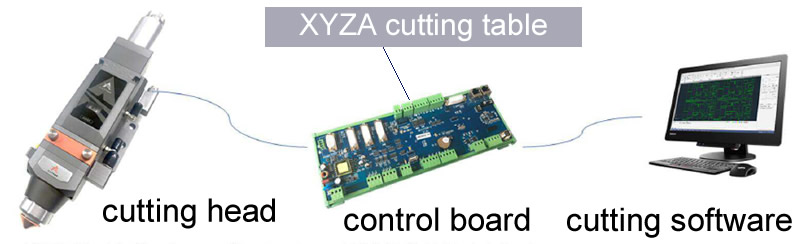

A full package consists of a laser cutting head, a control board and cutting software.
The functions of each part is summarized as following:
| Part name | Part number/combination | Remarks |
| Cutting head | STAC-A200MS | <2kW, manual focusing |
| Cutting head | STAC-A200MS-3D | <2kW, manual focusing, smaller 3D nozzle size for tube cutting |
| Cutting head | STAC-A260E | <2kW, electrical focusing |
| Cutting head | STAC-A290E | <2kW, electrical focusing, smaller 3D nozzle size for tube cutting |
| Cutting head | STAC-A280E | <4kW, electrical focusing |
| Cutting head | STAC-A295E | <4kW, electrical focusing, smaller 3D nozzle size for tube cutting |
| Control system | STAC-MCC3721H + STAC-SC2000 | 3-axis (X, Y1, Y2, Z) flat-plate cutting. Y1 & Y2 have same signals. |
| Control system | STAC-MCC3721NC + STAC-SC2000 | 4-axis (X, Y1, Y2, Z, A) flat-plate cutting. A is used to exchange tables. |
| Control system | STAC-MCC3723+STAC-FTC10+SCTube | Tubing cutting such as round, square, L, H and rotation |
| Control system | STAC-MCC3723+STAC-FTC10+STAC-EX15*2+SCTube | Tubing & flat plate cutting |
| Total solution | STAC-A200MS+STAC-3721H+STAC-SC2000 | Internal height floating, for thin flat plate cutting |
| Total solution | STAC-A260E+STAC-MCC3721NC+STAC-SC2000 | Internal height floating and auto-focusing, for thick flat plate cutting |
| Total solution | STAC-A200MS-3D+STAC-MCC3723+STAC-FTC10+STAC-SCTube | Professional tubing cutting such as round, square, L, H and rotation |
| Height floating | STAC-FTC10 (not including sensor nozzle) | Individual height adjusting, for tubing, flat-plate, 3D cutting |
| Height floating | STAC-FTC61 (not including sensor nozzle) | Individual height adjusting, supporting pulse step or servo motors |

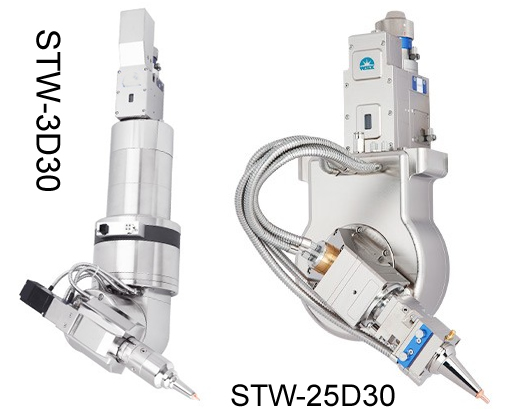

Direct driver motors are used to guarantee high accuracy at long lifespan. The cutting head is used for three dimensional cutting applications with laser sources of maximum laser power 3kW such as IPG, SPI, Rofin, nLight, Raycus, Max Photonics etc. An anti-collisional detecting device is used.

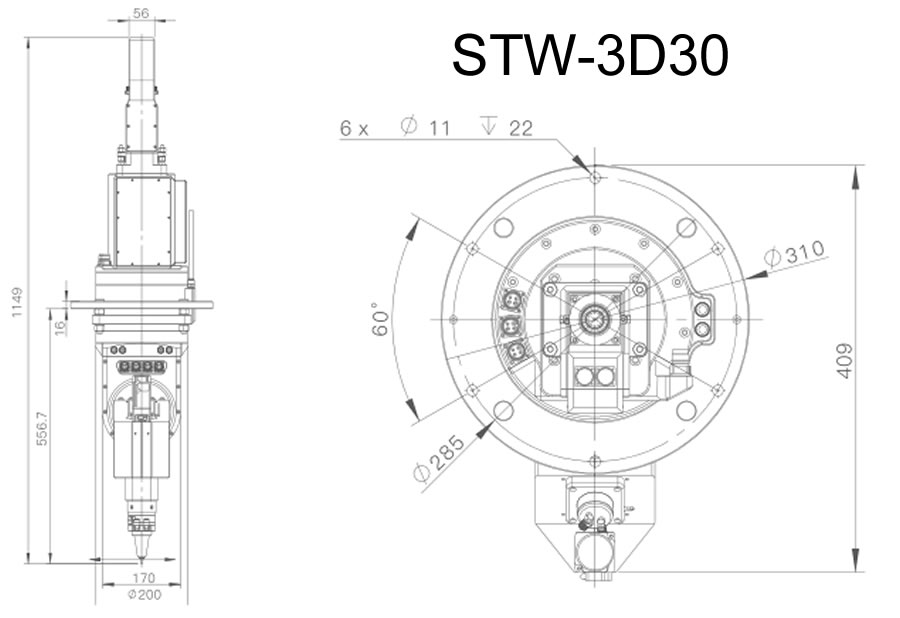

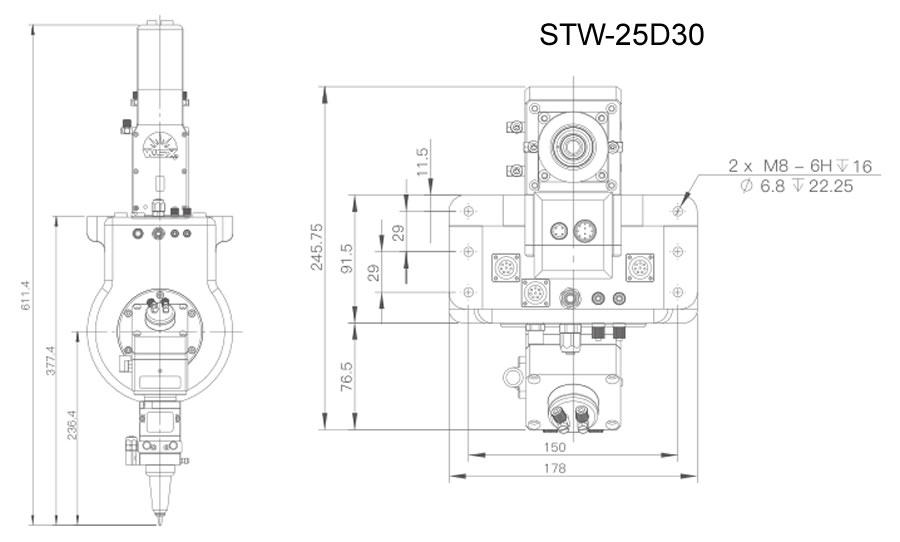

| Model | STW-3D30 | STW-25D30 |
| Max gas pressure | 25bar | 25bar |
| Horizontal adjustment range | ±1.5mm | ±1.5mm |
| Vertical adjustment range | ±10mm | ±10mm |
| Effective aperture | 25mm | 25mm |
| Collimating focal length | 100mm | 100mm |
| Focusing focal length | 125/150mm | 125/150mm |
| Range of rotation axis 1 | 360o | |
| Range of rotation axis 2 | ±135o | ±135o |
| Standard speed | 80r/min | 80r/min |
| Position accuracy | <20 arc sec | <20 arc sec |
| Dimension | 1149x409x310mm | 611x245178mm |
| Weight | 30kg | 15kg |
Applicable power range from 1kW to 6kW.
Automatic focus position adjustment.
Focus position displayed in front.
Completely sealed optical structure.
Easy two-point alignment adjustment.
Convenient to change protective window.
High efficiency of piercing.
Easy to change/replace protective lens via drawer structure.
To be equipped with various kind of QBH connectors.

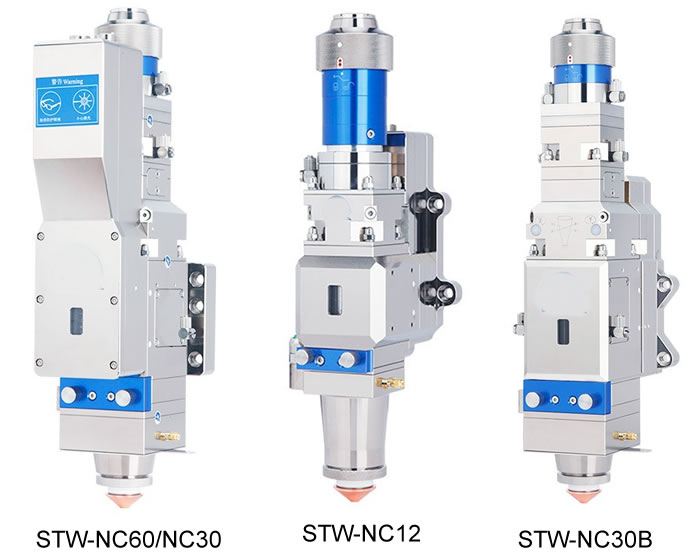

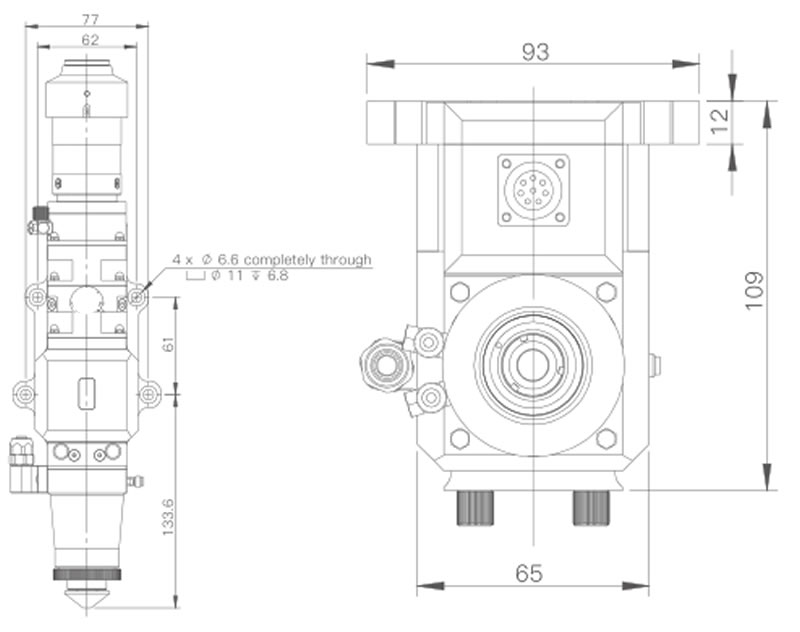

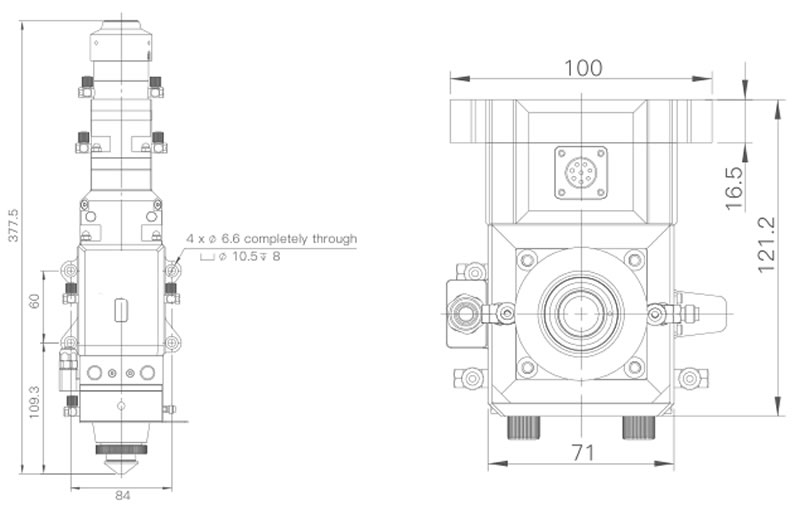

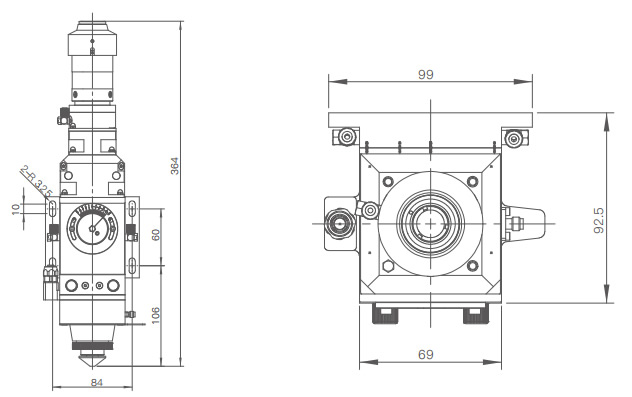

| Model | STW-NC60 | STW-NC30 | STW-NC30B | STW-NC12 |
| Max gas pressure | 25bar | 25bar | 25bar | 25bar |
| Horizontal adjustment range | ±1.5mm | ±1.5mm | ±1.5mm | ±1.5mm |
| Vertical adjustment range | ±10mm | ±8mm | ±10mm | ±8mm |
| Effective aperture | 32mm | 25mm | 25mm | 20mm |
| Collimating focal length | 100mm | 100mm | 100mm | 75/100mm |
| Focusing focal length | 150/190mm | 125/150/190mm | 125/150/190mm | 125/150mm |
| Max. applicable power | 6kW | 3kW | 3kW | 1.5kW |

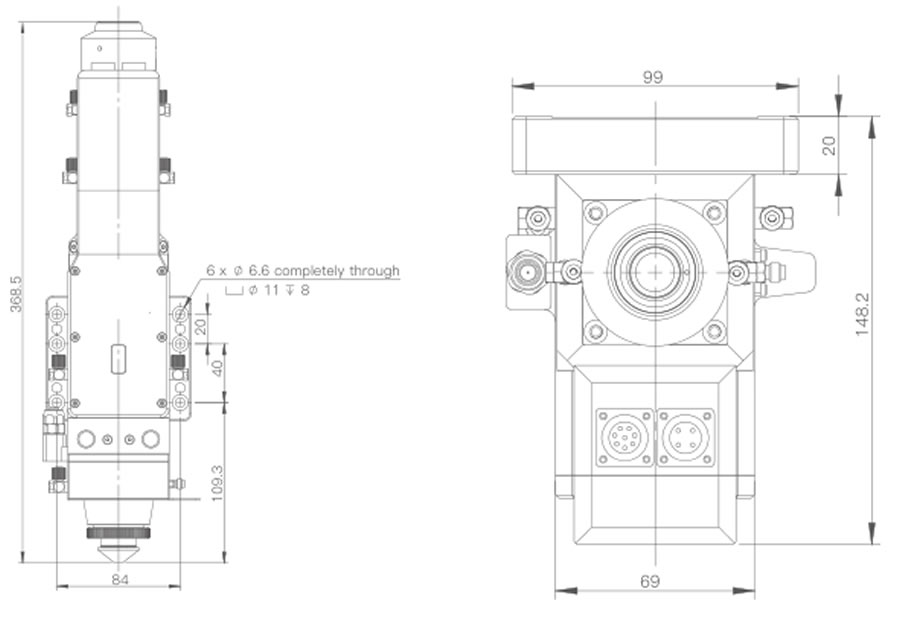

| Dimension (mm) | 368.5x148.2x99 | 368.5x148.2x99 | 377.5x121.2x100 | 360x109x93 |
| Weight | 7.3kg | 5.1kg | 4.4kg | 2.8kg |
The cutting heads are completely sealed
Two point centering adjustment is easy and fast for focusing
Automatically focusing laser focus spot
Easily change or replace the protective lens via drawer structure
To be equipped with various kinds of QBH connectors

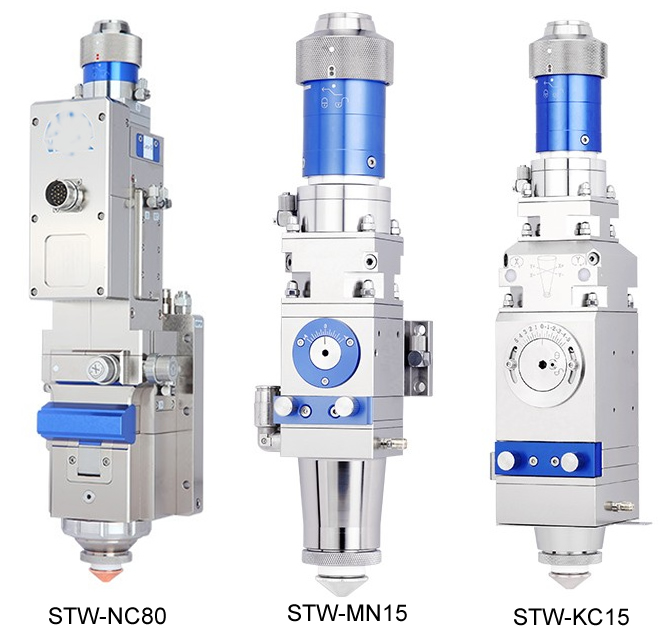

| Model | STW-NC80 |
| Max gas pressure | 25bar |
| Horizontal adjustment range | ±1.5mm |
| Vertical adjustment range | ±10mm |
| Effective aperture | 32mm |
| Collimating focal length | 100mm |
| Focusing focal length | 150/190mm |
| Max. applicable power | 9kW |
| Adjustable spot ratio | 1:3.2 |

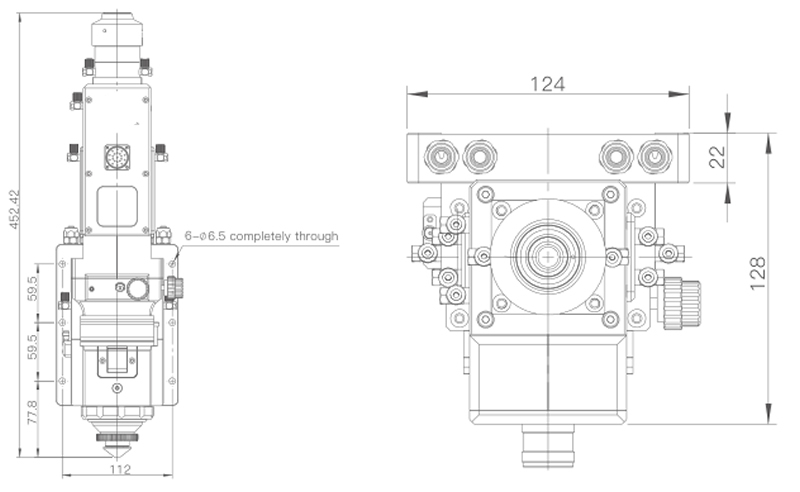

| Dimension | 452x128x124mm |
| Weight | 6.2kg |
The laser cutting head is completely sealed to avoid dust contamination on the optical parts.
This laser head adopts two-point alignment, and the focusing is adjusted by cam structure accurately and conveniently.
The protective window is installed in cartridge, and is convenient to replace.
Can be equipped with various kinds of laser source with QBH connector.
| Model | STW-MN15 | STW-KC15 |
| Max gas pressure | 25bar | 25bar |
| Horizontal adjustment range | ±1.5mm | ±1.5mm |
| Vertical adjustment range | ±4mm | ±5mm |
| Effective aperture | 20mm | 25mm |
| Collimating focal length | 75/100mm | 75/100mm |
| Focusing focal length | 125mm/150mm | 125mm/150mm/200mm |
| Max. applicable power | 1000W | 2000W |

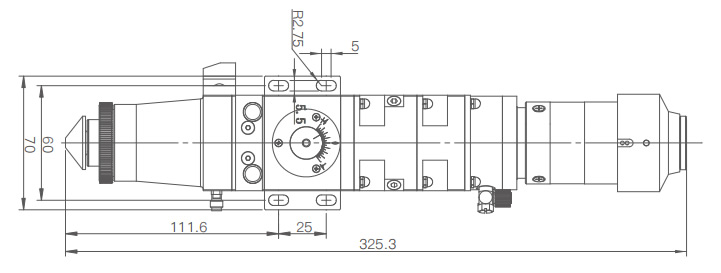

| Dimension | 325x70x70mm | 364x99x93mm |
| Weight | 1.7kg | 3.3kg |

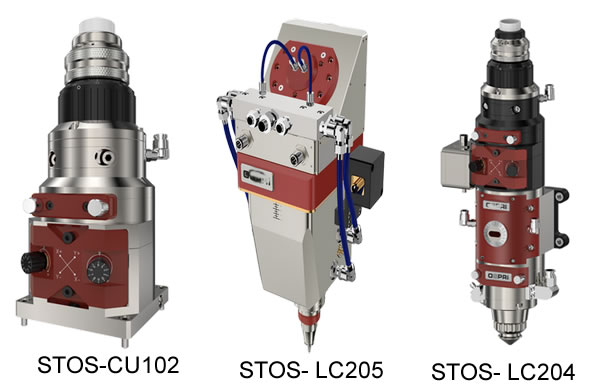

Installation with collimating mirror.
Water cooling module.
Drawer installation method.
| Interface type | QBH |
| Laser power | ≤1500W/3000W |
| Collimating focallength | F100mm/150mm |
| Horizontal Adjustment | ±1.5mm |
| Collimatingcontrol range | ±5mm |
| The maximum optical aperture | 26mm |
| Weight | 1.0KG |
Integrated shaft
Small and long cutting head, suitable for working in limited space
The cutting machine is suitable for integration in multi axis.
Built-in water cooling
Drawer installation method, convenient for maintenanceand replacement
The plane screw adjust focus by transmission, accuracy is 0.1mm, with a good self-locking performance.
| Laser power | ≤3000W |
| Focal length | 150mm |
| Vertical Adjustment | ±5mm |
| Horizontal Adjustment | ±1.5mm |
| Nozzle | all types |
| Shaft travel | 20mm |
| Follow rated speed | 50mm/s |
| Weight | 7.0KG |
Suitable for small and medium size cutting machine
Built-in water cooling
Drawer installation method, convenient for maintenance and replacement
Installed collimating protective lens
The plane screw adjust focus by transmission ,accuracy is 0.1mm,with a good self-locking performance
| Interface type | QBH |
| Laser power | ≤1500W |
| Focal length | 125mm/150mm |
| Collimating Focal length | 80mm/100mm |
| Nozzle | all types |
| Vertical Adjustment | ±8.5mm |
| Collimator Adjustment | ±5mm |
| Horizontal Adjustment | ±1.5mm |
| Auxiliary pressure | ≤3.0MPa |
| Weight | 3.0KG |
Small volume, light weight
Suitable for small and medium size cutting machine
Drawer installation method, convenient for maintenance and replacement
The plane screw adjust focus by transmission ,accuracy is 0.1mm,with a good self-locking performance
| Interface type | QBH |

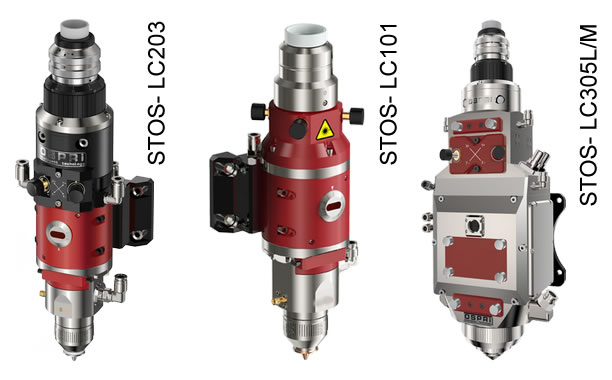

| Laser power | (LC305L≤1500W), (LC305M≤3000W) |
| Focal length | 125mm/150mm/200mm |
| Collimating Focal length | 100mm |
| Nozzle | all types |
| Vertical Adjustment | +10mm~-12mm |
| Collimator Adjustment | ±5mm |
| Horizontal Adjustment | ±1.5mm |
| Focus adjustment speed | 40mm/s |
| Auxiliary pressure | ≤3.0MPa |
| Weight | 6.0KG |
Automatic focusing mode, fast speed, high accuracy. Installed collimating protective lens
Suitable for integration in large plane cutting machine.
Drawer installation method, convenient for maintenance and replacement
Built-in water cooling
| Interface type | QBH |
| Laser power | (LC305L≤1500W), (LC305M≤3000W) |
| Focal length | 125mm/150mm/200mm |
| Collimating Focal length | 100mm |
| Nozzle | all types |
| Vertical Adjustment | +10mm~-12mm |
| Collimator Adjustment | ±5mm |
| Horizontal Adjustment | ±1.5mm |
| Focus adjustment speed | 40mm/s |
| Auxiliary pressure | ≤3.0MPa |
| Weight | 6.0KG |

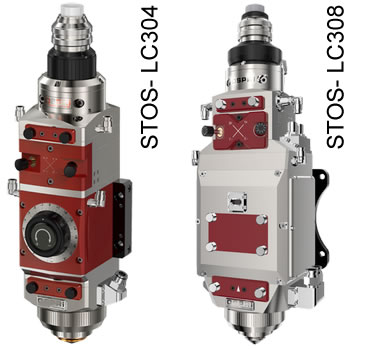

Installed collimating protective lens
Suitable for integration in large plane cutting machine.
Built-in water cooling
Drawer installation method, convenient for maintenance and replacement
The plane screw adjust focus by transmission ,accuracy is 0.1mm,with a good self-locking performance
| Interface type | QBH |
| Laser power | ≤3000W |
| Focal length | 125mm/150mm/200mm |
| Collimating Focal length | 100mm |
| Nozzle | all types |
| Vertical Adjustment | ±8.5mm |
| Horizontal Adjustment | ±1.5mm |
| Auxiliary pressure | ≤3.0MPa |
| Weight | 5.0KG |
Automatic focusing mode, fast, high accuracy.
Installation with collimatingprotectivemirror.
Suitable for medium and large plane cutting machine.
Drawer installation method, convenient for change and maintain.
Laser power | ≤6000W |
| Collimating Focal length | 100mm |
| Nozzle type | all types |
| Vertical Adjustment | +10mm~-12mm |
| Focus adjustment speed | 40mm/s |
| Auxiliary pressure | ≤3.0MPa |

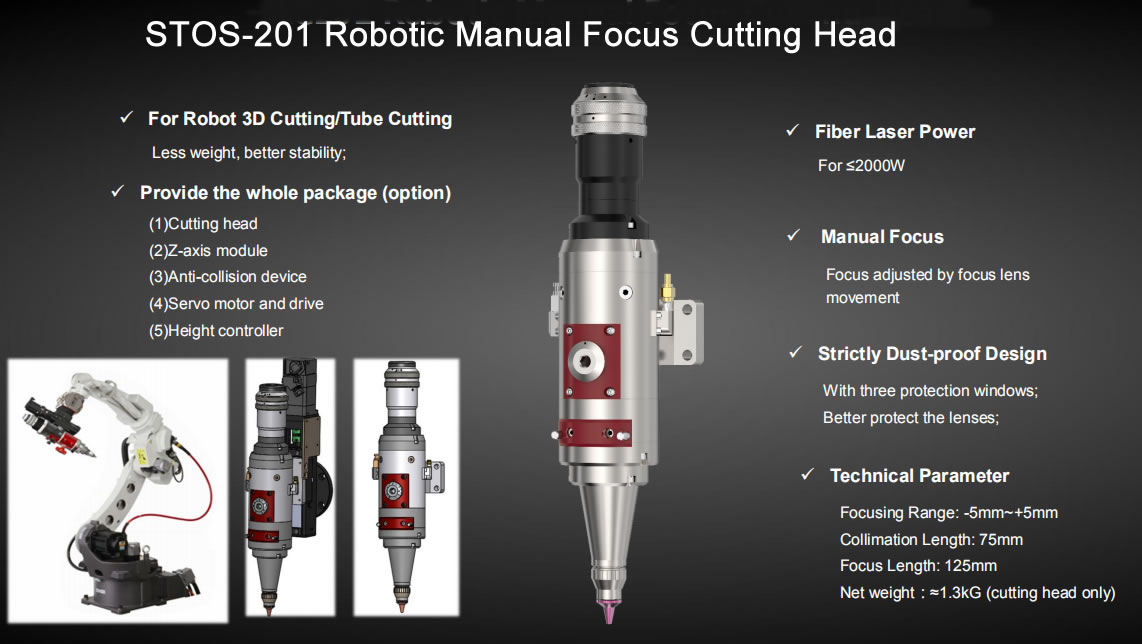

Small volume, light weight suitable robot 3D laser cutting
Small and long cutting head, suitable for working in limited space
suitable for integration in three-dimensional cutting machine（Industrial manipulator）
Built-in water cooling
Drawer installation method, convenient for maintenance and replacement
Manual adjusting focus by moving lens
Optional servo module and collision protection device.

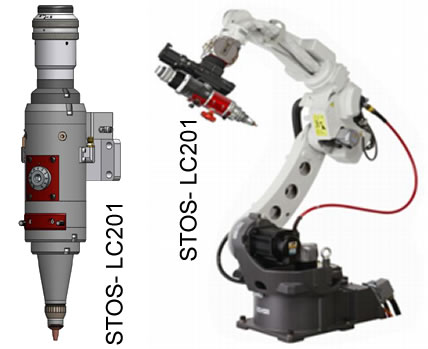

| Model | STOS-LC201 |
| Interface type | QBH |
| Laser power | ≤2000W |
| Focal length | 50mm |
| Collimating focal length | 75mm |
| Nozzle | all types |
| Adjustable focusing range | ±5mm |
| Adjustable centering range | ±1.5mm |
| Auxiliary pressure | ≤2.5MPa |
| Weight | 1.3kg |
A leading supplier and manufacturer of a wide range of photonics products such as lasers,laser parts & machines.
Office: 10 Bukit Batok Crescent #07-02 The Spire Singapore 658079
Tel: +65 63167112
Fax: +65 63167113
Whatsapp: +65 91904616
