STC-MPL-F-266/ 0.1~3uJ/ 1~10mW
STC-MPL-Q-266/ 0.1~3uJ/ 1~30mW
STC-MPL-Q1-266/ 10uJ/ 10mW, Fixed rep. rate 1kHz
STC-MPL-C-266/ 0.1~10uJ/ 1~30mW, Pulse width 1ns @1kHz
STC-MPL-N-266/ 0.1~10uJ/ 1~120mW, Pulse width 1.3ns
STC-MPL-W-266/ 5~30uJ/ 50~600mW
STC-MPL-F-355/ 0.1~15uJ/1~100mW
STC-MPL-Q-355/ 0.1~15uJ/1~150mW Pulse width 1.3ns
STC-MPL-N-355/ 0.1~90uJ/ 1~800mW
STC-MPL-W-355/ 25~80uJ/ 400~2000mW
We offer diverse of Q-switched 532 nm lasers in passively modes. With pulse width in short nanosecond, and single pulse energy up to 450mJ. Are the perfect choice for the end user applications in research, medical and industry. Nanosecond lasers perform precision processing with excellent material removal rates for microelectronics, materials processing, and medical device manufacturing.
Applications:
Scientific Research
Life Science & Medical
Materials Processing
Microelectronics
OEM Integration
| Model | Single pulse energy | Repetition rate | Pulse width (ns) |
| STC-MPL-III-532 | 1-5 μJ | 1-20 kHz | ~5 (1.3 optional) |
| STC-MPL-T-532 | 1-10 μJ | 0.1-15 kHz | ~0.5 |
| STC-MPL-SU-532 | 5-40 μJ | 1-15 kHz | ~1.3/ ~4 |
| STC-MPL-H-532 | 5-50 μJ | 1-30 kHz | ~5 (1.3 optional) |
| STC-MPL-U-532 | 20-60 μJ | 4-12 kHz | ~4 (1.3 optional) |
| STC-MPL-N-532 | 50-125 μJ | 1 k-15 kHz | ~5 |
We offer diverse of Q switched 1064 nm lasers in passively modes. With pulse width from 1.3ns to 150ns, and single pulse energy from 1uJ to 20J. These lasers are the perfect choice for the end user applications in research, medical and industry. Nanosecond lasers perform precision processing with excellent material removal rates for microelectronics, materials processing, solar and medical device manufacturing.
Applications:
Life Science & Medical
Materials Processing
Microelectronics
OEM Integration
| Model | Single pulse energy/ Power | Repetition rate | Pulse width (ns) |
| STC-MPL-III-1064 | 10-20 μJ | 1-20 kHz | ~3-25 (1.3 optional) |
| STC-OEM-P-1064 | 1-20 μJ | 1-20 kHz | ~1-5 |
| STC-MPL-T-1064 | 1-35 μJ | 0.1-20 kHz | ~0.5 |
| STC-MPL-H-1064 | 20-100 μJ | 1-30 kHz | ~10 (1.5 optional) |
| STC-MPL-SU-1064 | 20-200 μJ | 1-15 kHz | ~1.5/ ~1.8/ ~5 |
| STC-MPL-FL-1064-A | 15-130 μJ | 1-70 kHz | ~5 (1.3 optional) |
| STC-MPL-N-1064 | 150-200 μJ | 1-15 kHz | ~3-5 (<2 optional=""> |
| STC-MPL-FL-1064-B | 150-300 μJ | 1 kHz | ~2 (1.0 optional) |
Please contact us for more detailed specifications on the above lasers.
Pulsed lasers from the IR to the deep UV ranges of the spectrum are widely used in biology, biomedicine, chemistry, analytics, micromachining and environmental technology. We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213 nm, 266 nm, 355 nm, 532 nm and 1064 nm with excellent beam quality.
User friendly
Air-cooled
Compact/small footprint
Short pulsed
External triggering
Pulse-to-pulse stability
Output energy stability
Single pulse operation
| Wavelength nm | Part no. | Pulse energy | Repetition rate | Pulse width ns |
| 213 | SFQSS-213-Q | Up to 2.5uJ | Up to 20kHz | Up to 1.0ns |
| 213 | SFQSS-213-50 | Up to 50uJ | Up to 60Hz | Up to 1.3ns |
| 213 | SeMOPA-213-20 | Up to 20uJ | Up to 1kHz | Up to 1.0ns |
| 266 | SFQSS-266-Q | Up to 12uJ | Up to 20kHz | Up to 1.0ns |
| 266 | SeMOPA-266-40 | Up to 40uJ | Up to 1kHz | Up to 1.0ns |
| 266 | SFQSS-266-50 | Up to 50uJ | Up to 100Hz | Up to 1.3ns |
| 266 | SFQSS-266-200 | Up to 200uJ | Up to 60Hz | Up to 1.5ns |
| 266 | SMOPA-266-40 | Up to 40uJ | Up to 1kHz | Up to 1.0ns |
| 266 | SMOPA-266-50 | Up to 50uJ | Up to 1kHz | Up to 1.0ns |
| 266 | SMOPA-266-200 | Up to 15uJ | Up to 20kHz | Up to 1.0ns |
| 355 | SFTSS-355-Q | Up to 42uJ | Up to 20kHz | Up to 1.4ns |
| 355 | SFTSS-355-50 | Up to 70uJ | Up to 100Hz | Up to 1.3ns |
| 355 | SFTSS-355-300 | Up to 300uJ | Up to 80Hz | Up to 1.7ns |
| 355 | SMOPA-355-100 | Up to 300uJ | Up to 1kHz | Up to 1.3ns |
| 355 | SMOPA-355-200 | Up to 200uJ | Up to 1kHz | Up to 1.1ns |
| 355 | SMOPA-355-500 | Up to 35uJ | Up to 20kHz | Up to 1.1ns |
| 532 | SFDSS-532-Q | Up to 42uJ | Up to 20kHz | Up to 1.3ns |
| 532 | SFDSS-532-150 | Up to 150uJ | Up to 100Hz | Up to 1.5ns |
| 532 | SFDSS-532-1000 | Up to 1000uJ | Up to 80Hz | Up to 1.8ns |
| 532 | SMOPA-532-200 | Up to 200uJ | Up to 1kHz | Up to 1.5ns |
| 532 | SMOPA-532-250 | Up to 250uJ | Up to 1kHz | Up to 1.2ns |
| 532 | SMOPA-532-700 | Up to 48uJ | Up to 20kHz | Up to 1.3ns |
| 1064 | SDSS-1064-Q | Up to 90uJ | Up to 20kHz | Up to 1.5ns |
| 1064 | SDSS-1064-450 | Up to 450uJ | Up to 100Hz | Up to 2.0ns |
| 1064 | SDSS-1064-3000 | Up to 2500uJ | Up to 80Hz | Up to 2.5ns |
| 1064 | SMOPA-1064-650 | Up to 650uJ | Up to 1kHz | Up to 1.4ns |
| 1064 | SMOPA-1064-2000 | Up to 130uJ | Up to 20kHz | Up to 1.5ns |

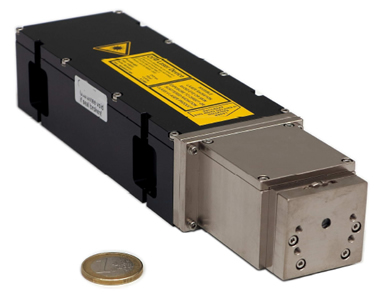

We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Pulsed ≤ 1.0ns
Pulse energy >2.5uJ @ 200Hz
Repetition rate up to 1kHz
External and internal trigger mode
Specifications:
| Model | SFQSS213-Q4 | SFQSS213-Q4_1kHz |
| Wavelength | 213 nm | |
| Pulse energy | > 2.5 μJ @ 200 Hz | > 1.5 μJ @ 1 kHz |
| Peak power | > 2.5 kW @ 200 HZ | > 1.5 kW @ 1 kHz |
| Max pulse repetition rate | 200 Hz | 1 kHz |
| Pulse width (FWHM) | ≤1.0 ns | |
| Polarization ratio | > 100:1 vertical | |
| Power stability | < ±5 % | |
| Laser classification | 4 / IV | |
| Spatial mode | TEM00 | |
| Beam divergence (full angle) | < 2.5 mrad | |
| Beam diameter at output plane | 400 ± 200 μm | 400 ± 200 μm |
| Power consumption mean (max.) | 15 W (40 W) | 20 W (70 W) |
| Operating voltage (OEM) | 12 V DC | |
| Line voltage (with AC-DC adapter) | 90 - 265 V AC (50 - 60 Hz) | |
| Marking | CE | |
| Communication interface | RS 232, USB External Trigger (TTL, rising edge) 1Hz - max. repetition rate Interface for TTL-control and power monitor | |
| Warm-up time | < 5 min | |
| Operating temperature | 18 - 38 °C | |
| Dimensions laser head | 209.25 x 54 x 50 mm | |
| Dimensions controller STAND ALONE | 174 x 115 x 64 mm | |
| Dimensions controller OEM | 174 x 130 x 35 mm | |
| Options | Stand Alone System (incl. key-switch, heat-sink, manual shutter; CDRH compliant) Manual shutter or Electrical Beam Blocker | |

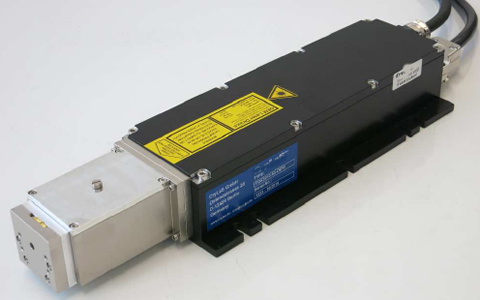

We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Single pulse
Pulsed ≤ 1.3ns
Repetition rate 1-60 Hz
Pulse energy > 50uJ
Specifications:
| Model | SFQSS213-50 |
| Wavelength | 213 nm |
| Spatial Mode | TEM00 |
| M² | < 1.5 |
| Beam Divergence (full angle) | < 3.0 mrad |
| Beam Ellipticity | < 2:1 |
| Beam Diameter | 450 ± 150 μm (at laser exit) |
| Peak Power | 40 kW @ 1 - 60 Hz |
| Pulse Energy | > 50 μJ @ 1 - 60 Hz |
| Pulse Repetition Rate (with external trigger) | 1 - 60 Hz |
| Pulse Width (FWHM) | < 1.3 ns |
| Polarization Ratio | > 100:1, horizontal |
| Long Term Pulse Energy Stability (6 hrs) | < ± 5 % |
| Pulse-To-Pulse Stability | < 2% rms (of pulse energy) |
| Laser Classification | 4 / IV |
| Residual 266nm, 532nm, 1064nm Emission | < 0.7 μJ of output pulse energy |
| Optical Output | Free Beam |
| Electrical Power Consumption | < 90 W |
| Line Voltage | 90 - 265 V AC (50-60 Hz) or 24 V DC |
| Interface | RS 232, USB |
| Warm-up Time | < 10 min |
| Operating Temperature | 18 - 38 °C |
| Laser Head Size | 273 x 65 x 55 mm (core dimensions) |
| Dimension laser head | 328.5 x 89 x 55.1mm |
| Dimension OEM controller | 166 x 129.8 x 105mm |
| Options | Manual Shutter or Electrical Beam Blocker, External Telescope (e.g. M=5), Stand alone system (CDRH compliant; incl. key switch, heat sink, manual beam shutter) |

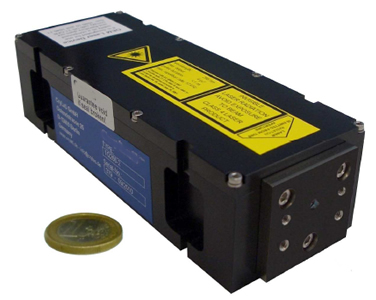

We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Pulsed ≤ 1.0ns
Pulse energy >1.5uJ @ 200Hz
Repetition rate up to 5kHz
External and internal trigger mode
Free beam
Specifications:
| Model | SFQSS266-Q1 | SFQSS266-Q2 |
| Wavelength | 266 nm | |
| Pulse energy | > 0.3 μJ @ 5 kHz | > 1.25 μJ @ 1 kHz |
| Peak power | > 0.3 kW @ 5 kHz | > 1.25 kW @ 1 kHz |
| Max pulse repetition rate | 5 kHz | 2.5 kHz |
| Pulse width (FWHM) | ≤1.0 ns | |
| Polarization ratio | > 100:1 vertical | |
| Power stability | < ±5 | |
| Laser classification | 4 / IV | |
| Spatial Mode | TEM00 | |
| Beam Divergence (full angle) | < 2.0 mrad | |
| Beam Diameter at Output Plane | 850 ± 150 μm | 850 ± 150 μm |
| Power Consumption mean (max.) | 15 W (40 W) | 20 W (70 W) |
| Operating Voltage (OEM) | 12 V DC | |
| Line Voltage (with AC-DC adapter) | 90 - 240 V AC (50 - 60 Hz) | |
| Marking | CE | |
| Communication interface | RS 232, USB External Trigger (TTL, rising edge) 1Hz - max. repetition rate Service interface for TTL-control and power monitor | |
| Warm-up time | < 5 min | |
| Operating Temperature | 18 - 38 °C | |
| Options | Stand alone system (incl. key-switch, heat-sink and manual shutter; CDRH compliant), Synchronization Signal Output (rise time < 2 ns), Manual shutter or electrical beam blocker, External telescope (e.g. M=3), Manual or electrical driven wavelength switch 266 / 532nm, Manual or electrical attenuator, Upgrade to 8 mW | |
| Dimensions Laser head | 158.9 x 54 x 39 mm | |
| Dimensions Controller STAND ALONE | 134 x 115 x 64 mm | |
| Dimensions Controller OEM | 134 x 130 x 35 mm | |
We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Pulsed ≤ 1.0ns
Pulse energy >18uJ @ 200Hz
Repetition rate up to 1kHz
External and internal trigger mode
Specifications:
| Model | SFQSS266-Q4 | SFQSS266-Q4_1kHz |
| Wavelength | 266 nm | |
| Pulse energy | > 18 μJ @ 200 Hz | > 12 μJ @ 1 kHz |
| Peak power | > 18 kW @ 200 HZ | > 12 kW @ 1 kHz |
| Max pulse repetition rate | 200 Hz | 1 kHz |
| Pulse width (FWHM) | ≤1.0 ns | |
| Polarization ratio | > 100:1 vertical | |
| Power stability | < 2% rms | |
| Laser classification | 4 / IV | |
| Spatial Mode | TEM00 | |
| Beam Divergence (full angle) | < 1.5 mrad | |
| Beam Diameter at Output Plane | 1.0 ± 0.4 mm | 1.0 ± 0.4 mm |
| Power Consumption mean (max.) | 40 (70 W) | 40 (70 W) |
| Operating Voltage (OEM) | 12 V DC | |
| Line Voltage (with AC-DC adapter) | 90 - 265 V AC (50 - 60 Hz) | |
| Marking | CE | |
| Communication interface | RS 232, USB External Trigger (TTL, rising edge) 1 Hz - max. repetition rate Interface for TTL-control and power monitor | |
| Warm-up time | < 5 min | |
| Operating Temperature | 18 - 38 °C | |
| Options | Stand Alone System (incl. key-switch, heat-sink, manual shutter; CDRH compliant), Synchronization Signal Output (rise time < 2 ns), Manual Shutter or Electrical Beam Blocker, Manual or Electrical driven Wavelength Switch 266 / 532 nm, External Telescope (e.g. M=5), Manual or Electrical Attenuator | |
| Dimensions Laser head | 158.9 x 54 x 39 mm | |
| Dimensions Controller STAND ALONE | 174 x 115 x 64 mm | |
| Dimensions Controller OEM | 174 x 130 x 35 mm | |
Features:
266 nm
Single Pulse
1.0 ns
Single shot (pulse on demand) – 1 kHz
> 40 μJ
External / Internal Trigger
Applications:
Biology · Biomedicine · Chemistry · Analytics
Specifications:
| Part Number | SeMOPA-266-40 |
| Optical Data | |
| Wavelength | 266 nm |
| Peak Power | > 40 kW @ 1000 Hz |
| Pulse Energy | > 40μJ @ 1000 Hz |
| Beam Divergence (full angle) | < 1.5mrad |
| Beam Ellipticity | < 1.5:1 |
| Beam Diameter | 0.8 ± 0.3 mm (at laser exit) |
| Spatial Mode | TEM00 |
| Pulse Repetition Rate (with external trigger) | Single shot (pulse on demand) – 1 kHz |
| Pulse Width (FWHM) | < 1.0 ns |
| Polarization Ratio | > 100:1, vertical |
| Pulse Energy Drift over 6h 1) | < ± 3 % |
| Pulse-to-Pulse Energy Stability 2) | < 2% |
| Laser Classification | 4 / IV |
| Optical Output | Free Beam |
| Electrical Data | |
| Electrical Power Consumption | < 100 W |
| Line Voltage | 90 - 265 V AC (50-60 Hz) |
| Interface | USB / RS232 BNC connector for external triggering (TTL) SMB connector for 24 V DC output |
| Miscellaneous | |
| Warm-up Time | < 10 min |
| Operating Temperature | 22 - 32 °C |
| Laser Head Size | 56 x 140 x 265 mm (H x W x L) |
| Stand-Alone Unit Size | 129.5 x 177 x 180 mm (H x W x L) |
| Options | Multimode fiber coupling Synchronization signal output (rise time < 1.5 ns) Electrical or manual wavelength switch (266nm – 532nm) or electrical beam blocker External telescope (beam expander) |
Remark:
1) Averaged over 10s after 10min of continuous operation @ 1kHz activated closed loop control
2) Over 1000 pulses @ 1kHz after 10min of continuous operation

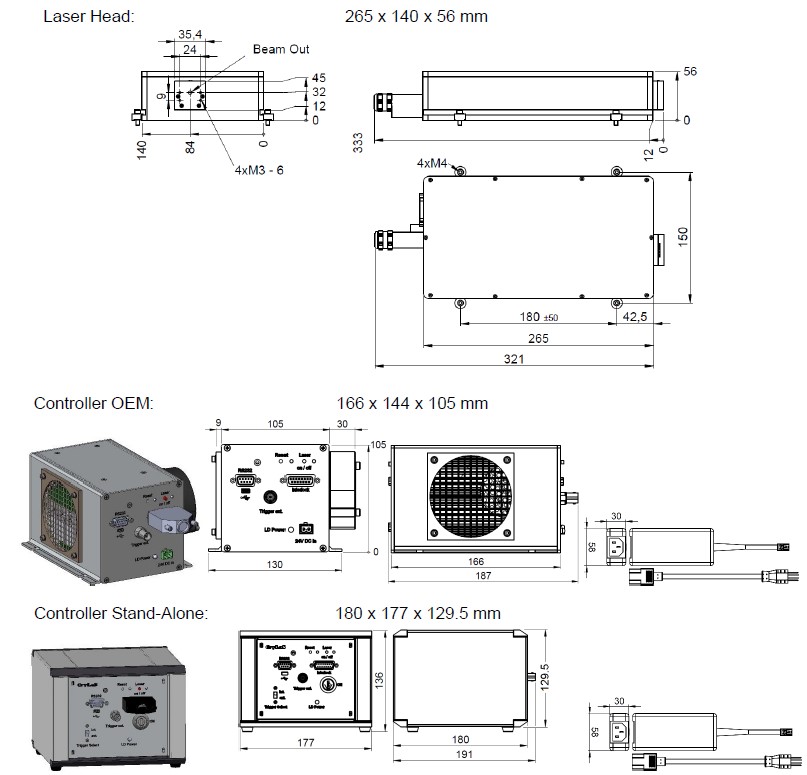

Dimension:

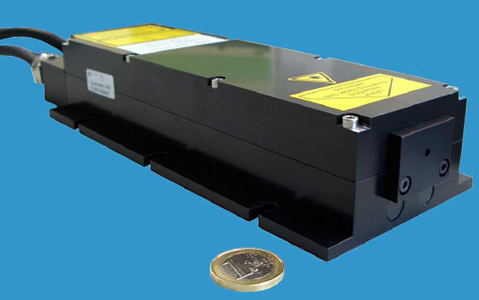

We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Single pulse
Pulsed 0.9-1.3ns
Repetition rate 1-100Hz (optional up to 1kHz)
Pulse energy >50uJ
| Model | SFQSS266-50 |
| Wavelength | 266 nm |
| Spatial Mode | TEM00 |
| M² | < 1.5 |
| Beam Divergence (full angle) | < 3.0 mrad |
| Beam Ellipticity | < 1.5:1 |
| Waist Diameter | 800±200μm (located at about 110mm inside the laser head) |
| Beam Diameter | 800 ± 200 μm (at laser exit) |
| Peak Power | 45 kW - 65 kW @ 1-100 Hz |
| Pulse Energy | > 50 μJ @ 1 - 100 Hz (> 15μJ @ 1kHz Option) |
| Pulse Repetition Rate (external trigger) | 1 - 100 Hz |
| Pulse Width (FWHM) | 0.9 - 1.3 ns |
| Polarization Ratio | > 100:1, vertical |
| Long Term Pulse Energy Stability (6 hrs) | < ± 2 % |
| Pulse-To-Pulse Stability | < 1% rms (of pulse energy) |
| Laser Classification | 4 / IV |
| Residual 532nm Emission | < 0.5% of output pulse energy |
| Optical Output | Free Beam |
| Electrical Power Consumption | < 70 W |
| Line Voltage | 90 - 265 V AC (50-60 Hz) or 24 V DC |
| Interface | RS 232, USB |
| Warm-up Time | < 10 min |
| Operating Temperature | 18 - 38 °C |
| Laser Head Size | 217 x 65 x 45 mm (core dimensions) |
| Dimension laser head | 279 x 89 x 44.7mm |
| Dimension OEM controller | 166 x 129.8 x 105mm |
| Options | Synchronization signal output (rise time < 2 ns); Manual shutter or electrical beam blocker; Manual or electrical driven wavelength switch 266/532nm; Upgrade to 1 kHz repetition rate (parameters on request); External telescope (e.g. M=5); Manual or electrical attenuator; Stand Alone System (incl. key-switch, heat-sink, manual shutter; CDRH compliant) |
We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Single pulse
Pulsed <1.5ns>
Repetition rate 1-60Hz
Pulse energy >200uJ
| Model | SFQSS266-200 |
| Wavelength | 266 nm |
| Beam Divergence (full angle) | < 3.0 mrad |
| Beam Ellipticity | < 2:1 |
| Waist Diameter | 500±150μm (located at about 110mm inside the laser head) |
| Beam Diameter | 800 ± 300 μm (at laser exit) |
| Peak Power | > 130 kW @ 20 Hz |
| Pulse Energy | > 200 μJ @ 20 Hz |
| Pulse Repetition Rate (external trigger) | 1 - 60 Hz |
| Pulse Width (FWHM) | 1.5 ns |
| Polarization Ratio | > 100:1, vertical |
| Long Term Pulse Energy Stability (6 hrs) | < ± 5 % |
| Laser Classification | 4 / IV |
| Residual 532nm Emission | < 0.5% of output pulse energy |
| Optical Output | Free Beam |
| Electrical Power Consumption | < 90 W |
| Line Voltage | 90 - 265 V AC (50-60 Hz) or 24 V DC |
| Interface | RS 232, USB |
| Warm-up Time | < 10 min |
| Operating Temperature | 18 - 35 °C |
| Laser Head Size | 217 x 65 x 45 mm (core dimensions) |
| Dimension laser head | 279 x 89 x 44.7mm |
| Dimension OEM controller | 166 x 129.8 x 105mm |
| Options | Synchronization signal output (rise time < 2 ns); Manual shutter or electrical beam blocker; Manual or electrical driven wavelength switch 266 / 532 nm; External telescope (e.g. M=5); Manual or electrical attenuator; Stand Alone System (incl. key-switch, heat-sink, manual shutter; CDRH compliant) |
We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Very short pulses
External triggering
Single pulse operation
Excellent beam quality
High pulse-to-pulse stability
Good output energy stability
| Model | SMOPA266-50(Peak power) | SMOPA266-200mW (Average power) |
| Wavelength | 266 nm | 266 nm |
| Average power | - | > 200 mW @ 15 kHz |
| Peak Power | > 50 kW @ 1000 Hz | - |
| Pulse Energy | > 50 μJ @ 1000 Hz | > 15 μJ @ 15 kHz |
| Beam Divergence | < 2.0 mrad(full angle) | < 2.0 mrad(full angle) |
| Beam Ellipticity | < 2:1 | < 2:1 |
| Beam Diameter | 1.0 ± 0.3 mm (at laser exit) | 1.0 ± 0.3 mm (at laser exit) |
| Spatial Mode | TEM00 | TEM00 |
| Pulse Repetition Rate | 1 - 1000 Hz(with external trigger) | 1 Hz - 20 kHz(with external trigger) |
| Pulse Width (FWHM) | 1.0 ns | 1.0 ns |
| Polarization Ratio | > 100:1, vertical | > 100:1, vertical |
| Pulse Energy Stability | < ± 3 % (over 8 hrs) | < ± 3 % @ 15kHz (over 8 hrs) |
| Pulse-to-Pulse Energy Stability (over 60 sec) | < ± 3 % (<1% rms=""> | < ± 8 % (<2.5% rms=""> |
| Laser Classification | 4 / IV | 4 / IV |
| Optical Output | Free Beam | Free Beam |
| Power Consumption | < 150 W | < 250 W |
| Line Voltage | 90 - 265 V AC (50-60 Hz) | 90 - 265 V AC (50-60 Hz) |
| Interface | USB, SMB connector for 24 V DC output, BNC connector for external triggering (TTL) | |
| Warm-up Time | < 10 min | < 10 min |
| Operating Temp | 18 - 38 °C | 18 - 38 °C |
| Laser Head Size | 61 x 120 x 314 mm (H x W x L) | 61 x 120 x 314 mm (H x W x L) |
| Stand-Alone Unit Size | 184 x 343 x 375 mm (H x W x L) | 184 x 343 x 375 mm (H x W x L) |
| Options | Multimode fiber coupling; Synchronization signal output (rise time < 2 ns); Electrical or manual wavelength switch (266nm– 532nm) or electrical beam blocker; External telescope (beam expander) | External telescope (beam expander); Manual attenuator; Synchronization signal output (rise time < 2 ns); Electrical or manual wavelength switch (266nm – 532nm) or electrical beam blocker |
We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Pulsed ≤ 1.1ns
Pulse energy >25uJ
Repetition rate up to 20kHz
External and internal trigger mode
Free beam or fiber coupling
| Model | SFTSS355-Q1 | SFTSS355-Q2 | SFTSS355-Q3 |
| Wavelength | 355 nm | ||
| Pulse energy | > 0.3 μJ @ 15 kHz | > 3 μJ @ 10 kHz | > 15 μJ @ 1 kHz |
| Peak power | > 0.25 kW @ 15 kHz | > 2.5 kW @ 10 kHz | > 13 kW @ 1 kHz |
| Max pulse repetition rate | 20 kHz | 10 kHz | 2.5 kHz |
| Pulse width (FWHM) | ≤1.1 ns | ||
| Polarization ratio | > 100:1 vertical | ||
| Power stability | < ± 5 % | < ± 3 % | < ± 3 % |
| Laser classification | 3B / IIIb | ||
| Spatial Mode | TEM00 | ||
| Beam Divergence (full angle) | < 3 mrad | < 3.5 mrad | < 4 mrad |
| Beam Diameter at Output Plane | 190 ± 50 μm | 200 ± 50 μm | 200 ± 50 μm |
| Power Consumption mean (max.) | 15 W (40 W) | 17 W (40 W) | 20 W (70 W) |
| Operating Voltage (OEM) | 12 V DC | ||
| Line voltage (AC-DC adapter) | 90 - 240 V AC (50 - 60 Hz) | ||
| Marking | CE | ||
| Communication interface | RS 232, USB, External Trigger (TTL, rising edge) 1 Hz - max. repetition rate, Interface for TTL-control and power monitor | ||
| Warm-up time | < 5 min | ||
| Operating Temperature | 18 - 38 °C | ||
| Options | Stand Alone System (incl. key-switch, heat-sink, manual shutter; CDRH compliant), Synchronization Signal Output (rise time < 2 ns), Manual Shutter or Electrical Beam Blocker, Manual or Electrical driven Wavelength Switch 266 / 532 nm, External Telescope (e.g. M=5), Manual or Electrical Attenuator | ||
| Dimensions Laser head | 158.9 x 54 x 39 mm | ||
| Dimensions Controller STAND ALONE | Q1,Q2: 134 x 115 x 64 mm; Q3: 174 x 115 x 64 mm | ||
| Dimensions Controller OEM | Q1, Q2: 134 x 130 x 35 mm; Q3: 174 x 130 x 35 mm | ||
We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Pulsed ≤ 1.4ns
Pulse energy >60uJ @ 200Hz
Repetition rate up to 1kHz
External and internal trigger mode
Free beam or Fiber coupling
Specifications:
| Model | SFTSS355-Q4 | SFTSS355-Q4_1kHz |
| Wavelength | 355 nm | |
| Pulse energy | > 60 μJ @ 200 Hz | > 42 μJ @ 1 kHz |
| Peak power | > 42 kW @ 200 HZ | > 30 kW @ 1 kHz |
| Max pulse repetition rate | 200 Hz | 1 kHz |
| Pulse width (FWHM) | ≤1.4 ns | |
| Polarization ratio | > 100:1 vertical | |
| Power stability | < 2% rms | |
| Laser classification | 3B / IIIb | |
| Spatial Mode | TEM00 | |
| Beam divergence (full angle) | < 4 mrad | |
| Beam diameter at output plane | 300 ± 80 μm | 300 ± 80 μm |
| Power consumption mean (max.) | 40 (70 W) | 40 (70 W) |
| Operating voltage (OEM) | 12 V DC | |
| Line voltage (with AC-DC adapter) | 90 - 265 V AC (50 - 60 Hz) | |
| Marking | CE | |
| Communication interface | RS 232, USB External Trigger (TTL, rising edge) 1 Hz - max. repetition rate Interface for TTL-control and power monitor | |
| Warm-up time | < 5 min | |
| Operating temperature | 18 - 38 °C | |
| Options | Stand Alone System (incl. key-switch, heat-sink, manual shutter; CDRH compliant), Synchronization Signal Output (rise time < 2 ns), Fiber Coupling for fiber with core diameter > 100 μm, Manual Shutter or Electrical Beam Blocker, Manual or Electrical driven Wavelength Switch 266 / 532 nm, External Telescope (e.g. M=5), Manual or Electrical Attenuator | |
| Dimensions laser head | 158.9 x 54 x 39 mm | |
| Dimensions controller STAND ALONE | 174 x 115 x 64 mm | |
| Dimensions controller OEM | 174 x 130 x 35 mm | |
We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Single pulse
Pulsed 0.9-1.3ns
Repetition rate 1-100Hz (optional up to 1kHz)
Pulse energy >70uJ
| Model | SFTSS355-50 |
| Wavelength | 355 nm |
| Spatial Mode | TEM00 |
| M² | < 1.5 |
| Beam Divergence (full angle) | < 3.5 mrad |
| Beam Ellipticity | < 2:1 |
| Waist Diameter | 280±80μm (located at about 110mm inside the laser head) |
| Beam Diameter | 450 ± 150 μm (at laser exit) |
| Peak Power | 50 kW - 80 kW @ 1 - 100 Hz |
| Pulse Energy | > 70 μJ @ 1 - 100 Hz (> 25μJ @ 1kHz option) |
| Pulse Repetition Rate (external trigger) | 1 - 100 Hz |
| Pulse Width (FWHM) | 0.9 - 1.3 ns |
| Polarization Ratio | > 100:1, vertical |
| Long Term Pulse Energy Stability (6 hrs) | < ± 2 % |
| Pulse-To-Pulse Stability | < 1% rms (of pulse energy) |
| Laser Classification | 3B / IIIb |
| Residual 532nm Emission | < 0.2% of output pulse energy |
| Optical Output | Free Beam |
| Electrical Power Consumption | < 70 W |
| Line Voltage | 90 - 265 V AC (50-60 Hz) or 24 V DC |
| Interface | RS 232, USB |
| Warm-up Time | < 15 min |
| Operating Temperature | 18 - 38 °C |
| Laser Head Size | 217 x 65 x 45 mm (core dimensions) |
| Dimension Laser Head | 279 x 89 x 44.7mm |
| Dimension OEM Controller | 166 x 129.8 x 105mm |
| Options | SMA-connector for fibers with core diameter ≥ 70 μm; Synchronization signal output (rise time < 2 ns); Manual shutter or electrical beam blocker; Manual or electrical driven wavelength switch 355 / 532 nm; Upgrade to 1 kHz repetition rate (parameters on request); External telescope (e.g. M=5); Manual or electrical attenuator; Stand Alone System (incl. key-switch, heat-sink, manual shutter; CDRH compliant) |
Typical behaviour of the laser energy with different repetition rates:
We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Single pulse
Pulsed
<1.7ns>
Repetition rate 1-80Hz
Pulse energy >300uJ
| Model | SFTSS355-300 |
| Wavelength | 355 nm |
| Beam Divergence (full angle) | < 2.5 mrad |
| Beam Ellipticity | < 2:1 |
| Waist Diameter | 500±150μm (located at about 110mm inside the laser head) |
| Beam Diameter | 800 ± 300 μm (at laser exit) |
| Peak Power | > 180 kW @ 20 Hz |
| Pulse Energy | > 300 μJ @ 20 Hz |
| Pulse Repetition Rate (external trigger) | 1 - 80 Hz |
| Pulse Width (FWHM) | 1.7 ns |
| Polarization Ratio | > 100:1, vertical |
| Long Term Pulse Energy Stability (6 hrs) | < ± 2 % |
| Laser Classification | 3B / IIIb |
| Residual 532nm Emission | < 0.5% of output pulse energy |
| Optical Output | Free Beam |
| Electrical Power Consumption | < 150 W |
| Line Voltage | 90 - 265 V AC (50-60 Hz) or 24 V DC |
| Interface | RS 232, USB |
| Warm-up Time | < 10 min |
| Operating Temperature | 18 - 38 °C |
| Laser Head Size | 217 x 65 x 45 mm (core dimensions) |
| Dimension laser head | 279 x 89 x 44.7mm |
| Dimension OEM controller | 166 x 129.8 x 105mm |
| Options | SMA-connector for fibers with core diameter ≥ 400 μm; Synchronization signal output (rise time < 2 ns); Manual shutter or electrical beam blocker; Manual or electrical driven wavelength switch 355 / 532 nm; External telescope (e.g. M=5); Manual or electrical attenuator; Heat sink with fan(recommended for repetition rates>50 Hz) Stand Alone System (incl. key-switch, heat-sink, manual shutter; CDRH compliant) |
Typical behaviour of the laser energy with different repetition rates:
We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Very short pulses
External triggering
Single pulse operation
Excellent beam quality
High pulse-to-pulse stability
Good output energy stability
| Model | SMOPA355-200(Peak power) | SMOPA355-500mW (Average power) |
| Wavelength | 355 nm | 355 nm |
| Average power | - | > 500 mW @ 15 kHz |
| Peak Power | > 180 kW @ 1000 Hz | - |
| Pulse Energy | > 200 μJ @ 1000 Hz | > 35 μJ @ 15 kHz |
| Beam Divergence | < 3.0 mrad(full angle) | < 3.0 mrad(full angle) |
| Beam Ellipticity | < 1.5:1 | < 2:1 |
| Beam Diameter | 0.7 ± 0.3 mm (at laser exit) | 0.7 ± 0.3 mm (at laser exit) |
| Spatial Mode | TEM00 | TEM00 |
| Pulse Repetition Rate | 1 - 1000 Hz(with external trigger) | 1 Hz - 20 kHz(with external trigger) |
| Pulse Width (FWHM) | 1.1 ns | 1.1 ns |
| Polarization Ratio | > 100:1, vertical | > 100:1, vertical |
| Pulse Energy Stability | < ± 3 % (over 8 hrs) | < ± 3 % @ 15kHz (over 8 hrs) |
| Pulse-to-Pulse Energy Stability (over 60 sec) | < ± 3 % (<1% rms=""> | < ± 8 % (<2.5% rms=""> |
| Laser Classification | 4 / IV | 4 / IV |
| Optical Output | Free Beam | Free Beam |
| Power Consumption | < 200 W | < 250 W |
| Line Voltage | 90 - 265 V AC (50-60 Hz) | 90 - 265 V AC (50-60 Hz) |
| Interface | USB, SMB connector for 24 V DC output, BNC connector for external triggering (TTL) | |
| Warm-up Time | < 10 min | < 10 min |
| Operating Temp | 18 - 38 °C | 18 - 38 °C |
| Laser Head Size | 61 x 120 x 314 mm (H x W x L) | 61 x 120 x 314 mm (H x W x L) |
| Stand-Alone Unit Size | 184 x 343 x 375 mm (H x W x L) | 184 x 343 x 375 mm (H x W x L) |
| Options | Multimode fiber coupling; Synchronization signal output (rise time < 1.5 ns); Electrical or manual wavelength switch (355nm – 532nm) or electrical beam blocker; External telescope (beam expander) / Electrical or manual attenuator | Multimode fiber coupling; Synchronization signal output (rise time < 2 ns); Electrical or manual wavelength switch (355nm – 532nm) or electrical beam blocker; External telescope (beam expander) / Electrical or manual attenuator |
We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Pulsed ≤ 1.3ns
Pulse energy >25uJ
Repetition rate up to 20kHz
External and internal trigger mode
Free beam or fiber coupling
| Model | SFDSS532-Q1 | SFDSS532-Q2 | SFDSS532-Q3 |
| Wavelength | 532 nm | ||
| Pulse energy | > 2 μJ @ 15 kHz | > 6 μJ @ 10 kHz | > 20 μJ @ 1 kHz |
| Peak power | > 1.5 kW @ 15 kHz | > 4.5 kW @ 10 kHz | > 15 kW @ 1 kHz |
| Max pulse repetition rate | 20 kHz | 10 kHz | 2.5 kHz |
| Pulse width (FWHM) | ≤ 1.3 ns | ||
| Polarization ratio | > 100:1 vertical | ||
| Power stability | < ± 5 % | < ± 3 % | < ± 3 % |
| Laser classification | 3B / IIIb | ||
| Spatial mode | TEM00 | ||
| Beam divergence (full angle) | < 3.5 mrad | < 3.5 mrad | < 3.5 mrad |
| Beam diameter at output plane | 250 ± 50 μm | 260 ± 50 μm | 300 ± 80 μm |
| Power consumption mean (max.) | 15 W (40 W) | 17 W (40 W) | 20 W (70 W) |
| Operating voltage (OEM) | 12 V DC | ||
| Line voltage (AC-DC adapter) | 90 - 240 V AC (50 - 60 Hz) | ||
| Marking | CE | ||
| Communication interface | RS 232, USB, External Trigger (TTL, rising edge) 1 Hz - max. repetition rate, Interface for TTL-control and power monitor | ||
| Warm-up time | < 5 min | ||
| Operating temperature | 18 - 38 °C | ||
| Options | Stand alone system (incl. key-switch, heat-sink, manual shutter; CDRH compliant), Synchronization Signal Output (rise time < 2 ns), Fiber Coupling for fiber with core diameter > 70 μm, Manual shutter or electrical beam blocker, External telescope (e.g. M=4), Manual or electrical attenuator, Manual or electrical driven wavelength switch 532 nm / 1064 nm | ||
| Dimensions laser head | 158.9 x 54 x 39 mm | ||
| Dimensions controller STAND ALONE | Q1,Q2: 134 x 115 x 64 mm; Q3: 174 x 115 x 64 mm | ||
| Dimensions controller OEM | Q1, Q2: 134 x 130 x 35 mm; Q3: 174 x 130 x 35 mm | ||
We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Pulsed ≤ 1.4ns
Pulse energy >60uJ @ 200Hz
Repetition rate up to 1kHz
External and internal trigger mode
Free beam or Fiber coupling
| Model | SFDSS532-Q4 | SFDSS532-Q4_1kHz |
| Wavelength | 532 nm | |
| Pulse energy | > 60 μJ @ 200 Hz | > 42 μJ @ 1 kHz |
| Peak power | > 42 kW @ 200 HZ | > 30 kW @ 1 kHz |
| Max pulse repetition rate | 200 Hz | 1 kHz |
| Pulse width (FWHM) | ≤1.4 ns | |
| Polarization ratio | > 100:1 vertical | |
| Power stability | < 2% rms | |
| Laser classification | 3B / IIIb | |
| Spatial Mode | TEM00 | |
| Beam divergence (full angle) | < 4 mrad | < 4.5 mrad |
| Beam diameter at output plane | 400 ± 100 μm | 400 ± 100 μm |
| Power consumption mean (max.) | 40 (70 W) | 40 (70 W) |
| Operating voltage (OEM) | 12 V DC | |
| Line voltage (with AC-DC adapter) | 90 - 265 V AC (50 - 60 Hz) | |
| Marking | CE | |
| Communication interface | RS 232, USB External Trigger (TTL, rising edge) 1 Hz - max. repetition rate Interface for TTL-control and power monitor | |
| Warm-up time | < 5 min | |
| Operating temperature | 18 - 38 °C | |
| Options | Stand alone system (incl. key-switch, heat-sink, manual shutter; CDRH compliant), Synchronization Signal Output (rise time < 2 ns), Fiber Coupling for fiber with core diameter > 100 μm, Manual Shutter or Electrical Beam Blocker, Manual or Electrical Wavelength Switch 532 nm / 1064 nm, External Telescope (e.g. M=5), Manual or Electrical Attenuator | |
| Dimensions laser head | 158.9 x 54 x 39 mm | |
| Dimensions controller STAND ALONE | 174 x 115 x 64 mm | |
| Dimensions controller OEM | 174 x 130 x 35 mm | |
We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Single pulse
Pulsed 1.1-1.5ns
Repetition rate 1-100Hz (optional up to 1kHz)
Pulse energy >150uJ
| Model | SFDSS532-150 |
| Wavelength | 532 nm |
| Spatial Mode | TEM00 |
| M² | < 1.5 |
| Beam Divergence (full angle) | < 5.5 mrad |
| Beam Ellipticity | < 2:1 |
| Waist Diameter | 280±80μm (located at about 110mm inside the laser head) |
| Beam Diameter | 500 ± 150 μm (at laser exit) |
| Peak Power | 100 kW - 140 kW @ 1 - 100 Hz |
| Pulse Energy | > 150 μJ @ 1 - 100 Hz (> 50μJ @ 1kHz option) |
| Pulse Repetition Rate (external trigger) | 1 - 100 Hz |
| Pulse Width (FWHM) | 1.1-1.5ns |
| Polarization Ratio | > 100:1, vertical |
| Long Term Pulse Energy Stability (6 hrs) | < ± 2 % |
| Pulse-To-Pulse Stability | < 1% rms (of pulse energy) |
| Laser Classification | 3B / IIIb |
| Optical Output | Free Beam |
| Electrical Power Consumption | < 70 W |
| Line Voltage | 90 - 265 V AC (50-60 Hz) or 24 V DC |
| Interface | RS 232, USB |
| Warm-up Time | < 10 min |
| Operating Temperature | 18 - 38 °C |
| Laser Head Size | 217 x 65 x 45 mm (core dimensions) |
| Dimension Laser Head | 279 x 89 x 44.7mm |
| Dimension OEM Controller | 166 x 129.8 x 105mm |
| Options | Fiber coupling for fibers with core diameter ≥100μm; Synchronization signal output (rise time < 2 ns); Manual shutter or electrical beam blocker; Manual or electrical driven wavelength switch 532/1064 nm; Upgrade to 1 kHz repetition rate (parameters on request); External telescope (e.g. M=5); Manual or electrical attenuator; Stand Alone System (incl. key-switch, heat-sink, manual shutter; CDRH compliant) |
We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Single pulse
Pulsed <1.8ns>
Repetition rate 1-80Hz
Pulse energy >1000uJ
| Model | SFDSS532-1000 |
| Wavelength | 532 nm |
| Spatial Mode | TEM00 |
| Beam Divergence (full angle) | < 6.5 mrad |
| Beam Ellipticity | < 2:1 |
| Waist Diameter | 500±150μm (located at about 110mm inside the laser head) |
| Beam Diameter | 1.0 ± 0.3 mm (at laser exit) |
| Peak Power | > 500 kW @ 20 Hz |
| Pulse Energy | > 1000 μJ @ 20 Hz |
| Pulse Repetition Rate (external trigger) | 1 - 80 Hz |
| Pulse Width (FWHM) | <1.8ns> |
| Polarization Ratio | > 100:1, vertical |
| Long Term Pulse Energy Stability (6 hrs) | < ± 8 % |
| Laser Classification | 3B / IIIb |
| Optical Output | Free Beam |
| Electrical Power Consumption | < 150 W |
| Line Voltage | 90 - 265 V AC (50-60 Hz) or 24 V DC |
| Interface | RS 232 (USB on request) |
| Warm-up Time | < 10 min |
| Operating Temperature | 20 - 40 °C |
| Laser Head Size | 217 x 65 x 45 mm (core dimensions) |
| Dimension laser head | 337 x 102 x 88.7mm |
| Dimension controller | 166 x 130 x 106mm |
| Options | SMA-connector for fibers with core diameter ≥ 400 μm; Synchronization signal output (rise time < 2 ns); Manual shutter or electrical beam blocker; Manual or electrical driven wavelength switch 532/1064 nm; External telescope (e.g. M=5); Manual and electrical attenuator; Stand alone system (CDRH compliant; incl. key switch, heat sink, manual beam shutter) |
We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Very short pulses
External triggering
Single pulse operation
Excellent beam quality
High pulse-to-pulse stability
Good output energy stability
| Model | SMOPA532-250(Peak power) | SMOPA532-700mW (Average power) |
| Wavelength | 532 nm | 532 nm |
| Average power | - | > 700 mW @ 15 kHz |
| Peak Power | > 200 kW @ 1000 Hz | - |
| Pulse Energy | > 250 μJ @ 1000 Hz | > 48 μJ @ 15 kHz |
| Beam Divergence | < 3.0 mrad(full angle) | < 3.0 mrad(full angle) |
| Beam Ellipticity | < 2:1 | < 2:1 |
| Beam Diameter | 0.7 ± 0.3 mm (at laser exit) | 0.7 ± 0.3 mm (at laser exit) |
| Spatial Mode | TEM00 | TEM00 |
| Pulse Repetition Rate | 1 - 1000 Hz(with external trigger) | 1 Hz - 20 kHz(with external trigger) |
| Pulse Width (FWHM) | 1.2 ns | 1.3 ns |
| Polarization Ratio | > 100:1, vertical | > 100:1, vertical |
| Pulse Energy Stability | < ± 3 % (over 8 hrs) | < ± 3 % @ 15kHz (over 8 hrs) |
| Pulse-to-Pulse Energy Stability (over 60 sec) | < ± 3 % (<1% rms=""> | < ± 8 % (<2.5% rms=""> |
| Laser Classification | 3B / III | 4 / IV |
| Optical Output | Free Beam | Free Beam |
| Power Consumption | < 150 W | < 250 W |
| Line Voltage | 90 - 265 V AC (50-60 Hz) | 90 - 265 V AC (50-60 Hz) |
| Interface | USB, SMB connector for 24 V DC output, BNC connector for external triggering (TTL) | |
| Warm-up Time | < 10 min | < 10 min |
| Operating Temp | 18 - 38 °C | 18 - 38 °C |
| Laser Head Size | 61 x 120 x 314 mm (H x W x L) | 61 x 120 x 314 mm (H x W x L) |
| Stand-Alone Unit Size | 184 x 343 x 375 mm (H x W x L) | 184 x 343 x 375 mm (H x W x L) |
| Options | Multimode fiber coupling; Synchronization signal output (rise time < 2 ns); Electrical or manual wavelength switch (532nm – 1064nm) or electrical beam blocker; External telescope (beam expander) / Electrical or manual attenuator | |
We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Pulsed ≤ 1.5ns
Pulse energy >70uJ
Repetition rate up to 20kHz
External and internal trigger mode
Free beam or fiber coupling
| Model | SDSS1064-Q1 | SDSS1064-Q2 | SDSS1064-Q3 |
| Wavelength | 1064 nm | ||
| Pulse energy | > 10 μJ @ 15 kHz | > 20 μJ @ 10 kHz | > 50 μJ @ 1 kHz |
| Peak power | > 6.5 kW @ 15 kHz | > 13 kW @ 10 kHz | > 31 kW @ 1 kHz |
| Max pulse repetition rate | 20 kHz | 10 kHz | 2.5 kHz |
| Pulse width (FWHM) | ≤ 1.5 ns | ||
| Polarization ratio | > 100:1 vertical | ||
| Power stability | < ± 5 % | < ± 3 % | < ± 3 % |
| Laser classification | 3B / IIIb | ||
| Spatial Mode | TEM00 | ||
| Beam divergence (full angle) | < 3.0 mrad | < 3.0 mrad | < 4.0 mrad |
| Beam diameter at output plane | 600 ± 100 μm | 500 ± 100 μm | 600 ± 100 μm |
| Power consumption mean (max.) | 10 W (40 W) | 13 W (40W) | 15 W (70 W) |
| Operating voltage (OEM) | 12 V DC | ||
| Line voltage (AC-DC adapter) | 90 - 240 V AC (50 - 60 Hz) | ||
| Marking | CE | ||
| Communication interface | RS 232, USB, External Trigger (TTL, rising edge) 1 Hz - max. repetition rate, Interface for TTL-control and power monitor | ||
| Warm-up time | < 5 min | ||
| Operating temperature | 18 - 38 °C | ||
| Options | Stand alone system (incl. key-switch, heat-sink and manual shutter; CDRH compliant), Synchronization Signal Output (rise time < 2 ns), Fiber Coupling for fiber with core diameter > 70 μm, Manual shutter or electrical beam blocker, External telescope (e.g. M=4), Manual or electrical attenuator | ||
| Dimensions Laser Head | 87.3 x 35.4 x 33 mm | ||
| Dimensions Controller STAND ALONE | Q1,Q2: 134 x 115 x 64 mm; Q3: 174 x 115 x 64 mm | ||
| Dimensions Controller OEM | Q1, Q2: 134 x 130 x 35 mm; Q3: 174 x 130 x 35 mm | ||
We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Pulsed ≤ 1.5ns
Pulse energy >140uJ @ 200Hz
Repetition rate up to 1kHz
External and internal trigger mode
Free beam or Fiber coupling
| Model | SDSS1064-Q4 | SDSS1064-Q4_1kHz |
| Wavelength | 1064 nm | |
| Pulse energy | > 140 μJ @ 200 Hz | >90 μJ @ 1 kHz |
| Peak power | > 90 kW @ 200 Hz | >60 kW @ 1 kHz |
| Max pulse repetition rate | 200 Hz | 1 kHz |
| Pulse width (FWHM) | ≤1.5 ns | |
| Polarization ratio | > 100:1 vertical | |
| Power stability | < 2% rms | |
| Laser classification | 3B / IIIb | |
| Spatial Mode | TEM00 | |
| Beam divergence (full angle) | < 4.0 mrad | < 4.0 mrad |
| Beam diameter at output plane | 650 ± 100 μm | 650 ± 100 μm |
| Power consumption mean (max.) | 22 W (80 W) | 22 W (80 W) |
| Operating voltage (OEM) | 12 V DC | |
| Line voltage (with AC-DC adapter) | 90 - 265 V AC (50 - 60 Hz) | |
| Marking | CE | |
| Communication interface | RS 232, USB External Trigger (TTL, rising edge) 1 Hz - max. repetition rate Interface for TTL-control and power monitor | |
| Warm-up time | < 5 min | |
| Operating temperature | 18 - 38 °C | |
| Options | Stand Alone System (incl. key-switch, heat-sink and manual shutter; CDRH compliant), Synchronization Signal Output (rise time < 2 ns), Fiber Coupling for fiber with core diameter > 70 μm, Manual Shutter or Electrical Beam Blocker, External Telescope (e.g. M=5), Manual or Electrical Attenuator | |
| Dimensions Laser head | 87.3 x 35.4 x 33 mm | |
| Dimensions Controller STAND ALONE | 174 x 115 x 64 mm | |
| Dimensions Controller OEM | 174 x 130 x 35 mm | |
We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Single pulse
Pulsed 1.4-2ns
Repetition rate 1-100Hz (optional up to 1kHz)
Pulse energy >450uJ
| Model | SDSS1064-450 |
| Wavelength | 1064 nm |
| Spatial Mode | TEM00 |
| M² | < 1.5 |
| Beam Divergence (full angle) | < 6.5 mrad |
| Beam Ellipticity | < 2:1 |
| Waist Diameter | 380±100 μm(located at about 110mm inside the laser head) |
| Beam Diameter | 600 ± 150 μm (at laser exit) |
| Peak Power | 220 kW - 325 kW @ 1-100 Hz |
| Pulse Energy | >450 μJ @ 1 - 100 Hz (>150μJ @ 1kHz option) |
| Pulse Repetition Rate (external trigger) | 1 - 100 Hz, (up to 1 kHz, on request) |
| Pulse Width (FWHM) | 1.4 ns - 2 ns |
| Polarization Ratio | > 100:1, vertical |
| Long Term Pulse Energy Stability (6 hrs) | < ± 6 % |
| Pulse-To-Pulse Stability | < 1% rms (of pulse energy) |
| Laser Classification | 3B / IIIb |
| Optical Output | Free Beam |
| Electrical Power Consumption | < 70 W |
| Line Voltage | 90 - 265 V AC (50-60 Hz) or 24 V DC |
| Interface | RS 232, USB |
| Warm-up Time | < 10 min |
| Operating Temperature | 18 - 38 °C |
| Laser Head Size | 217 x 65 x 45 mm (core dimensions) |
| Dimension laser head | 279 x 89 x 44.7mm |
| Dimension OEM controller | 166 x 129.8 x 105mm |
| Options | Fiber coupling for fibers with core diameter ≥ 200 μm; Synchronization signal output (rise time < 2 ns); Manual shutter or electrical beam blocker; Upgrade to 1 kHz repetition rate (parameters on request); External telescope (e.g. M=5); Manual or electrical attenuator; Stand alone system (CDRH compliant; incl. key switch, heat sink, manual beam shutter) |
We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Single pulse
Pulsed
<2.5ns>
Repetition rate 1-80Hz
Pulse energy >2500uJ
| Model | SDSS1064-3000 |
| Wavelength | 1064 nm |
| Spatial Mode | TEM00 |
| Beam Divergence (full angle) | < 9 mrad |
| Beam Ellipticity | < 2:1 |
| Waist Diameter | 600±150μm (located at about 110mm inside the laser head) |
| Beam Diameter | 1200 ± 400 μm (at laser exit) |
| Peak Power | > 1250 kW @ 20 Hz |
| Pulse Energy | > 2500 μJ @ 20 Hz |
| Pulse Repetition Rate (external trigger) | 1 - 80 Hz |
| Pulse Width (FWHM) | <2.5ns> |
| Polarization Ratio | > 50:1, vertical |
| Long Term Pulse Energy Stability (6 hrs) | < ± 8 % |
| Laser Classification | 3B / IIIb |
| Optical Output | Free Beam |
| Electrical Power Consumption | < 100 W (@230V AC) |
| Line Voltage | 90 - 265 V AC (50-60 Hz) or 24 V DC |
| Interface | RS 232 (USB on request) |
| Warm-up Time | < 10 min |
| Operating Temperature | 28 - 35 °C |
| Laser Head Size | 217 x 65 x 45 mm (core dimensions) |
| Dimension laser head | 337 x 102 x 88.7mm |
| Dimension controller | 166 x 130 x 106mm |
| Options | SMA-connector for fibers with core diameter ≥ 600 μm; Synchronization signal output (rise time < 2 ns); Manual shutter or electrical beam blocker; Manual or electrical attenuator; Stand alone system (CDRH compliant; incl. key switch, heat sink, manual beam shutter) |
We provide passively Q-switched laser systems (DPSS) emitting at wavelengths of 213nm, 266nm, 355nm, 532nm, and 1064nm with excellent beam quality, which are widely used in various applications, such as biology, biomedicine, chemistry, and analytics.
Features:
Very short pulses
External triggering
Single pulse operation
Excellent beam quality
High pulse-to-pulse stability
Good output energy stability
| Model | SMOPA1064-650(Peak power) | SMOPA1064-2000mW(Average power) |
| Wavelength | 1064 nm | 1064 nm |
| Average power | - | > 2000 mW @ 15 kHz |
| Peak Power | > 450 kW @ 1000 Hz | - |
| Pulse Energy | > 650 μJ @ 1000 Hz | > 130 μJ @ 15 kHz |
| Beam Divergence | < 3.0 mrad(full angle) | < 5.0 mrad(full angle) |
| Beam Ellipticity | < 2:1 | < 2:1 |
| Beam Diameter | 1.0 ± 0.3 mm (at laser exit) | 0.7 ± 0.3 mm (at laser exit) |
| Spatial Mode | TEM00 | TEM00 |
| Pulse Repetition Rate | 1 - 1000 Hz(with external trigger) | 1 Hz - 20 kHz(with external trigger) |
| Pulse Width (FWHM) | 1.4 ns | 1.5 ns |
| Polarization Ratio | > 100:1, vertical | > 100:1, vertical |
| Pulse Energy Stability | < ± 3 % (over 8 hrs) | < ± 5 % @ 15kHz (over 8 hrs) |
| Pulse-to-Pulse Energy Stability (over 60 sec) | < ± 3 % (<1% rms=""> | < ± 8 % (<2.5% rms=""> |
| Laser Classification | 4 / IV | 4 / IV |
| Optical Output | Free Beam | Free Beam |
| Power Consumption | < 150 W | < 250 W |
| Line Voltage | 90 - 265 V AC (50-60 Hz) | 90 - 265 V AC (50-60 Hz) |
| Interface | USB, SMB connector for 24 V DC output, BNC connector for external triggering (TTL) | |
| Warm-up Time | < 10 min | < 10 min |
| Operating Temp | 18 - 38 °C | 18 - 38 °C |
| Laser Head Size | 61 x 120 x 314 mm (H x W x L) | 61 x 120 x 314 mm (H x W x L) |
| Stand-Alone Unit Size | 184 x 343 x 375 mm (H x W x L) | 184 x 343 x 375 mm (H x W x L) |
| Options | Multimode fiber coupling; Synchronization signal output (rise time < 2 ns); Electrical beam blocker; External telescope (beam expander) / Electrical or manual attenuator | |
A leading supplier and manufacturer of a wide range of photonics products such as lasers,laser parts & machines.
Office: 10 Bukit Batok Crescent #07-02 The Spire Singapore 658079
Tel: +65 63167112
Fax: +65 63167113
Whatsapp: +65 91904616
