SBS Series Aousto-optical Q-switched DPSS Lasers

Over the years we developed or customized several ns and sub-ns DPSS lasers for some particular applications requested by our customers, other than harmonic generation and parametric conversion of our standard platforms, like Onda and Wedge. Though initially developed for limited production runs, we may offer both larger production runs as well as differently customized options.

Our custom products typically include:

High Power ns and sub-ns MOPA Lasers, UV, Visible and IR
Optical Parametric Converters
Amplified Single-Frequency sub-ns lasers
Amplified Picosecond Laser
DPSS Femtosecond Laser at 1um

We can provide further Custom Solutions on design and manufacture of high quality laser diode systems and DPSS Lasers for industrial, medical and defence applications.

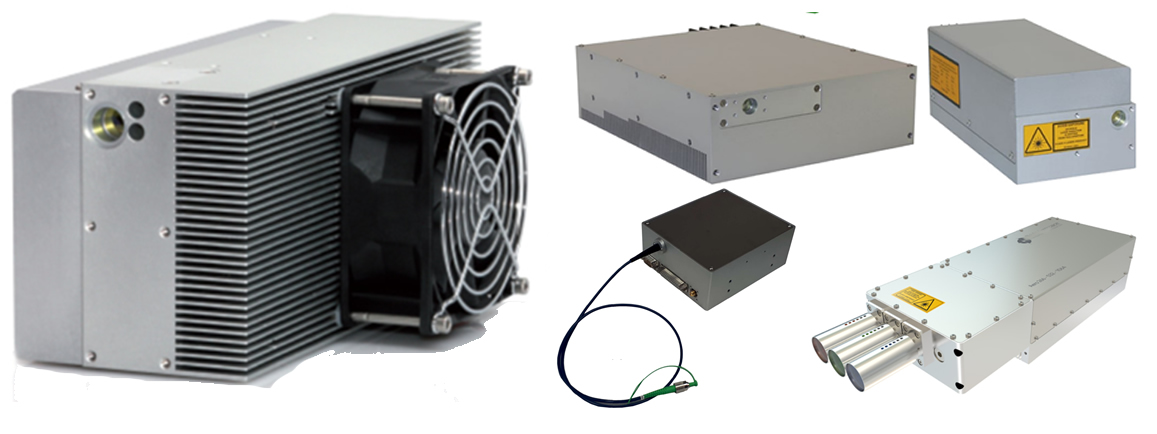

List of DPSS Lasers

Compact AO Q-switched DPSS Lasers – SOL Series
Short Pulse AO Q-switched DPSS Lasers – WEDGE Series WEDGE
Nano-second AO Q-switched DPSS Lasers – ONDA Series
MOPA Sub-ns Lasers – Vento Series
One DPSS - Miniaturized Q-switched Lasers
Aero - High Energy DPSS Lasers
NPS-Narrowband ps Lasers

1. Compact AO Q-switched DPSS Lasers – SOL Series

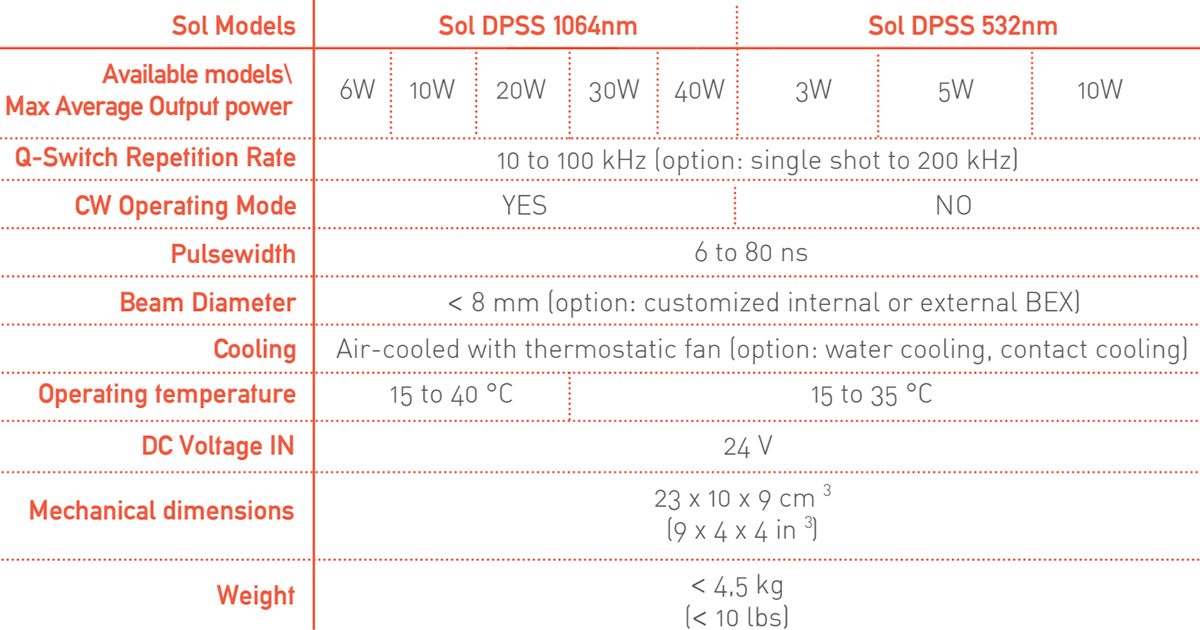

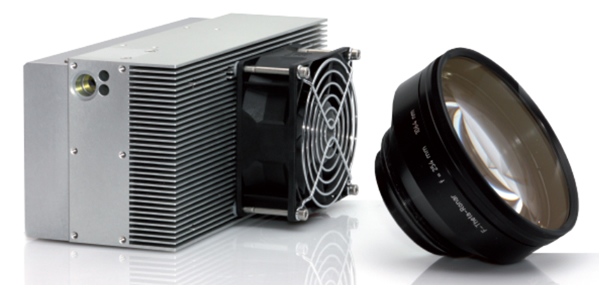

SOL is the most compact Q-switched diode pumped solid state laser available in the power range from 6W to 40W @1064nm. Sol versions at 532nn are also available with the same footprint. These air-cooled DPSS lasers are offered in a rugged and lightweight single unit, designed to allow easy and reliable integration in micro-machining and marking applications.

The Sol single unit design is based on a permanently aligned monolithic optical resonator integrated with 24VDC powered driving electronics. Cooling of the unit is provided by low noise fans. Due to the single unit design, optical fibers and other delicate cable connections will not be necessary for system integration. Compactness, insensitivity to environmental conditions and ease of handling guarantee superior operation flexibility and performance/cost ratio.

The high peak power and the excellent beam quality of Sol lasers make them the ideal source for the most demanding industrial and scientific applications.

Features:

Up to 40W at1064nm
Up to 30W at 532nm
Up to 4W at 355nm
300 kW peak power
Compact air cooled single unit
Up to 200kHz repetition rate
Electronic pulse energy modulation
Sealed and rugged
Monolithic Design
24VDC

Applications:

Material processing
Marking
Scribing
Medical and aesthetical
Thin film removal
Micro-machining
Nonlinear optics

Options available:

Beam expanding and collimating optics
Red aiming beam
Extended frequency range
Pulse width modulation
Circular polarization
Monitoring photodiode
AC-DC power supply
Fiber coupling
Low jitter option

2. Short Pulse AO Q-switched DPSS Lasers – WEDGE Series WEDGE

Wedge family has been fully renewed in terms of performances and available models. Based on a proprietary fast Q-switching technology, these compact sealed and monolithic diode pumped lasers are insensitive to vibrations and harsh environments. They have been designed for OEM applications like micro machining of hard and soft materials, specialty marking, OLED, glass and crystals engraving, LIDAR, LIBS, spectroscopy and medical diagnostics. High output peak power, with relatively low energy and heat generation, allows efficient ablation and non-linear interaction with most materials. The compact and lightweight package represents a great benefit in LIDAR and other aerospace applications, while short pulses give extremely precise time-of-flight measurements.

Features:

Up to 4mJ pulse energy
3MW peak power
500ps to 3ns pulse width
Single shot to 100kHz
Monolithic design
Air cooling
Low heat waste
266, 355, 532, 1064, 1570, 3100nm available
Multi-wavelength configurations

Applications:

Micromachining of glass and hard materials
Specialty marking
Thin film removal
LIDAR
LIBS
Medical, aesthetical and diagnostics
Non-linear spectroscopy
Harmonic and parametric generation
Visible to IR OPO pumping
TeraHertz generation

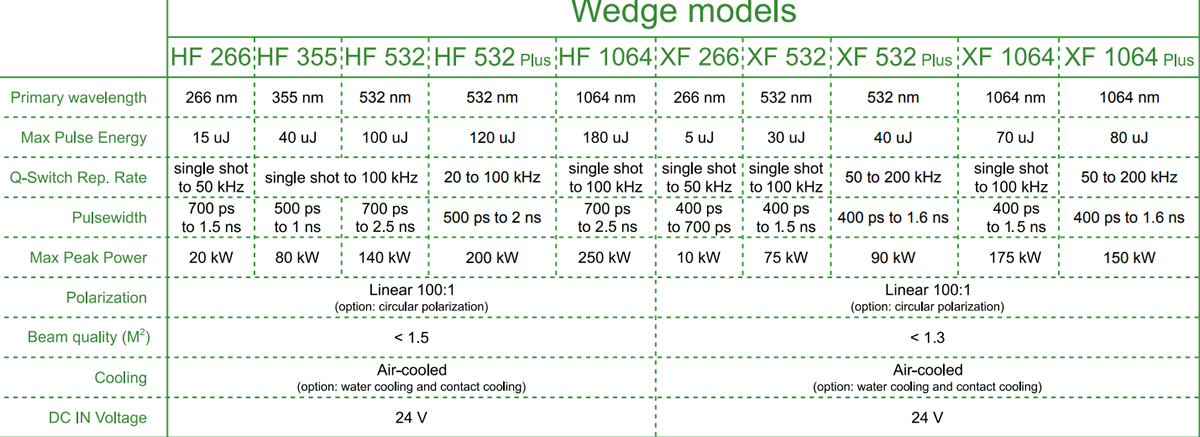

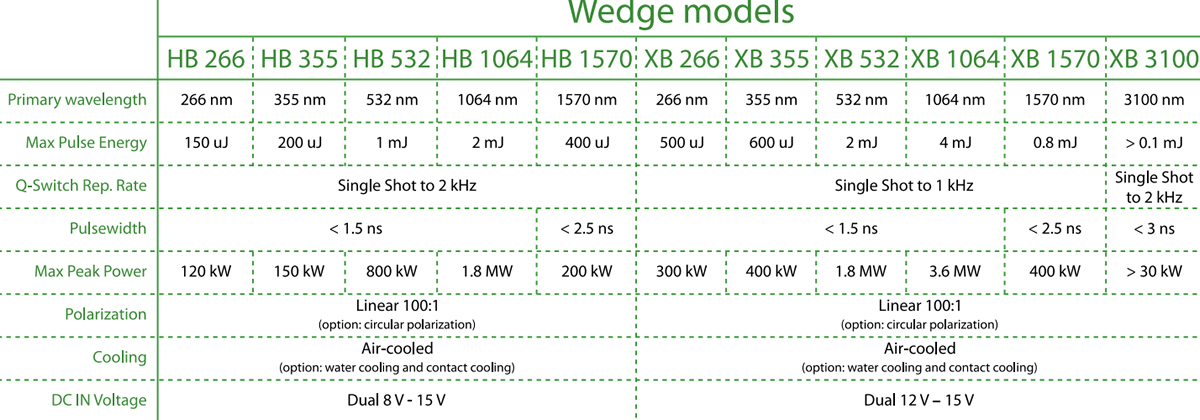

Wedge HB and XB laser models are available at different wavelengths and their main featues are reported in the table below. All the configurations are based on our proprietary fast active Q-Switch technology, the key point for all the applications requiring high performances in terms of synchronization between the laser and the entire system.

Wedge HF and XF are also actively Q-Switched lasers and this feature together with the sub-ns pulse width makes these lasers unique on the market. The extremely compact and rugged design coming from airborne applications is very appreeciated also in industrial and instrumentation fields.

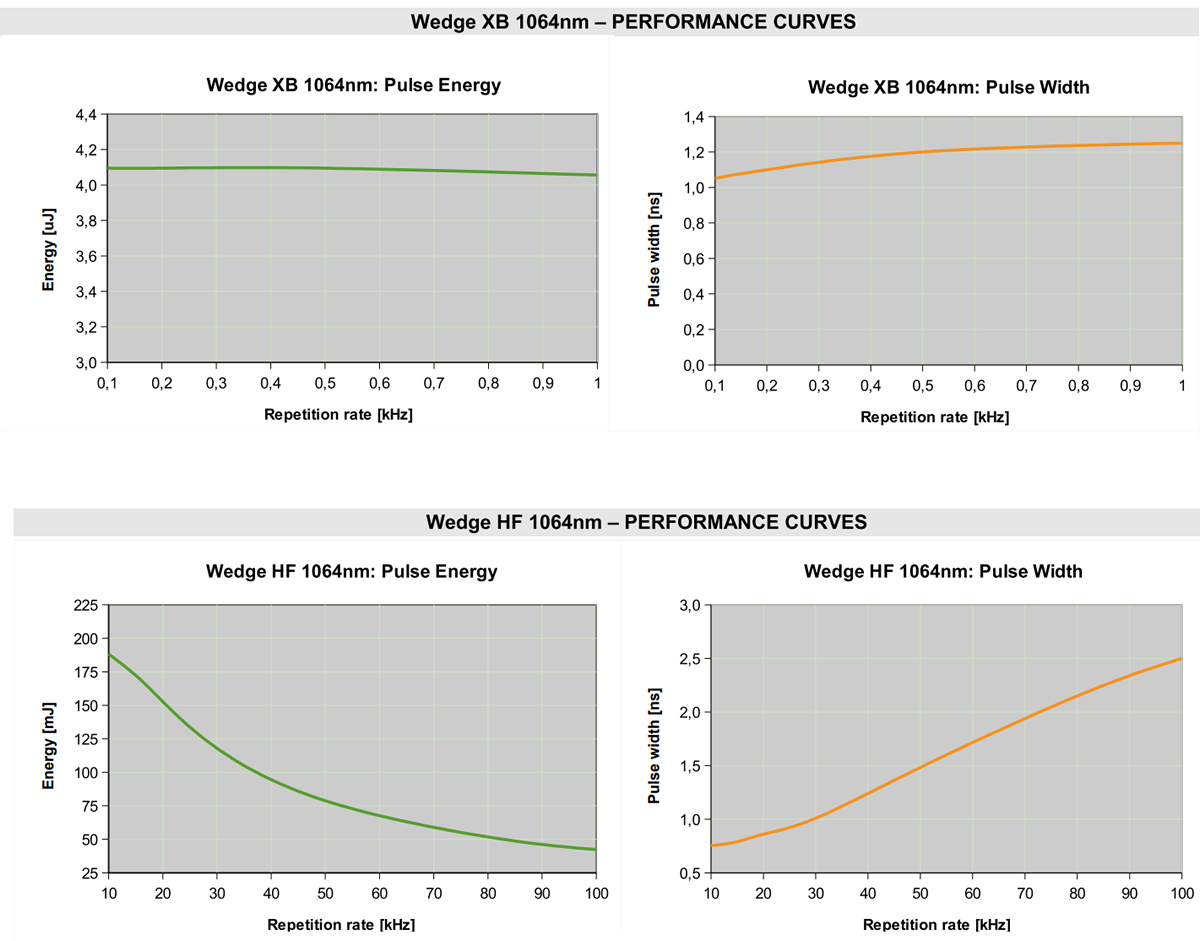

In order to better describe the performances of the Wedge models, please refer to the specific datasheets available for each model. Below you can find the nominal performance curves related to the infrared versions of the Wedge XB 1064nmand of the Wedge HF 1064nm.

Options available:

Beam expanding and collimation optics
External beam separator with independent mechanical shutters
Red aiming beam
Circular polarization
Monitoring photodiode
AC-DC power supply

3. Nano-second AO Q-switched DPSS Lasers – ONDA Series

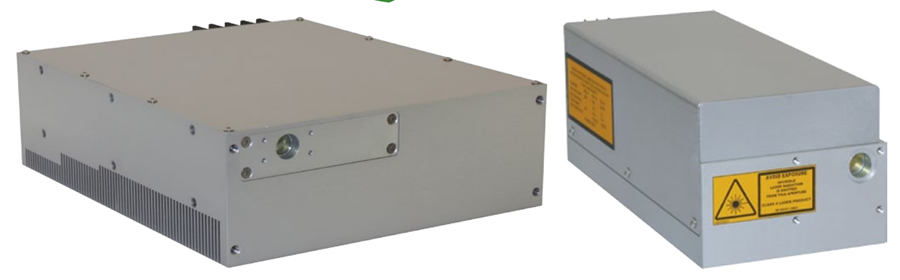

Developed as a high-energy seeder for advanced MOPA systems, Onda is the new DPSS ns-laser platform aimed to high-end applications requiring both excellent beam quality and high peak power in order to process metal, glass, plastics, delicate and hard materials.

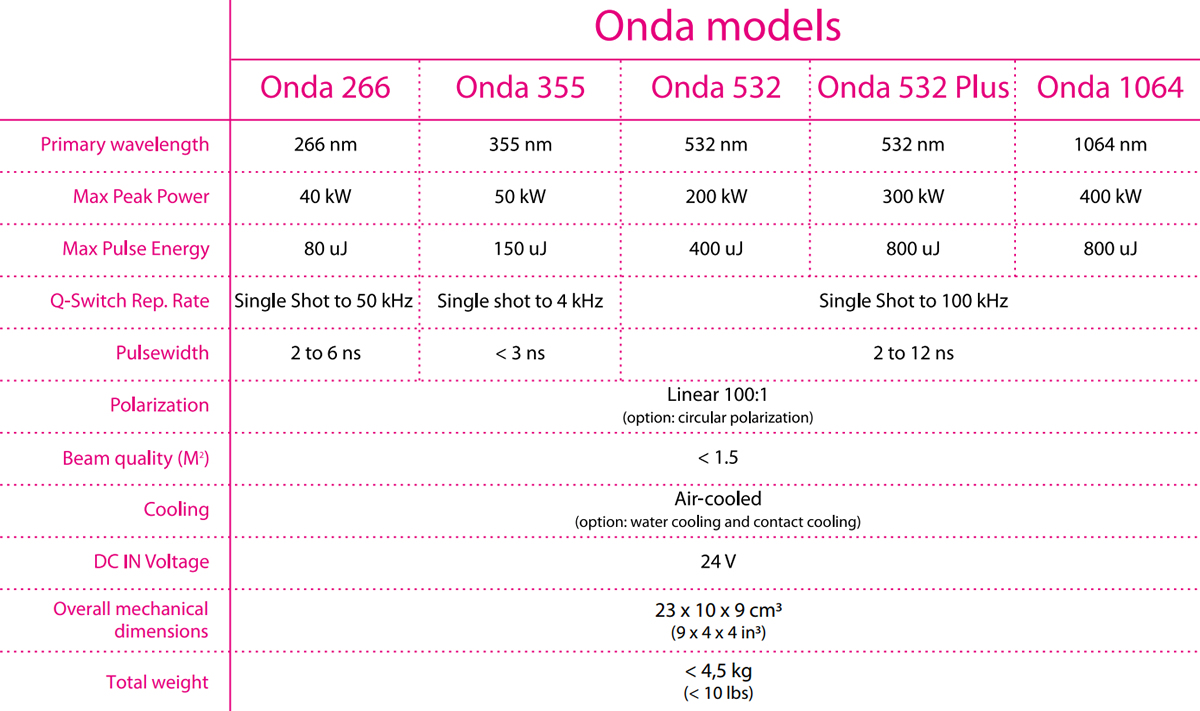

Onda is available at four different wavelengths: 266, 355, 532 and 1064nm. The internal optical layout and the accurate temperature management allow to get relevant pulse energy performances without compromising the lifetime of the THG and FHG stages. All of the Onda models can work from single shot to 50kHz or up to 100kHz with a pulse width between 2 and 10ns and share the same mechanical footprint and electronic interface.

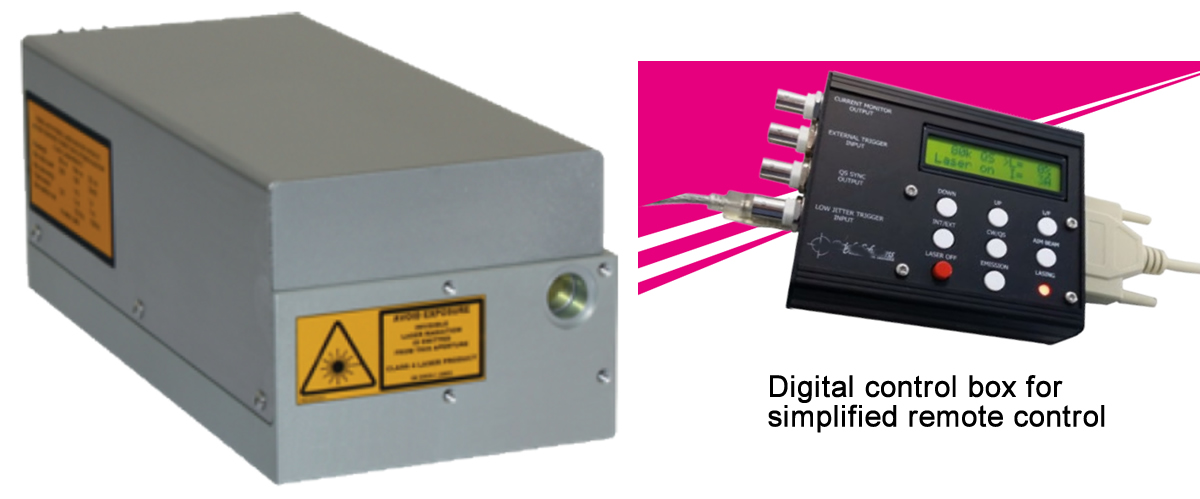

Compactness, insensitivity to environmental conditions and ease of handling allow superior operation flexibility and performance / cost ratio. A new version of the digitalic Control Box and the new proprietary Software Interface are available for simplified remote control and monitoring.

Features:

Up to 1mJ pulse energy
@266nm @355nm @532 @1064nm
2 to 10ns pulse width
Single shot to 100kHz
MOPA configurations
Monolithic design
Air cooling
Low heat waste

Applications:

Specialty marking
Micromachinig of glass
Electronic manufacturing
LIDAR and bathymetry
Thin film removal
Hole drilling

Options available

Beam expanding and collimation optics

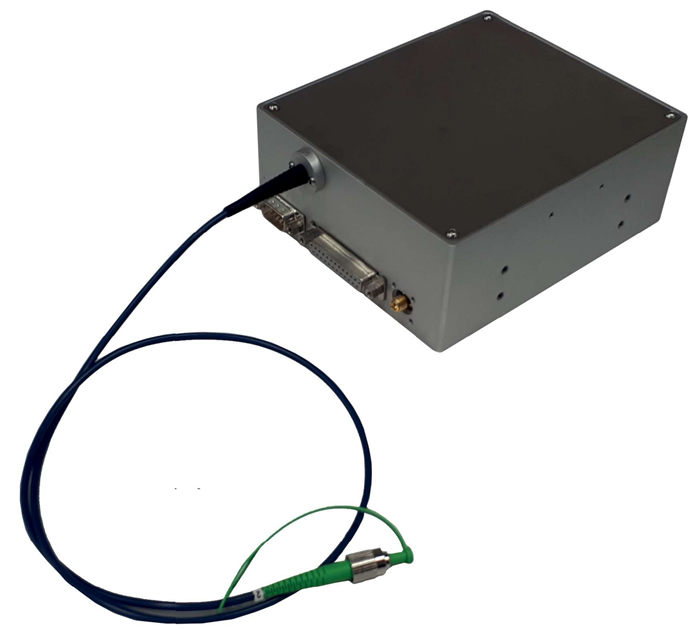

Fiber coupling
Low jitter option
Extended operating temperature range
Pulse energy modulation
Circular polarization
Monitoring photodiode
Red aiming beam
Remote control box and software interface
AC-DC power supply
Higher energy MOPA configurations

4. MOPA Sub-ns Lasers – Vento Series

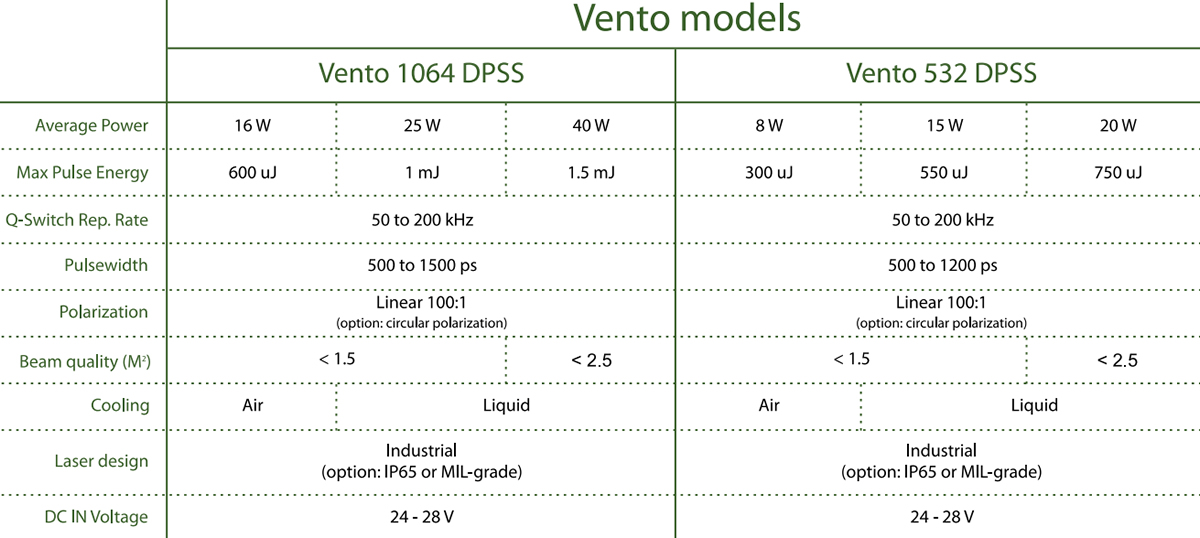

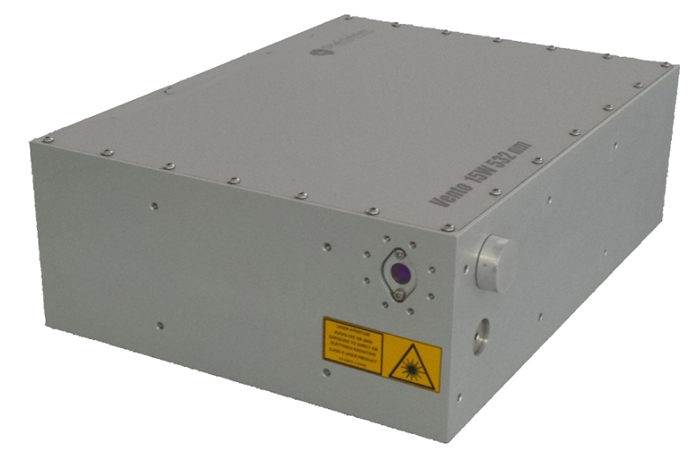

The new Vento series operates in the hundreds of ps range and with average power up to 50W @532 nm and up to 100W @1064nm.

The possibility to choose air-cooled or water-cooled layouts (for some versions) and industrial or IP65 packages allows these products to comply with a variety of environmental requirements, from MIL-type temperature ranges and vibrations to clean laboratories as well as industrial production sites.

Ideal for micromachining, fine cutting machines and powerful LIDAR sensors, all the models are enclosed in an extremely compact and ruggedized single units

Options available:

Beam expanding and collimating optics
Low jitter option
Extended operating temperature range
Pulse energy modulation up to IP68 package
28VDC Input for airborne installation
Circular polarization
Remote control box and software interface
AC-DC power supply

5. One DPSS - Miniaturized Q-switched Lasers

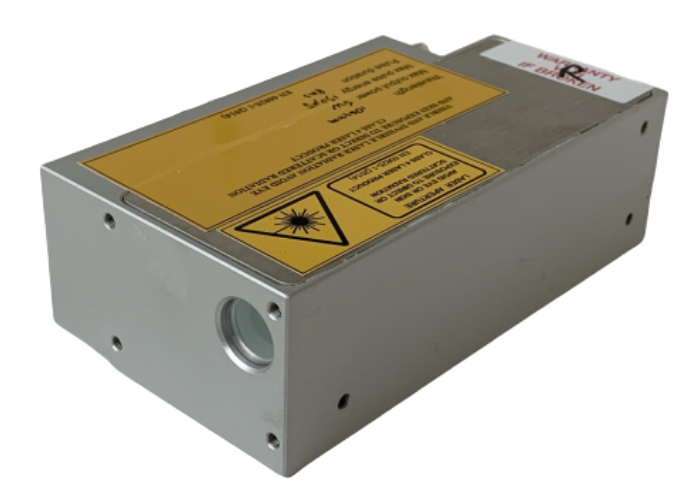

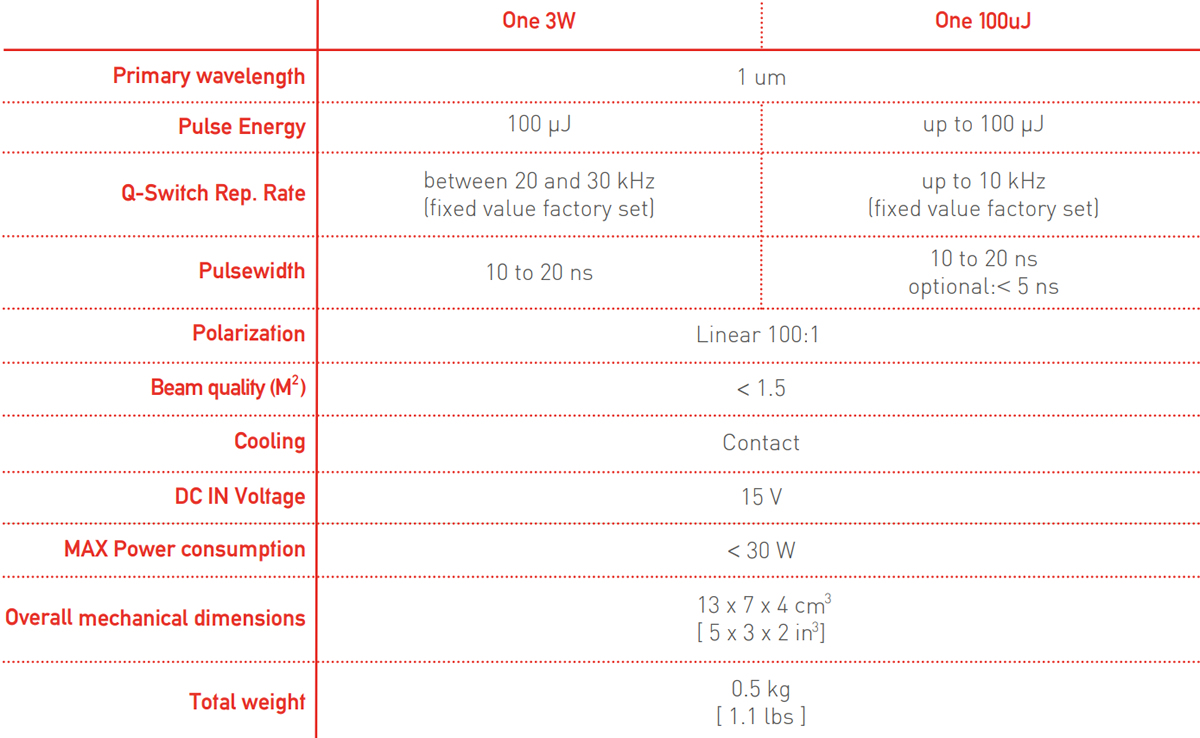

One is an example of how compact our lasers can be! A nanosecond pulsed Q-switched DPSS (also configurable in CW mode) laser source with up to 200uJ pulse energy is integrated in a very small and lightweight contact-cooled package; this unique laser solution is currently used in very compact marking systems and in portable instrumentation. The ns pulse width and 3W average power provide enough peak power to mark metals and plastics with extremely high quality, e.g. for gray-scale images, and to build LIDAR systems for atmospheric monitoring, altimetry and 3D mapping.

Features:

Down to 3ns
CW mode or single shot to 30kHz
Up to 200uJ
M2 <1.5
Miniaturized contact cooled design

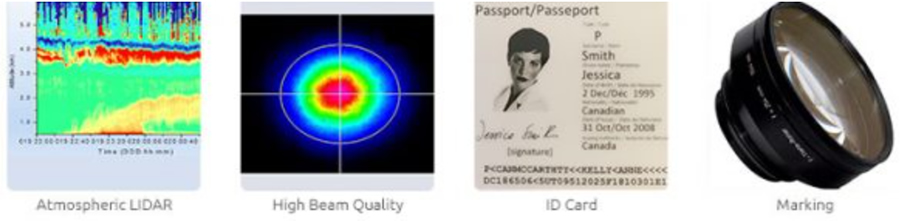

Applications:

Plastic marking
Material processing
ID Card
Portable LIDAR
Remote sensing

Options available:

Internal photodiode
Beam expanding and collimating optics
Red aiming beam
Heat-sink
AC-DC power supply
Custom packaging

6. Aero - High Energy DPSS Lasers

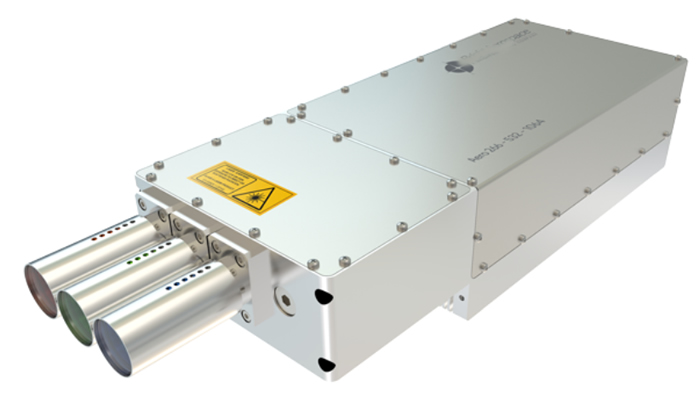

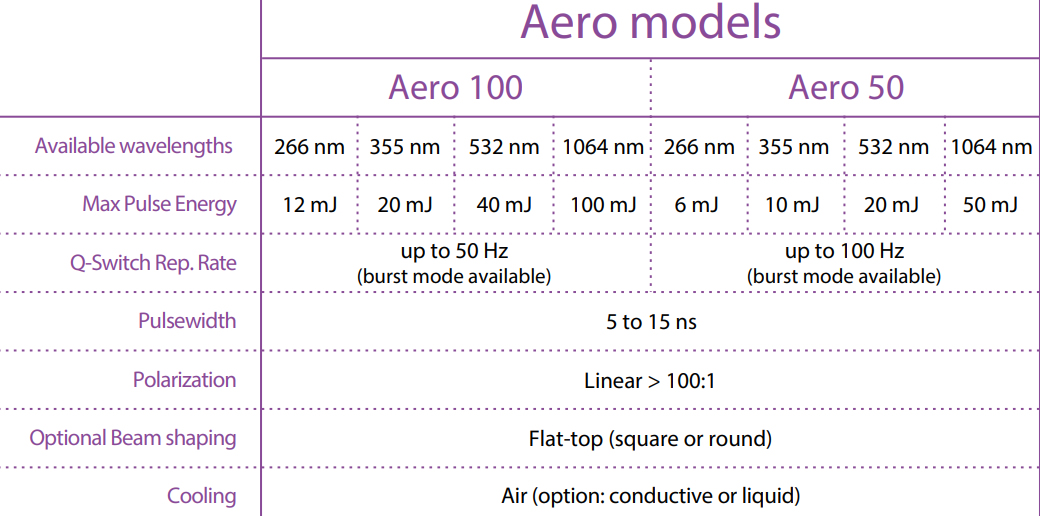

The Aero is a high-energy product line operating in the ns range with repetition rate up to 500Hz with the possibility to work in burst mode too. Pulse energy up to 200mJ at 1064nm and 100mJ at 532nm is achieved in a thermo-mechanically stable package. Customized systems have undergone severe vibration and qualification tests for operation in space. These Q-switched laser systems are ideal for atmospheric LIDAR, air-borne and space-borne instruments, micromachining and ablation processes, telemetry and LIBS. Recently also the UV versions have been developed and multiple wavelength-configurations are available.

Features:

Up to 200mJ @1064nm
Up to 100mJ @532nm
10ns to 30ns
1064, 532, 355, 266nm
Single shot up to 500Hz
Burst mode operation
Multi-wavelength configurations
Custom beam shaping

Applications:

Atmospheric LIDAR
Air-borne and space-borne instruments
LIBS
Microelectronics
FPD repair
Non-Linear spectroscopy
Options available
Beam expanding and collimating optics
External beam separator and beam shaper
Extended operating temperature range
28VDC Input for airborne installation
Circular polarization
AC-DC power supply

7. NPS-Narrowband ps Lasers

Our Nps laser platform is a new ultrafast picosecond laser series, especially tailored for spectroscopic applications, by combining compactness and ruggedness of fiber laser technology with spectral purity of the DPSS design.

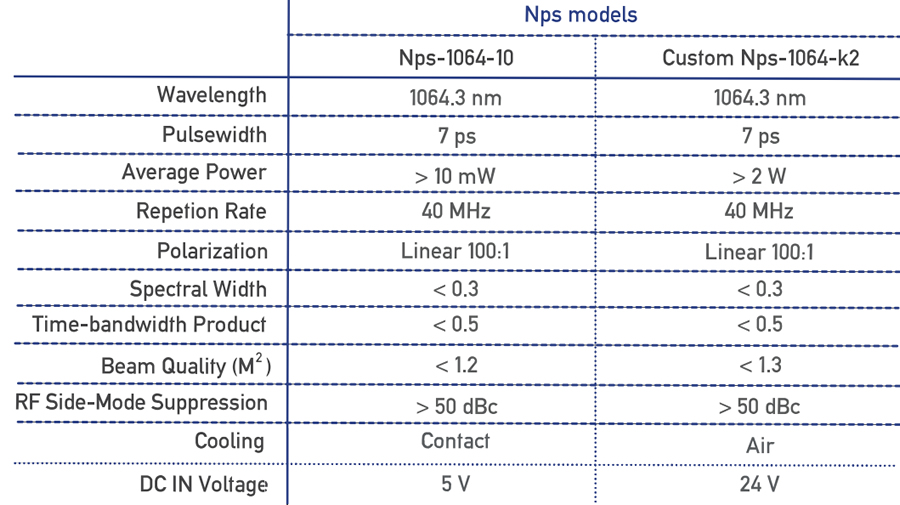

According to the number and the features of the proprietary amplification stages, it is possible to achieve several power levels at 1064.3nm and its harmonics. The new ultrafast Nps-1064-10 laser operates in the regime of few picoseconds pulse durations (7ps) with average power of 10mW at a repetition rate of 40MHz. The transform-limited operation (spectral width < 0.3nm) and remarkably accurate central wavelength (1064.3±0.1nm) make this laser a suitable candidate for highly efficient amplification by Nd-doped DPSS amplifiers, opening the way to applications in non linear optics (i.e. OPO pumping) and narrowband Raman spectroscopy.
