IPL Lamps (Xe Lamps)

Keywords: IPL lamp, laser lamp, pulse lamp, UV curing

Apr 26, 2020 View: 3934 Data Sheet

IPL lamps are used in cosmetic pulsed light applications like hair removal and skin rejuvenation specially designed flash lamps are available. Also for flash lamp applications like UV curing and sun simulation we work closely with customers to desig

Submit Inquiry +65 63167112 sales@sintec.sg

We are having promotions for the below lamps in stock. Contact us at sales@sintec.sg for a quotation.

Models	System Equivalent	Models	System Equivalent
ST1062	DDD Ellipse, Energies Elite, Skinsoft Equinox, Estelux, Excel Photonix, Greenton, Xenolight	ST8624	Crafford Precision
ST1170		ST9551	Cynosure
ST1221		ST9553	Miyachi
ST1477		ST8516	Miyachi
ST1500	Quanta Dual Mode, BIOS Dual Mode, Blueshine	ST5730
ST209	Clean Laser, Impaq Laser, Photon Energy Draco, Baasel, StarMark, Rofin, Hysol	ST9762	NEC
ST5028	General Scanning Hi-Mark, Lee Laser	ST9764	NEC
ST5113	Fobalas, Alltec	STF1281
ST5116	Contro Laser Insignia, Icon	STJK37	Rofin Baasel StarWeld
ST545	NEC	STK-8X100X270
ST608	Lee Laser, Spectra Physics, Teradyne TLSI, Universal Laser	STS27	Baublys, Fotona, Gretag, Haas VectorMark, Hahn & Kolb Enigma, Innolas, Iskra, NWL, Spectron, Trumpf VectorMark
ST641	Han's Laser	STX-7X60X125
ST726	Rofin Sinar	STX-8X125X270-5X1
ST786	Electrox Scriba	STXF1520
ST8045	Continuum, Quantel	STXF889	Rofin Baasel StarCut, Wavelight
ST8047	Continuum	STXF920	Quanta Aphrodite
ST8511	Candela	STXF920HFW	Quanta Aphrodite

Flash pulse lamps are mercury-free gas discharge lamps used in many laser applications like IPL hair removal, ultraviolet (UV) curing, sun simulation, and rapid thermal processing of silicon wafers, pulsed laser lamps are increasingly used. Their main advantages in these applications are their broad spectral output and their high powers.

List of Lamps

Model	Bore(mm)	OD (mm)	Arc (mm)	Quartz, Lamp & End type type
ST670	3		25	CFQ, XFP

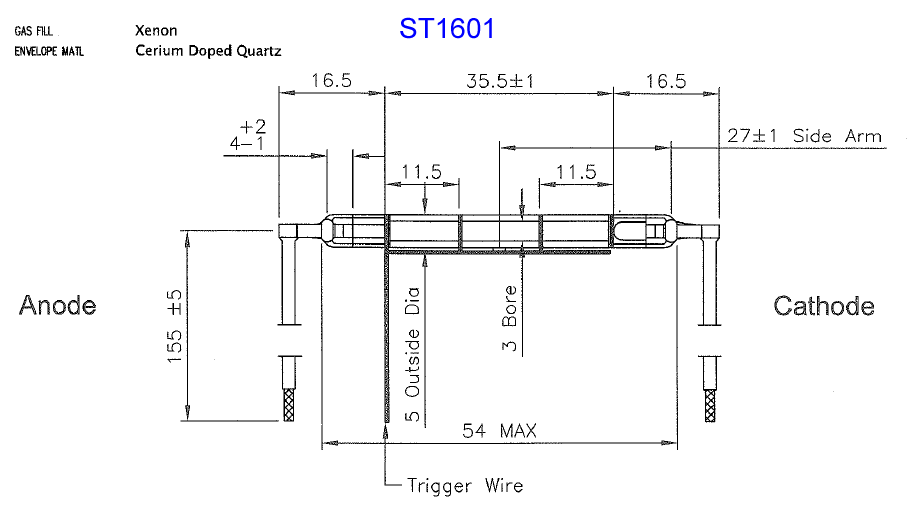

ST1601	3	5	35.5	CFQ, XFP, WIRE

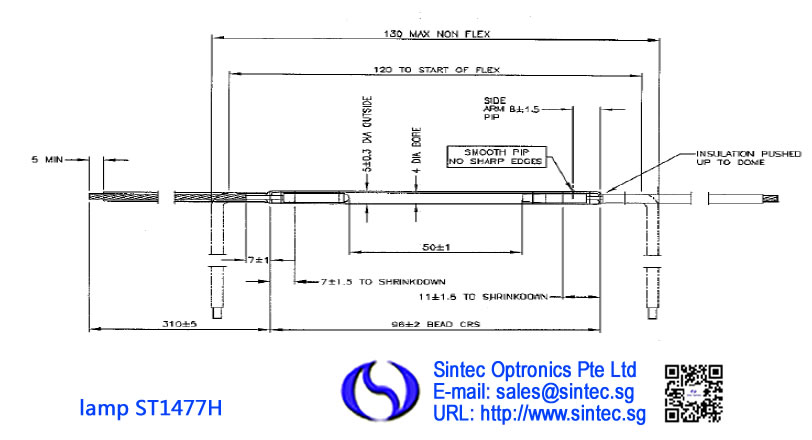

ST1477H	4	5	50	WIRE
ST2062	4		50	CFQ, XFP

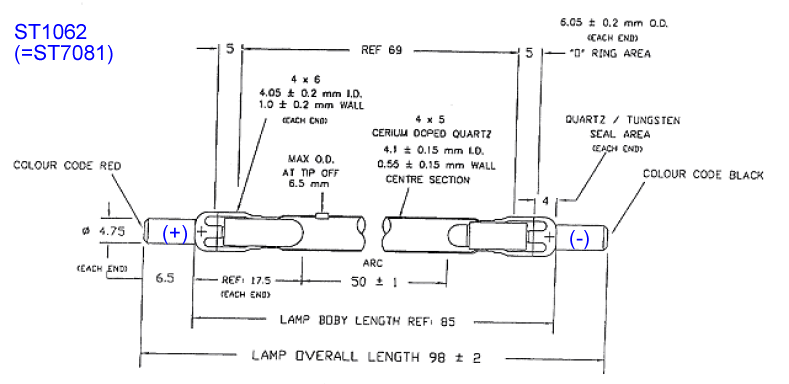

ST7081 (=ST1062)	4	6	50	CFQ, XFP, BASE
ST7079 (=ST1062)	4	6	50	CFQ, XFP, BASE
ST7080 (=ST1062)	4	6	50	CFQ, XFP, BASE
ST7081 (=ST1062)	4	6	50	CFQ, XFP, BASE
ST6990	4		61	CFQ, XFP

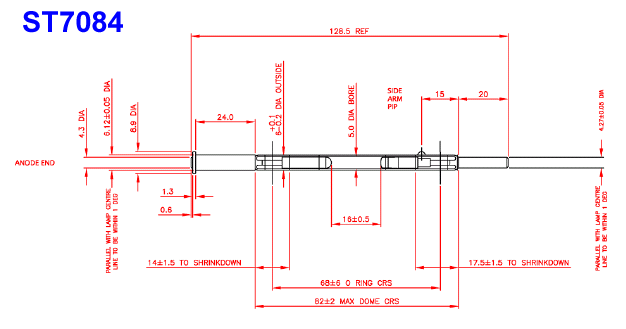

ST7084	5	6	16	CFQ, XFP, BASE
ST7088	5		16	CFQ, XFP

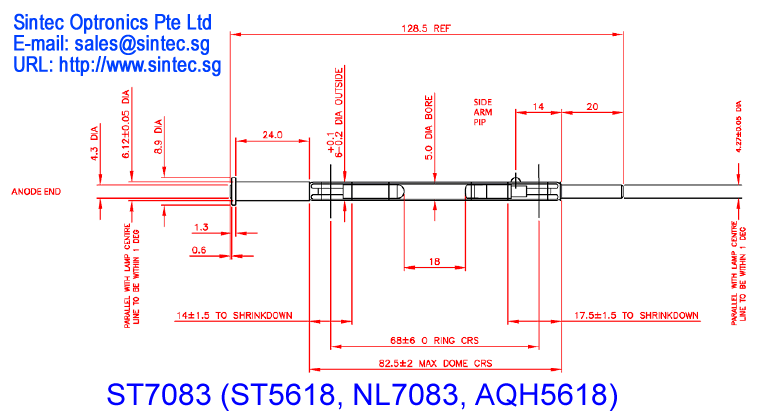

ST7083	5	6	18	CFQ, XFP, BASE
ST7087	5		18	CFQ, XFP
ST7086 (=ST7082)	5	6	20	CFQ, XFP, BASE

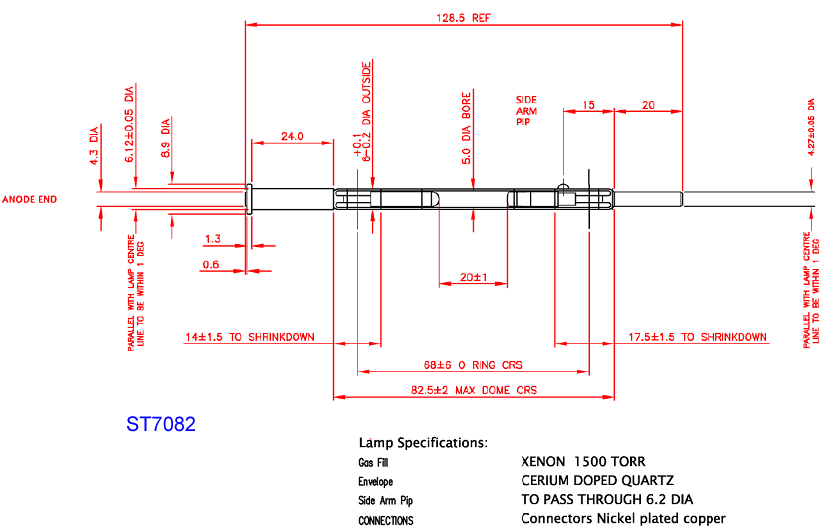

ST7082 (=ST7086)	5		20	CFQ, XFP

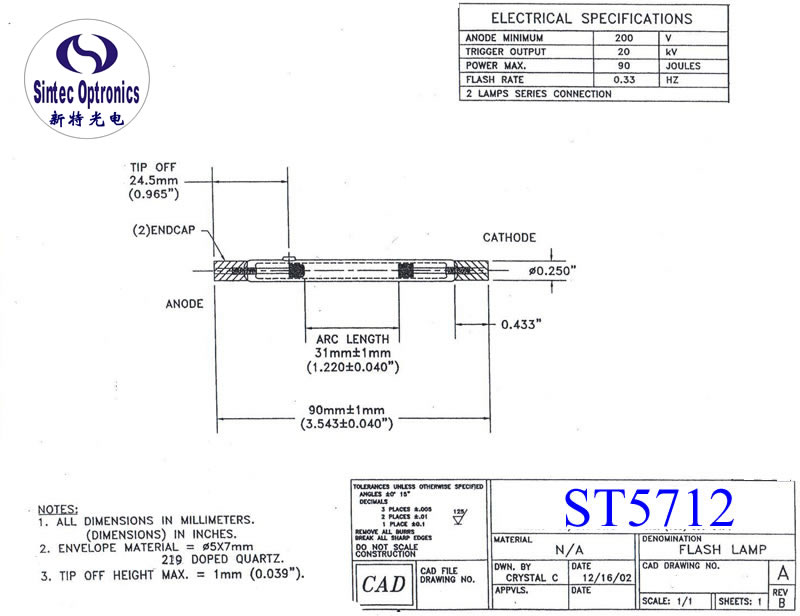

ST5712	5	7	31	CFQ, XFP, BASE

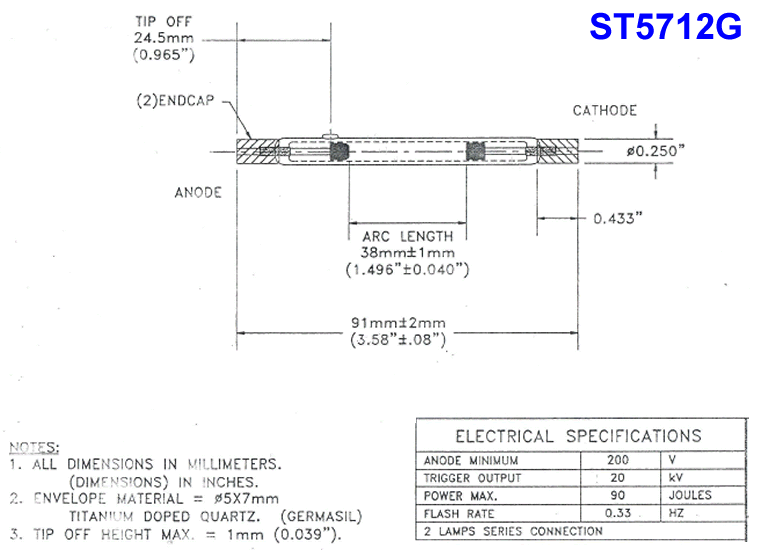

ST5712G	5	7	38	CFQ, XFP, BASE
ST2253	5		45	CFQ, XFP

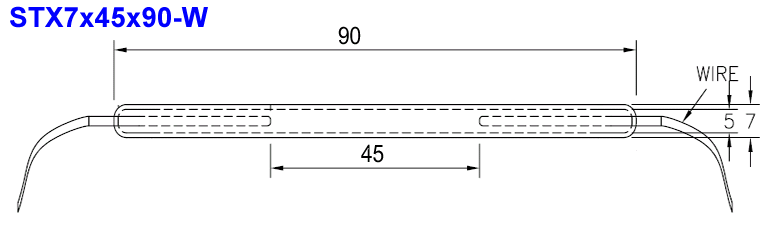

STX7x45x90-W	5	7	45	CFQ, XFP, WIRE
ST2305	5		48	CFQ, XFP

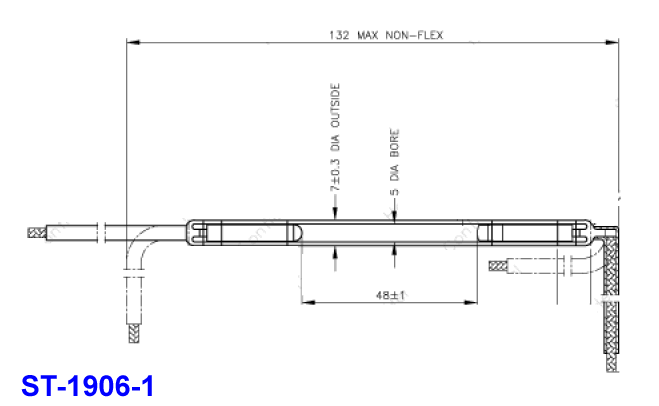

ST-1906-1	5	7	48	CFQ, XFP, WIRE

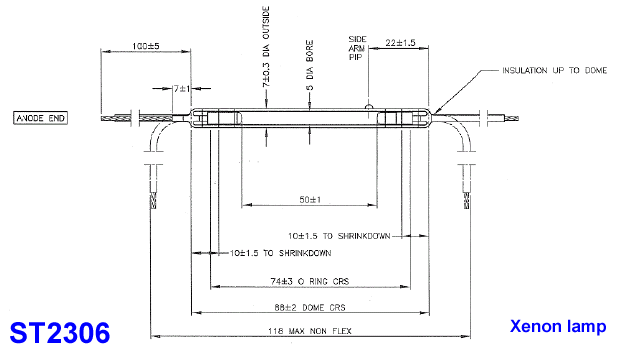

ST2306/8667	5	7	50	CFQ, XFP, WIRE

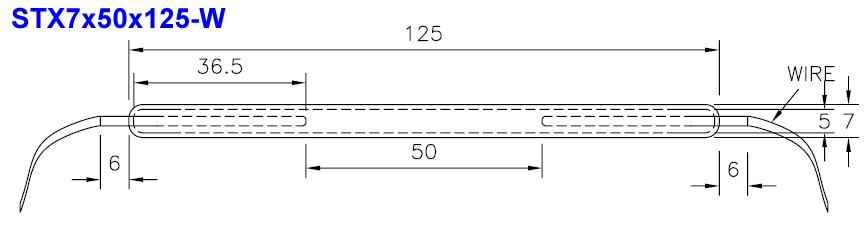

STX7x50x125-W	5	7	50	CFQ, XFP, WIRE
ST26	5	6	50	Xenon, BASE
ST2216 (ST2237)	5	7	76	CFQ, XFP, WIRE

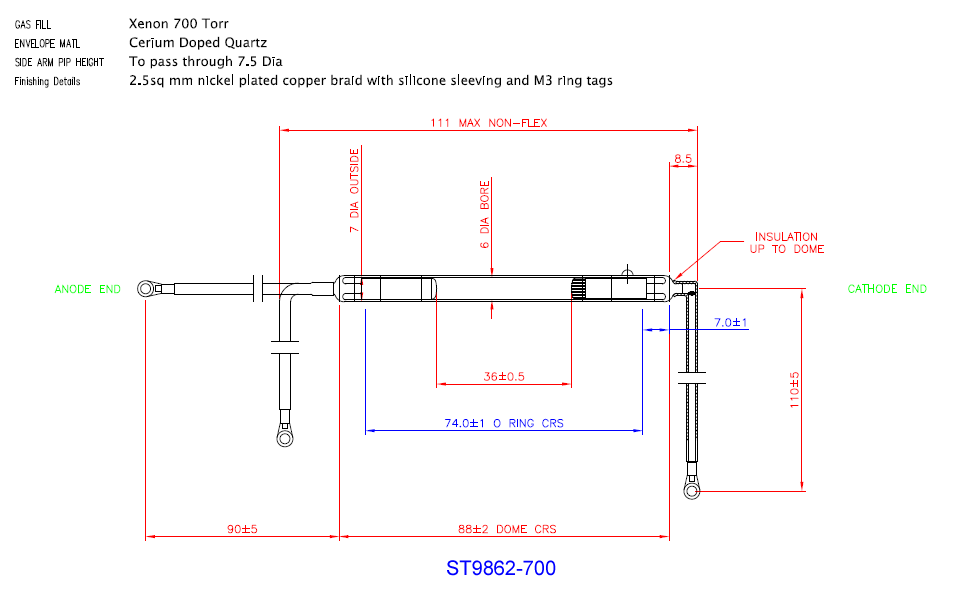

ST9862-700	6	7	36	CFQ, XFP, WIRE

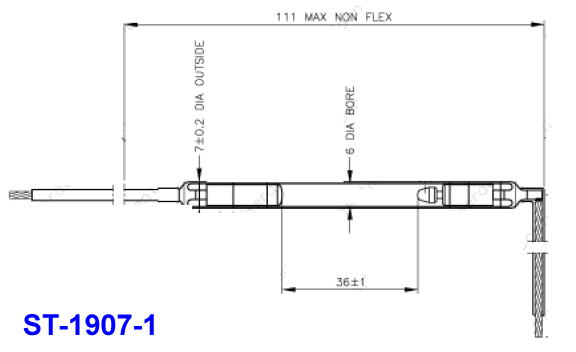

ST-1907-1	6	7	36	WIRE

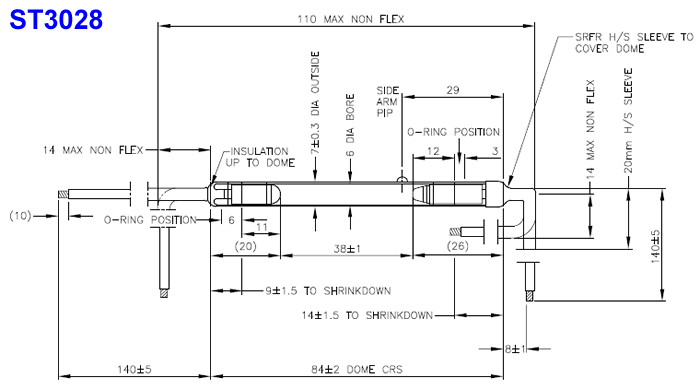

ST3028	6	7	38	CFQ, XFP, WIRE
ST2125	6		50	CFQ, XFP
ST2307	6		50	CFQ, XFP
ST2308	6		50	CFQ, XFP
ST2252	6		50	CFQ, XFP
ST3560	6	7	50	Xenon, WIRE
STXF486	6	7	52	Xenon, WIRE

CDQ - UV absorbing Cerium doped quartz; XFP - Xenon gas filled

STX Series Xenon Lamps

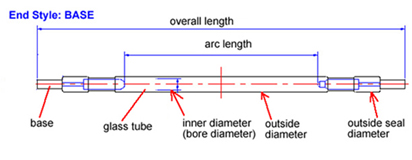

Description of model number: STXxxx-yyy-zzz-Waaa or STXxxx-yyy-zzz-DxL

STX – Xe lamp
xxx – outside diameter (In general, the thickness of the glass tube is 1mm)
yyy – arc length
zzz – overall length

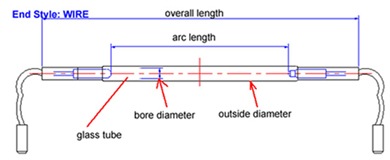

W -- WIRE end style (no W means BASE end style), aaa is the wire length
DxL – diameter and length of BASE if the end is BASE.

Model	Bore (mm)	OD (mm)	Arc (mm)	OAL (mm)	BASE (DxL, mm)
STX-6.5x50x116-3x4	4.5	6.5	50	116	3x4
STX-6.5x50x130-4x8	4.5	6.5	50	130	4x8
STX-6.5x50x180-4x8	4.5	6.5	50	180	4x8
STX-6.5x70x135-W	4.5	6.5	70	135	WIRE
STX-6.5x70x180-4x8	4.5	6.5	70	180	4x8
STX-7x50x116-3x4	5	7	50	116	3x4
STX-7x60x125-4x8	5	7	60	125	4x8
STX-7x60x156-4x8	5	7	60	156	4x8
STX-7x75x160-4x8	5	7	75	160	4x8
STX-7x100x184-4x8	5	7	100	184	4x8
STX-7x100x186-4x8	5	7	100	186	4x8
STX-9x70x140-4x5	7	9	70	140	4x5

Remark: 1) UV absorbing cerium doped quartz is used in the STX series lamps.

2) End style WIRE is available upon request.

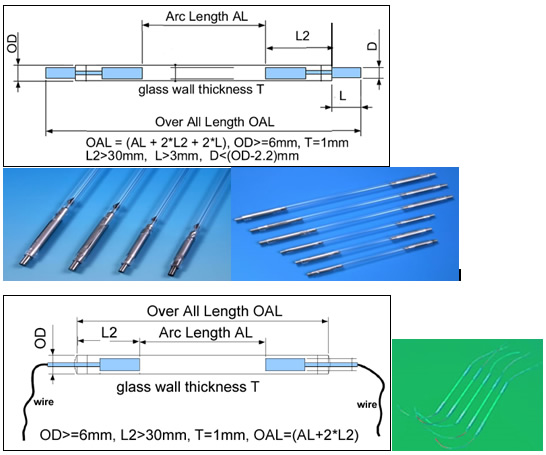

For STX series lamps, please refer to the following figure to tell us what you want if you can not find the lamps from the above tables. We may custom-design and –make the lamps for you.

If you are using a laser and know the brand or maker, please refer to the following table which shows the lamp models and drawings used in inpidual laser machines. Please fill out the detailed requirement form (PDF) or requirement form (DOC) of the lamps for a quotation. If you do not know the details of the used lamp, please contact us for more information.
