Laser Pump Cavities

Keywords: Laser Pump Cavities, gold cavity, pump chamber

Apr 20, 2020 View: 4285 Data Sheet

We provide laser users with a comprehensive range of retrofitable gold, silver, ceramic & doped glass cavities. The gold plated elliptical and close-coupled pump cavities are the preferred reflector used.

Submit Inquiry +65 63167112 sales@sintec.sg

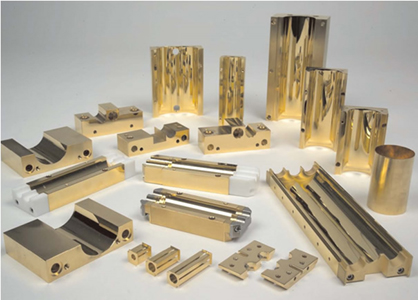

Gold, Silver, Ceramic & Doped Glass For Lamp Pumped Laser Systems

We provide laser users with a comprehensive range of retrofitable gold, silver, ceramic & doped glass cavities. In the majority of solid state YAG laser systems gold plated elliptical and close-coupled pump cavities are the preferred reflector used. Most optical pump cavities are typically produced from metals such as Aluminium, Stainless Steel, and Bronze. After machining the reflective surfaces are mechanically polished to mirror finish and depending on the base metal used a combination of under-plating is applied prior to the final gold plating process.

We have developed a unique and proprietary gold plating process referred to as ‘LaserGold’. LaserGold plated pump cavities have been demonstrated to provide the highest reflective efficiency in the market.

We provide a comprehensive range of retrofit and bespoke pump cavities. If your cavity is not listed or you require a custom produced cavity, please provide us with an original sample or an engineering drawing.

Refurbishing Service:

Over the life time of the gold pump cavity the reflective efficiency will reduce due to surface damage, contaminant deposits and possible corrosion. Providing the reflective surfaces are not mechanically damaged, the cavity can be salvaged and re-plated. The contaminants, corrosion and remaining gold plating is chemically removed prior to repolishing the reflective surfaces and then re-applying the under plating followed finally by applying the ‘LaserGold’ plating process.

If your cavity is not listed or you require a custom produced cavity, please provide us with an original sample or an engineering drawing.

Item Part Number	Description	Laser Rail
ALPHA LASERS
STGCALS35	Complete Gold Cavity Assembly	ALC35, ALO35, ALS35(Old Model)
STGCEALS35	Cavity Ellipse, Gold plated
STCEPALS35ST	Cavity End Plate, Teflon
STGCALS35S	Complete Gold Cavity Assembly	ALS35S, SL50, SL50P
STGCEALS35S	Cavity Ellipse, Gold plated
STCEPALS35ST	Cavity End Plate, Teflon
STGCALS75	Complete Gold Cavity Assembly	SL75, SL75P, SL120P
STGCEALS75	Cavity Ellipse, Gold plated
STCEPALS75G	Cavity End Plate, Gold
STCEPALS75T	Cavity End Plate, Teflon
AB LASER INC
STGC600	Complete Gold Cavity Assembly	Baasel 600, 601, 612, 615
STGCE600	Cavity Ellipse, Gold plated
STCEP600U/CEP600L	Cavity End Plate, Upper and Lower
STGC6000	Complete Gold Cavity Assembly	Baasel 2000, BLS611, 600
STGCE6000	Cavity Ellipse, Gold plated
STCEP6000G	Cavity End Plate, Gold
STCEP6000T	Cavity End Plate, Teflon
STGCSTARMARK	Complete Gold Cavity Assembly	Baasel SM65, SM90
STGCE600	Cavity Ellipse, Gold plated
STCEP6000T	Cavity End Plate, Teflon
STGCSTARMARK150	Complete Gold Cavity Assembly	Baasel SM120, SM150
STGCESTARMARK150	Cavity Ellipse, Gold plated
STCEPSTARMARK150	Cavity End Plate
STGC4002	Complete Gold Cavity Assembly	Baasel 4001, 5001, 6001
STGCE4002	Cavity Ellipse, Gold plated
STCEP4002T	Cavity End Plate, Teflon
ALTEC
STCCEFOBA100L	Ceramic Ellipse, Lower	Alltec LN100 W
STCCEFOBA100U	Ceramic Ellipse, Upper
BAASEL LASERTECHNIK
STGC600	Complete Gold Cavity Assembly	Baasel 600, 601, 612, 615
STGCE600	Cavity Ellipse, Gold plated
STCEP600U/CEP600L	Cavity End Plate, Upper and Lower
STGC6000	Complete Gold Cavity Assembly	Baasel 2000, BLS611, 600
STGCE6000	Cavity Ellipse, Gold plated
STCEP6000G	Cavity End Plate, Gold
STCEP6000T	Cavity End Plate, Teflon
STGCSTARMARK	Complete Gold Cavity Assembly	Baasel SM65, SM90
STGCE600	Cavity Ellipse, Gold plated
STCEP6000T	Cavity End Plate, Teflon
STGCSTARMARK150	Complete Gold Cavity Assembly	Baasel SM120, SM150
STGCESTARMARK150	Cavity Ellipse, Gold plated
STCEPSTARMARK150	Cavity End Plate
STGC4002	Complete Gold Cavity Assembly	Baasel 4001, 5001, 6001
STGCE4002	Cavity Ellipse, Gold plated
STCEP4002T	Cavity End Plate, Teflon
BAUBLYS CONTROL LASER
STCCLL902	Ceramic Cavity Lower	Baublys BL65, 65 W
STCCLU902	Ceramic Cavity Upper
CHICAGO LASER
STGC258	Complete Gold Cavity Assembly	Chicago Laser CLS37
STGCE258	Cavity Ellipse, Gold plated
STCEP258R/CEP258L	Cavity End Plate, Right and Left
STGC512	Complete Gold Cavity Assembly	Chicago Laser CLS37
STGCE512	Cavity Ellipse, Gold plated
STCEP510	Cavity End Plate, Gold Plated
STGCA708	Complete Gold Cavity Assembly (Includes Teflon Light Shields)	Chicago Laser CLS39, CLS977, CLS907, CLS960
STGCL70	Cavity Ellipse, Gold plated
STCEP708L/CEP708R	Cavity End Plate, Left and Right
STGCA712	Complete Gold Cavity Assembly (Includes Teflon Light Shields)	Chicago Laser CLS39, CLS977, CLS907, CLS960
STGCE708	Cavity Ellipse, Gold plated
STCEP708L/CEP708R	Cavity End Plate, Left and Right
STGCA812	Complete Gold Cavity Assembly (Includes Teflon Light Shields)	Chicago Laser CLS39, CLS977, CLS907, CLS960
STGCE708	Cavity Ellipse, Gold plated
STCEP818L/CEP818R	Cavity End Plate, Left and Right
CHROMATRON
STQCEINDUWRITE	Silver Plated Laser Cavity Europium Doped Quartz	Induwrite
CONTROL LASER
STGC510	Complete Gold Cavity Assembly	Holobeam 255, Control 510, 511
STGCE510	Cavity Ellipse, Gold plated
STCEP510	Cavity End Plate
STGC512	Complete Gold Cavity Assembly	Control 512, 513, H-514, Instamark, Script
STGCE512	Cavity Ellipse, Gold plated
STCEP510	Cavity End Plate
STGC258	Complete Gold Cavity Assembly	Holobeam 258, Control 520, 620, H518
STGCE258	Cavity Ellipse, Gold plated
STCEP258L/CEP258R	Cavity End Plate, Left and Right
STGC612	Complete Gold Cavity Assembly	Control 612, Elite, Signature, Emblem
STGCE512	Cavity Ellipse, Gold plated
STCEP512	Cavity End Plate
STGC612PLUS	Complete Gold Cavity Assembly	Control Laser Script 100, Signature 100
STGCE612PLUS	Cavity Ellipse, Gold plated
STCEP510	Cavity End Plate
STGC530	Complete Gold Cavity Assembly	Holobeam 2660, Control 531, 532, 534, 536, 630
STGCE530	Cavity Ellipse, Gold plated
STCEP530L/CEP530R	Cavity End Plate, Left and Right
STGC400	Complete Gold Cavity Assembly	Control Laser 400, 428, 438, 440-4, 440-8, 440-16
STGCE400T/STGCE400L	Cavity Ellipse, Gold Plated
STCEP400T/CEP400L	Cavity End Plate
CLEAN LASER
STGCE600	Cavity Ellipse, Gold plated	CWQ2025, 60 W; CWQ2040, 80 W
STGCE100IMPAQ	Cavity Ellipse, Gold plated	CWQ2045, 100 W
STGCE148IMPAQ	Cavity Ellipse, Gold plated	150 W
CRAFFORD PRECISION PRODUCTS
STGC7000	Complete Gold Cavity Assembly	LaserStar 7000
STGCE7000	Cavity Ellipse, Gold plated
STCEP7000	Cavity End Plate
E.S.I.
STGC510	Complete Gold Cavity Assembly	ESI 25, 44
STGCE510	Cavity Ellipse, Gold plated
STCEP510	Cavity End Plate
STGC512	Complete Gold Cavity Assembly	ESI 44
STGCE512	Cavity Ellipse, Gold plated
STCEP510	Cavity End Plate
STGC570	Complete Gold Cavity Assembly	ESI 44, 80, 4000A, 4200, 2000, 3571, 3572
STGCE570	Cavity Ellipse, Gold plated
STCEP570L/CEP570R	Cavity End Plate, Left and Right
STGC573	Complete Gold Cavity Assembly	ESI 3573
STGCE573	Cavity Ellipse, Gold plated
STCEP573L/CEP573R	Cavity End Plate, Left and Right
STGC258	Complete Gold Cavity Assembly	ESI44
STGCE258	Cavity Ellipse, Gold plated
STCEP258L/CEP258R	Cavity End Plate, Left and Right
EU PHOTONICS
STCCE5541104	Ceramic Cavity	N-Lite Dye laser
EXCEL PHOTONICS
STCCE5541104	Ceramic Cavity	N-Lite Dye laser
FLOROD
STGC512	Complete Gold Cavity Assembly	Florod 40, 41, 42, 70
STGCE512	Cavity Ellipse, Gold plated
STCEP510	Cavity End Plate
FOBA
STCCEFOBA100L	Ceramic Ellipse, Lower	Fobalas 90 MK-DT, 94S, 100Watt
STCCEFOBA100U	Ceramic Ellipse, Upper
STFOX LABS
STGCA114	Complete Gold Cavity Assembly	Fox 7400
STGCE114	Cavity Ellipse, Gold plated
STCEP114	Cavity End Plate
GENERAL SCANNING / GSI LUMONICS
STGCA718	Complete Gold Cavity Assembly (Includes Teflon Light Shields)	GSI Hi-Mark 400, 800, 6000
STGCE718	Cavity Ellipse, Gold plated
STCEP718	Cavity End Plate
STGCA818	Complete Gold Cavity Assembly (Includes Teflon Light Shields)	GSI Hi-Mark 400, 800, 6000
STGCE818	Cavity Ellipse, Gold plated
STCEP818	Cavity End Plate
STHOLOBEAM
STGC510	Complete Gold Cavity Assembly	Holobeam 255, 256
STGCE510	Cavity Ellipse, Gold plated
STCEP510	Cavity End Plate
STGC258	Complete Gold Cavity Assembly	Holobeam 257, 258
STGCE258	Cavity Ellipse, Gold plated
STCEP258L/258R	Cavity End Plate, Left and right
STGC530	Complete Gold Cavity Assembly	Holobeam 2660
STGCE530	Cavity Ellipse, Gold plated
STCEP530L/530R	Cavity End Plate, Left and Right
STGCE600	Cavity Ellipse, Gold plated Impaq	CWQ2025,60 W; CWQ2040,80 W
STGCE100IMPAQ	Cavity Ellipse, Gold plated	Impaq CWQ2045,100 W
STGCE148IMPAQ	Cavity Ellipse, Gold plated	Impaq 150 W
JEC LASER
STGC510	Complete Gold Cavity Assembly	JEC 1020, 1028
STGCE510	Cavity Ellipse, Gold plated
CEP510	Cavity End Plate
STGC512	Complete Gold Cavity Assembly	JEC1024
STGCE512	Cavity Ellipse, Gold plated
STCEP510	Cavity End Plate
LASAG
STGCLAK101	Complete Gold Cavity Assembly	LAK101, KLS111, LAK100, KLS016
STGCELAK101L/ STGCELAK101U	Cavity Ellipse, Gold plated, Lower and Upper
STCEPLAK101L/ STCEPLAK101R	Cavity End Plate, Left and Right
STGCLAK301	Complete Gold Cavity Assembly	LAK301-302, LPM301-302, KLS321
STGCELAK301L/ STGCELAK301U	Cavity Ellipse, Gold plated, Lower and Upper
STCEPLAK301L/ STCEPLAK301R	Cavity End Plate, Left and Right
STGCLAK322	Complete Gold Cavity Assembly	KLS312, KLS322
STGCELAK322L/ STGCELAK322U	Cavity Ellipse, Gold plated, Lower and Upper
STCEPLAK322L/ STCEPLAK322R	Cavity End Plate, Left and Right
STGCLAK400	Complete Gold Cavity Assembly	LAK400-401
STGCELAK400L/ STGCELAK400U	Cavity Ellipse, Gold plated, Lower and Upper
STCEPLAK400L/ STCEPLAK400R	Cavity End Plate, Left and Right
STGCLAK601	Complete Gold Cavity Assembly	LAK601
STGCELAK601L/ STGCELAK601U	Cavity Ellipse, Gold plated, Lower and Upper
STCEPLAK601L/ STCEPLAK601R	Cavity End Plate, Left and Right
LASER APPLICATIONS / LASERMETRICS
STGC9555	Complete Gold Cavity Assembly	9555, Blazer, Quantrad, Galaxy, Comet
STGCE9555	Cavity Ellipse, Gold plated
STCEP9555L/CEP9555R	Cavity End Plate, Left and Right
STGC9560	Complete Gold Cavity Assembly	9760
STGCE9560	Cavity Ellipse, Gold plated
STCEP9560L/CEP9560R	Cavity End Plate, Left and Right
STGC95100	Complete Gold Cavity Assembly	95100
STGCE95100	Cavity Ellipse, Gold plated
STCEP95100L/CEP95100R	Cavity End Plate, Left and Right
LASER IDENTIFICATION SYSTEMS
STGCA114	Complete Gold Cavity Assembly	LIS WaferMark I
STGCE114	Cavity Ellipse, Gold plated
STCEP114	Cavity End Plate
STGCA116	Complete Gold Cavity Assembly	LIS WaferMark II
STGCE116	Cavity Ellipse, Gold plated
STCEP114	Cavity End Plate
LASER OPTRONICS / ROFIN SINAR
STGC747	Complete Gold Cavity Assembly	747
STGCE747	Cavity Ellipse, Gold plated
STCEP747A/CEP747B	Cavity End Plate
STGC767	Complete Gold Cavity Assembly	767, EverMark 8070, 815, 860
STGCE700	Cavity Ellipse, Gold plated
STCEP767A/CEP767B	Cavity End Plate
LASIT
STGC530	Complete Gold Cavity Assembly	Fleximark, EasyMark 80 W, 120 W
STGCE530	Cavity Ellipse, Gold plated
STCEP530L/CEP530R	Cavity End Plate, Left and Right
LEE LASER
STGCA708	Complete Gold Cavity Assembly (Includes Teflon Light Shields)	708
STGCE708	Cavity Ellipse, Gold plated
STCEP708L/CEP708R	Cavity End Plate, Left and Righ t
STGCA712	Complete Gold Cavity Assembly (Includes Teflon Light Shields)	712
STGCE708	Cavity Ellipse, Gold plated
CEP708L/CEP708R	Cavity End Plate, Left and Right
STGCA718	Complete Gold Cavity Assembly (Includes Teflon Light Shields)	715, 718
STGCE718	Cavity Ellipse, Gold plated
STCEP708L/CEP708R	Cavity End Plate, Left and Right
STGCA812	Complete Gold Cavity Assembly (Includes Teflon Light Shields)	803, 808, 812, 850, 875
STGCE708	Cavity Ellipse, Gold plated
STCEP818L/CEP818R	Cavity End Plate, Left and Right
STGCA818	Complete Gold Cavity Assembly (Includes Teflon Light Shields)	815, 818, 825, 825S
STGCE718	Cavity Ellipse, Gold plated
STCEP818L/CEP818R	Cavity End Plate, Left and Right
STCCA818	Complete Ceramic Cavity Assembly (Includes Teflon Light Shields)	815, 818, 825, 825S
L.P.K.F.
STGC4002	Complete Gold Cavity Assembly	Baasel 4001, Baasel SC18, LaserStarcut, BLS27
STGCE4002	Cavity Ellipse, Gold plated
STCEP4002T	Cavity End Plate	Baasel 4002, 5001, 6001
LS LASER SYSTEM / MUNICH LASER SYSTEMS
STGCEMLS035U/STGCEMLS035L	Cavity Ellipse, Gold plated, Upper and Lower	MLS035, LS800, MLS7032
STCEPPMLS035	Cavity End Plate
LUMONICS / GCI LUMONICS
STGCA116	Complete Gold Cavity	Assembly LightWriter I & II
STGCE116	Cavity Ellipse, Gold plated
STCEP114	Cavity End Plate
MUNICH LASER SYSTEMS / LS LASER SYSTEMS
STGCEMLS035U/STGCEMLS035L	Cavity Ellipse, Gold plated, Upper and Lower	MLS035, LS800, MLS7032
STCEPPMLS035	Cavity End Plate
N.E.C.
STGCSL114	Complete Gold Cavity Assembly	SL432G, SL435B, SL411B, SL412G, SL114K, SL475H, S.L.T. CL-60
STGCESL114U/STGCESL114L	Cavity Ellipse, Gold plated, Upper and Lower
STCEPSL114L/CEPSL114R	Cavity End Plate, Left and Right
N.W.L.
STCCLL902	Ceramic Cavity Lower	Dali, Maestro, Mistral
STCCLU902	Ceramic Cavity Upper	Dali, Maestro, Mistral
STGCE100NWLC	Cavity Ellipse, Gold plated	N.W.L. 100 Watt
ORZIV
STGCA117	Complete Gold Cavity Assembly	Orziv 2001
STGCE117	Cavity Ellipse, Gold plated
STCEP114	Cavity End Plate
OTARI
STGCA118	Complete Gold Cavity Assembly	Otari 250Watt
STGCE118	Cavity Ellipse, Gold plated
STCEP118	Cavity End Plate
STGCA118CC	Complete Gold Cavity Assembly	Otari 350Watt
STGCE118CC	Cavity Ellipse, Gold plated
STCEP118CC	Cavity End Plate
PHOTON ENERGY
STGCE600	Cavity Ellipse, Gold plated	Photon Energy Draco 80W
STGCE100IMPAQ	Cavity Ellipse, Gold plated	Photon Energy Draco100W
POSITIVE LIGHT
STGCA117	Complete Gold Cavity Assembly	Merlin
STGCE117	Cavity Ellipse, Gold plated
STCEP114	Cavity End Plate
QUANTRAD
STGC9555	Complete Gold Cavity Assembly	Blazer 2000, Comet, Galaxy
STGCE9555	Cavity Ellipse, Gold plated
STCEP9555L/CEP9555R	Cavity End Plate, Left and Right
QUANTRONIX
STGCA114	Complete Gold Cavity Assembly	114, 602, 603
STGCE114	Cavity Ellipse, Gold plated
STCEP114	Cavity End Plate
STGCA116	Complete Gold Cavity Assembly	116, 604, 416, 4216
STGCE116	Cavity Ellipse, Gold plated
STCEP114	Cavity End Plate
STGCA117	Complete Gold Cavity Assembly	117, 117E, 4217, Q-Mark
STGCE117	Cavity Ellipse, Gold plated
STCEP114	Cavity End Plate
STGCA118	Complete Gold Cavity Assembly	118
STGCE118	Cavity Ellipse, Gold plated
STCEP118	Cavity End Plate
STGCA118CC	Complete Gold Cavity Assembly	118 Close Coupled
STGCE118CC	Cavity Ellipse, Gold plated
STCEP118CC	Cavity End Plate
RAYTHEON
STGC500	Complete Gold Cavity Assembly	SS500, SS525, SS531,
STGCE500U/STGCE500L	Cavity Ellipse, Gold plated, Upper and Lower	SS550
STCEP500	Cavity End Plate
ROFIN BAASEL
STGC600	Complete Gold Cavity Assembly	Baasel 600, 601, 612, 615
STGCE600	Cavity Ellipse, Gold plated
STCEP600U/CEP600L	Cavity End Plate, Upper and Lower
STGC6000	Complete Gold Cavity Assembly	Baasel 2000, BLS611, 600
STGCE6000	Cavity Ellipse, Gold plated
STCEP6000G	Cavity End Plate, Gold
STCEP6000T	Cavity End Plate, Teflon
STGCSTARMARK	Complete Gold Cavity Assembly	Baasel 65 Watt, 90 Watt
STGCE600	Cavity Ellipse, Gold plated
STCEP6000T	Cavity End Plate, Teflon
STGCSTARMARK150	Complete Gold Cavity Assembly	Baasel 120 Watt, 150 Watt
STGCESTARMARK150	Cavity Ellipse, Gold plated
CEPSTARMARK150	Cavity End Plate
STGC4002	Complete Gold Cavity Assembly	Baasel 4001, 5001, 6001
STGCE4002	Cavity Ellipse, Gold plated
STCEP4002T	Cavity End Plate, Teflon
ROFIN SINAR / LASER OPTRONICS
STGC747	Complete Gold Cavity Assembly	747
STGCE747	Cavity Ellipse, Gold plated
STCEP747A/CEP747B	Cavity End Plate
STGC767	Complete Gold Cavity Assembly	767, EverMark 8070, 815, 860
STGCE700	Cavity Ellipse, Gold plated
STCEP767A/CEP767B	Cavity End Plate
STCCERSY	Ceramic Cavity Liner, 751012	RSY 90Q, RSY120Q, Powerline Series
S.E.I
STGC530	Complete Gold Cavity Assembly	S.E.I. 120W
STGCE530	Cavity Ellipse, Gold plated
STCEP530R/CEP530L	Cavity End Plate, Right and Left
STGCA718	Complete Gold Cavity Assembly (Includes Teflon Light Shields)	S.E.I. 80W
STGCE718	Cavity Ellipse, Gold plated
STCEP708L/CEP708R	Cavity End Plate, Left and Right
SIEMENS
STGC512	Complete Gold Cavity Assembly	Silamatic
STGCE512	Cavity Ellipse, Gold plated
STCEP510	Cavity End Plate
SIRO LASERTEC
STGCALS35	Complete Gold Cavity Assembly	ALC35, ALO35, ALS35 (Old Model)
STGCEALS35	Cavity Ellipse, Gold plated
STCEPALS35ST	Cavity End Plate, Teflon
STGCALS35S	Complete Gold Cavity Assembly	ALS35S, SL50, SL50P, Thunder and Thunderstorm
STGCEALS35S	Cavity Ellipse, Gold plated
STCEPALS35ST	Cavity End Plate, Teflon
STGCALS75	Complete Gold Cavity Assembly	Tornado, Hurricane
STGCEALS75	Cavity Ellipse, Gold plated
STCEPALS75G	Cavity End Plate, Gold
SPECTRA PHYSICS
STGC570	Complete Gold Cavity Assembly	Spectra Physics 3000
STGCE570	Cavity Ellipse, Gold plated
STCEP570L/CEP570R	Cavity End Plate, Left and Right
STGC573	Complete Gold Cavity Assembly	Spectra Physics 3400
STGCE573	Cavity Ellipse, Gold plated
STCEP573L/CEP573R	Cavity End Plate, Left and Right
STGCA117	Complete Gold Cavity Assembly	Spectra Physics Merlin
STGCE117	Cavity Ellipse, Gold plated
STCEP114	Cavity End Plate
STGCADCR	Complete Gold Cavity Assembly	Quanta Ray DCR2, DCRII, GCR Series
STGCEDCR	Cavity Ellipse, Gold plated
STCEPDCR	Cavity End Plate
SPECTRON
STCCLL902	Ceramic Cavity Lower	902, 903
STCCLU902	Ceramic Cavity Upper
TERADYNE / TLSI / GSI
STGC510	Complete Gold Cavity Assembly	311, H-507
STGCE510	Cavity Ellipse, Gold plated
STCEP510	Cavity End Plate
STGC512	Complete Gold Cavity Assembly	411, H-514, WD411
STGCE512	Cavity Ellipse, Gold plated
STCEP510	Cavity End Plate
STGC708	Complete Gold Cavity Assembly	W614, W670
STGCE708	Cavity Ellipse, Gold plated
STCEP708L/CEP708R	Cavity End Plate, Left and Right
STGCA114	Complete Gold Cavity Assembly	M118
STGCE114	Cavity Ellipse, Gold plated
STCEP114	Cavity End Plate
STGC116	Complete Gold Cavity Assembly	W419, W421, W429, W614, M118
STGCE116	Cavity Ellipse, Gold plated
STCEP114	Cavity End Plate
T.L.T.
STGC9560	Complete Gold Cavity Assembly	800
STGCE9555	Cavity Ellipse, Gold plated
STCEP9560L/CEP9560R	Cavity End Plate, Left and Right
STGC512	Complete Gold Cavity Assembly	1200, 1400
STGCE512	Cavity Ellipse, Gold plated
STCEP510	Cavity End Plate
STGCA117	Complete Gold Cavity Assembly	2400
STGCE117	Cavity Ellipse, Gold plated
STCEP114	Cavity End Plate
TRUMPF / HAAS
STGCHAAS	Complete Gold Cavity Assembly	HL353D, HL556D, HL703D, HL1003D, HL1006D, HL1504D, HL2006D, HL3006D, HL4006D
STGCEHAAS	Cavity Ellipse, Gold plated
STCEPHASSL/CEPHAASR	Cavity End Plate, Left and Right
UNIVERSAL LASERS
STGCA708	Complete Gold Cavity Assembly (Includes Teflon Light Shields)	708, 712
STGCE708	Cavity Ellipse, Gold plated
STCEP708L/CEP708R	Cavity End Plate, Left and Right
STGC600	Complete Gold Cavity Assembly	60 W Marking System
STGCE60	Cavity Ellipse, Gold plated
STCEP600U/CEP600L	Cavity End Plate, Upper and Lower
ZANOBONI
STGC600	Complete Gold Cavity Assembly	60 W Marking System
STGCE600	Cavity Ellipse, Gold plated
STCEP600U/CEP600L	Cavity End Plate, Upper and Lower

Please download the data sheet here to get the detailed information of other brands laser machines. If you can not find the pump cavities you wanted, please call us or send us an email for more inmation.

Data Sheet

Submit Inquiry

PrevCeramic Reflector

NextLaser Pump Chamber
