Kr & Xe Laser Lamps

We are having promotions for the below lamps in stock. You may search for the datasheets within this page, or contact us at sales@sintec.sg for a quotation.

Laser lamps are mercury-free gas discharge lamps used to pump solid-state lasers in many laser applications like welding, cutting and marking. They are especially suitable for high-power lasers or lasers with high precision requirements.

Also for non-laser applications like IPL hair removal, ultraviolet (UV) curing, sun simulation and rapid thermal processing of silicon wafers, pulsed laser lamps are increasingly used. Their main advantages in these applications are their broad spectral output and their high powers.

For more information on the operation principle and how to make a lamp, please download the reference here.

Bore(mm)	Maximum W/cm of Arc	Nominal Current (A)	Maximum Current (A)	Minimum Current (A)	Maximum Static Impedance
4	400	20	24	7	1.10
5	520	30	33	10	0.6
6	700	40	46	13	0.41
7	800	50	56	17	0.31
8	930	65	72	20	0.25

Table of Parameters for Continuous Wave Lamps

CW Laser Lamps (Kr Lamps)

CW (continuous wave) lamps are gas discharge lamps that are mainly used in marking lasers and lasers for welding and cutting. We offer CW lamps in a wide range of power and design, either made to customer specification or as standard replacement lamps.

Our CW lamps are widely recognized as the leading product in the market. Because of the unique automated laser lamp manufacturing line, they offer an excellent lamp-to-lamp repeatability. A stronger seal and optimised designs have made longer lifetimes possible.

STK Series Krypton Lamps

Description of model number: STKxxx-yyy-zzz-Waaa or STKxxx-yyy-zzz-DxL

• STK – Kr lamp

• xxx – outside diameter (In general, the thickness of the glass tube is1mm)

• yyy – arc length

• zzz – over all length

• W  --  WIRE end style (no W means BASE end style), aaa is the wire length

• DxL – diameter and length of BASE if the end is BASE.

The typical parameters of STK-8x100x250-5x10 are: gas 2280torr, cerium doped quartz, 1mm wall thick, trigger voltage >18kV, operation voltage >100V,  lifetime 300-1000hours, K0 26.3, recommended maximum operation power 3204W. The parameters such as K0 and recommended maximum operation power are theoretically calculated and are for reference only. The other parameters such as operation voltage, pulse width and pulse repetition rate are typical parameters for reference only.

Pulsed Laser Lamps (Xe Lamps)

Flash lamps are gas discharge lamps that are used in many applications. By far the most demanding of these is the optical pumping of lasers. The high optical power per pulse requires the best materials and designs to achieve long lifetimes. We manufacture customized flash lamps in a wide range of power and design as well as standard replacement lamps.

With an innovative technology that optimizes the quartz glass envelope, gas fill and electrode design, our flash lamps combine high pulse energy and very long lifetime. Automated manufacturing ensures constant quality through minimized tolerances.

For cosmetic pulsed light applications like hair removal and skin rejuvenation, specially designed flash lamps are available. Also for flash lamp applications like UV curing and sun simulation, we work closely with customers to design the optimum lamp.

STX Series Xenon Lamps

Description of model number: STXxxx-yyy-zzz-Waaa or STXxxx-yyy-zzz-DxL

• STX – Xe lamp

• xxx – outside diameter (In general, the thickness of the glass tube is 1mm)

• yyy – arc length

• zzz – over all length

• W  --  WIRE end style (no W means BASE end style), aaa is the wire length

• DxL – diameter and length of BASE if the end is BASE.

Typical Parameters:

Remark: The parameters such as K0 and recommended maximum operation power are theoretically calculated and are for reference only. The other parameters such as operation voltage, pulse width and pulse repetition rate are typical parameters for reference only.

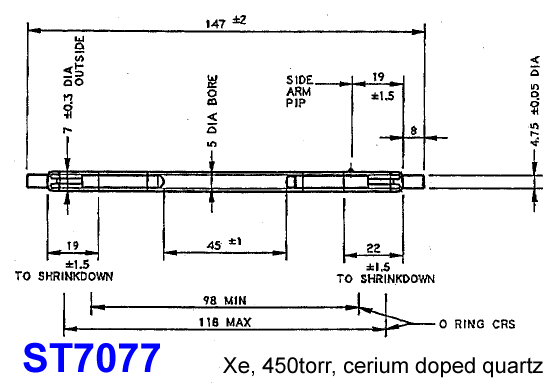

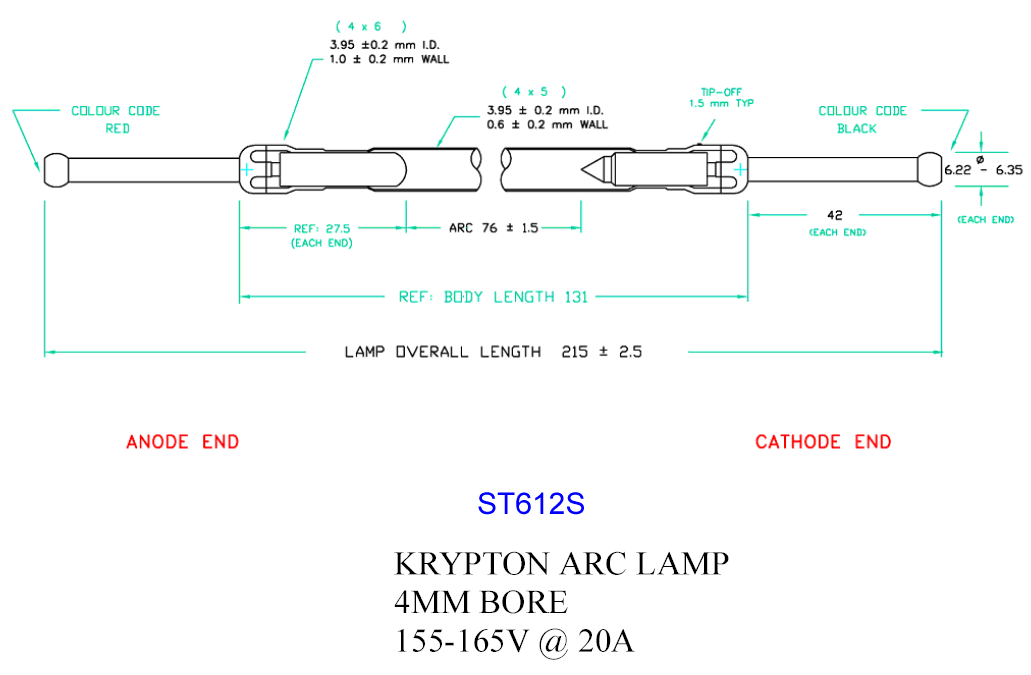

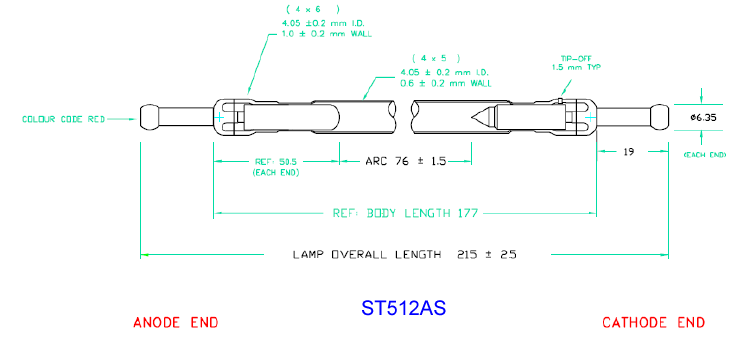

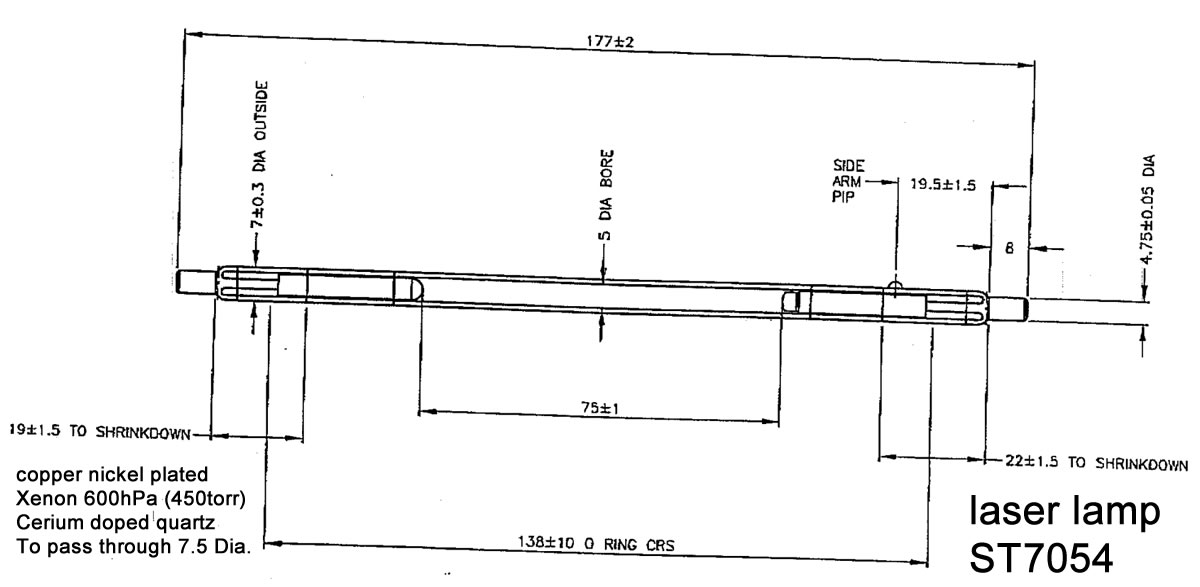

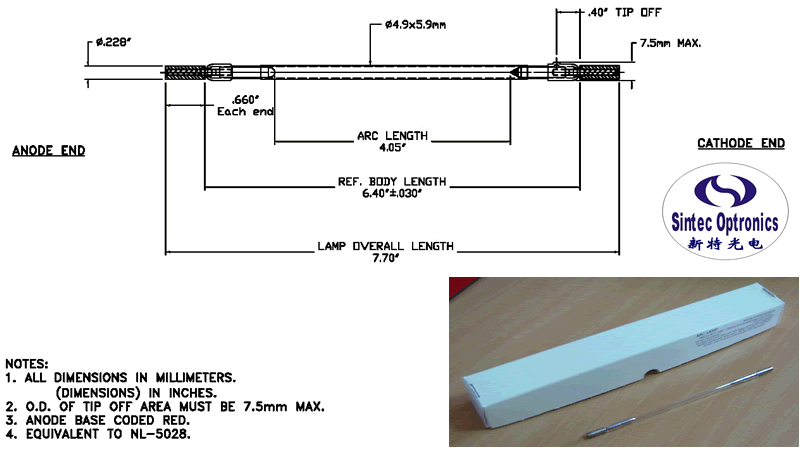

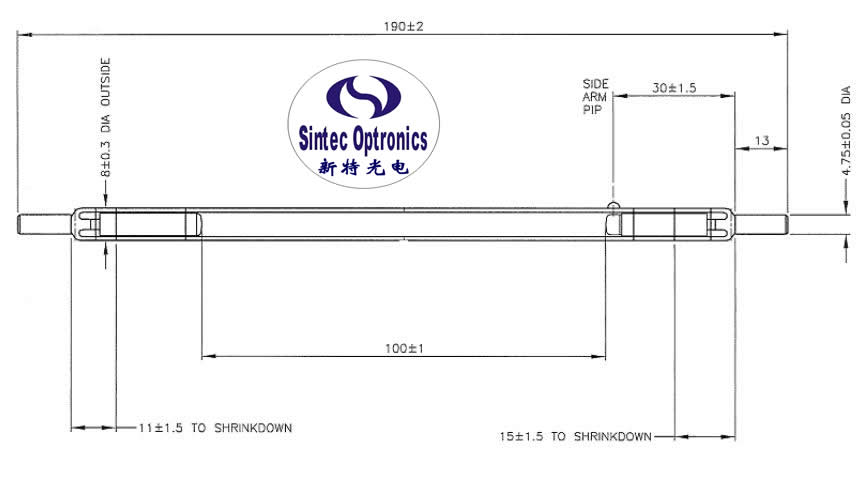

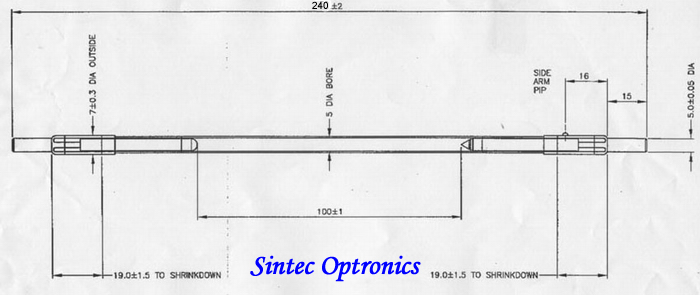

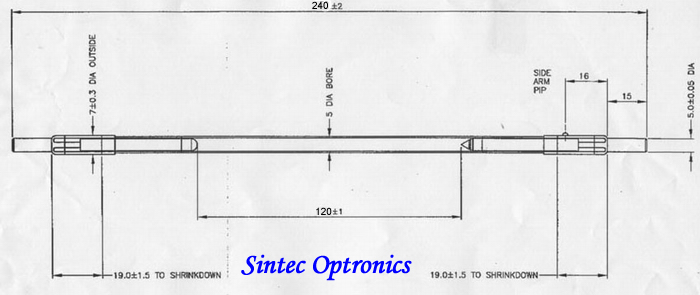

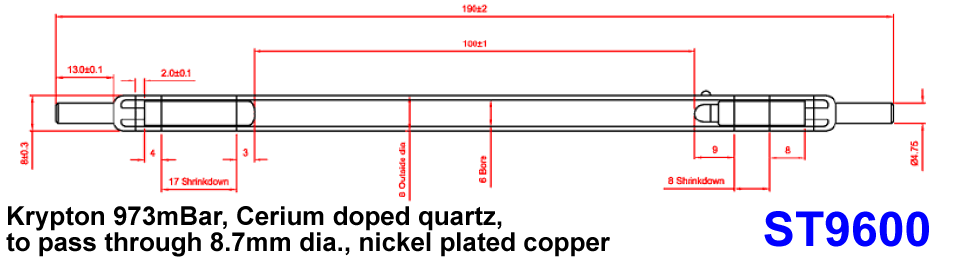

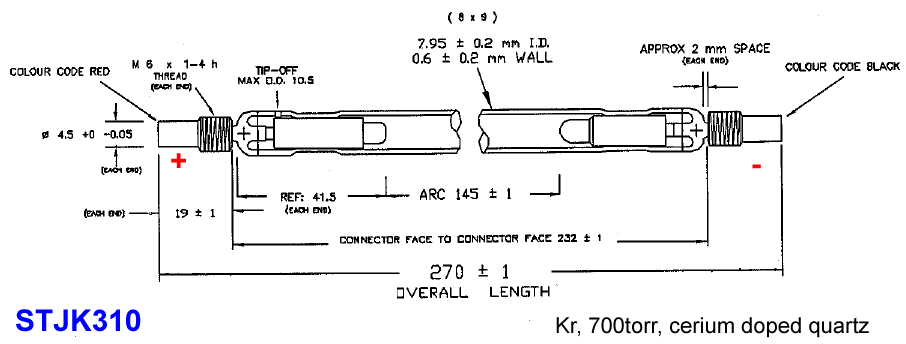

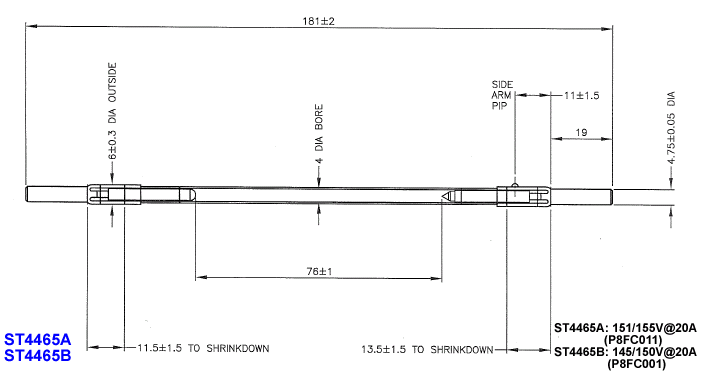

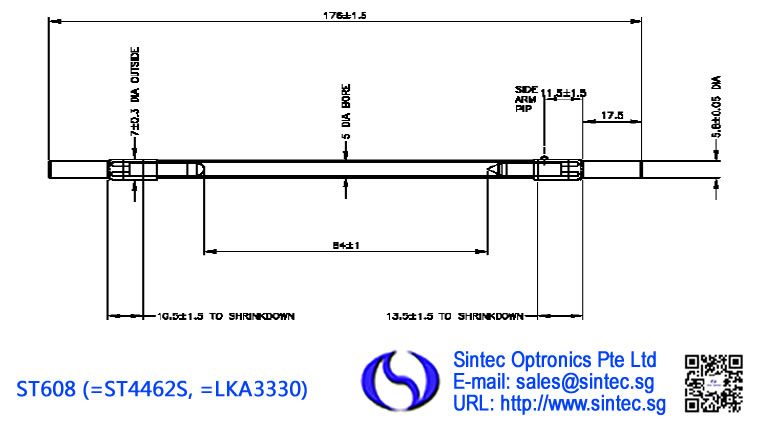

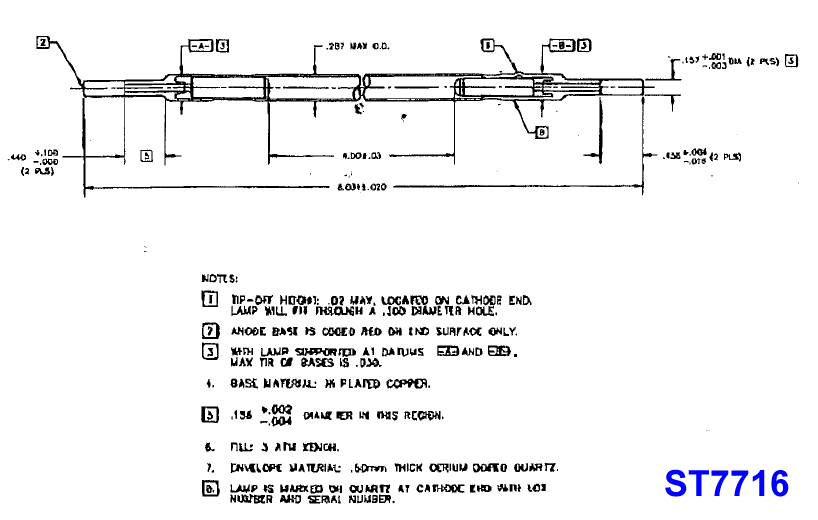

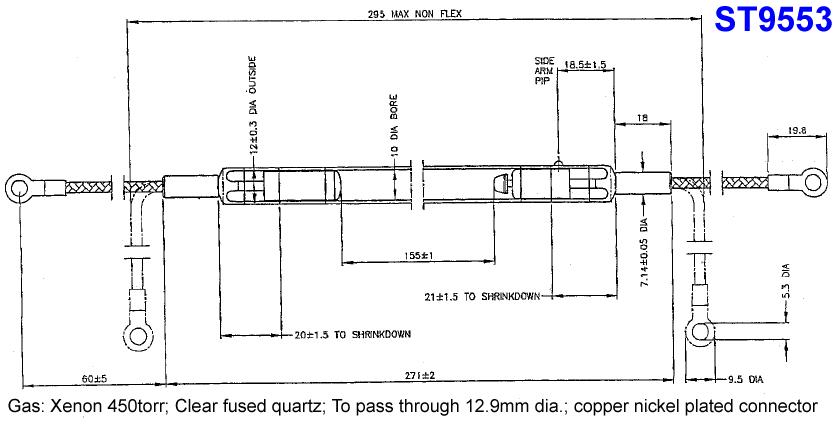

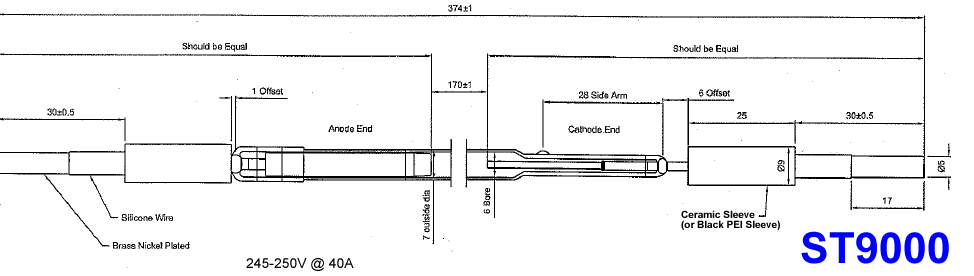

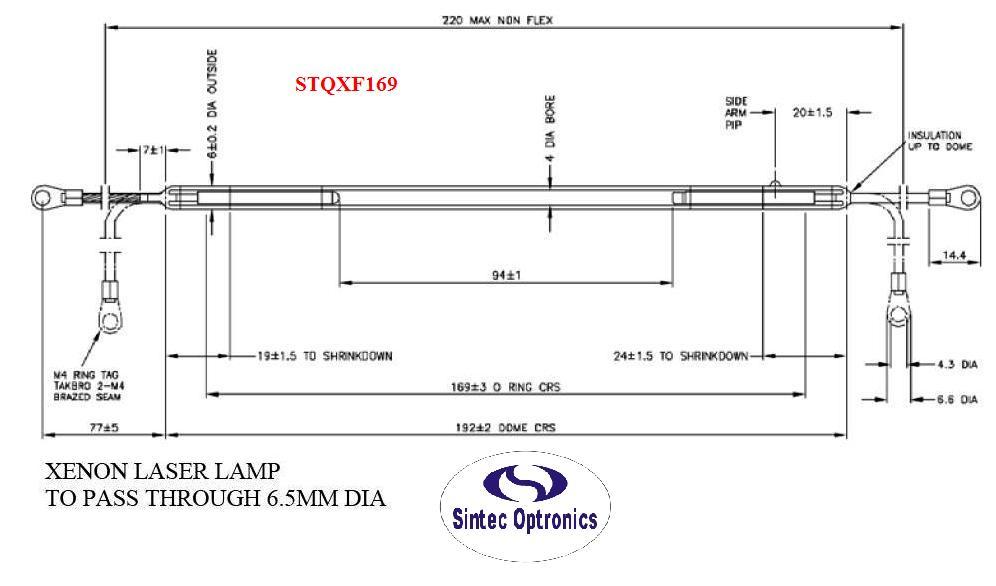

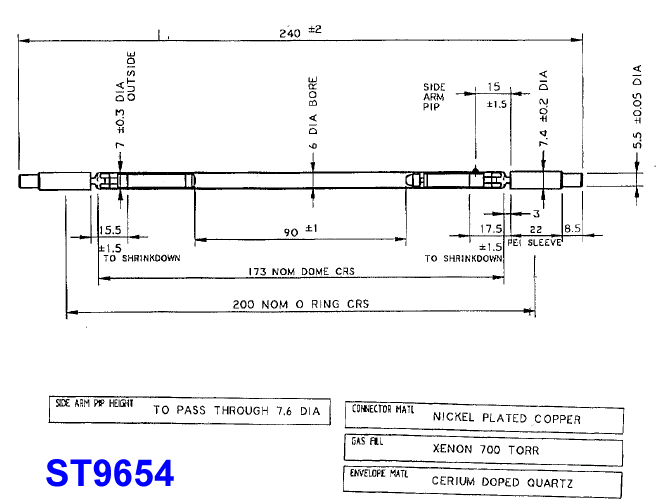

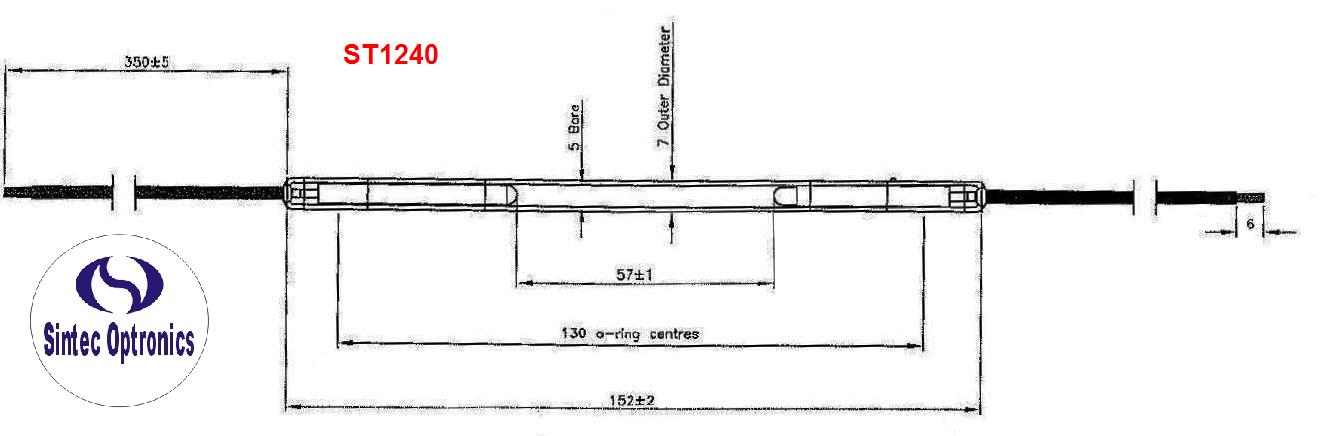

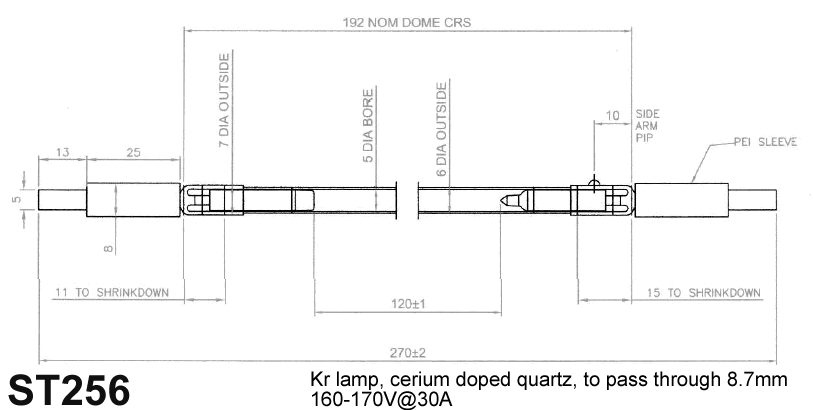

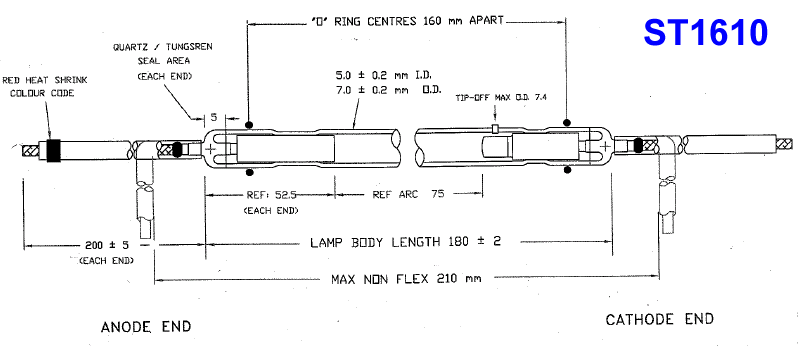

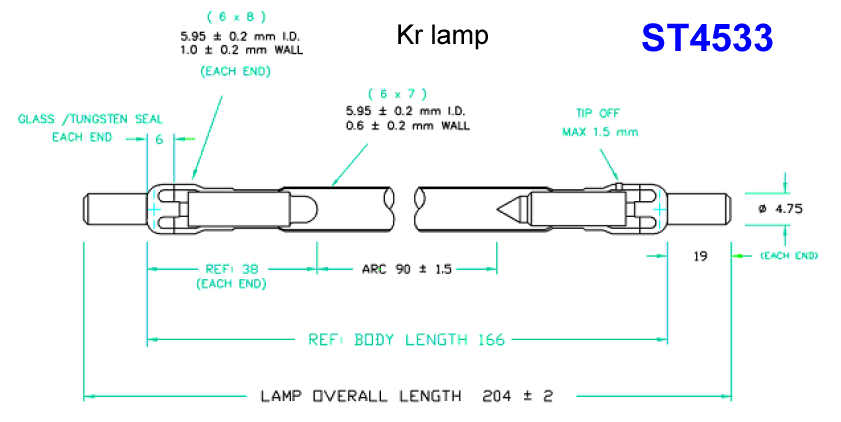

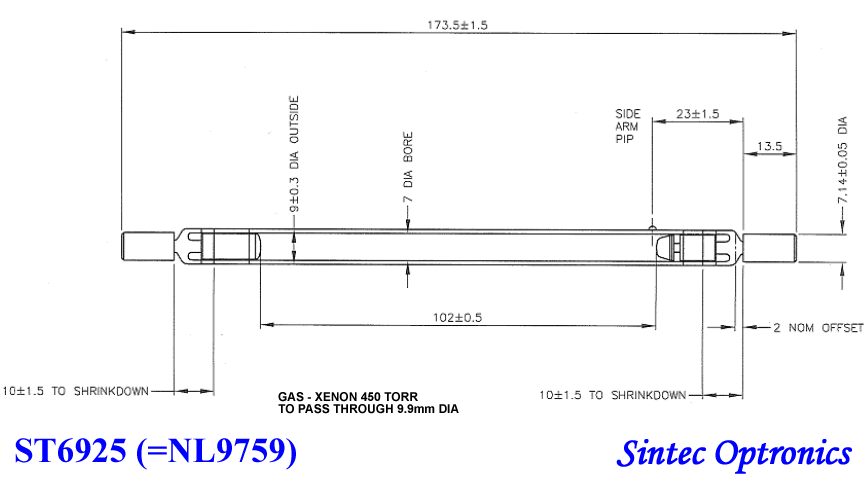

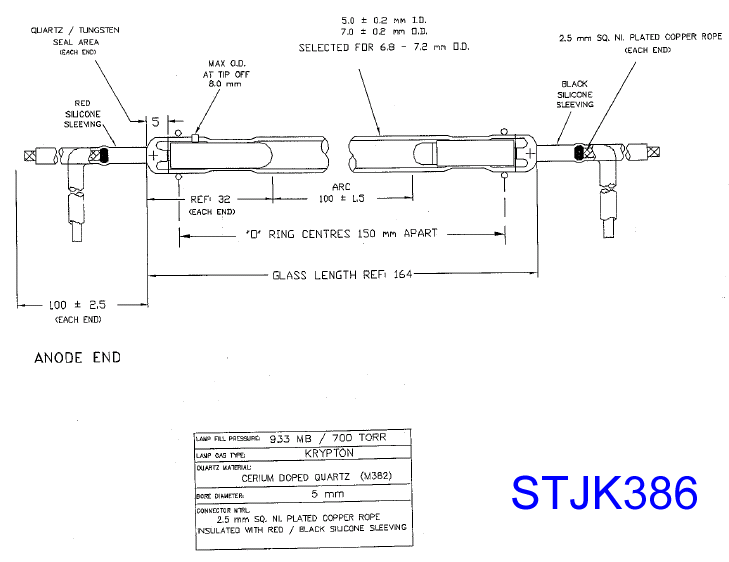

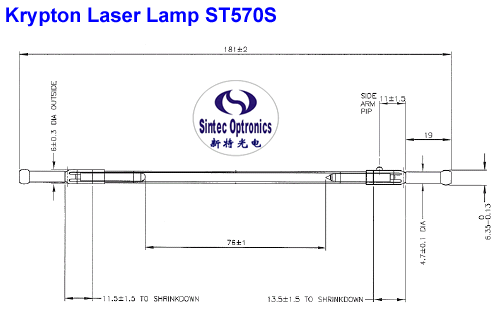

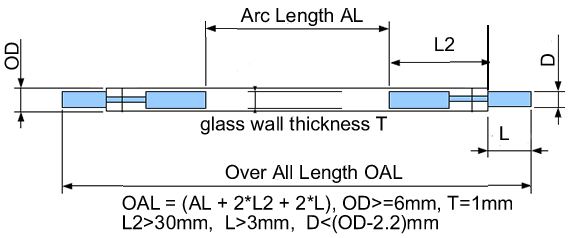

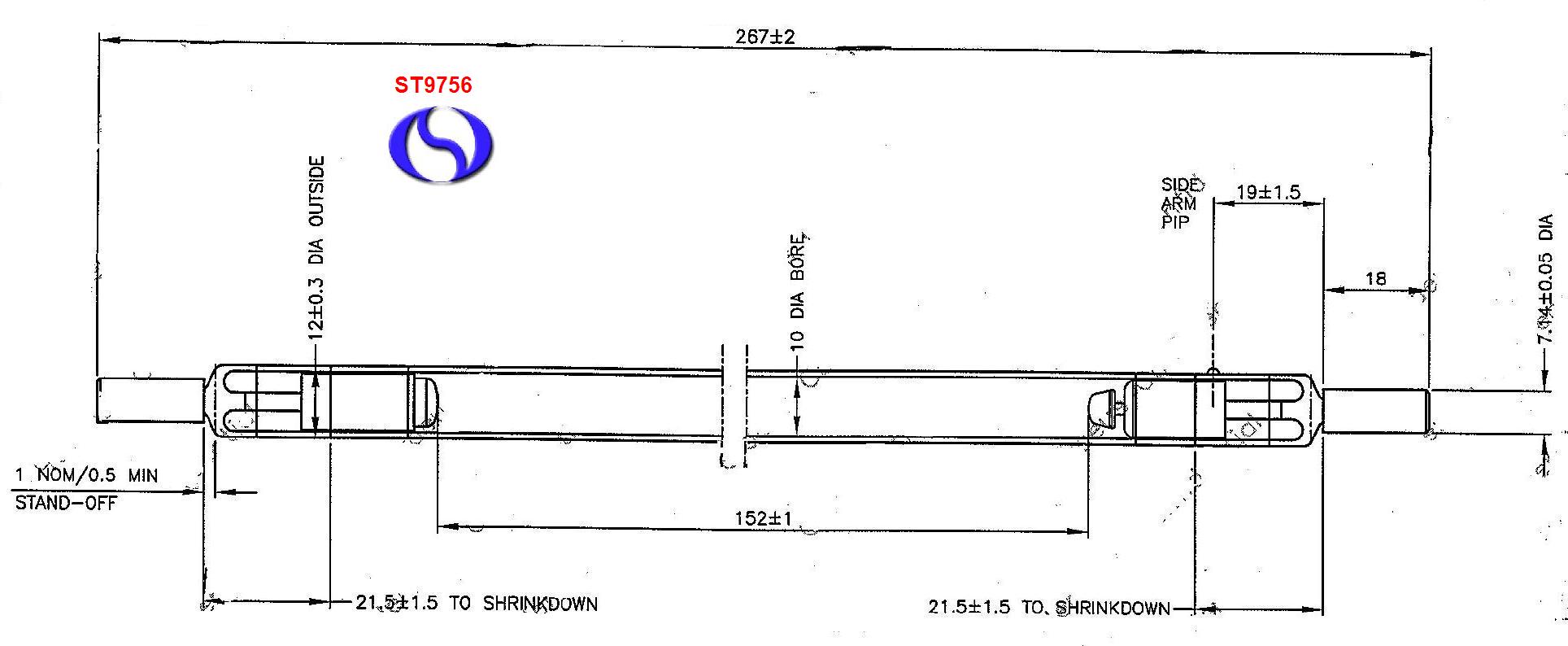

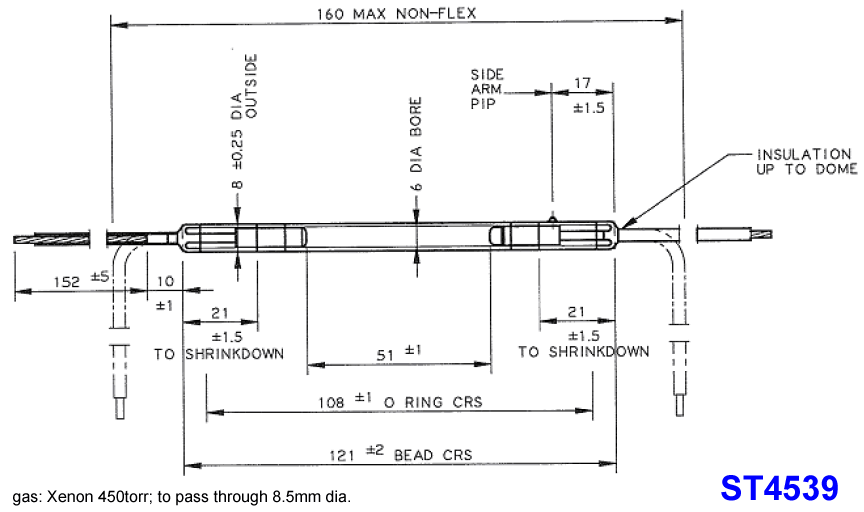

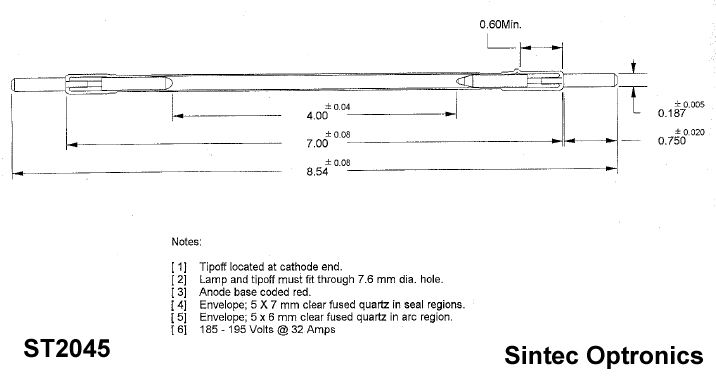

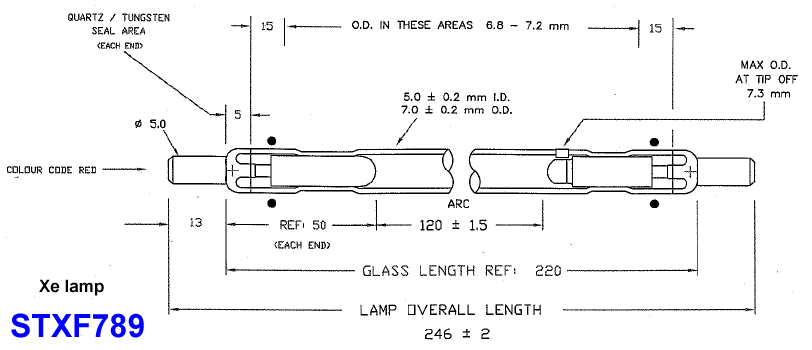

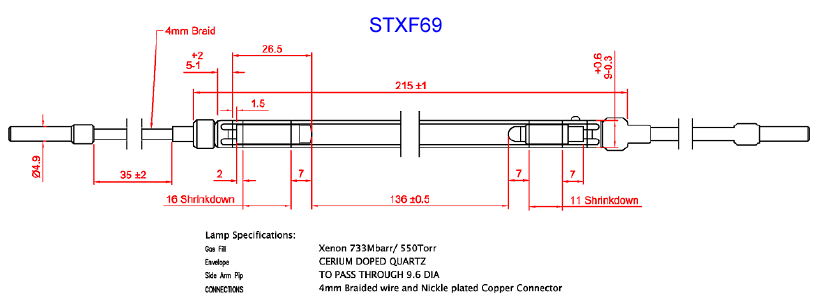

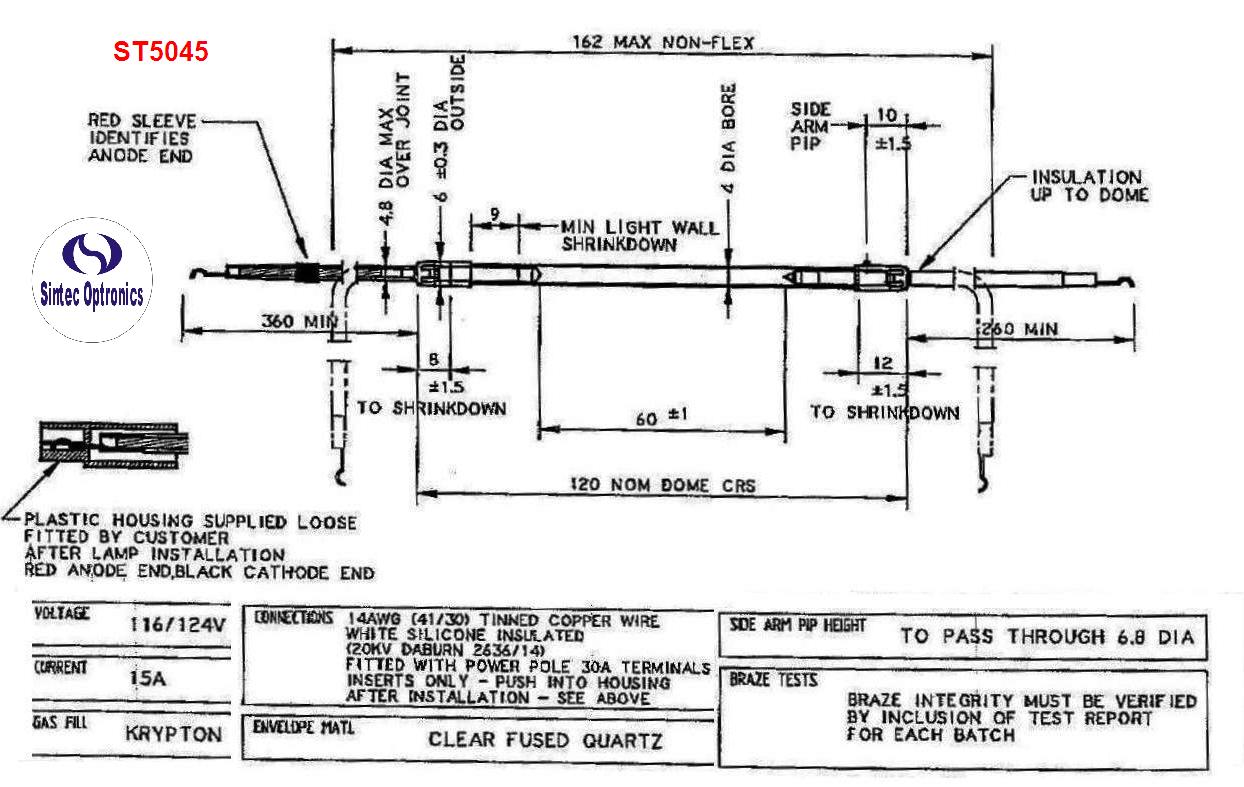

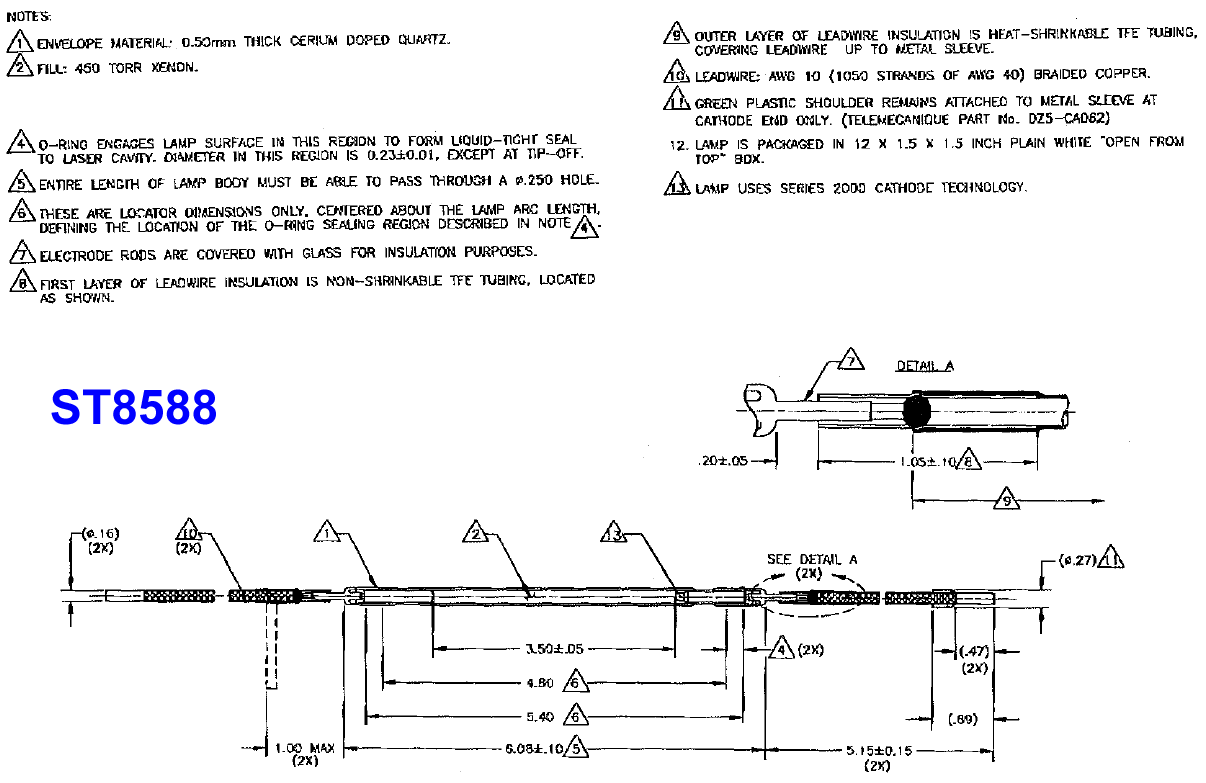

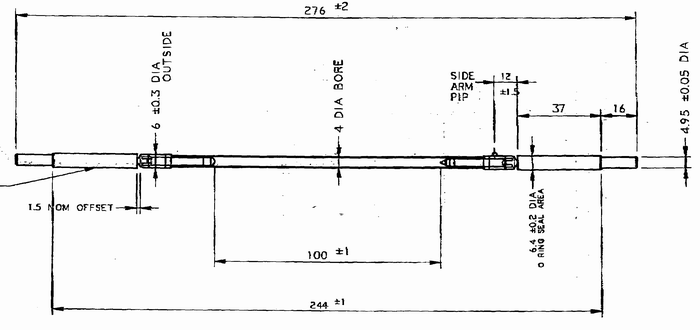

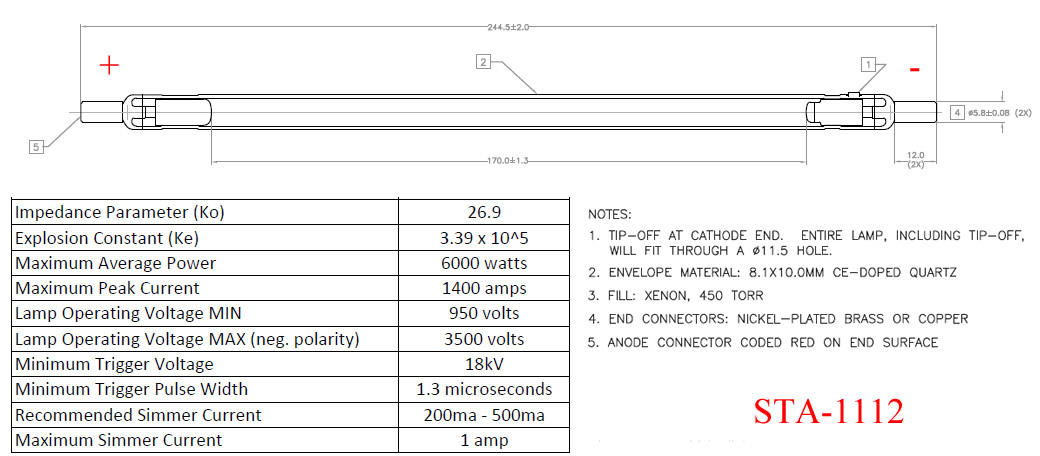

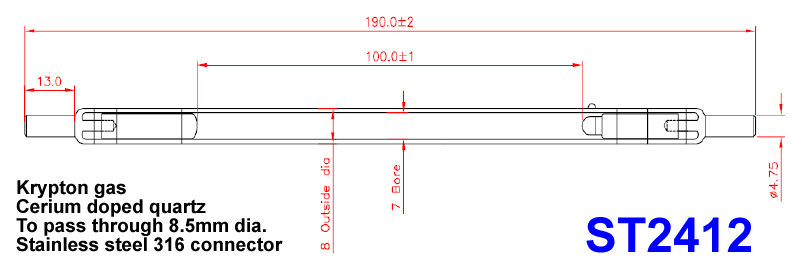

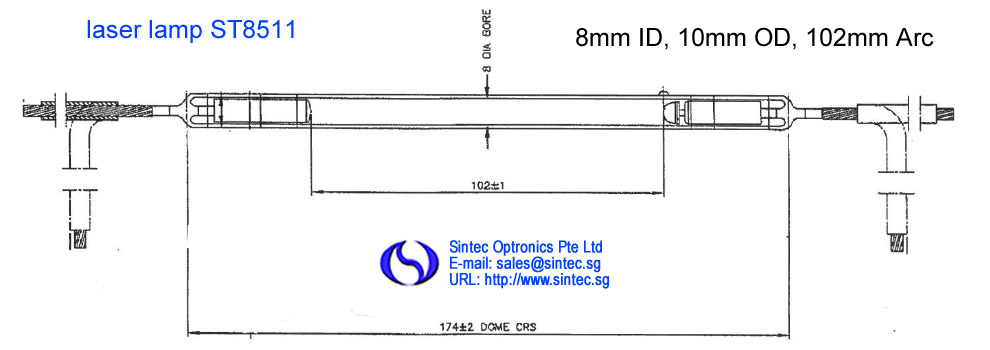

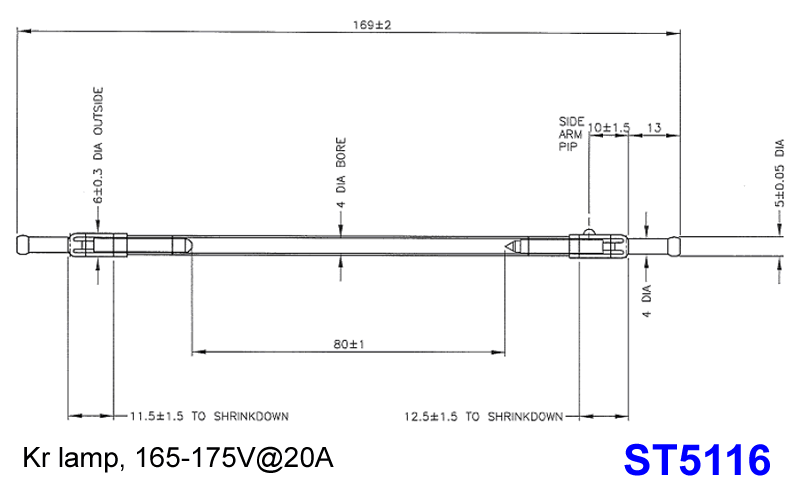

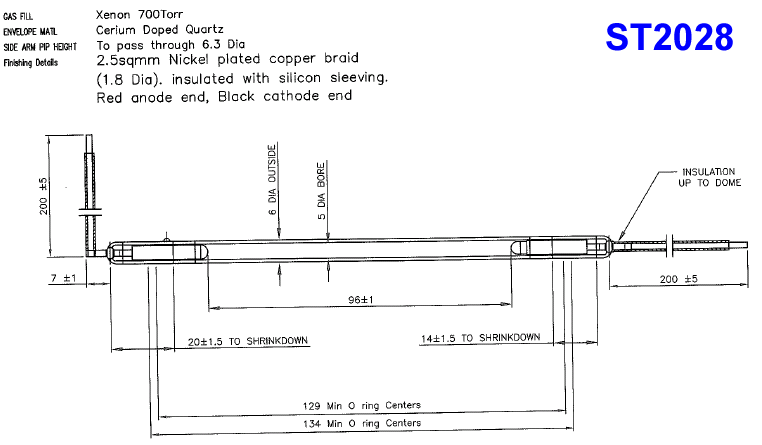

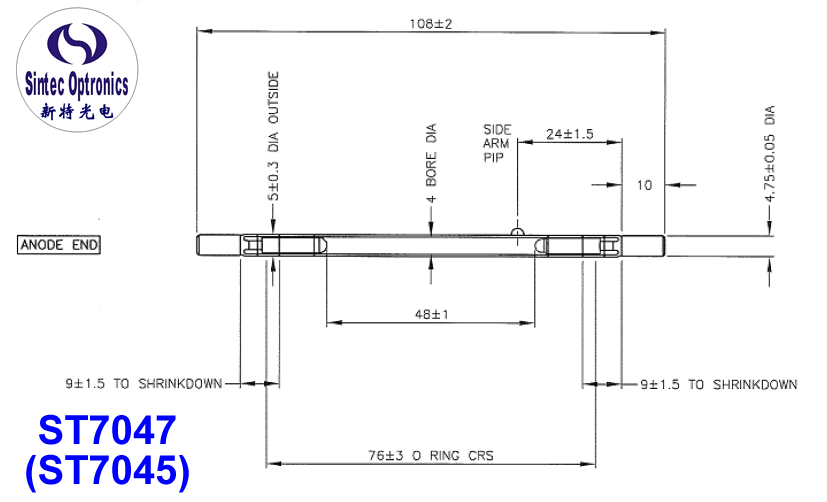

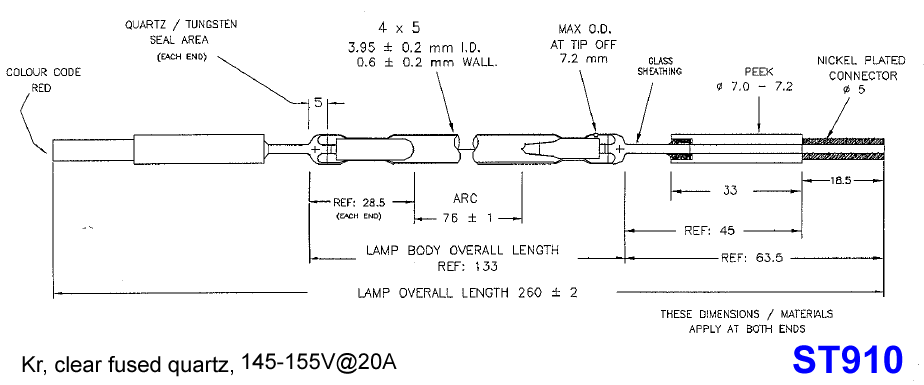

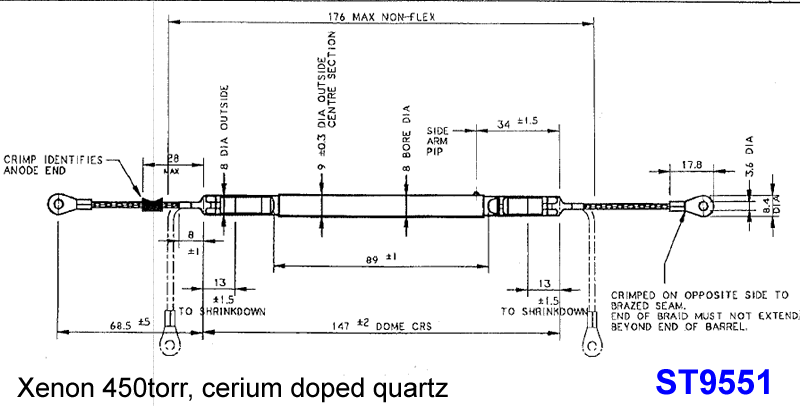

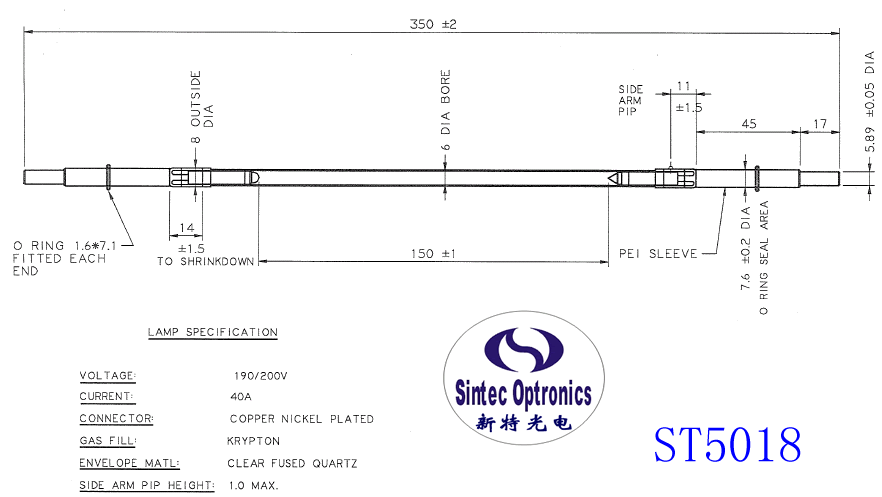

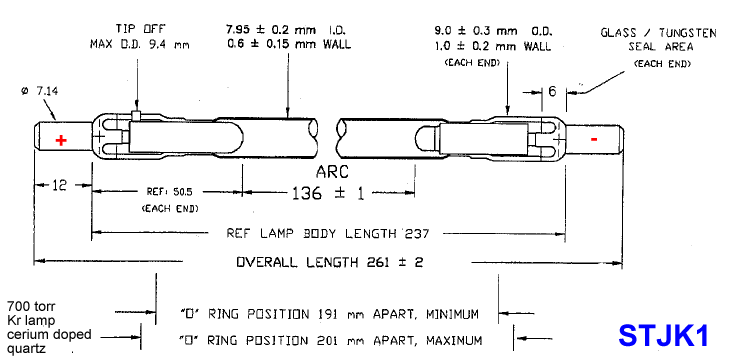

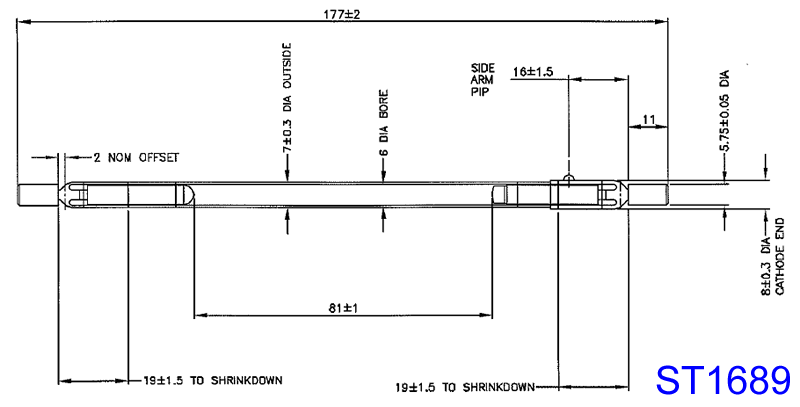

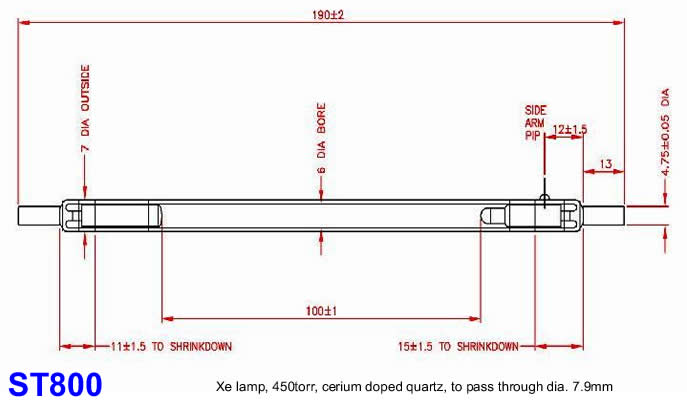

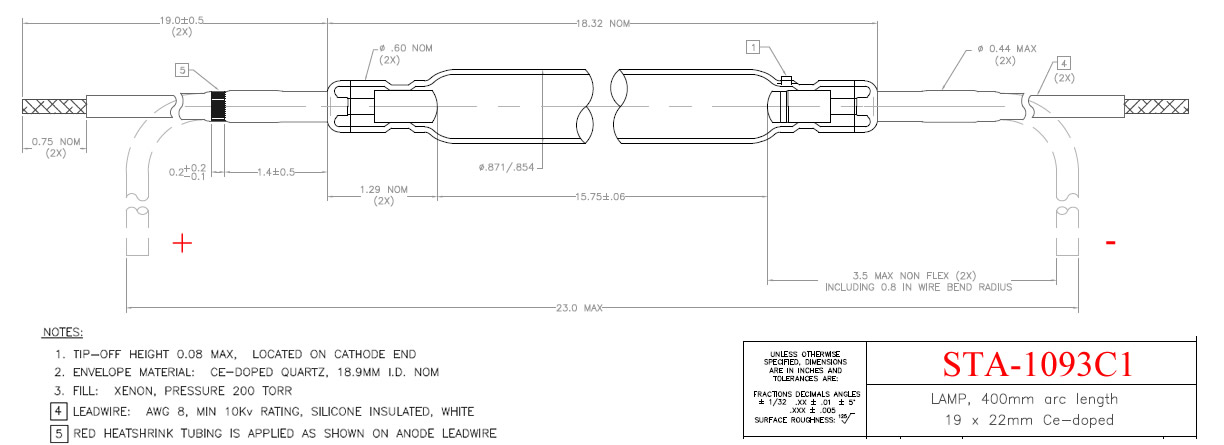

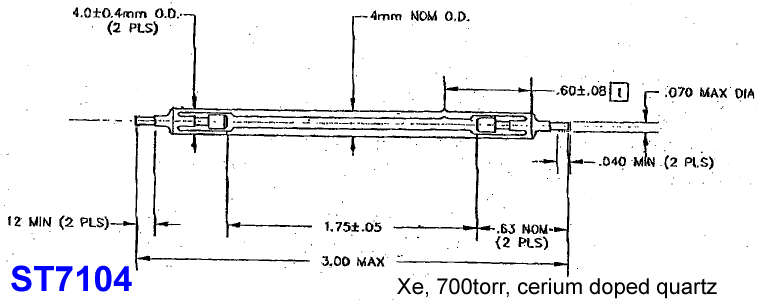

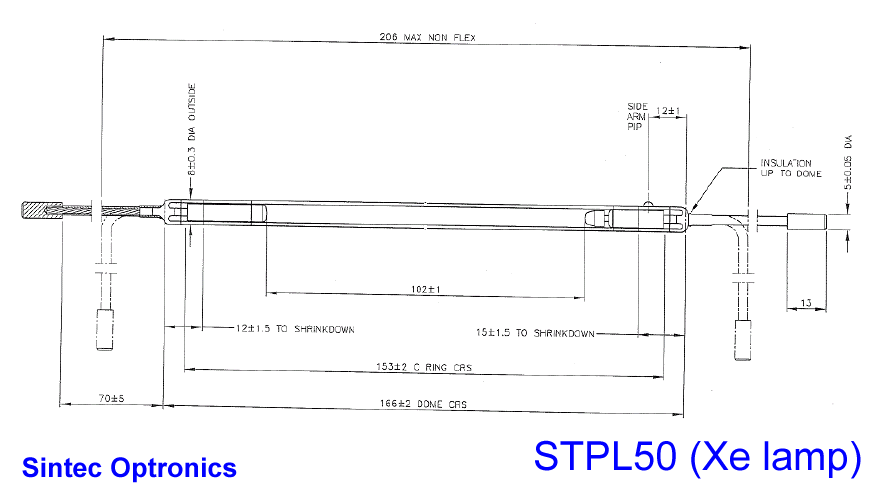

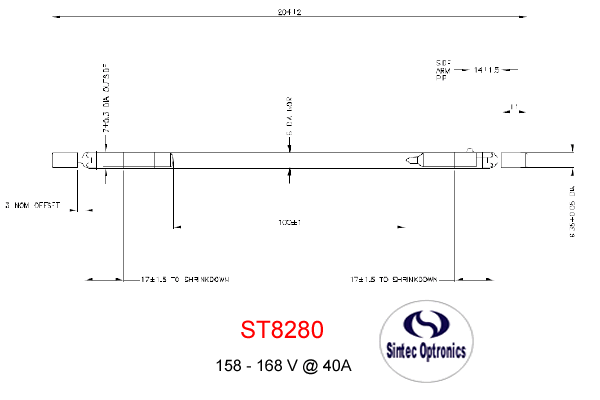

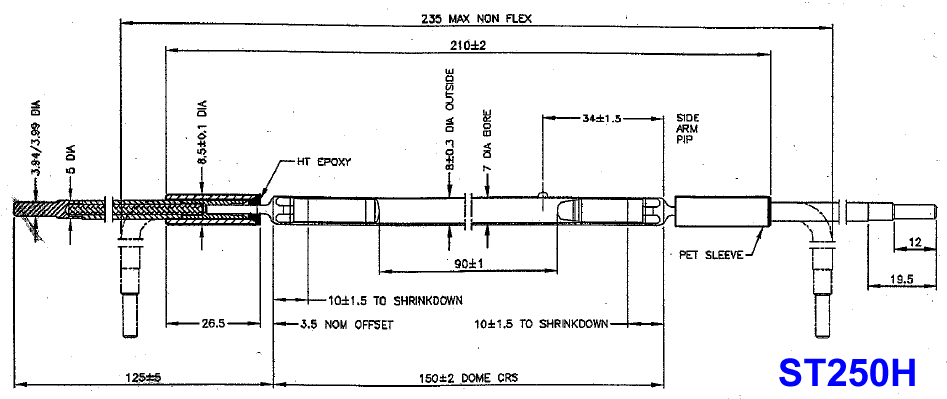

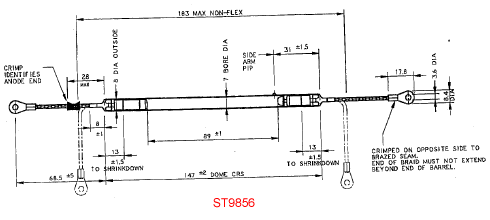

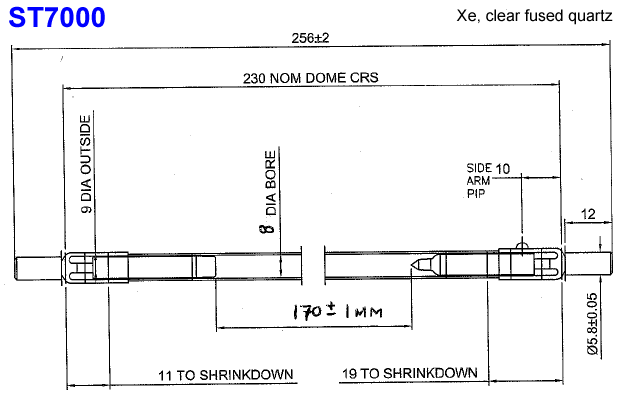

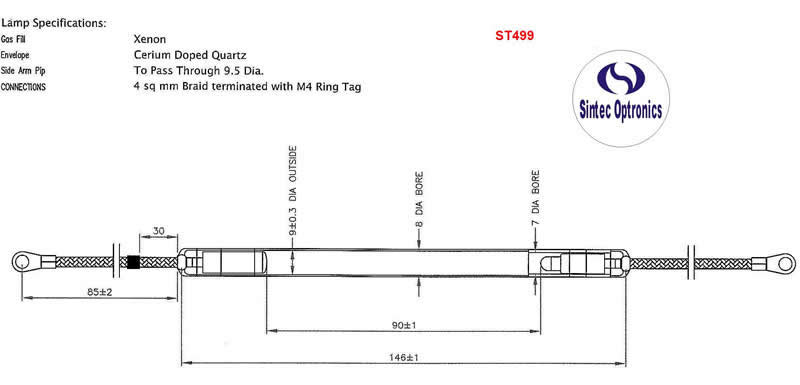

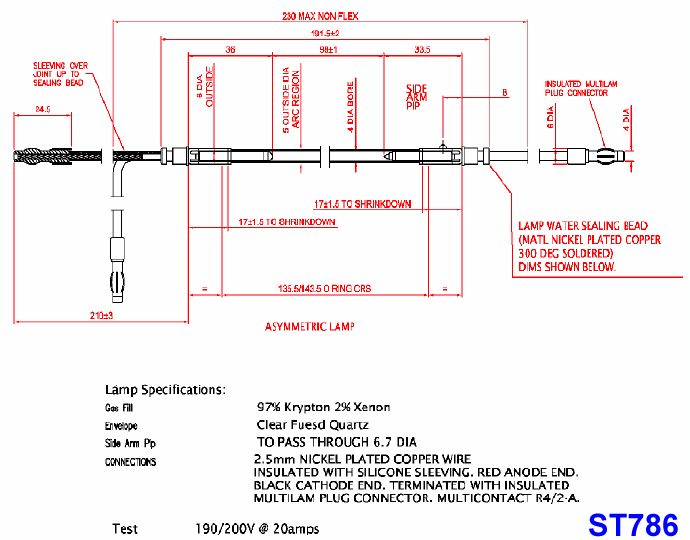

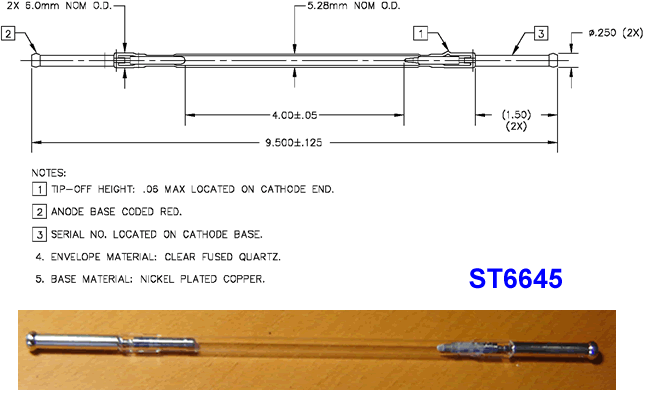

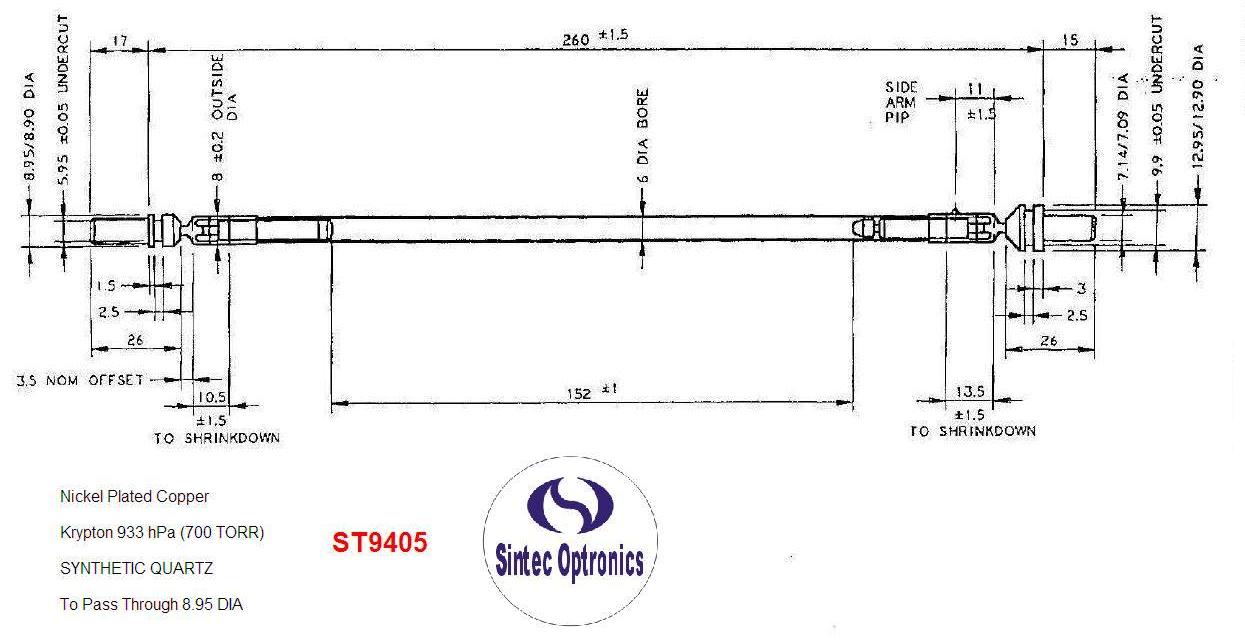

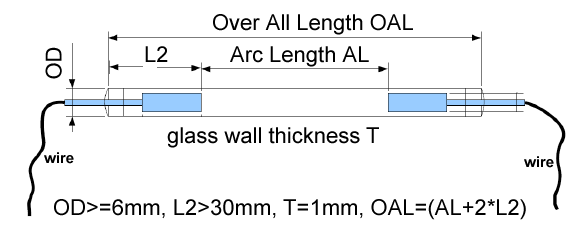

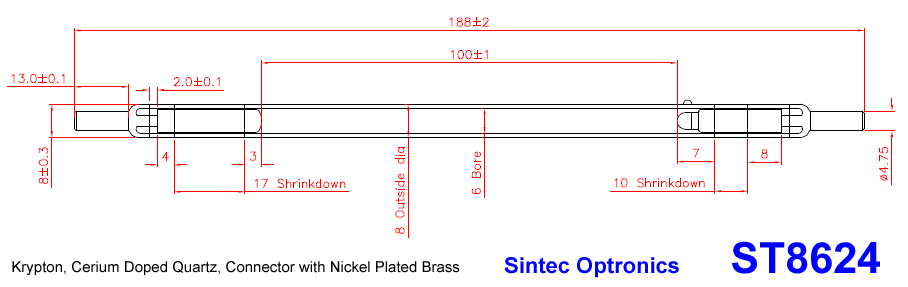

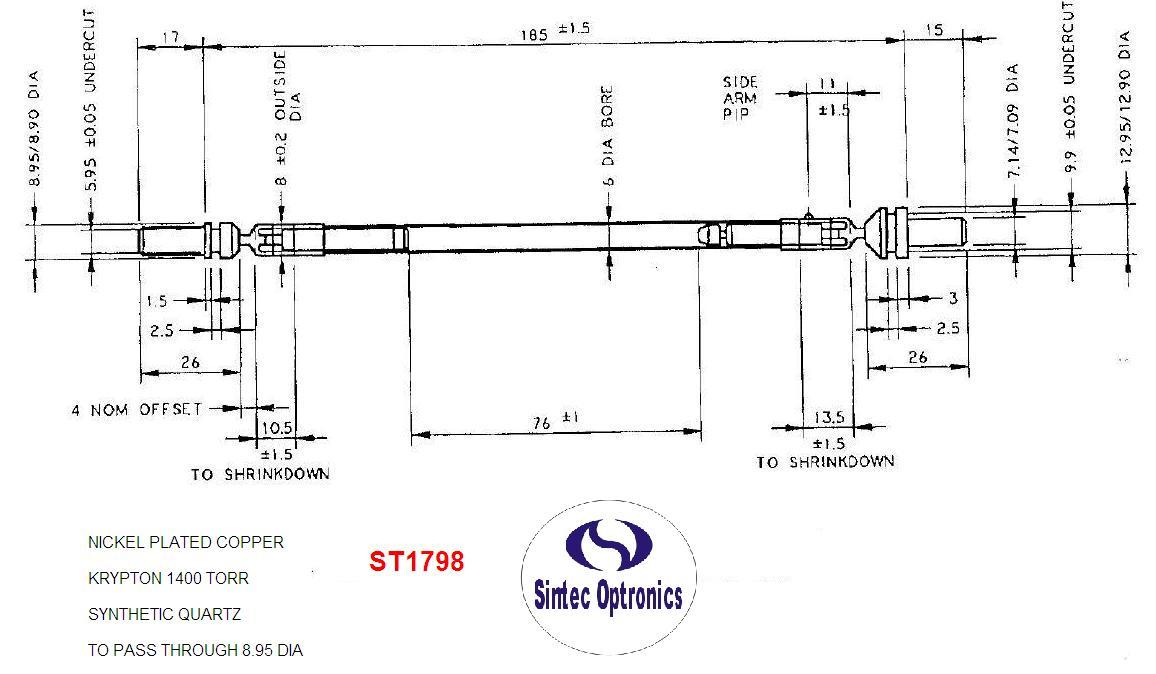

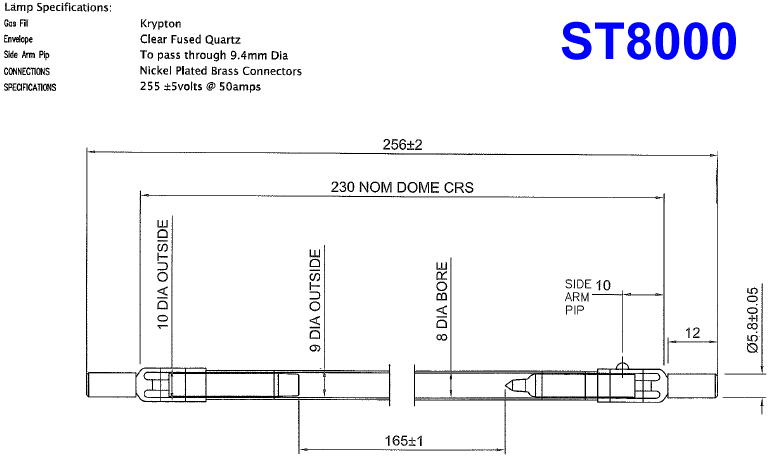

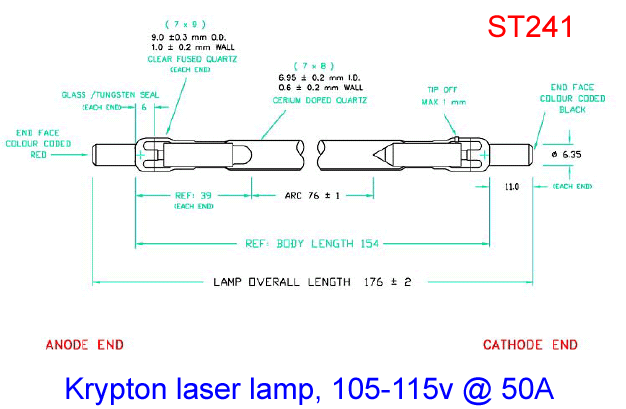

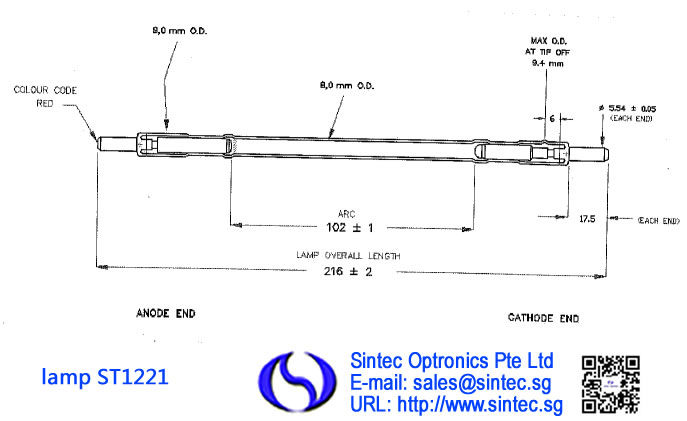

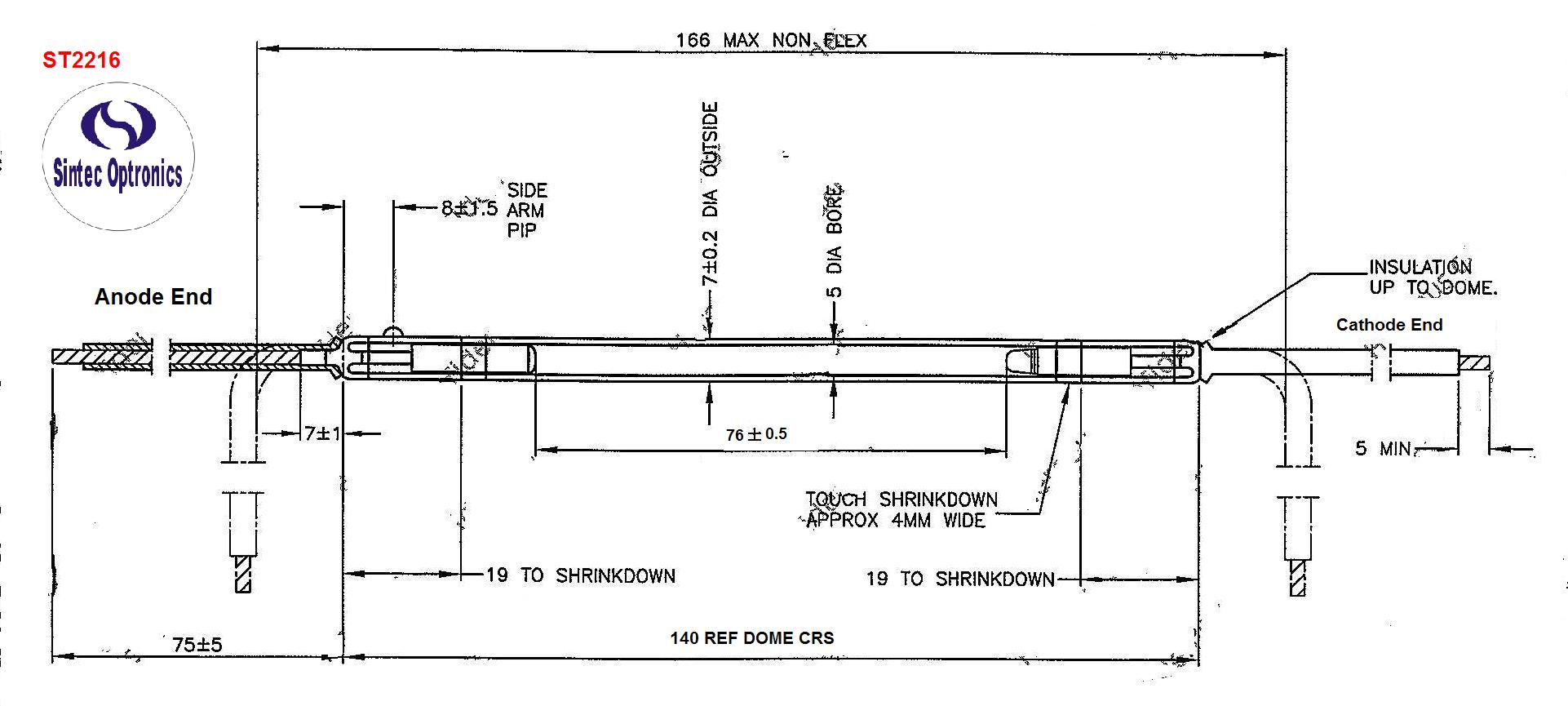

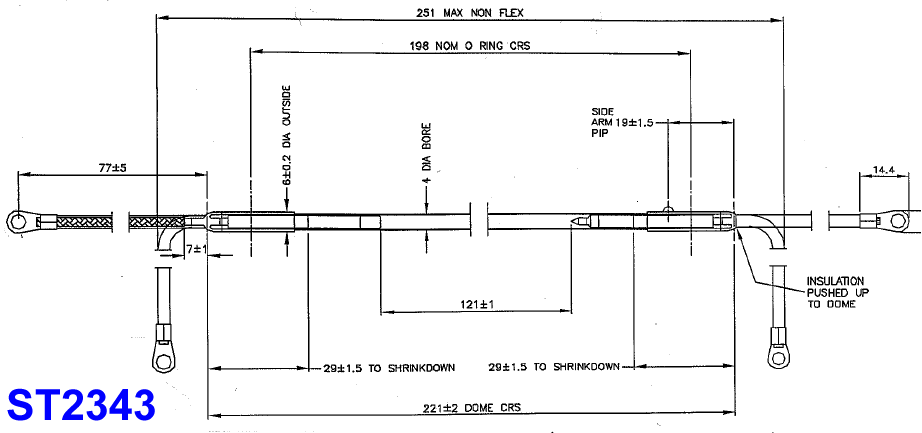

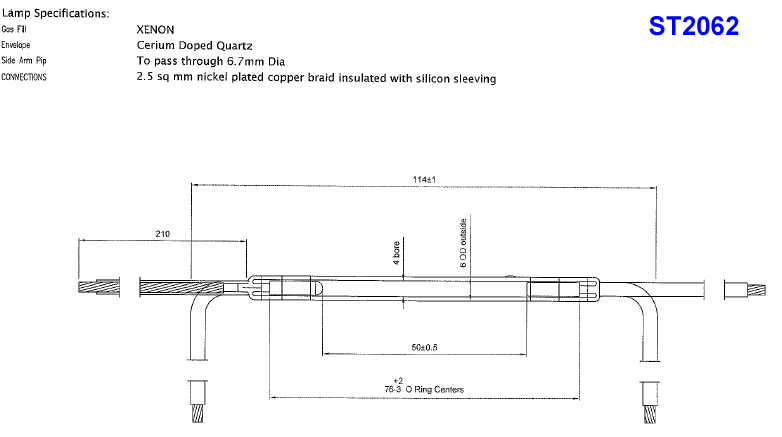

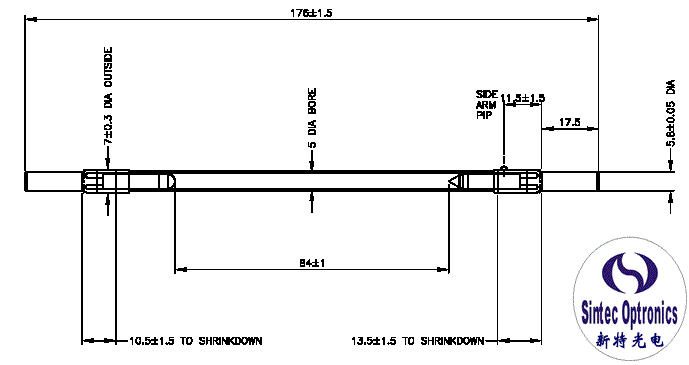

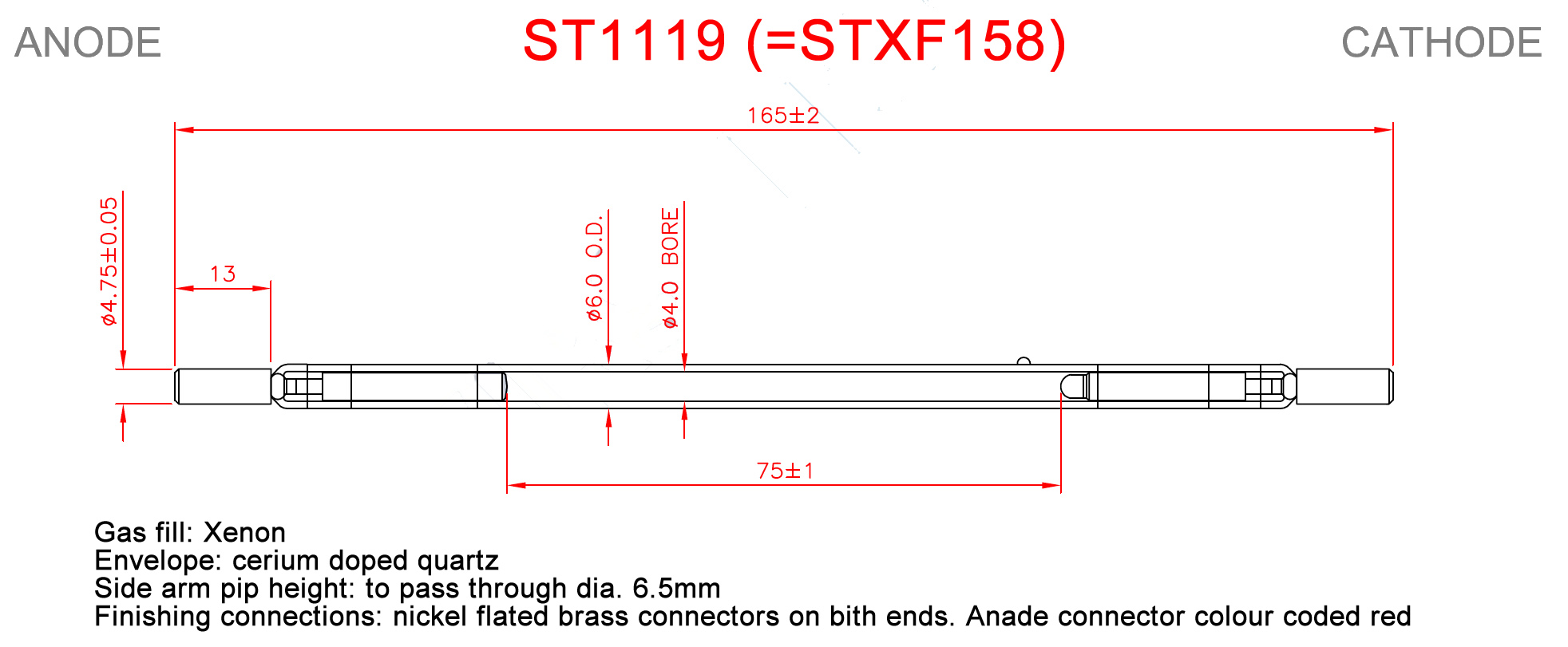

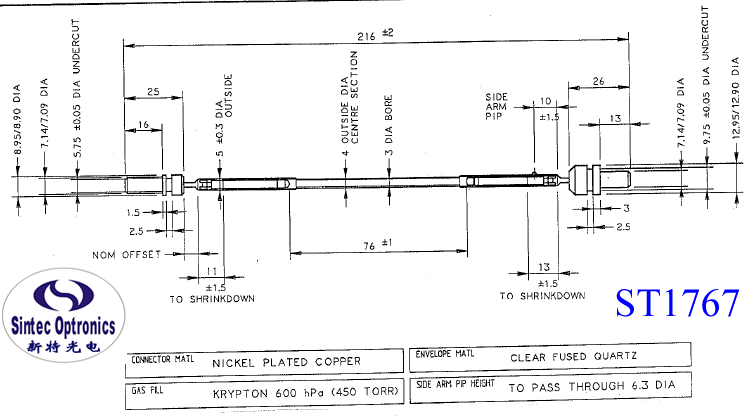

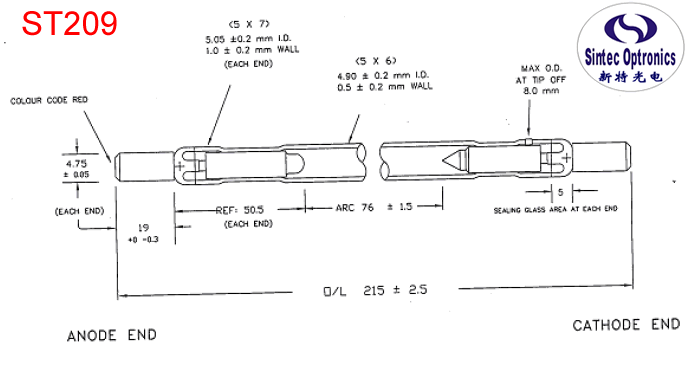

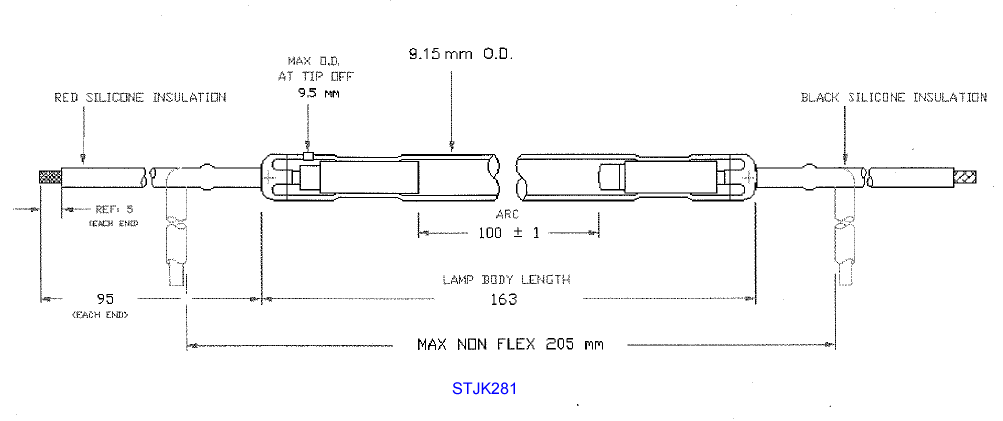

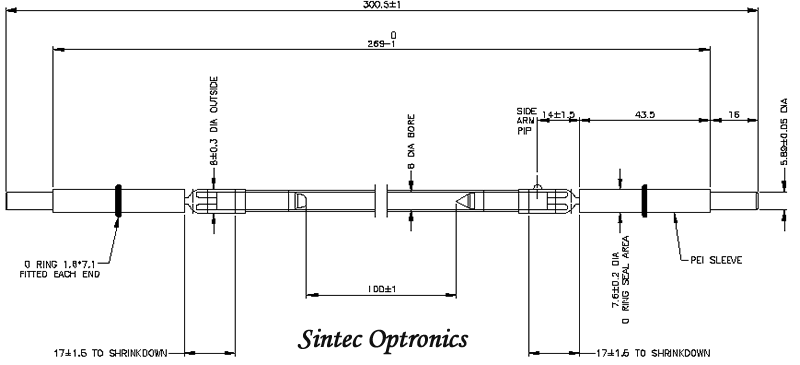

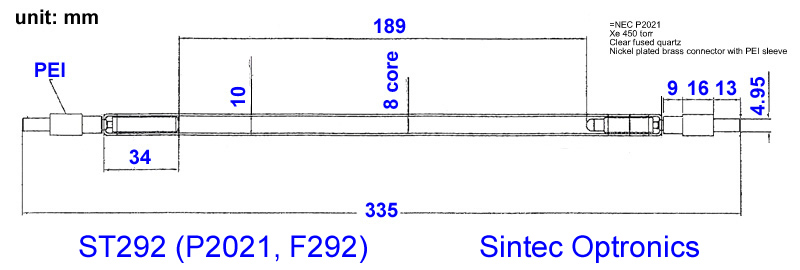

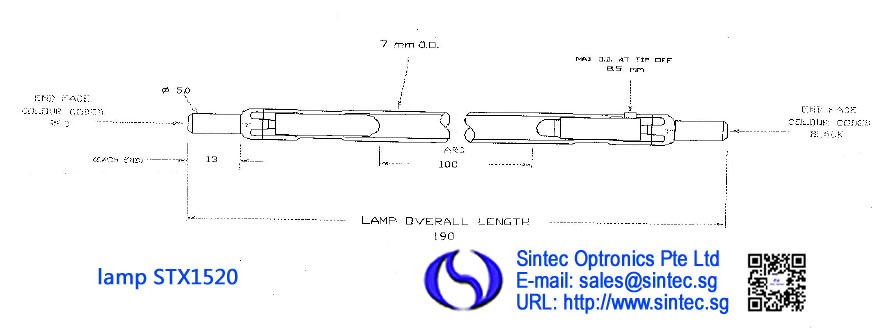

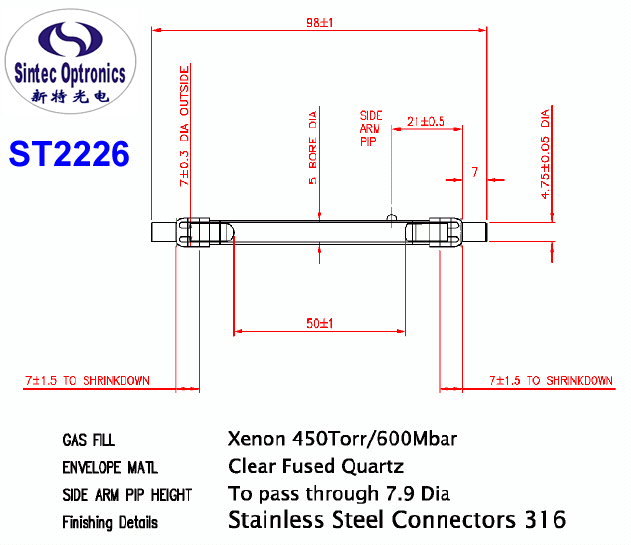

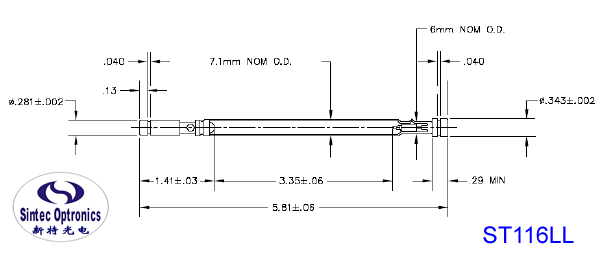

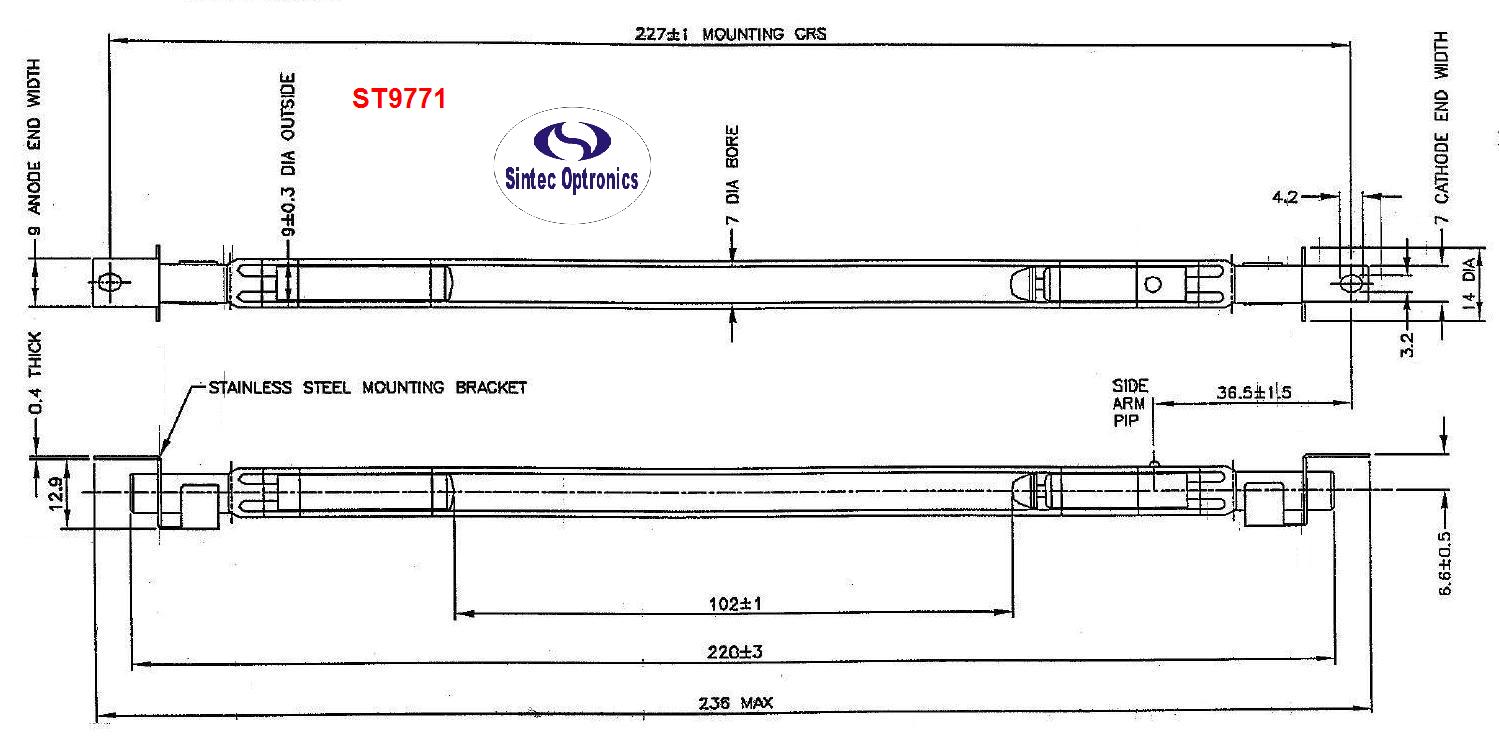

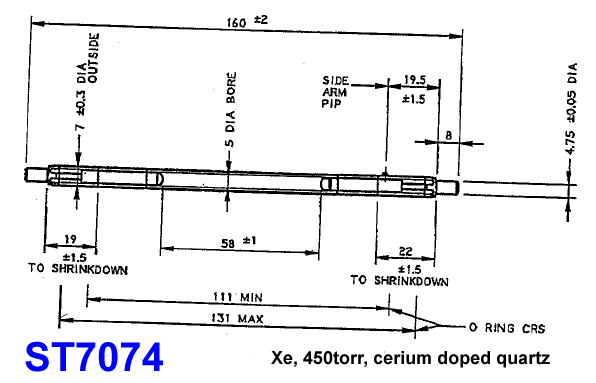

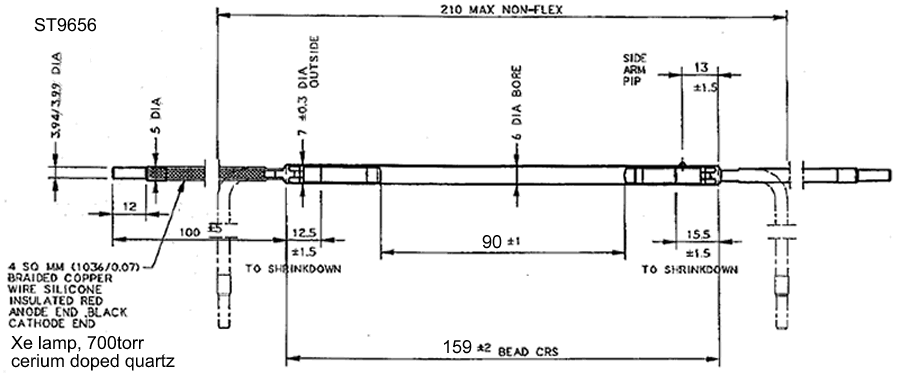

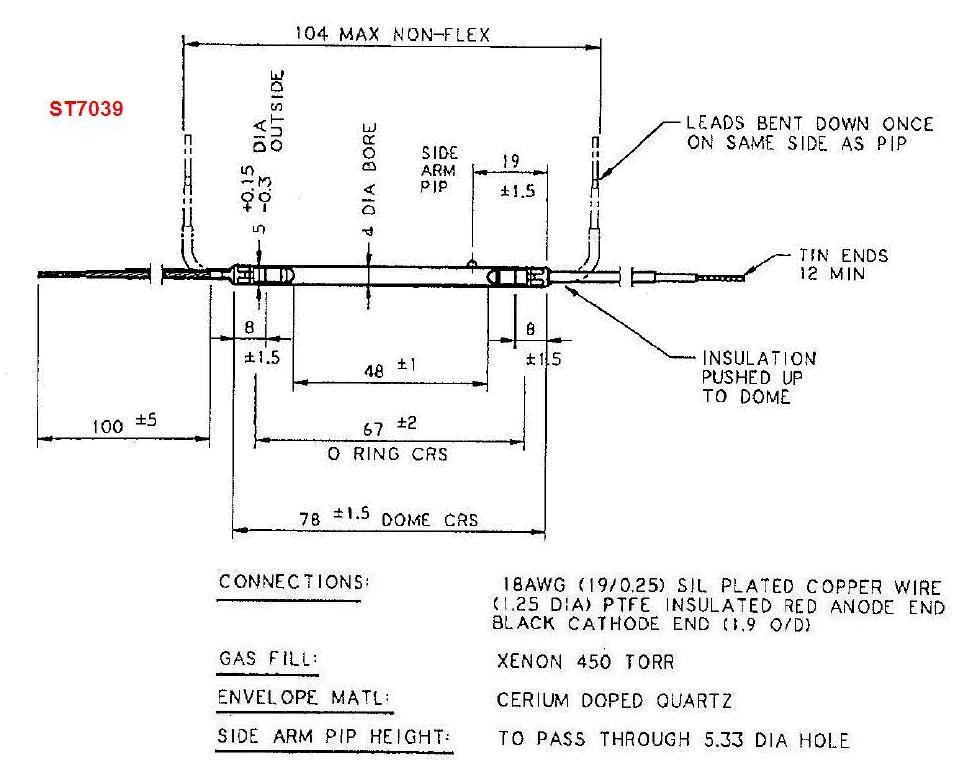

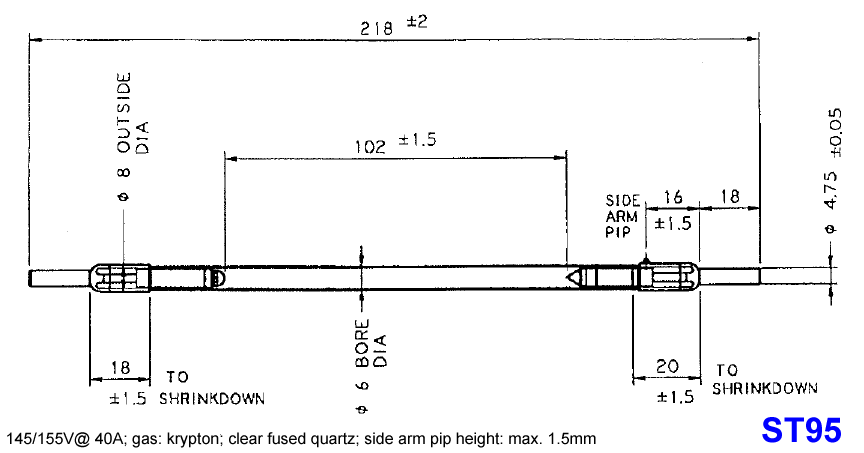

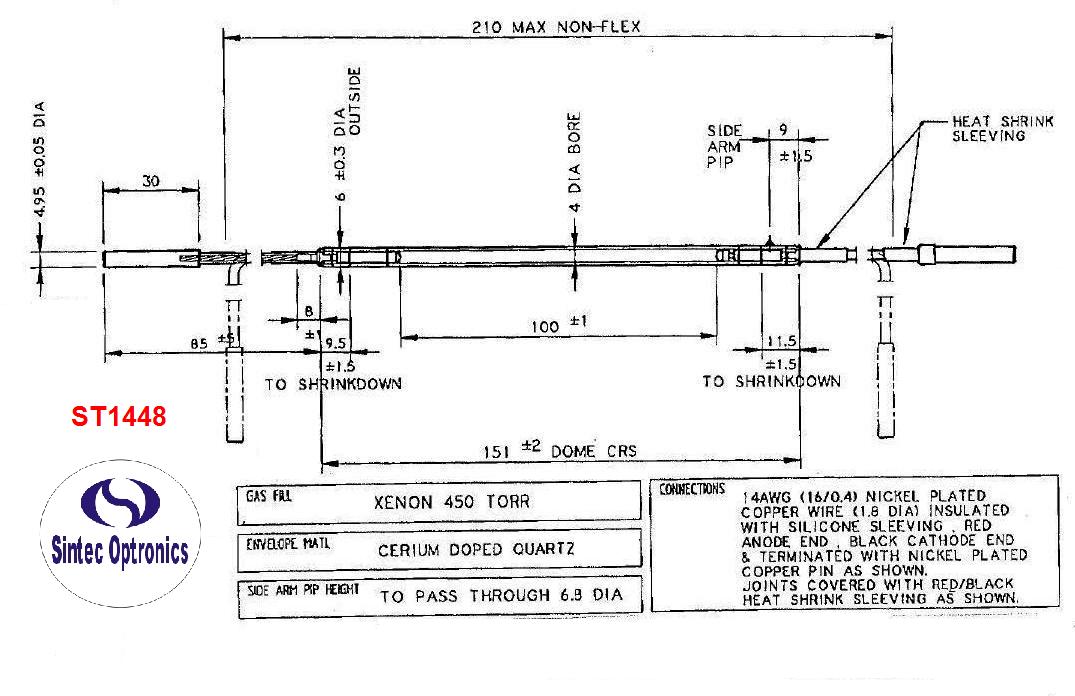

For STX and STK series lamps, please refer to the following figures to tell us what you want if you can not find the lamps from the above tables. We may custom-design and –make the lamps for you.

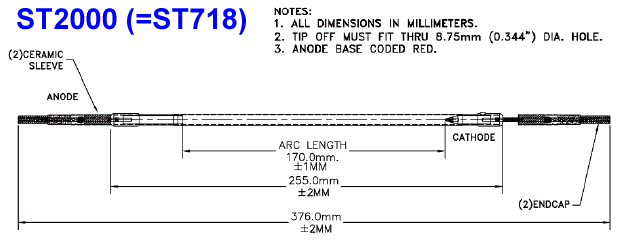

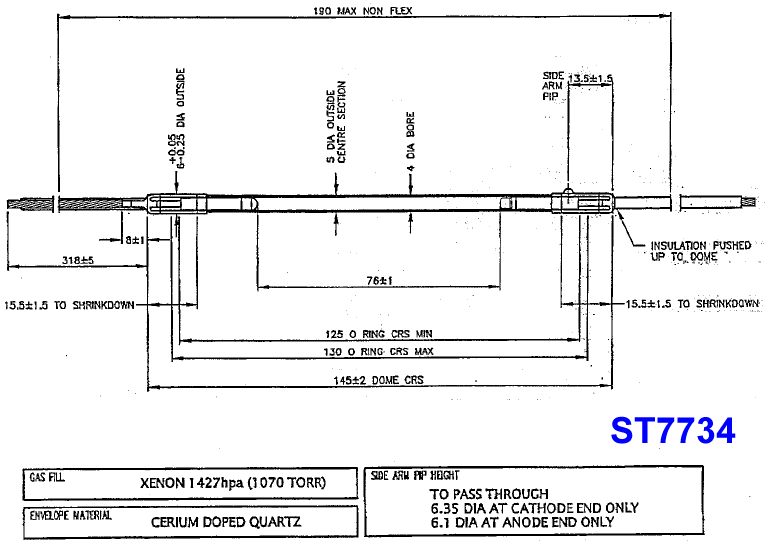

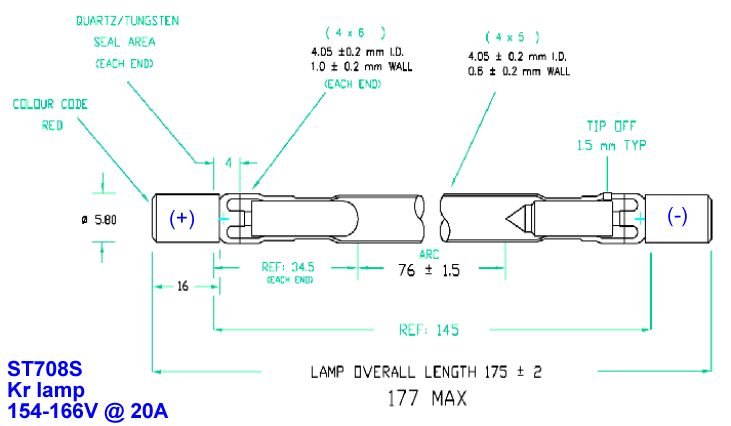

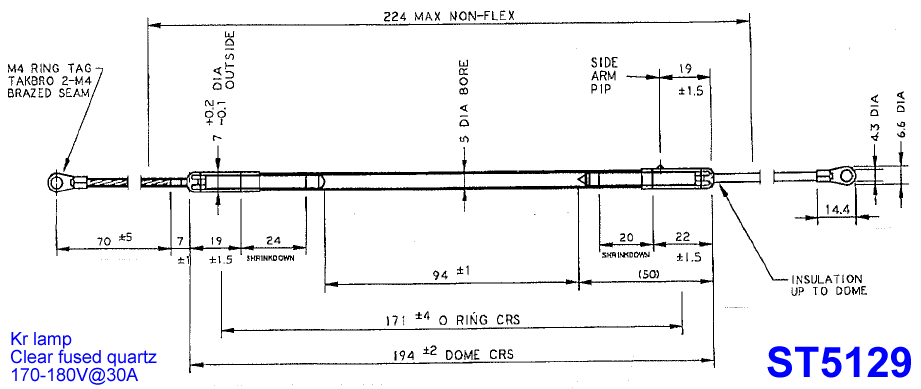

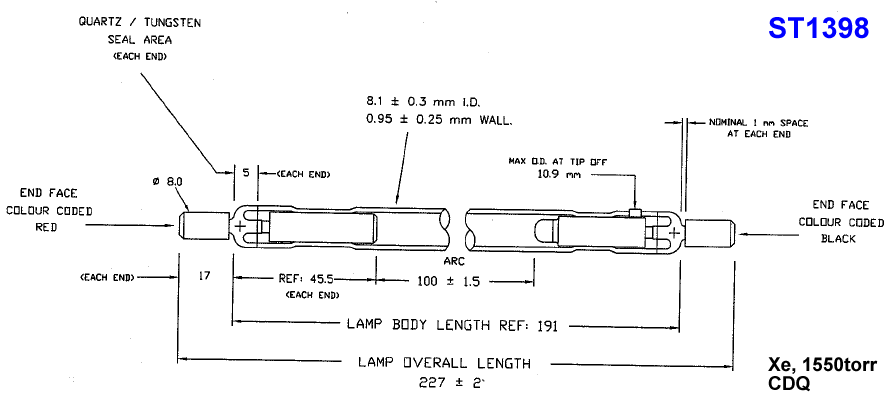

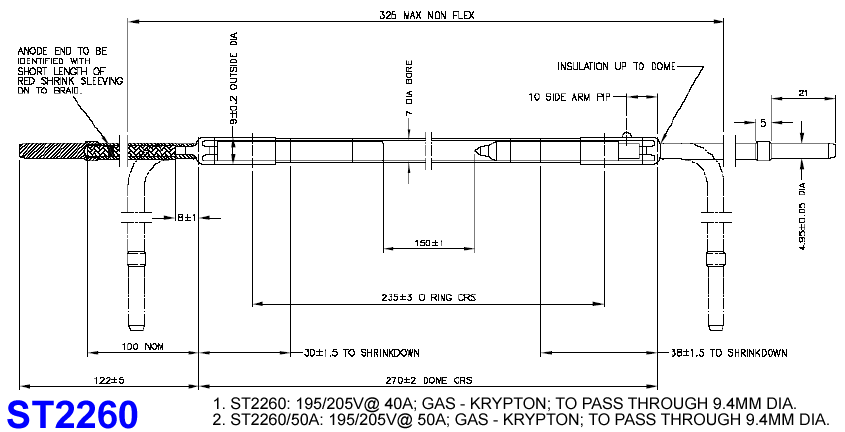

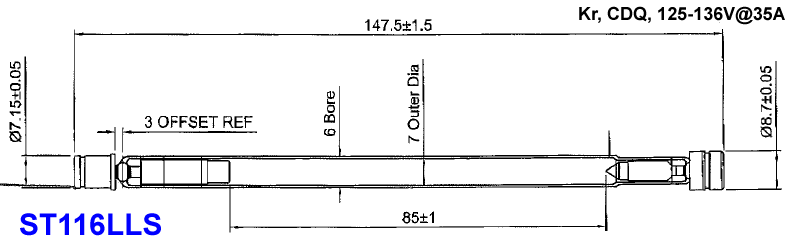

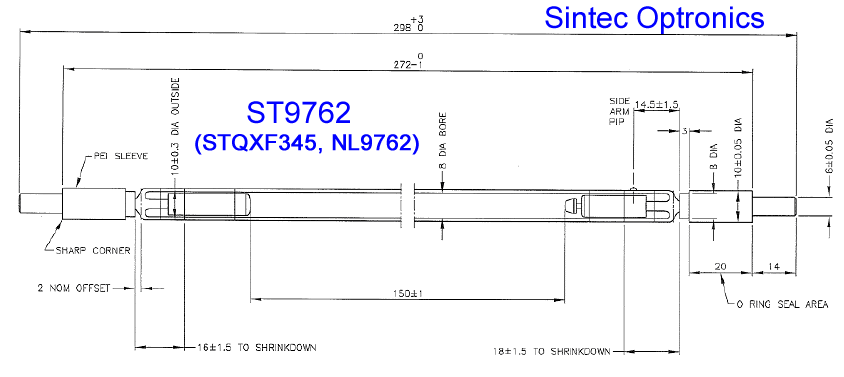

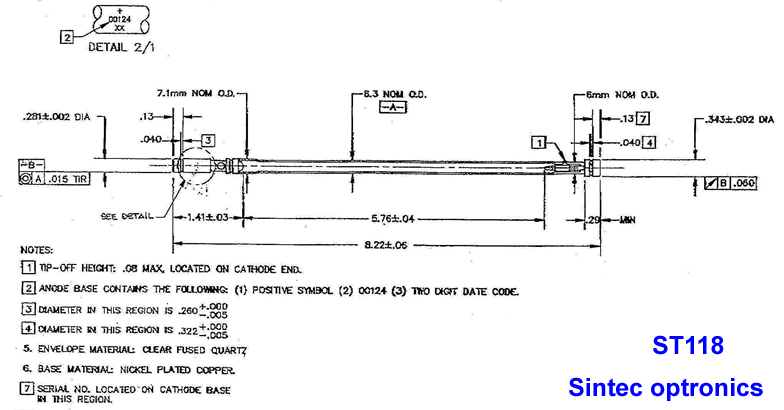

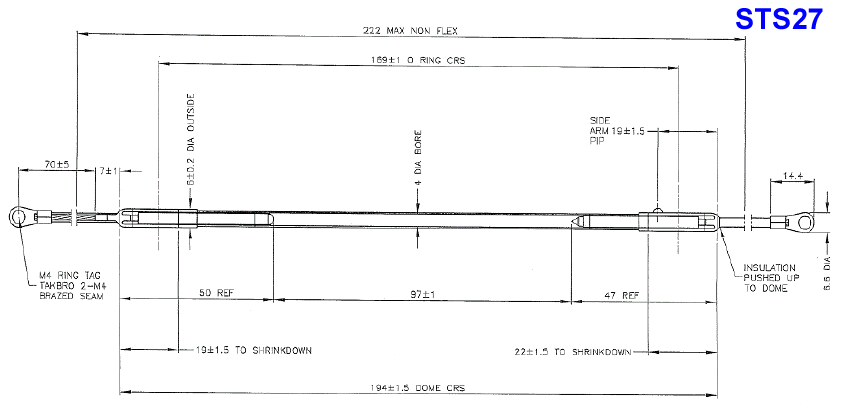

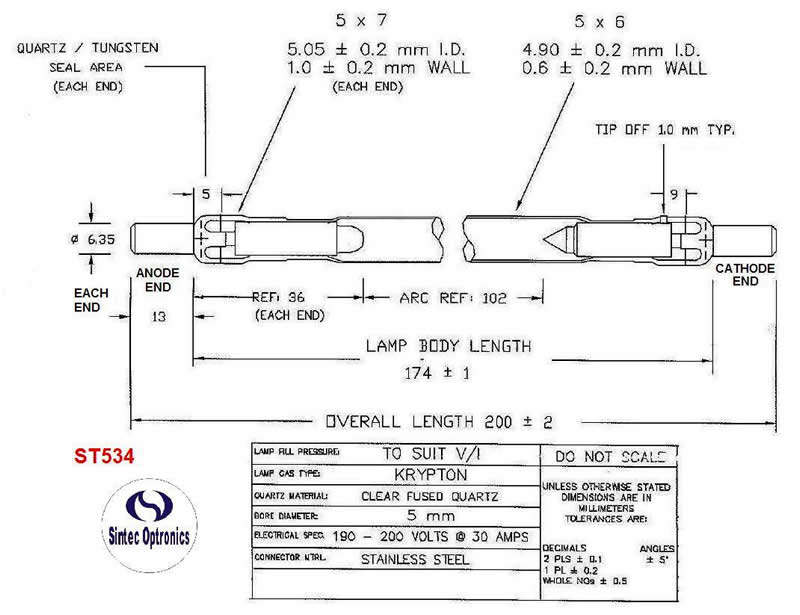

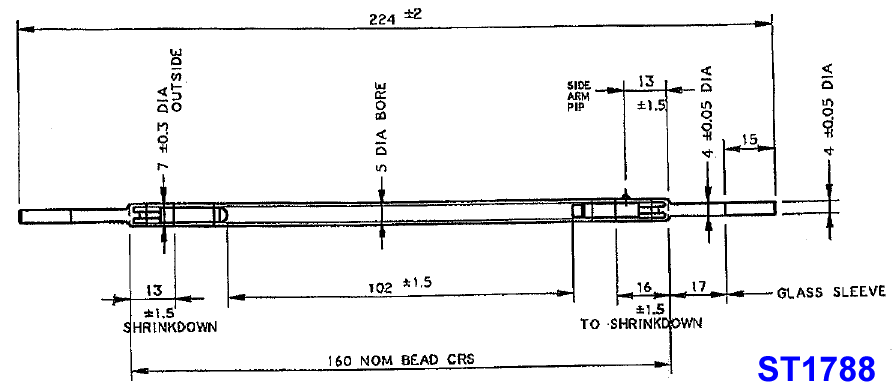

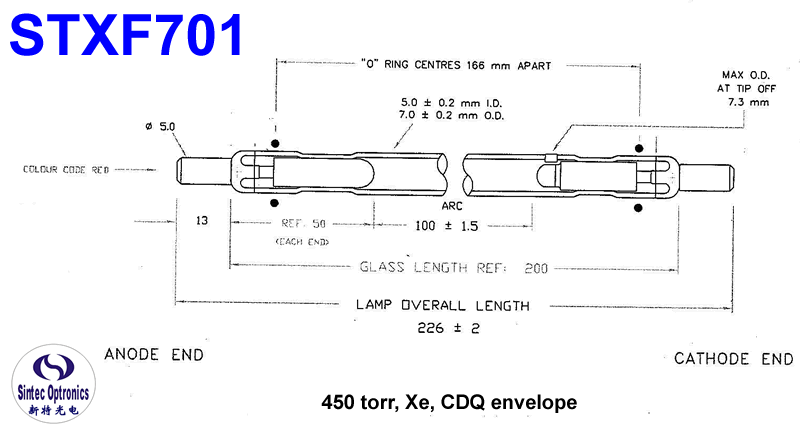

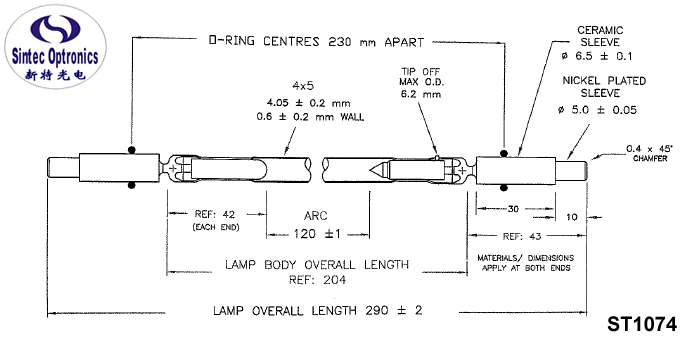

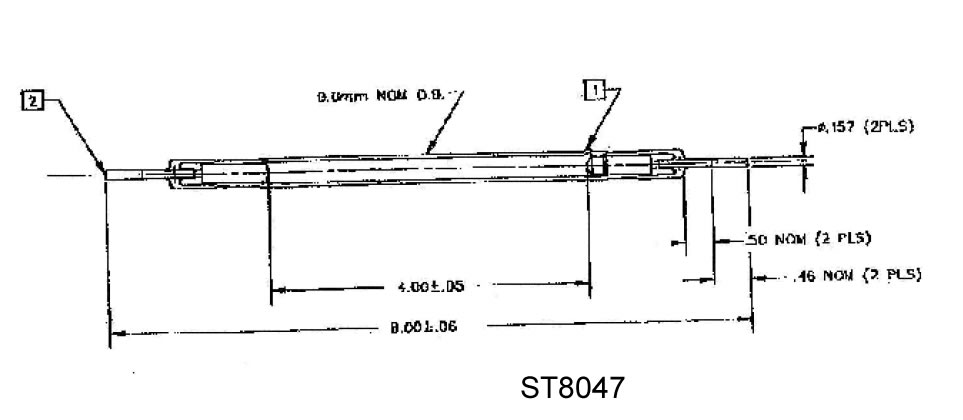

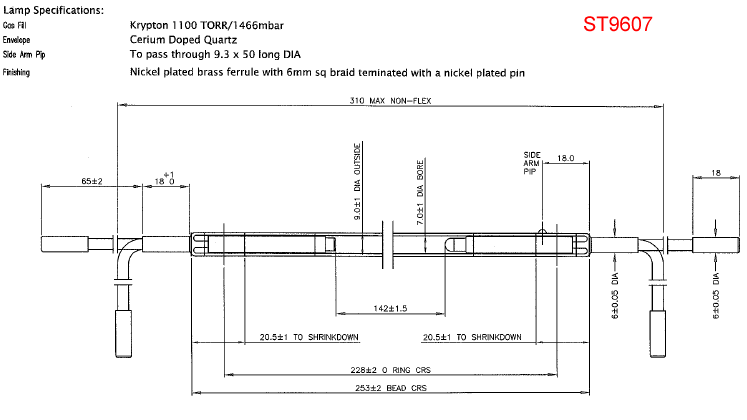

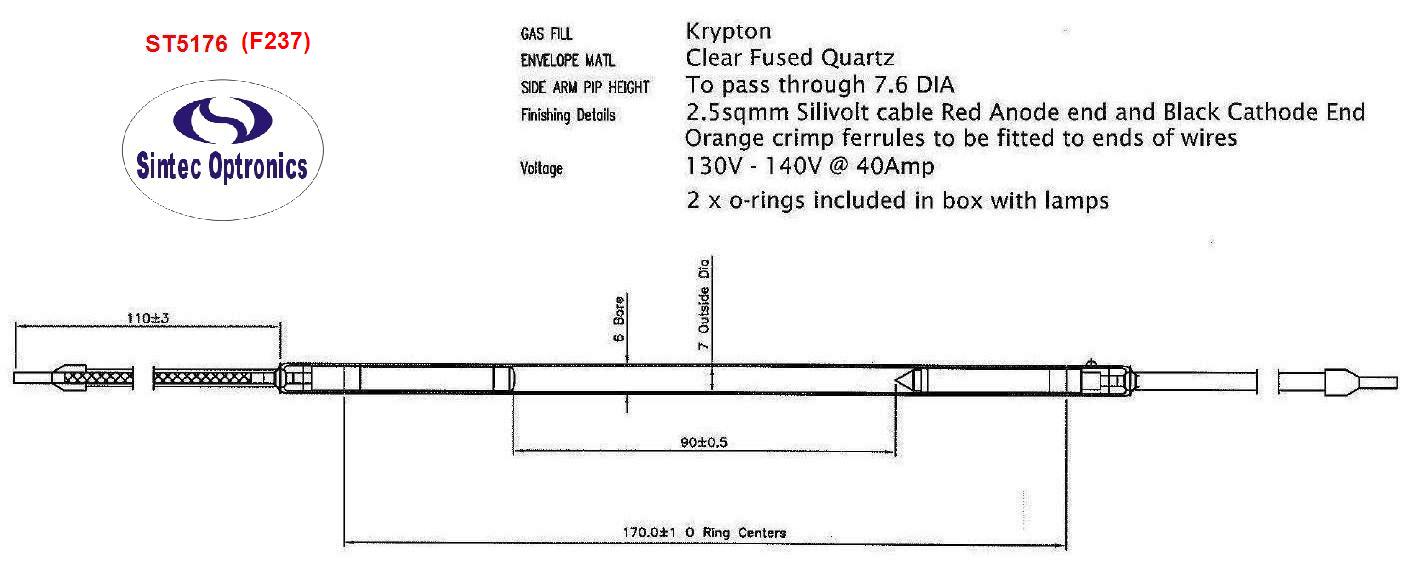

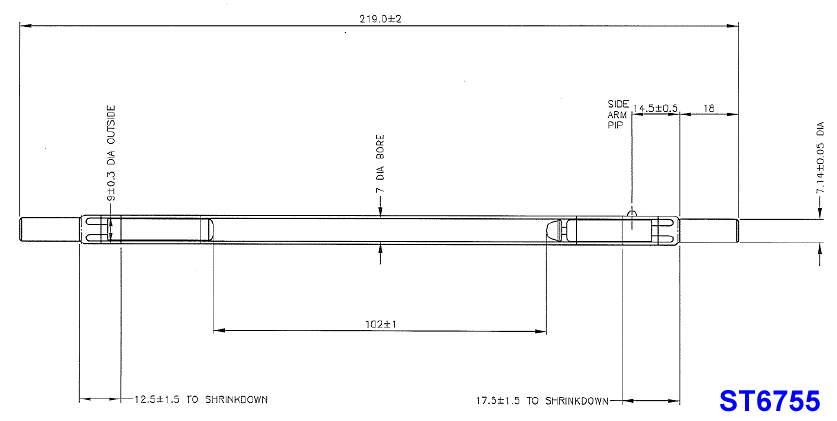

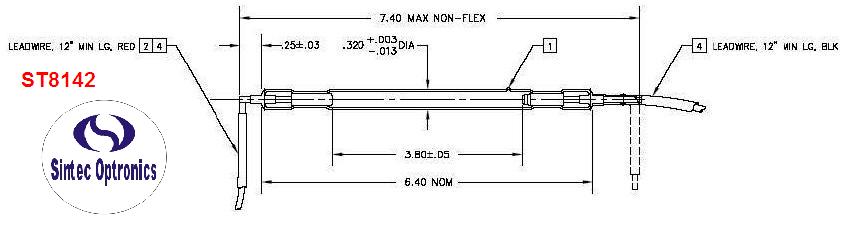

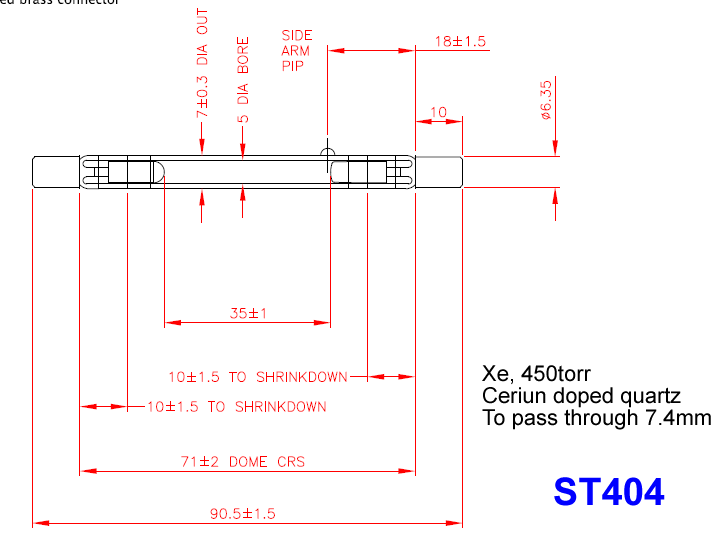

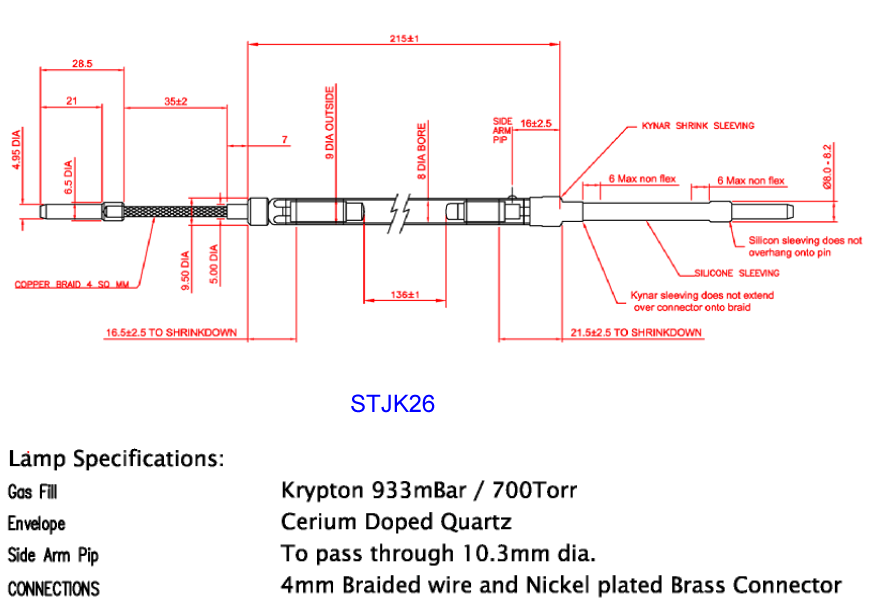

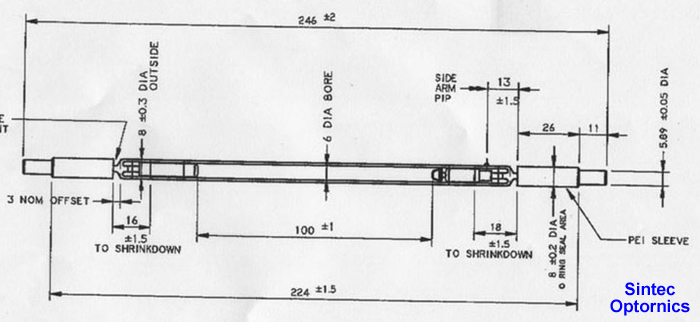

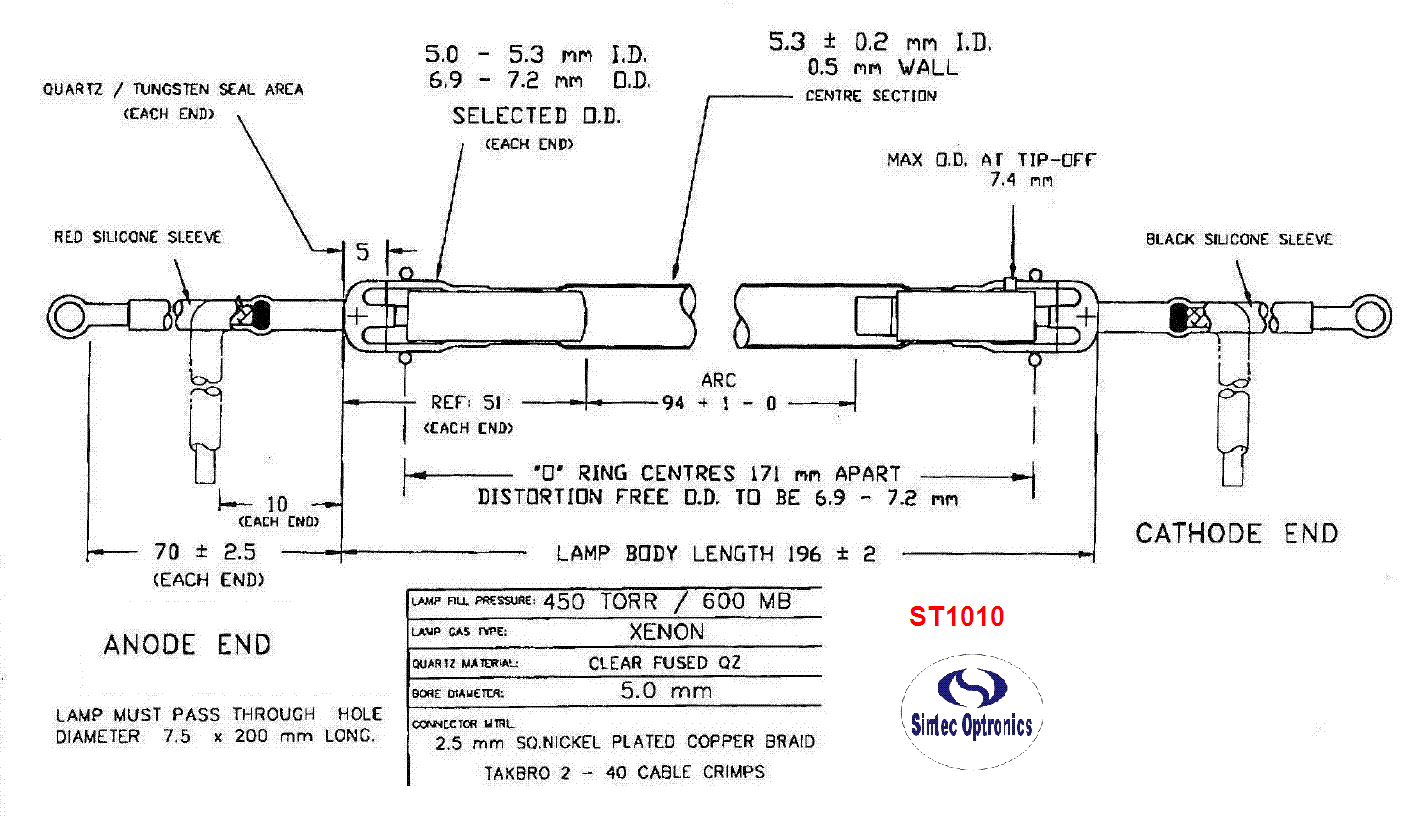

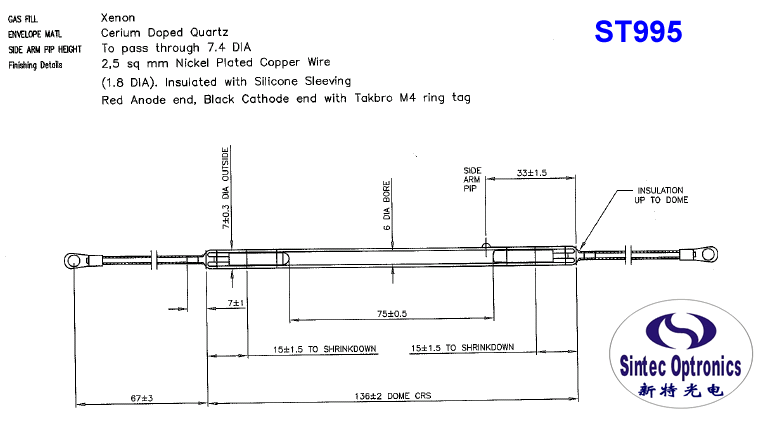

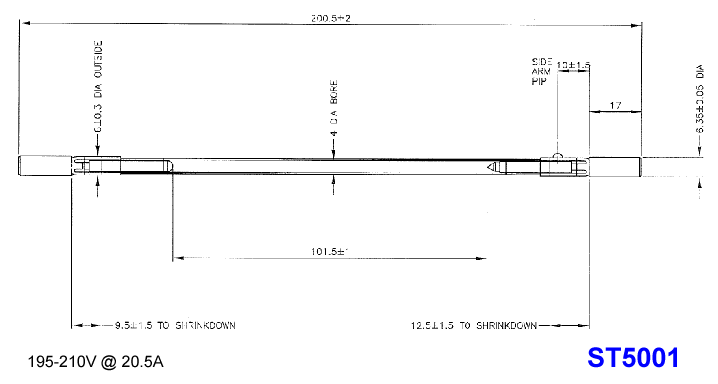

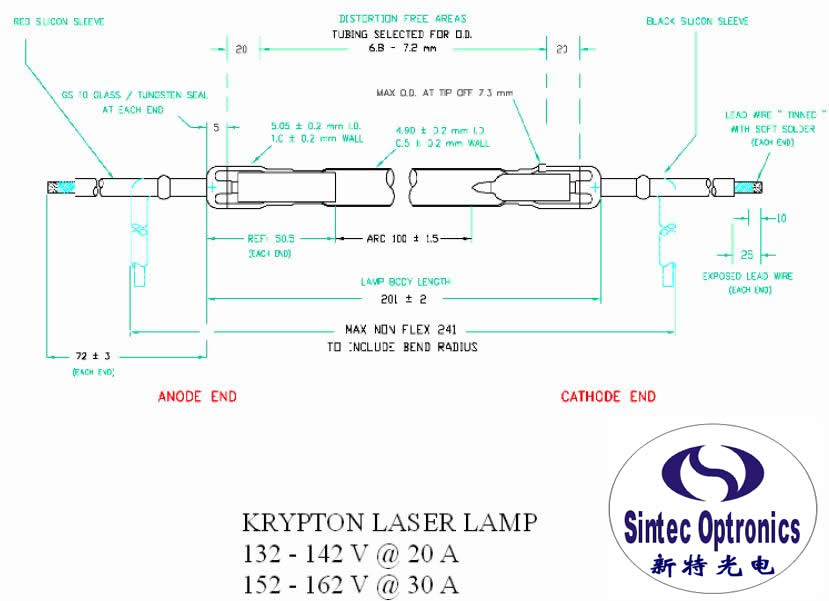

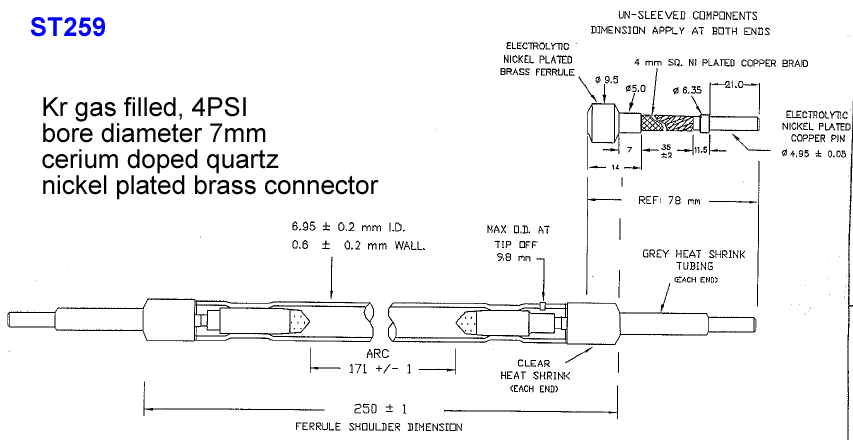

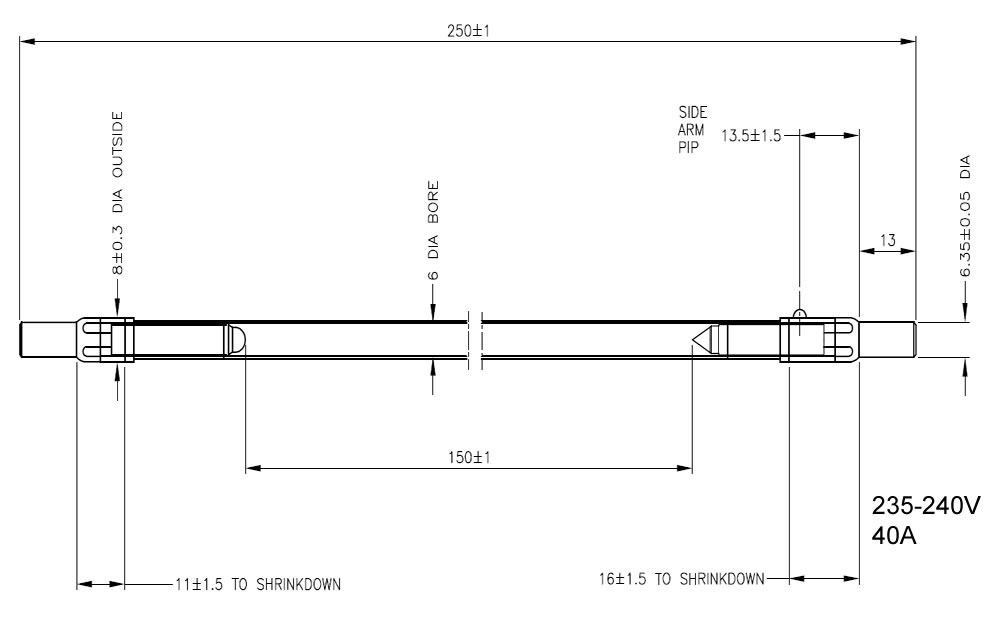

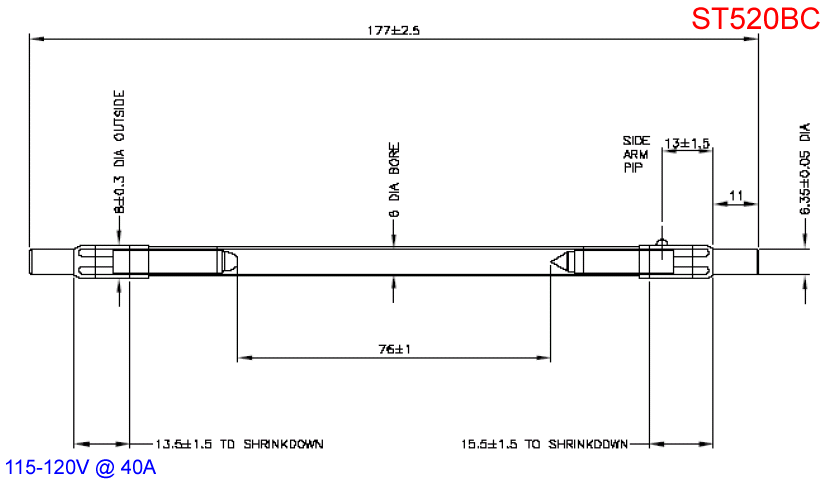

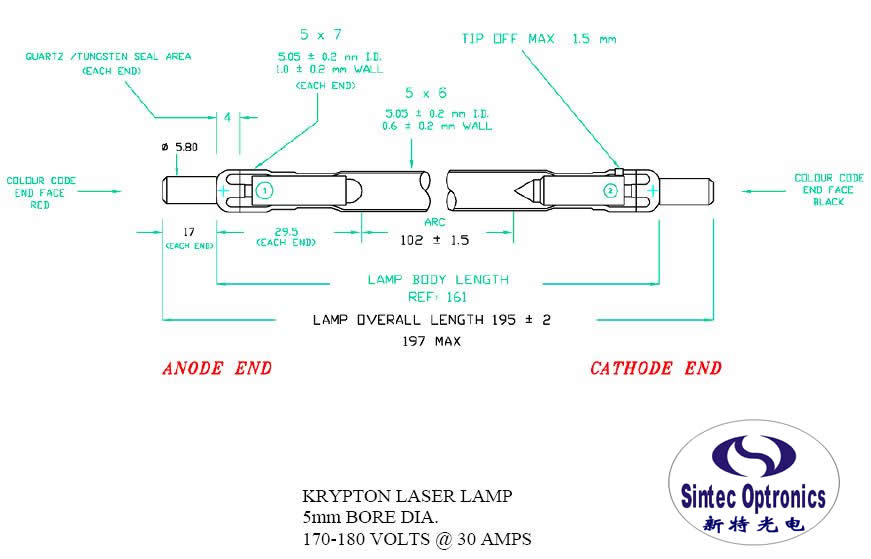

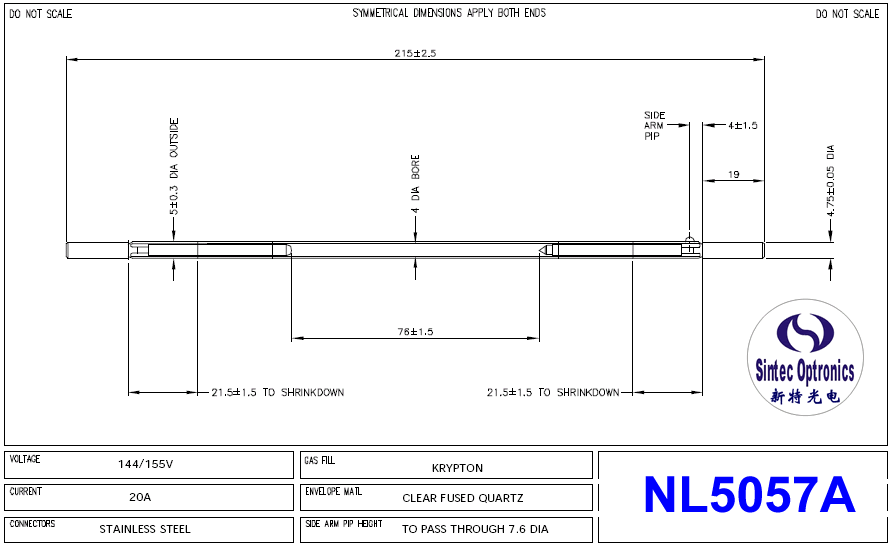

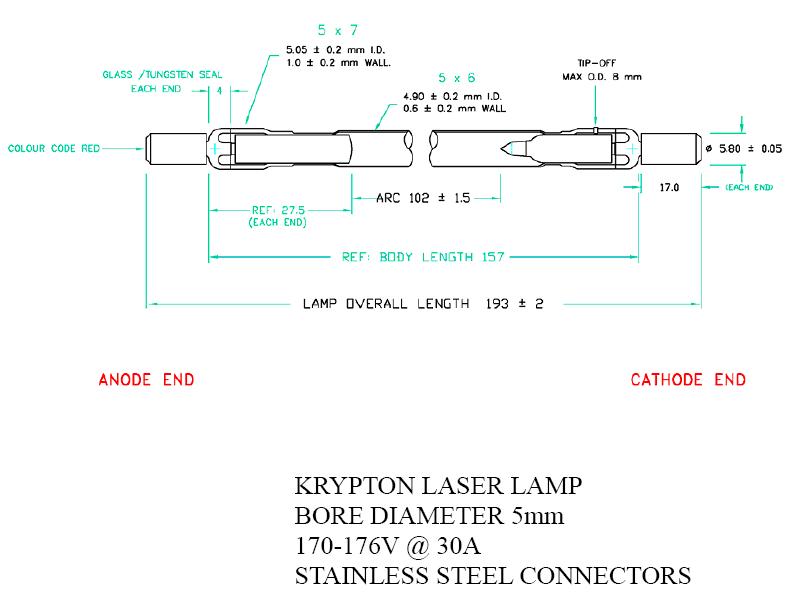

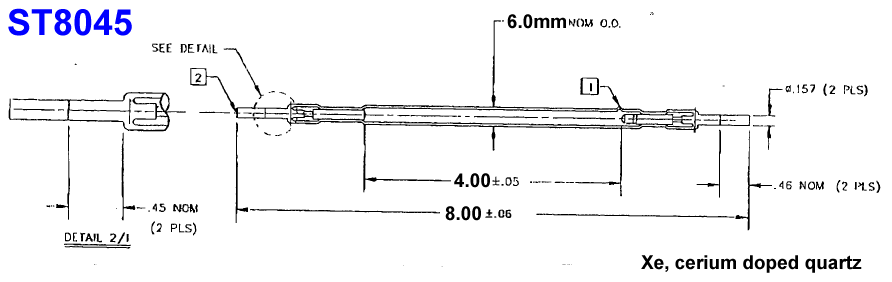

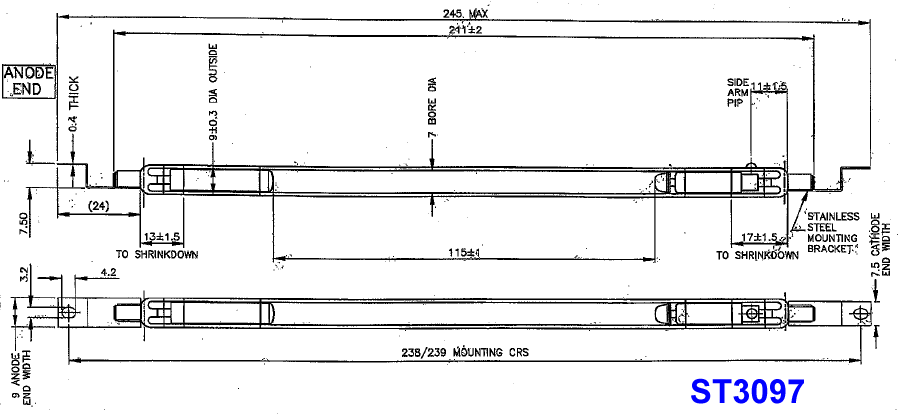

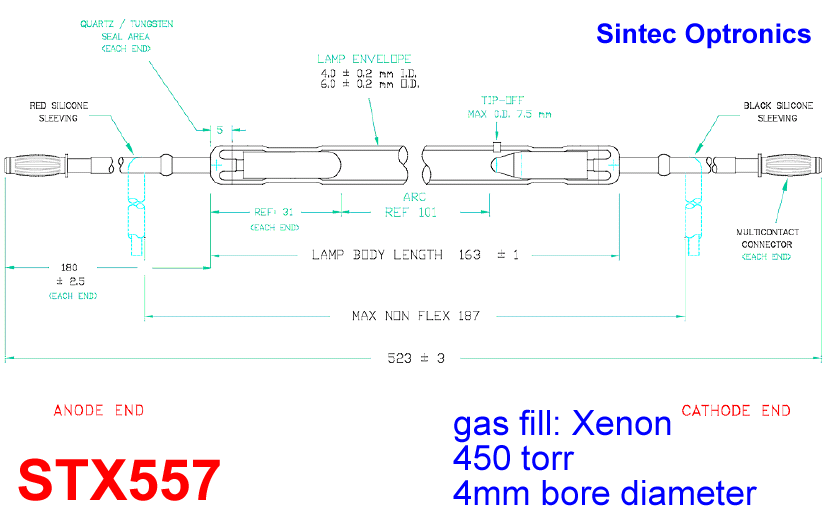

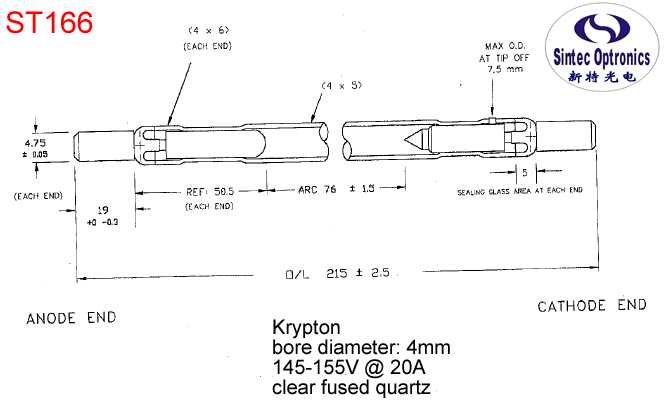

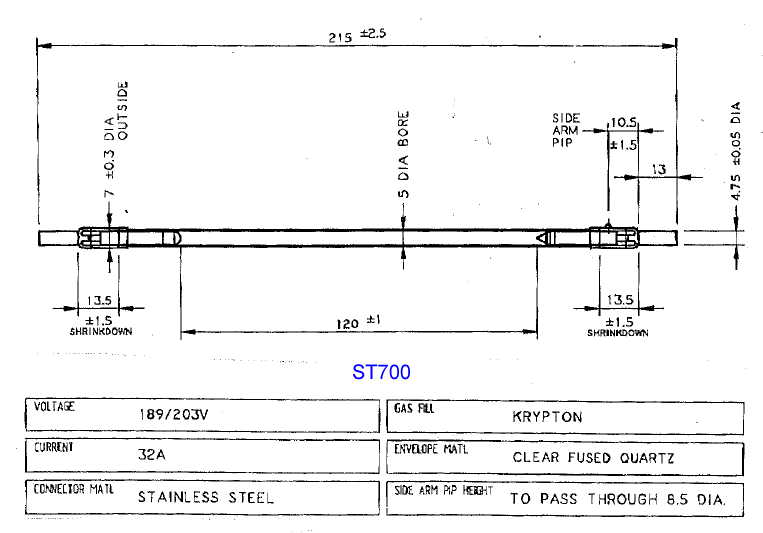

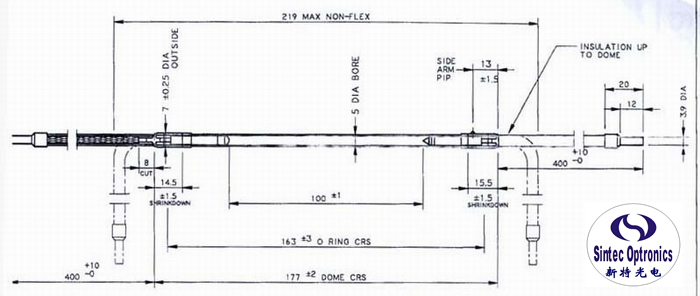

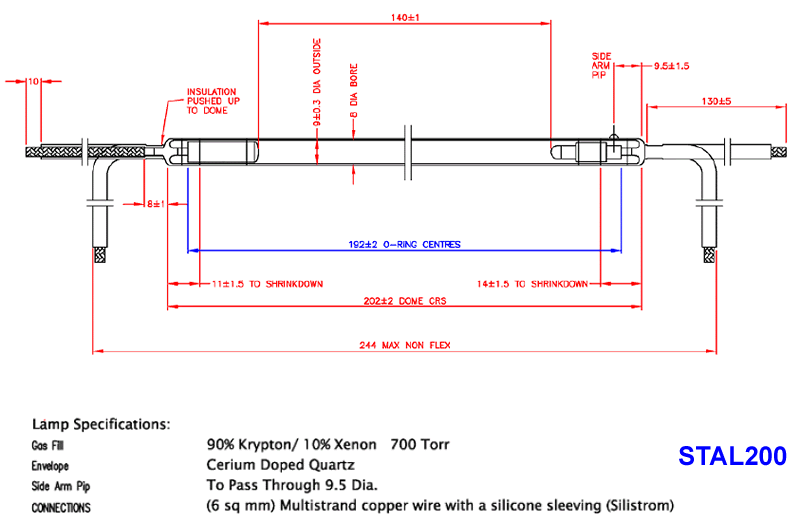

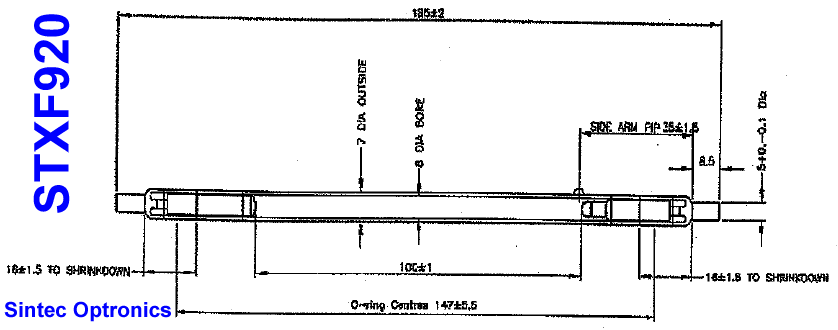

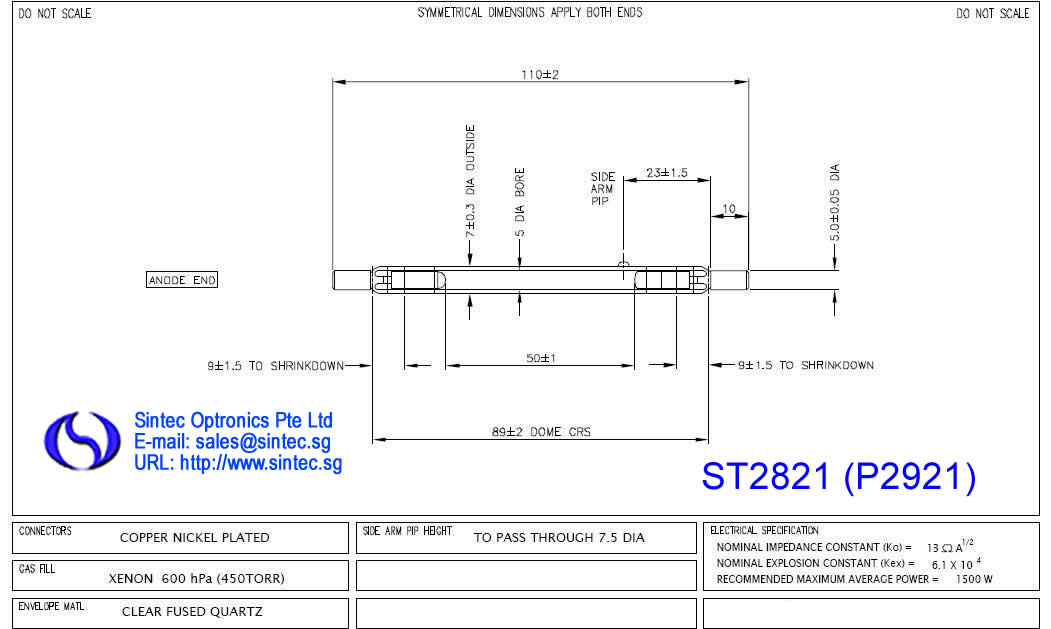

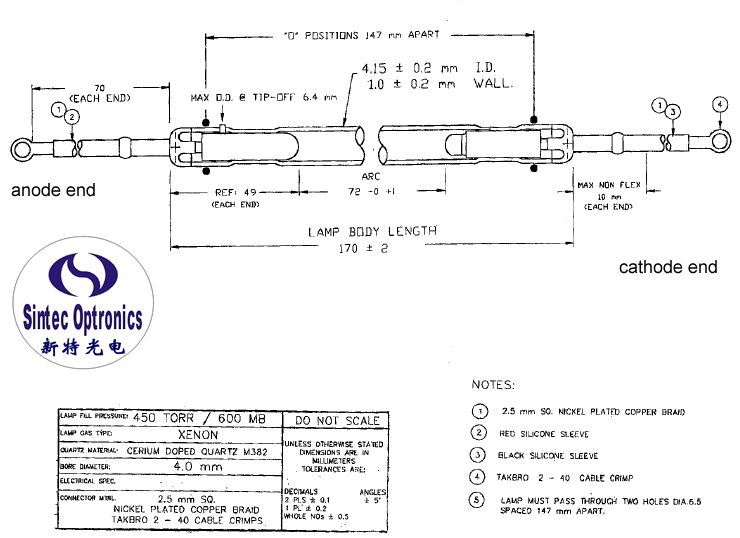

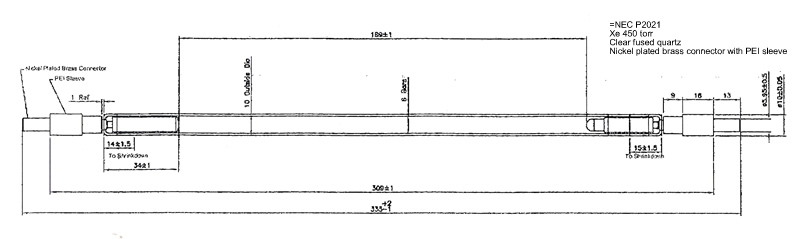

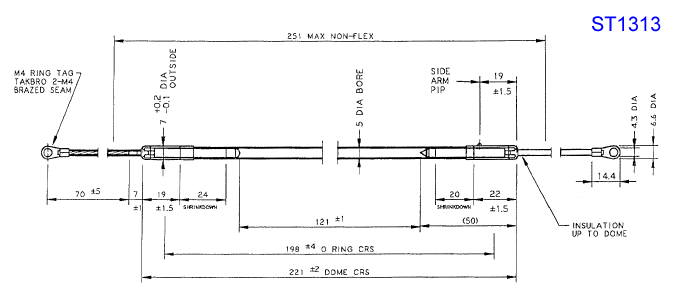

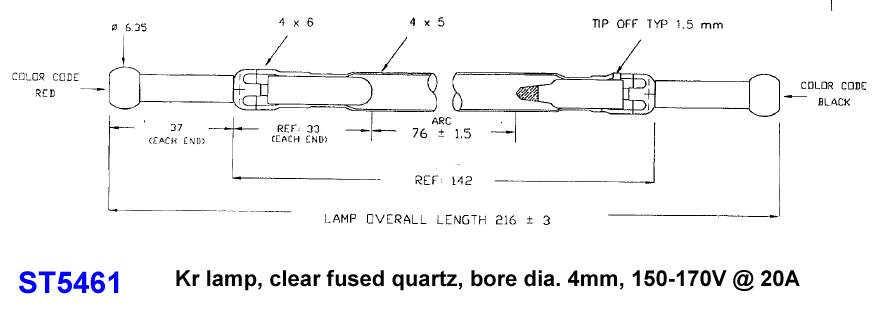

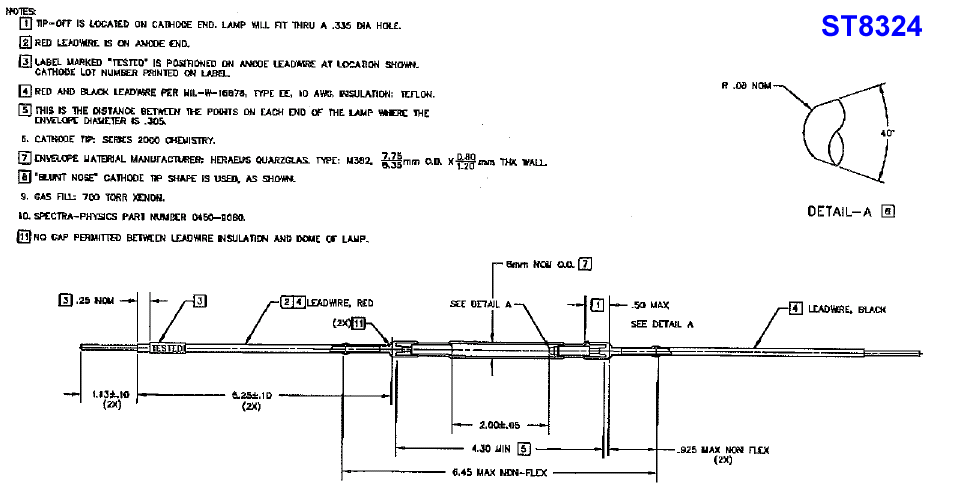

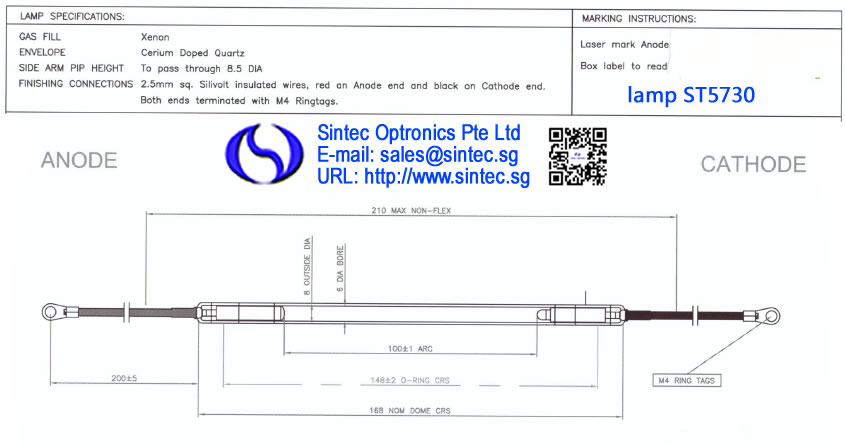

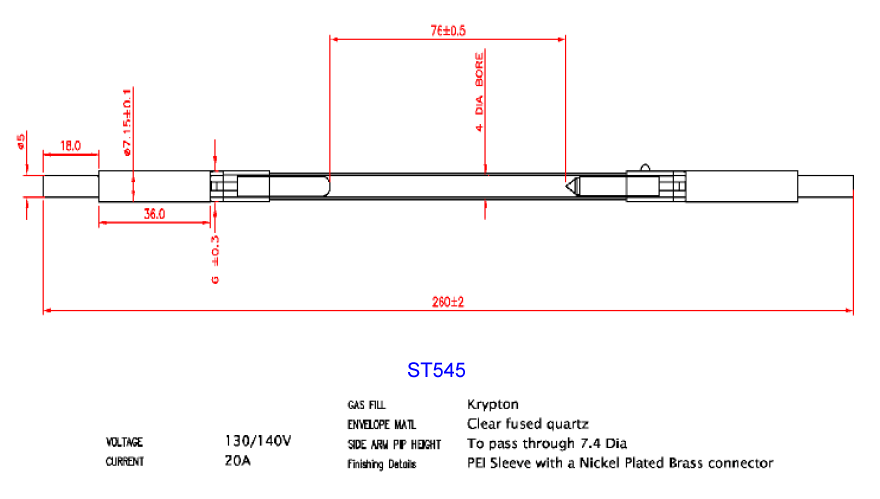

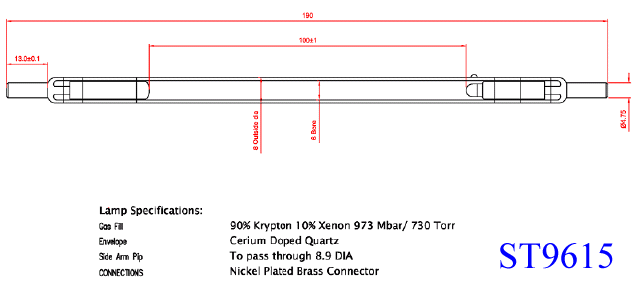

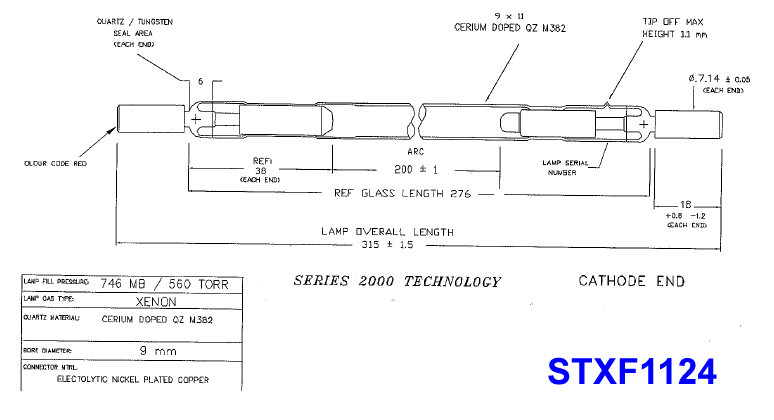

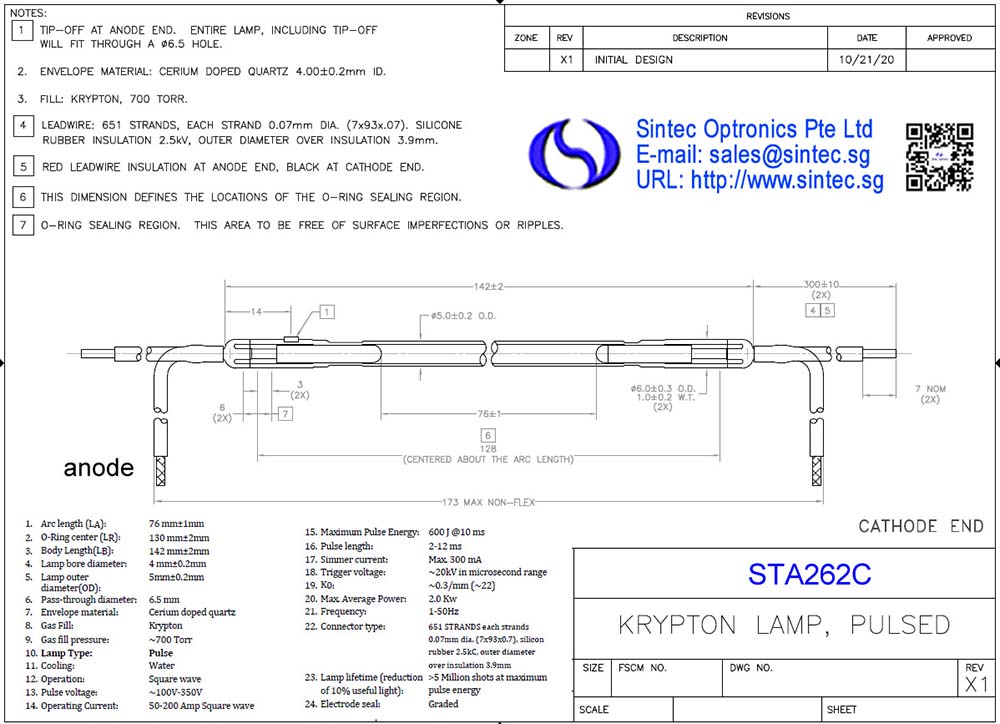

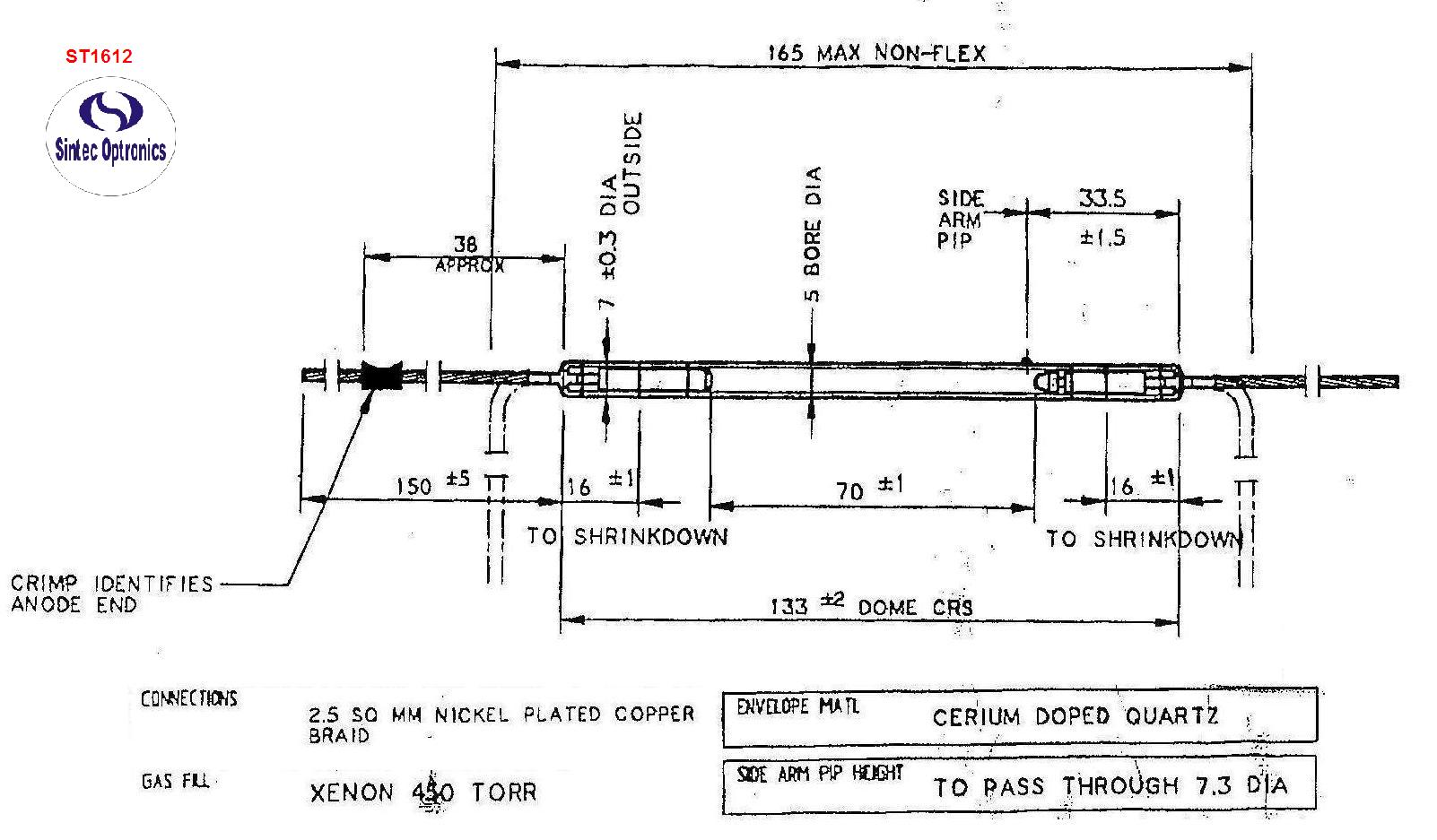

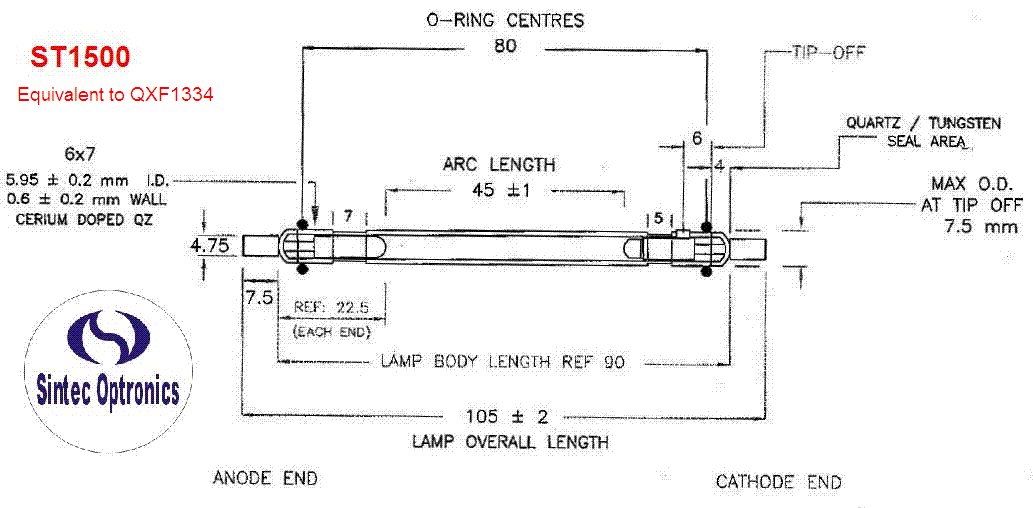

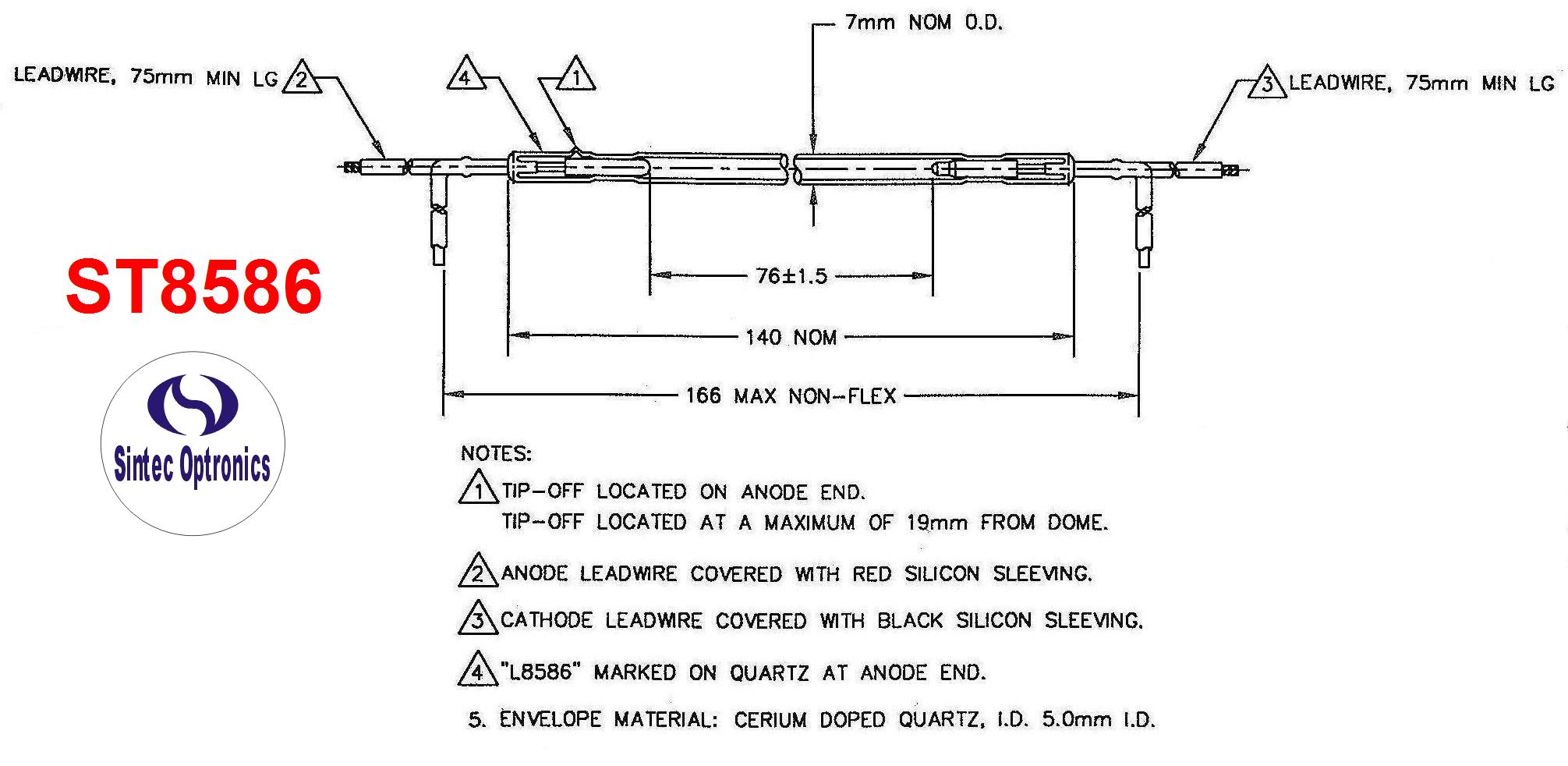

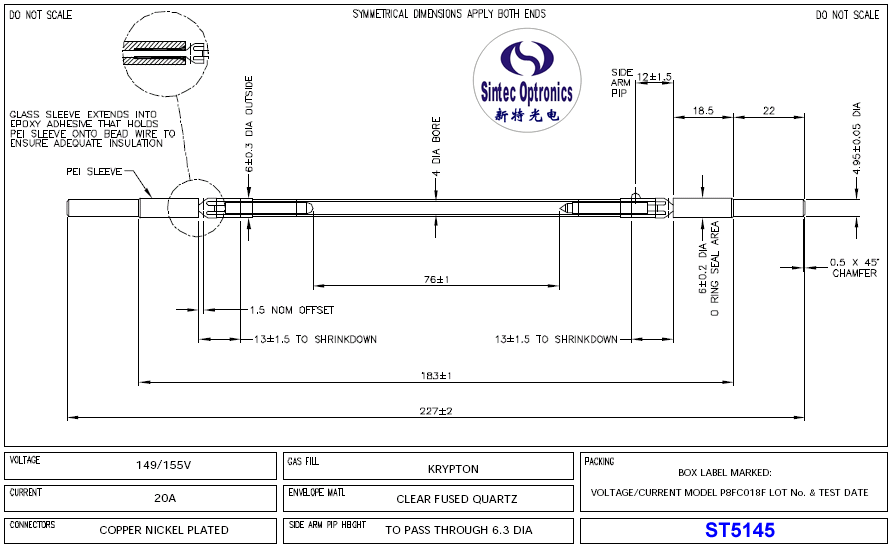

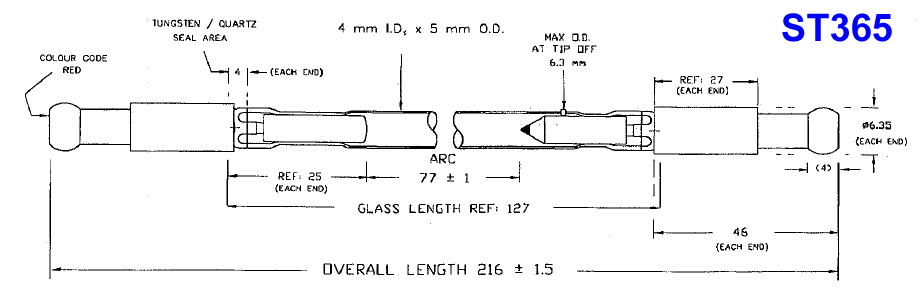

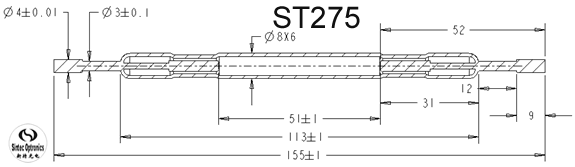

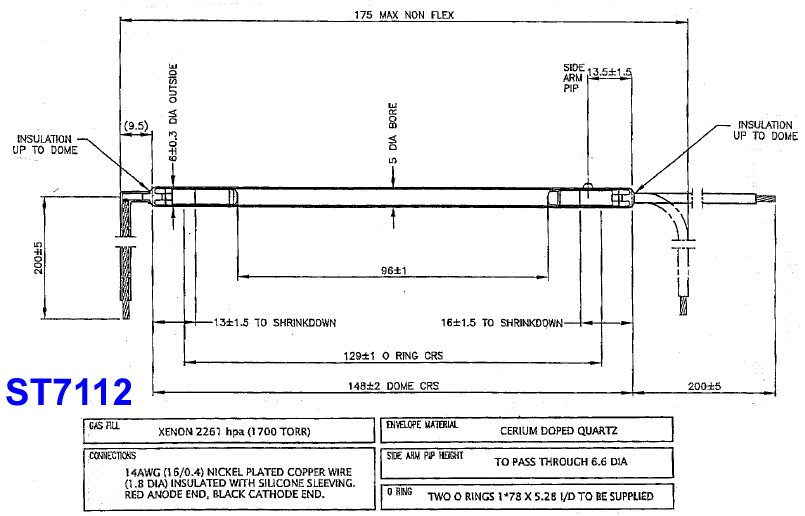

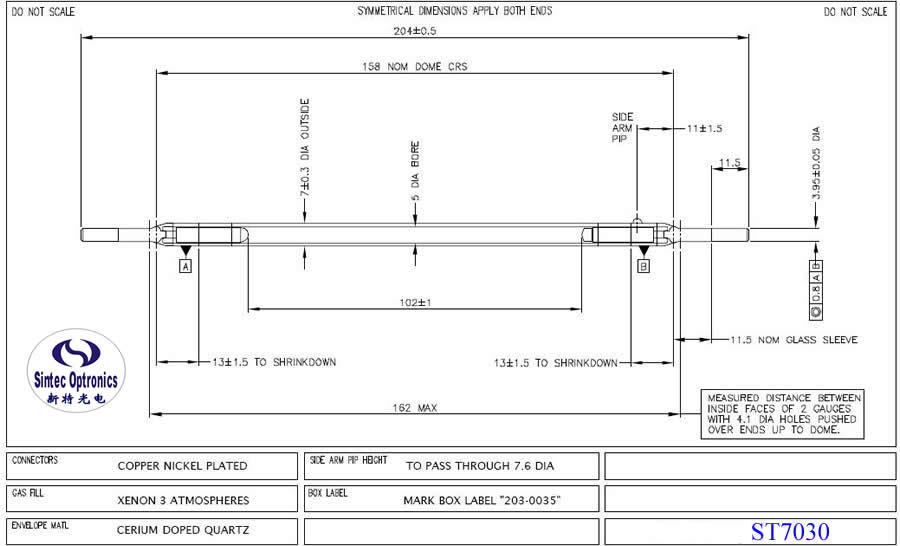

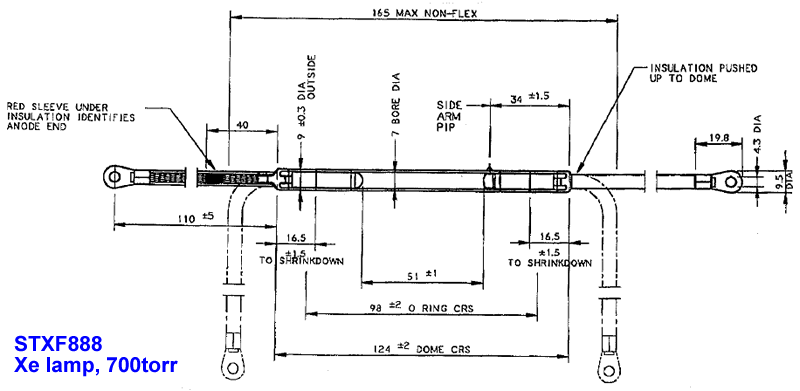

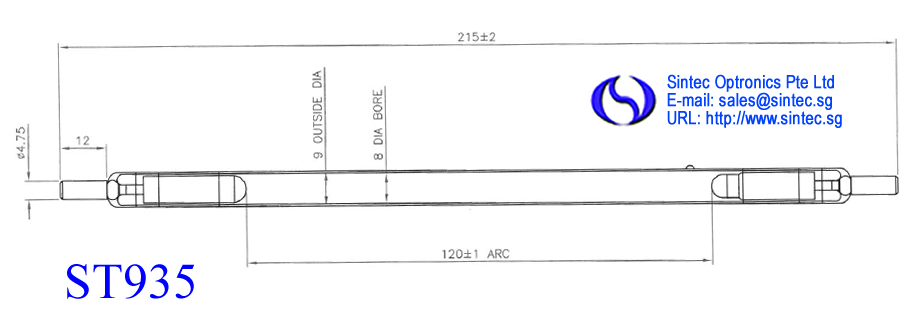

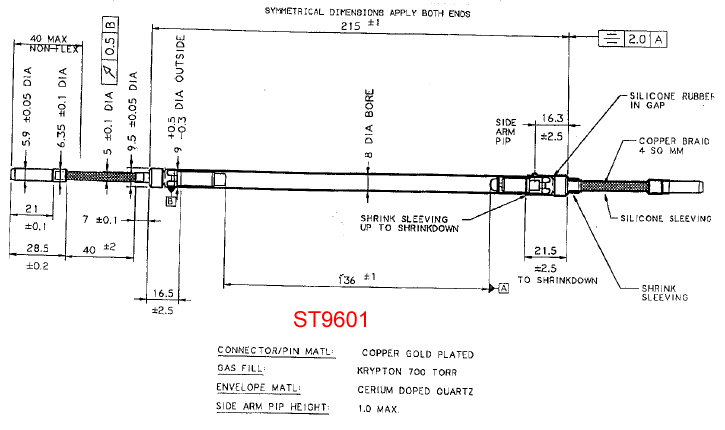

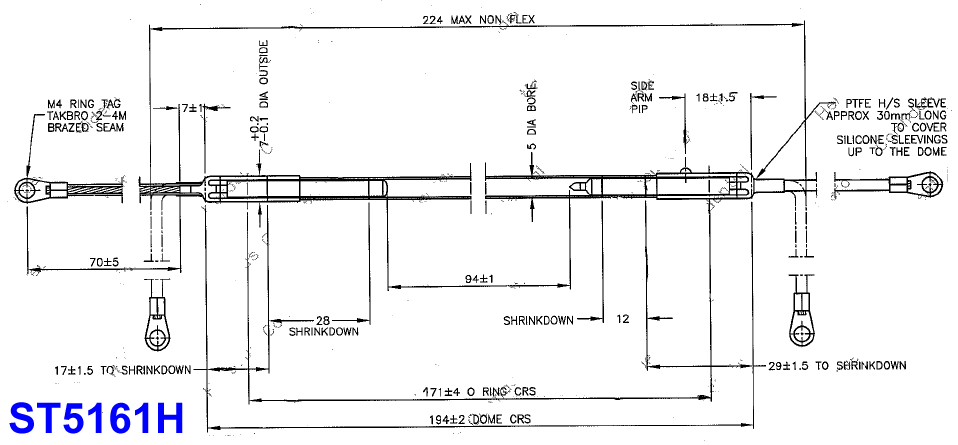

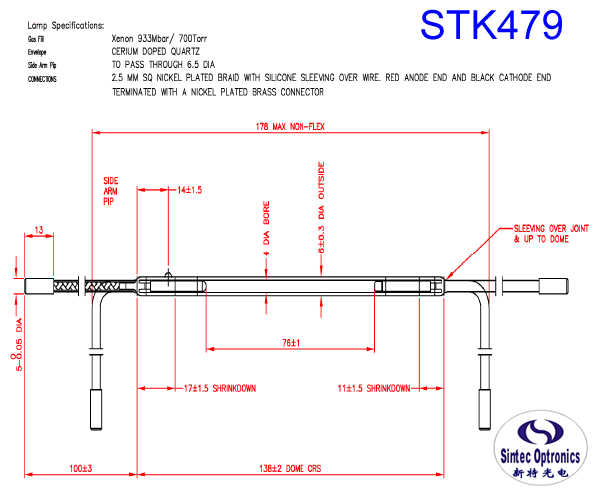

If you are using a laser and know the brand or maker, please refer to the following table which shows the lamp models and drawings used in inpidual laser machines.Please fill the detailed requirement form (PDF) or requirement form (DOC) of the lamps for quotation. If you do not know the details of the used lamp, please contact us for more information.

If you are using a laser and know the brand, please refer to the following table which shows the lamp models used in inpidual laser machines.
