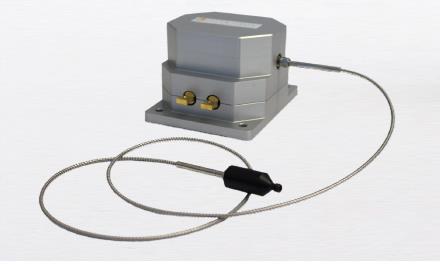

The diode module is an ideal building block in the development or production of medium power rod laser systems, conversion of existing lamp-based laser designs to diode-pumping.
Compact monolithic laser systems
Highly efficient diode pumping
Fiber-coupled versions available
No high-voltage required
Reduced waste heat
Maintenance free
Process variability
Specifications:
STP- DPM-25 (Tm:YAG) free / fiber (1) | STP- DPM-50 (Tm:YAG) free / fiber (1) | STP- DPM-100 (Tm:YAG) free / fiber (1) | |
Optical Parameters | |||
Wavelength | 2020 nm | 2020 nm | 2020 nm |
Average Output Power (max) | 25 / 20 W | 50 / 40 W | 100 / 80 W |
Pulse Energy (max) | (0.2 - 1.6 (2)) / (0.16 - 1,28 (2)) J | (0.5 - 4 (2)) / (0.4 - 3.2 (2)) J | (1 - 8 (2)) / (0.8 - 6.4 (2)) J |
Pulse Repetition Rate (max) | 500 Hz | 500 Hz | 500 Hz |
Pulse Duration | 100 to 500 (20 000 (2)) µs | 100 to 500 (20 000 (2)) μs | 100 to 500 (20 000 (2)) μs |
Average Current (max) | 8 A | 7 A | 7 A |
Mode of Operation | Pulsed | Pulsed | Pulsed |
Efficiency (optical-optical) | > 15 % | > 20 % | > 20 % |
Beam Shape (focus) | top hat like | top hat like | top hat like |
Free Beam Quality | M2 < 20 | M2 <30 | M2 <40 |
Free Beam Diameter | 1.6 mm | 1.6 mm | 1.6 mm |
Free Divergence (half angle) | < 20 mrad | < 30 mrad | < 40 mrad |
Fiber Diameter Low-OH (1) | ~ 100 μm (NA < 0.2) | ~ 150 μm (NA < 0.2) | ~ 200 μm (NA < 0.2) |
Cooling Requirements | |||
Coolant | Distilled water with Algaecide and Corrosion Inhibitor | Distilled water with Algaecide and Corrosion Inhibitor | Distilled water with Algaecide and Corrosion Inhibitor |
Coolant Temperature | 25 °C | 25 °C | 25 °C |
Coolant Flow Rate | ≥ 4 lpm | ≥ 5 lpm | ≥ 6 lpm |
Coolant Pressure | (2 - 5) bar | (3 - 5) bar | (3 - 5) bar |
Required Cooling Power | ~ 350 W @ 25 °C Environment Temp. | ~ 500 W @ 25 °C Environment Temp. | ~ 750 W @ 25 °C Environment Temp. |
Electrical Parameters | |||
Diode Forward Voltage | <40 V | <75 V | <130 V |
Diode Forward Current | 150 A | 150 A | 150 A |
Average Power Consumption (max) | < 500 W | < 750 W | < 1000 W |
Mechanical Dimensions | |||
W x D x H | 120 x 96 x 75 mm | 120 x 96 x 75 mm | 120 x 120 x 75 mm |
Weight | 1.5 kg | 1.6kg | 1.7kg |
Emission Height | 47.5mm | 47.5mm | 47.5mm |
(1) Fiber as specified by Sintec
(2) With Sintec Ultrapulse Mode (on request only)
Laser Diode Drivers
The LDD series are economic QCW laser diode driver modules designed to provide high current pulses to drive Sintec modules in various applications. It delivers output currents up to 150 A and pulse widths variable from 50 up to 500 μs operation. Up to 1000 W average output power is available with the supplied heatsink and forced air flow. Several safety features are integrated to protect both laser diode and driver.
STP-DPM-25 (Tm:YAG) | STP-DPM-50/100 (Tm:YAG) | |
Laser Diode Driver | LDD-36200 | LDD-120200 |
Output Current | up to 150 A | up to 150 A |
Rise Time (10 - 90%) | < 20 μs | < 20 μs |
Mechanical Dimensions (W x D x H) | 200 x 150 x 85 mm | 300 x 200 x 120 mm |
Efficiency | > 80 % | > 80 % |
Test and Evaluate
The Sintec evaluation kits are ready-to-use and straightforward laboratory systems for first feasibility studies in research environment. The evaluation kits are available with three different kind of laser sources (see front page), shortens the development time, enables flexibility and a fast demonstration of feasibility. The test systems are delivered with your requested laser source, a laser control system and a cooling system for laboratory use only. Please contact us for more information on rental or purchase conditions.
Sintec Applications
Medical:
Aesthetics / Dermatology
Dentistry
ENT
Lithotripsy
Minimally-Invasive Surgery
Orthopedics
Etc.
Industrial:
Material Processing (Drilling, Cutting, Melting, Welding, Evaporation)
Analytics
Security
Defense

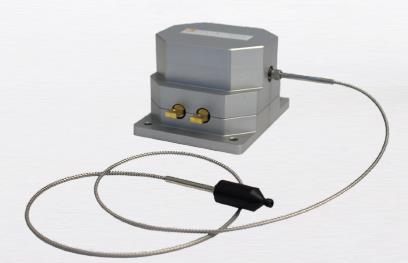

Compact monolithic laser systems
Highly efficient diode pumping
Fiber-coupled versions available
No high-voltage required
Reduced waste heat
Maintenance free
Process variability
Specifications:
STP-DPM-2 (Er:YAG) free / fiber (1) | STP-DPM-25 (Er:YAG) free / fiber (1) | STP-DPM-50 (Er:YAG) free / fiber (1) | |
Optical Parameters | |||
Wavelength | 2940 nm | 2940 nm | 2940 nm |
Average Output Power (max) | 2 / 1.2 W | 25 / 16 W | 50 / 33 W |
Pulse Energy (max) | 20 (2) / 13 (2) mJ | 300 (2) / 200 (2) mJ | 600 (2) / 400 (2) mJ |
Pulse Repetition Rate | up to 1 kHz | up to 1 kHz | up to 1 kHz |
Pulse Duration | 40 to 1000 (3) μs | 40 to 1000 (3) μs | 40 to 1000 (3) μs |
Average Current (max) | 30 A | 25 A | 25 A |
Mode of Operation | Pulsed | Pulsed | Pulsed |
Efficiency (optical-optical) | > 10 % | > 10 % | > 10 % |
Beam Shape (focus) | top hat like | top hat like | top hat like |
Free Beam Quality | M2 < 5 | M2 <25 | M2 < 50 |
Free Beam Diameter | 0.6 mm | 1.6 mm | 1.6 mm |
Free Divergence (half angle) | < 25 mrad | < 25 mrad | < 50 mrad |
Fiber Diameter GeO2 (1) | ~ 230 μm (NA < 0.2) | ~ 230 μm (NA < 0.2) | ~ 420 μm (NA < 0.2) |
Cooling Requirements | |||
Coolant | Distilled water with Algaecide and Corrosion Inhibitor | Distilled water with Algaecide and Corrosion Inhibitor | Distilled water with Algaecide and Corrosion Inhibitor |
Coolant Temperature | 20 to 35 °C | 20 to 25 °C | 20 to 25 °C |
Coolant Flow Rate | ≥ 1 lpm | ≥ 5 lpm | ≥ 6 lpm |
Coolant Pressure | (1 - 3) bar | (2 - 5) bar | (3 - 5) bar |
Required Cooling Power | ~ 150 W @ 25 °C Environment Temp. | ~ 540 W @ 25 °C Environment Temp. | ~ 780 W @ 25 °C Environment Temp. |
Electrical Parameters | |||
Diode Forward Voltage | 2 V | ~20 V | ~30 V |
Diode Forward Current | 350 A Pulsed | 300 A Pulsed | 300 A Pulsed |
Average Power Consumption (max) | < 120 W incl. 2 TECs | < 450 W | < 900 W |
Mechanical Dimensions | |||
W x D x H | 30 x 32 x 25 mm | 120 x 96 x 75 mm | 120 x 120 x 75 mm |
Weight | 60 g | 1.5kg | 1.7kg |
Emission Height | - | 47.5mm | 47.5mm |
(1) Fiber as specified by Sintec
(2) For pulse durations > 600 μs
(3) 600 μs standard, 1000 μs on request
Laser Diode Drivers
The LDD series are economic QCW laser diode driver modules designed to provide high current pulses to drive Sintec modules in various applications. It delivers output currents up to 300 A and pulse widths variable from 50 up to 1000 (3) μs operation. Up to 1000 W average output power is available with the supplied heatsink and forced air flow. Several safety features are integrated to protect both laser diode and driver.
STP-DPM-2 (Er:YAG) / STP-DPM-25 (Er:YAG) | STP-DPM-50 (Er:YAG) | |
Laser Diode Driver | LDD-20300 | LDD-30300 |
Output Current | up to 300 A | up to 300 A |
Rise Time (10 - 90%) | < 20 μs | < 20 μs |
Mechanical Dimensions (W x D x H) | 200 x 150 x 85 mm | 200 x 150 x 85 mm |
Additional Features | Safety circuit and communication interface | Safety circuit and communication interface |
Test and Evaluate
The Sintec evaluation kits are ready-to-use and straightforward laboratory systems for first feasibility studies in research environment. The evaluation kits are available with three different kind of laser sources (see front page), shortens the development time, enables flexibility and a fast demonstration of feasibility. The test systems are delivered with your requested laser source, a laser control system and a cooling system for laboratory use only. Please contact us for more information on rental or purchase conditions.
Medical Applications
Aesthetics / Dermatology
Dentistry
ENT
Lithotripsy
Minimally-Invasive Surgery
Orthopedics
Etc.
Industrial:
Material Processing (Drilling, Cutting, Melting, Welding, Evaporation)
Analytics
Security
Defense
High intensity 2.81 μm laser
Nanosecond pulses with up to 25 mJ
Linearly polarized beam
Highly efficient diode pumping
No high-voltage required
Maintenance free
Specifications:
Optical Parameters | |
Wavelength Range | 2810 nm |
Average Output Power (max) | 5 W |
Pulse Energy (max) | 25mJ (@100 Hz) |
Pulse Repetition Rate | 500 Hz |
Pulse Duration (FWHM) | < 100 ns |
Polarization | Linear |
Average Current (max) | 10 A |
Mode of Operation | Pulsed |
Beam Quality | M2 < 10 |
Beam Diameter | 2.5 mm |
Beam Shape (focus) | top hat like |
Cooling Requirements | |
Coolant | Distilled water with Algaecide and Corrosion Inhibitor |
Coolant Temperature | 20 to 25 °C |
Coolant Flow Rate | ≥ 4 lpm |
Coolant Pressure | (2 - 5) bar |
Required Cooling Power | ≥ 780 W @ 25 °C Environment Temperature |
Electrical Parameters | |
Diode Forward Voltage | ~ 25 V |
Diode Forward Current | max 200 A Pulsed |
Average Power Consumption (max) | < 650 W |
max Ripple / Overshoot | < 5 % |
Mechanical Dimensions | |
W x D x H | 300 x 120 x 75 mm |
Weight | 5.0 kg |
Emission Height | 47.5 mm |
Compact monolithic laser systems
Highly efficient diode pumping
Fiber-coupled versions available
No high-voltage required
Reduced waste heat
Maintenance free
Process variability
Optical Parameters | |
Wavelength | 2940 nm |
Average Output Power (max) | 80 W |
Pulse Energy (max) | 3.5J |
Pulse Repetition Rate | Up to 1kHz |
Pulse Duration | (40-100) µs |
Average Current (max) | 7.5 A |
Mode of Operation | Pulsed |
Efficiency (optical-optical) | > 10% |
Beam Shape (focus) | top hat like |
Free Beam Quality | M2 < 50 |
Free Beam Diameter | 1.6 mm |
Free Divergence (half angle) | <50mrad |
Cooling Requirements | |
Coolant | Distilled water with Algaecide and Corrosion Inhibitor |
Coolant Temperature | 20 to 25 °C |
Coolant Flow Rate | ≥ 6 lpm |
Coolant Pressure | (3 - 5) bar |
Required Cooling Power | ≥ 780 W @ 25 °C Environment Temperature |
Electrical Parameters | |
Diode Forward Voltage | ~ 120 V |
Diode Forward Current | 300 A Pulsed |
Average Power Consumption (max) | < 1000 W |
Mechanical Dimensions | |
Dimension (LxWxH) | (95 x 50 x 60) mm3 |
Weight | 1kg |
Emission Height | 38.1 mm |
Laser Diode Drivers
The LDD is an economic QCW laser diode driver module designed to provide high current pulses to drive Sintec modules in various applications. It delivers output currents up to 300 A and pulse widths variable from 50 up to 1000 (1) μs operation. Up to 1000 W average output power is available with the supplied heatsink and forced air flow. Several safety features are integrated to protect both laser diode and driver.
STP-DPM-100 (Er: YAG) | |
Laser Diode Driver | LDD-140300 |
Output Current | up to 300 A |
Rise Time (10 - 90%) | < 20μs |
Mechanical Dimensions (W x D x H) | 300 x 200 x 120 mm |
Additional Features | Safety circuit and communication interface |
Test and Evaluate
The Sintec evaluation kits are ready-to-use and straightforward laboratory systems for first feasibility studies in research environment. The evaluation kits are available with three different kind of laser sources (see front page), shortens the development time, enables flexibility and a fast demonstration of feasibility. The test systems are delivered with your requested laser source, a laser control system and a cooling system for laboratory use only. Please contact us for more information on rental or purchase conditions: sales@sintec.sg
Sintec Applications
Medical:
Aesthetics / Dermatology
Dentistry
ENT
Lithotripsy
Minimally-Invasive Surgery
Orthopedics
Etc.
Industrial:
Material Processing (Drilling, Cutting, Melting, Welding, Evaporation)
Analytics
Security
Defense

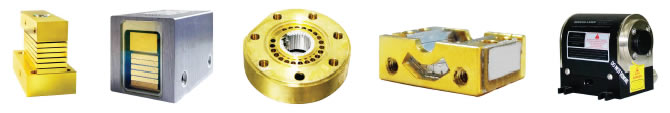

The work mode of gain modules is CW or QCW. The QCW module also includes conduction cooling module and water cooling module. STO series CW module maximum power is 450W. Much powerful module also can be customized upon request. Typical applications are laser amplifiers for nanosecond and picosecond MOPA lasers, gain modules for unstable oscillator resonators, CW pumped, 532nm, ns q-switched lasers, and LIDAR lasers.
Applications:
Metal plate laser cutting, up to 12mm
Metal & non-metal marking & engraving
Metal & plastic welding, laser cleaning
PCB, ceramic and solar cell engraving % cutting
Lab & medical applications
Definition of Part Numbers: STO-XX-C-AxBB-SS-HH
XX: output average laser power
C: the part models of bars such as H or E
AxBB: dimension of the Nd:YAG rod. A is the diameter and BB is the length.
SS: the structure of the water cooling block such as CX (side), XX (bottom), XB (bottom with plate) and XG (bottom with nozzle)
HH: the height of the optical axis.
Part number | Output laser power W | Diode current A | Diode voltage V | YAG size mm | Optical height mm |
STO-35-H-2*67-CX-40 | 35 | 22 | <18 | 2*67 | 40 |
STO-50-H-3*67-CX-40 | 50 | 22 | <18 | 3*67 | 40 |
STO-50-H-4*67-CX-40 | 50 | 22 | <18 | 4*67 | 40 |
STO-75-H-3*78-CX-40 | 75 | 22 | <24 | 3*78 | 40 |
STO-75-H-3*78-CX-45 | 75 | 22 | <24 | 3*78 | 45 |
STO-75-E-3*78-CX-45 | 75 | 25 | <24 | 3*78 | 45 |
STO-100-E-4*100-XX-50 | 100 | 25 | <30 | 4*100 | 50 |
STO-100-E-5*76-XX-50 | 100 | 25 | <30 | 5*76 | 50 |
STO-150-H-3*110-CX-50 | 150 | 22 | <48 | 3*110 | 50 |
STO-200-E-5*100-XX-50 | 200 | 25 | <50 | 5*100 | 50 |
STO-200-E-4*100-CX-50 | 200 | 25 | <50 | 4*100 | 50 |
STO-300-E-5*124-XB-40 | 300 | 25 | <70 | 5*124 | 40 |
STO-300-E-5*124-XG-50 | 300 | 25 | <70 | 5*124 | 50 |
STO-400-E-5*148-XG-50 | 400 | 25 | <90 | 5*148 | 50 |
STO-450-E-5*160-XG-50 | 450 | 25 | <100 | 5*160 | 50 |
Note: The typical Nd:YAG doping for STO series CW DPSS laser module is 0.6% and other doping levels (0.6%-1.1%) can be customized. The output power is measured with regular 300mm cavity length with flat-flat or concaved-flat resonator. The expected life time is 10,000 hours and the warranty is 12 months from the date of delivery.
STO Series, CW Laser Diode Power Supply (Diode Driver)
Model No. | Max Voltage | Max Current | For Laser Modules |
STO-520 | 24V | 22A | STO-35, STO-50-H, STO-75-H |
STO-720 | 24V | 30A | STO-50-E, STO-75-E |
STO-920 | 36V | 30A | STO-100, STO-120 |
STO-600S | 12V | 50A | STO-VSCW-MI-X-XX |
STO-LDD-40-30 | 40V | 30A | STO-150 |
STO-LDD-50-30 | 50V | 30A | STO-200 |
STO-LDD-70-25 | 70V | 30A | STO-300 |
STO-LDD-100-30 | 100V | 30A | STO-400, STO-500 |
STO-LDD-140-28 | 140V | 28A | For laser cutting head |
Applications:
Direct industry applications
As laser oscillator or laser seed
As laser amplifiers
To get high peak power with Q-switch
Other lab & medical applications
High repetition rate laser rangefinder
High pulse energy military applications
(1) mJ Level Diode Laser Pump Modules
Model No. | Nd:YAG(mm) | Pumping Power(808nm) | Pulse Energy (200us) | Current(A) | Voltage(V) |
STO-GQ9 | Φ2-4 | 900W | >30-40mJ | 110 | 18 |
STO-GQ12 | Φ2-4 | 1200W | >40-50mJ | 110 | 24 |
STO-GQ15 | Φ2-4 | 1500W | >60-70mJ | 110 | 30 |
STO-GQ30 | Φ3-5 | 3KW | >120-140mJ | 110 | 60 |
STO-GQ50 | Φ3-5 | 5KW | >200-250mJ | 110 | 100 |
STO-GQ50B | Φ3-5 | 5KW | >200-250mJ | 200 | 50 |
STO-GQ100B | Φ4-8 | 10KW | >400-500mJ | 200 | 100 |
STO-GQ200B | Φ4-8 | 20KW | >800-1000mJ | 200 | 200 |
Remark: (1) Customized stack/planar array side/end-pumping QCW modules in various shapes such as arc and annular available upon request. (2) The doping level of Nd:YAG can be customized from 0.6% to 1.1%. Pulse energy listed above is measured at 200μs/100Hz at 1064nm. Typical QCW modules are designed with duty circle £5% and higher duty circle modules must be customized. Small signal gain may be various according to different designs.
(2) Joule Level QCW/Pulsed DPSS Laser Modules
Model No. | Nd:YAG Dia. | Pulse Energy | Operation Voltage | Peak Current |
STO-MQ1 | 5-10mm | >1J | 250V | 200A |
STO-MQ2 | 5-10mm | >2J | 500V | 200A |
STO-MQ3 | 5-10mm | >3J | 750V | 200A |
STO-MQ5 | 5-10mm | >5J | 1250V | 200A |
STO-MQ10 | 5-10mm | >10J | 2500V | 200A |
Remark: the above QCW modules are usually driven by a group of QCW Laser Diode Drivers synchronously and the operation voltage is the sum of these voltages. Pulse energy listed above is measured at 200μs/20Hz at 1064nm. Typical QCW modules are designed with duty circle ≤2%. Customized modules available upon request.
(3) Definition of Part Number: STO-TT-PW-CC-NN-PB-SS-AxBB
TT: energy level such as GQ (mJ-level modules at 250us) and JQ (J-level modules at 250us)
PW: total pumping peak power in W
CC: cooling method such as W (water cooled) and C (conductive cooled)
NN: number of bars
PB: peak power per bar such as 100W or 200W
SS: Structure of the modules such as H (linear array), A (arc) , C (circular). For example, H34 is linear array 3x4, 1P is one bar on each cell, 4A6 means there are 4arcs and there are 6 bars on each arc,
AxBB: rod size. A is the diameter and BB is length in mm.
Part Number | Peak Pump Power (W) | Stored Energy (J) | Rod Size(MM) | Current(A) | Voltage(V) | Typical Duty circle |
STO-GQ-1000-C-10-100E-2A5-6*43 | 1000 | 0.08 | 6*43 | 100 | <20 | 2.00% |
STO-GQ-2000-C-10-200E-2A5-6*43 | 2000 | 6*43 | 200 | <20 | 2.00% | |
STO-GQ-1000-C-10-100E-2C5-3*45 | 1000 | 3*45 | 100 | <20 | 2.00% | |
STO-GQ-1200-C-12-100E-H34-4*39 | 1200 | 0.096 | 4*39 | 100 | <20 | 2.00% |
STO-GQ-2000-C-10-200E-2C5-3*45 | 1000 | 3*45 | 200 | <20 | 1.00% | |
STO-GQ-2400-C-24-100E-4A6-2*4*25 | 2400 | 2Pcs 4*25 | 100 | <48 | 2.00% | |
STO-GQ-4800-C-24-200E-4A6-2*4*25 | 4800 | 2pcs 4*25 | 200 | <48 | 1.00% | |
STO-GQ-5600-C-56-100E-ACM-4*76 | 5600 | 4*76 | 100 | <112 | 1.00% | |
STO-GQ-11200-C-56-200E-ACM-4*76 | 11200 | 0.9 | 4*76 | 200 | <112 | 0.50% |
STO-GQ-900-W-9-100-H33*1P-3×67 | 900 | 0.072 | 3*67 | 100 | <18 | 12.50% |
STO-GQ-1200-W-12-100-H34*1P-3×78 | 1200 | 0.096 | 3*78 | 100 | <24 | 12.50% |
STO-GQ-1200-W-12-100-H34*1P-4×78 | 1200 | 0.096 | 4*78 | 100 | <24 | 12.50% |
STO-GQ-1800-W-9-200-H33*1P-2*67 | 1800 | 0.14 | 2*67 | 200 | <18 | 2.00% |
STO-GQ-1800-W-9-200-H33*1P-2.54*67 | 1800 | 0.14 | 2.54*67 | 200 | <18 | 2.00% |
STO-GQ-1800-W-9-200-H33*1P-3*67 | 1800 | 0.14 | 3*67 | 200 | <18 | 2.00% |
STO-GQ-2000-W-20-100-H54*1P-4*88 | 2000 | 0.16 | 4*88 | 100 | <40 | 12.50% |
STO-GQ-2000-W-20-100-H54*1P-5*88 | 2000 | 0.16 | 5*88 | 100 | <40 | 12.50% |
STO-GQ-2400-W-12-200-H34*1P-2*78 | 2400 | 0.2 | 2*78 | 200 | <24 | 2.00% |
STO-GQ-2400-W-12-200-H34*1P-2.5*78 | 2400 | 0.2 | 2*78 | 200 | <24 | 2.00% |
STO-GQ-2400-W-12-200-H34*1P-3*78 | 2400 | 0.2 | 2*78 | 200 | <24 | 2.00% |
STO-GQ-2500-W-25-100-H55*1P-4*100 | 2500 | 0.21 | 4*100 | 100 | <50 | 12.50% |
STO-GQ-3000-W-30-100-H56*1P-5*112 | 3000 | 0.21 | 5*112 | 100 | <60 | 12.50% |
STO-GQ-3000-W-15-200-H35*1P-3*88 | 3000 | 0.25 | 3*88 | 200 | <30 | 2.00% |
STO-GQ-3000-W-15-200-H35*1P-4*88 | 3000 | 0.25 | 4*88 | 200 | <30 | 2.00% |
STO-GQ-3600-W-18-200-H33*2P-2.54*67 | 3600 | 0.28 | 2.54*67 | 200 | <36 | 1.00% |
STO-GQ-3600-W-18-200-H33*2P-3*67 | 3600 | 0.28 | 3*67 | 200 | <36 | 1.00% |
STO-GQ-4000-W-20-200-H54*1P-4*88 | 4000 | 0.32 | 4*88 | 200 | <40 | 2.00% |
STO-GQ-4800-W-24-200-18-200-H34*2P-2.54*78 | 4800 | 0.32 | 2.54*78 | 200 | <48 | 1.00% |
STO-GQ-4800-W-24-200-18-200-H34*2P-3*78 | 4800 | 0.32 | 3*78 | 200 | <48 | 1.00% |
STO-GQ-5000-W-25-200-H55*1P-4*100 | 5000 | 0.5 | 4*100 | 200 | <50 | 2.00% |
STO-GQ-5000-W-50-100-H510*1P-5*160 | 5000W | 0.5 | 5*160 | 100 | <100 | 12.50% |
STO-GQ-6000-W-30-200-H35*2P-3*88 | 6000 | 0.4 | 3*88 | 200 | <60 | 1.00% |
STO-GQ-6000-W-30-200-H35*2P-4*88 | 6000 | 0.5 | 4*88 | 200 | <60 | 1.00% |
STO-GQ-6000-W-30-200-H56*1P-4*112 | 6,000 | 0.5 | 4*112 | 200 | <60 | 2.00% |
STO-GQ-6000-W-30-200-H56*1P-5*112 | 6,000 | 0.5 | 5*112 | 200 | <60 | 2.00% |
STO-GQ-6000-W-30-200-H56*1P-6.35*112 | 6,000 | 0.5 | 6.35*112 | 200 | <60 | 2.00% |
STO-GQ-6000-W-30-200-H56*1P-7*112 | 6,000 | 0.5 | 7*112 | 200 | <60 | 2.00% |
STO-GQ-6000-W-30-200-H56*1P-8*112 | 6,000 | 0.5 | 8*112 | 200 | <60 | 2.00% |
STO-GQ-6000-W-63-100-H79*1P-7*148 | 6300W | 7*148 | 100 | <126 | 12.50% | |
STO-GQ-8000-W-40-200-H58*1P-5*136 | 8,000 | 0.7 | 5*136 | 200 | <80 | 2.00% |
STO-GQ-8000-W-40-200-H58*1P-6.35*136 | 8,000 | 0.7 | 6.35*136 | 200 | <80 | 2.00% |
STO-GQ-8000-W-40-200-H58*1P-7*136 | 8,000 | 0.7 | 7*136 | 200 | <80 | 2.00% |
STO-GQ-8000-W-40-200-H58*1P-8*136 | 8,000 | 0.7 | 8*136 | 200 | <80 | 2.00% |
STO-GQ-8000-W-40-200-H58*1P-9*136 | 8,000 | 0.7 | 9*136 | 200 | <80 | 2.00% |
STO-GQ-8000-W-40-200-H58*1P-10*136 | 8,000 | 0.7 | 10*136 | 200 | <80 | 2.00% |
STO-GQ-10000-W-50-200-H510*1P-5*160 | 10,000 | 0.8 | 5*160 | 200 | <100 | 2.00% |
STO-GQ-10000-W-50-200-H510*1P-6*160 | 10,000 | 0.8 | 6*160 | 200 | <100 | 2.00% |
STO-GQ-10000-W-50-200-H510*1P-7*160 | 10,000 | 0.8 | 7*160 | 200 | <100 | 2.00% |
STO-GQ-10000-W-50-200-H510*1P-8*160 | 10,000 | 0.8 | 8*160 | 200 | <100 | 2.00% |
STO-GQ-10000-W-50-200-H510*1P-9*160 | 10,000 | 0.8 | 9*160 | 200 | <100 | 2.00% |
STO-GQ-10000-W-50-200-H510*1P-10*160 | 10,000 | 0.8 | 10*160 | 200 | <100 | 2.00% |
STO-GQ-10000-W-50-200-H510*1P-12*160 | 10,000 | 0.8 | 12*160 | 200 | <100 | 2.00% |
STO-JQ-12000-W-60-200-H56*2P-4*112 | 12,000 | 1 | 4*112 | 200 | <120 | 1.00% |
STO-JQ-12000-W-60-200-H56*2P-5*112 | 12,000 | 1 | 5*112 | 200 | <120 | 1.00% |
STO-JQ-12000-W-60-200-H512*1P-5*184 | 12,000 | 1 | 5*184 | 200 | <120 | 2.00% |
STO-JQ-12000-W-60-200-H56*2P-6*112 | 12,000 | 1 | 6*112 | 200 | <120 | 1.00% |
STO-JQ-12000-W-60-200-H512*1P-6*184 | 12,000 | 1 | 6*184 | 200 | <120 | 2.00% |
STO-JQ-12000-W-60-200-H56*2P-7*112 | 12,000 | 1 | 7*112 | 200 | <120 | 1.00% |
STO-JQ-12000-W-60-200-H512*1P-7*184 | 12,000 | 1 | 7*184 | 200 | <120 | 2.00% |
STO-JQ-12000-W-60-200-H56*2P-8*112 | 12,000 | 1 | 8*112 | 200 | <120 | 1.00% |
STO-JQ-12000-W-60-200-H512*1P-8*184 | 12,000 | 1 | 8*184 | 200 | <120 | 2.00% |
STO-JQ-12000-W-60-200-H56*2P-9*112 | 12,000 | 1 | 9*112 | 200 | <120 | 1.00% |
STO-JQ-12000-W-60-200-H512*1P-9*184 | 12,000 | 1 | 9*184 | 200 | <120 | 2.00% |
STO-JQ-12000-W-60-200-H56*2P-10*112 | 12,000 | 1 | 10*112 | 200 | <120 | 1.00% |
STO-JQ-12000-W-60-200-H512*1P-10*184 | 12,000 | 1 | 10*184 | 200 | <120 | 2.00% |
STO-JQ-12000-W-60-200-H56*2P-12*112 | 12,000 | 1 | 12*112 | 200 | <120 | 1.00% |
STO-JQ-12000-W-60-200-H512*1P-12*184 | 12,000 | 1 | 12*184 | 200 | <120 | 2.00% |
STO-JQ-15000-W-150-100-C1510-8*154 | 15000 | 8*154 | 100 | <300 | 5.00% | |
STO-JQ-16000-W-80-200-H58*2P-5*136 | 16,000 | 1.3 | 5*136 | 200 | <160 | 1.00% |
STO-JQ-16000-W-80-200-H58*2P-6*136 | 16,000 | 1.3 | 6*136 | 200 | <160 | 1.00% |
STO-JQ-16000-W-80-200-H58*2P-7*136 | 16,000 | 1.3 | 7*136 | 200 | <160 | 1.00% |
STO-JQ-16000-W-80-200-H58*2P-8*136 | 16,000 | 1.3 | 8*136 | 200 | <160 | 1.00% |
STO-JQ-16000-W-80-200-H58*2P-9*136 | 16,000 | 1.3 | 9*136 | 200 | <160 | 1.00% |
STO-JQ-16000-W-80-200-H58*2P-10*136 | 16,000 | 1.3 | 10*136 | 200 | <160 | 1.00% |
STO-JQ-16000-W-80-200-H58*2P-12*136 | 16,000 | 1.3 | 12*136 | 200 | <160 | 1.00% |
STO-JQ-16800-W-84-200-80-200-H76*2P-15*112 | 16,800 | 1.4 | 15*112 | 200 | <168 | 1.00% |
STO-JQ-18000-W-90-200-H56*3P-5*112 | 18,000 | 1.5 | 5*112 | 200 | <180 | 0.50% |
STO-JQ-18000-W-90-200-H56*3P-6*112 | 18,000 | 1.5 | 6*112 | 200 | <180 | 0.50% |
STO-JQ-18000-W-90-200-H56*3P-7*112 | 18,000 | 1.5 | 7*112 | 200 | <180 | 0.50% |
STO-JQ-18000-W-90-200-H56*3P-8*112 | 18,000 | 1.5 | 8*112 | 200 | <180 | 0.50% |
STO-JQ-18000-W-90-200-H56*3P-9*112 | 18,000 | 1.5 | 9*112 | 200 | <180 | 0.50% |
STO-JQ-18000-W-90-200-H56*3P-10*112 | 18,000 | 1.5 | 10*112 | 200 | <180 | 0.50% |
STO-JQ-18000-W-90-200-H56*3P-12*112 | 18,000 | 1.5 | 12*112 | 200 | <180 | 0.50% |
STO-JQ-20000-W-200-100-C2010-10*154 | 20000W | 10*154 | 100 | <400 | 4.00% | |
STO-JQ-20000-W-100-200-H510*2P-5*160 | 20,000 | 1.7 | 5*160 | 200 | <200 | 1.00% |
STO-JQ-20000-W-100-200-H510*2P-6*160 | 20,000 | 1.7 | 6*160 | 200 | <200 | 1.00% |
STO-JQ-20000-W-100-200-H510*2P-7*160 | 20,000 | 1.7 | 5*160 | 200 | <200 | 1.00% |
STO-JQ-20000-W-100-200-H510*2P-8*160 | 20,000 | 1.7 | 5*160 | 200 | <200 | 1.00% |
STO-JQ-20000-W-100-200-H510*2P-9*160 | 20,000 | 1.7 | 5*160 | 200 | <200 | 1.00% |
STO-JQ-20000-W-100-200-H510*2P-10*160 | 20,000 | 1.7 | 5*160 | 200 | <200 | 1.00% |
STO-JQ-20000-W-100-200-H510*2P-12*160 | 20,000 | 1.7 | 5*160 | 200 | <200 | 1.00% |
STO-JQ-22400-W-112-200-H78*2P-12*136 | 22,400 | 1.8 | 15*136 | 200 | <224 | 1.00% |
STO-JQ-24000-W-120-200-H512*2P-5*184 | 24,000 | 2 | 5*184 | 200 | <240 | 1.00% |
STO-JQ-24000-W-120-200-H58*3P-6*136 | 24,000 | 2 | 6*136 | 200 | <240 | 0.50% |
STO-JQ-24000-W-120-200-H512*2P-6*184 | 24,000 | 2 | 6*184 | 200 | <240 | 1.00% |
STO-JQ-24000-W-120-200-H58*3P-7*136 | 24,000 | 2 | 7*136 | 200 | <240 | 0.50% |
STO-JQ-24000-W-120-200-H512*2P-7*184 | 24,000 | 2 | 7*184 | 200 | <240 | 1.00% |
STO-JQ-24000-W-120-200-H56*4P-8*112 | 24,000 | 2 | 8*112 | 200 | <240 | 0.50% |
STO-JQ-24000-W-120-200-H58*3P-8*136 | 24,000 | 2 | 8*136 | 200 | <240 | 0.50% |
STO-JQ-24000-W-120-200-H512*2P-8*184 | 24,000 | 2 | 8*184 | 200 | <240 | 1.00% |
STO-JQ-24000-W-120-200-H56*4P-9*112 | 24,000 | 2 | 9*112 | 200 | <240 | 0.50% |
STO-JQ-24000-W-120-200-H58*3P-9*136 | 24,000 | 2 | 9*136 | 200 | <240 | 0.50% |
STO-JQ-24000-W-120-200-H512*2P-9*184 | 24,000 | 2 | 9*184 | 200 | <240 | 1.00% |
STO-JQ-24000-W-120-200-H56*4P-10*112 | 24,000 | 2 | 10*112 | 200 | <240 | 0.50% |
STO-JQ-24000-W-120-200-H58*3P-10*136 | 24,000 | 2 | 10*136 | 200 | <240 | 0.50% |
STO-JQ-24000-W-120-200-H512*2P-10*184 | 24,000 | 2 | 10*184 | 200 | <240 | 1.00% |
STO-JQ-24000-W-120-200-H56*4P-12*112 | 24,000 | 2 | 12*112 | 200 | <240 | 0.50% |
STO-JQ-24000-W-120-200-H58*3P-12*136 | 24,000 | 2 | 12*136 | 200 | <240 | 0.50% |
STO-JQ-24000-W-120-200-H512*2P-12*184 | 24,000 | 2 | 12*184 | 200 | <240 | 1.00% |
STO-JQ-25200-W-126-200-H76*3P-15*112 | 25,200 | 2.1 | 15*112 | 200 | <252 | 0.50% |
STO-JQ-25200-W-126-200-H76*3P-18*112 | 25,200 | 2.1 | 18*112 | 200 | <252 | 0.50% |
STO-JQ-28000-W-140-200-126-200-H78*2P-15*136 | 28,000 | 2.3 | 15*136 | 200 | <280 | 1.00% |
STO-JQ-28000-W-140-200-H78*2P-18*136 | 28,000 | 2.3 | 18*136 | 200 | <280 | 1.00% |
STO-JQ-30000-W-150-200-H510*3P-7*136 | 30,000 | 2.5 | 7*160 | 200 | <300 | 0.50% |
STO-JQ-30000-W-150-200-H510*3P-8*136 | 30,000 | 2.5 | 8*160 | 200 | <300 | 0.50% |
STO-JQ-30000-W-150-200-H510*3P-9*136 | 30,000 | 2.5 | 9*160 | 200 | <300 | 0.50% |
STO-JQ-30000-W-150-200-H510*3P-10*136 | 30,000 | 2.5 | 10*160 | 200 | <300 | 0.50% |
STO-JQ-30000-W-150-200-H510*3P-12*136 | 30,000 | 2.5 | 12*160 | 200 | <300 | 0.50% |
STO-JQ-32000-W-160-200-H58*4P-8*136 | 32,000 | 2.6 | 8*136 | 200 | <320 | 0.50% |
STO-JQ-32000-W-160-200-H58*4P-9*136 | 32,000 | 2.6 | 9*136 | 200 | <320 | 0.50% |
STO-JQ-32000-W-160-200-H58*4P-10*136 | 32,000 | 2.6 | 10*136 | 200 | <320 | 0.50% |
STO-JQ-32000-W-160-200-H58*4P-12*136 | 32,000 | 2.6 | 12*136 | 200 | <320 | 0.50% |
STO-JQ-33600-W-168-200-H76*4P-15*112 | 33,600 | 2.8 | 15*112 | 200 | <336 | |
STO-JQ-33600-W-168-200-H78*3P-15*112 | 33,600 | 2.8 | 15*136 | 200 | <336 | |
STO-JQ-33600-W-168-200-H712*2P-15*112 | 33,600 | 2.8 | 15*184 | 200 | <336 | |
STO-JQ-33600-W-168-200-H76*4P-18*112 | 33,600 | 2.8 | 18*112 | 200 | <336 | |
STO-JQ-33600-W-168-200-H78*3P-18*112 | 33,600 | 2.8 | 18*136 | 200 | <336 | |
STO-JQ-33600-W-168-200-H712*2P-18*112 | 33,600 | 2.8 | 18*184 | 200 | <336 | |
STO-JQ-36000-W-180-200-H512*3P-8*188 | 36,000 | 3 | 8*184 | 200 | <360 | |
STO-JQ-36000-W-180-200-H512*3P-9*188 | 36,000 | 3 | 9*184 | 200 | <360 | |
STO-JQ-36000-W-180-200-H512*3P-10*188 | 36,000 | 3 | 10*184 | 200 | <360 | |
STO-JQ-36000-W-180-200-H512*3P-12*188 | 36,000 | 3 | 12*184 | 200 | <360 | |
STO-JQ-10000-W-200-200-H510*4P-9*160 | 40,000 | 3.3 | 9*160 | 200 | <400 | |
STO-JQ-10000-W-200-200-H510*4P-10*160 | 40,000 | 3.3 | 10*160 | 200 | <400 | |
STO-JQ-10000-W-200-200-H510*4P-12*160 | 40,000 | 3.3 | 12*160 | 200 | <400 | |
STO-JQ-42000-W-210-200-H710*3P-15*160 | 42,000 | 3.5 | 15*160 | 200 | <420 | |
STO-JQ-42000-W-210-200-H710*3P-18*160 | 42,000 | 3.5 | 18*160 | 200 | <420 | |
STO-JQ-44800-W-224-200-H710*4P-15*148 | 44,800 | 3.7 | 15*136 | 200 | <448 | |
STO-JQ-44800-W-224-200-H710*4P-18*148 | 44,800 | 3.7 | 18*136 | 200 | <448 | |
STO-JQ-48000-W-240-200-H512*4P-10*184 | 48,000 | 4 | 10*184 | 200 | <480 | |
STO-JQ-48000-W-240-200-H512*4P-12*184 | 48,000 | 4 | 12*184 | 200 | <480 | |
STO-JQ-50400-W-252-200-H712*3P-15*184 | 50,400 | 4.2 | 15*184 | 200 | <504 | |
STO-JQ-50400-W-252-200-H712*3P-18*184 | 50,400 | 4.2 | 18*184 | 200 | <504 | |
STO-JQ-56000W-280-200-H710*4P-15*160 | 56,000 | 4.6 | 15*160 | 200 | <560 | |
STO-JQ-56000W-280-200-H710*4P-18*160 | 56,000 | 4.6 | 18*160 | 200 | <560 | |
STO-JQ-67200-W-336-200-H712*4P-18*184 | 67,200 | 5.5 | 18*184 | 200 | <672 | |
STO-JQ-97200-W-540-200-H912*5P-25*184 | 97,200 | 8 | 25*184 | 200 | <1080 |
We are also able to provide lasers diodes repair and refurbishment services for various laser pump modules from various manufacturers all over the world. Our experienced engineers are able to repair them and provide after-sale services, including:
Rofin’s Diode Pumped Laser Heads
LEE Laser’s Diode Pumped Laser Heads
FOBA’s Diode Pumped Laser Heads
Northrop Grumman (Cutting Edge Optronics, CEO Laser)’s laser heads, including RB, RE and other series.
Almalaser Soprano &ICE diode laser hair removal handle piece
Syneron Elaser& Elase diode laser hair removal handle piece
Jenoptik's laser diode stack
Dilas's laser diode stack
Other DPSS laser heads from NEC etc
Please contact us for more information. Please note: Northrop Grumman, Cutting Edge Optronics, CEO Laser, Rofin, FOBA, Han’s Laser, Jenoptik, Dilas, NEC, Almalasers, Soprano, Soprano ICE, Elaser, Elase are their trade marks which belong to the companies above.

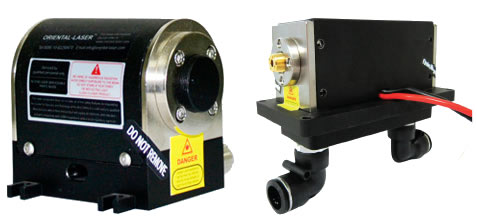

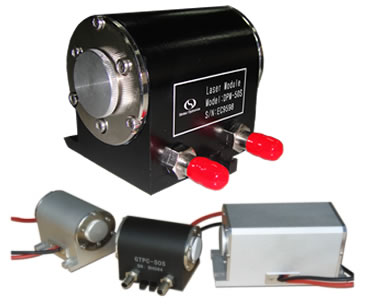

Part number | DPM-50S | DPM-75S |
---|---|---|
Wavelength | 1064nm | 1064nm |
Laser power | 50W | 75W |
Operation | CW | CW |
Operation current | 18A | 25A |
Operation voltage | ≤18V | ≤24V |
Nd:YAG dimension | 3x65mm | 3x65mm |
Cooling | Water | Water |
Power input | Suggested LDD2020 (20A, 20V) | Suggested LDD2524 (25A, 24V) |
Chiller | Cooling capacity ≥1000W Temp. accuracy ±0.5℃ | Cooling capacity ≥1000W Temp. accuracy ±0.5℃ |
Water temp. | 22℃ | 22℃ |
Warranty | 12 months | 12 months |

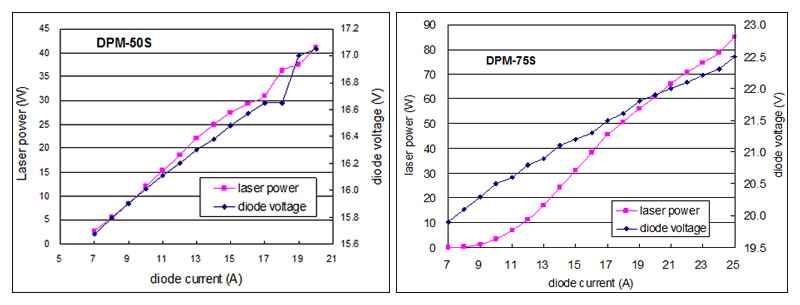

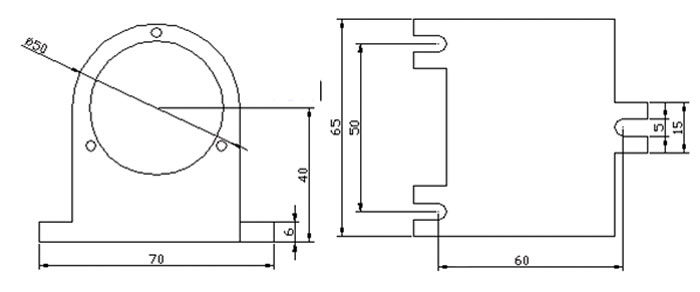

Dimension | 70x65x65mm | 70x65x65mm |
More diode modules are listed as follows:
Part No. | DPM-25 | DPM-50D | DPM-50S | DPM-75 | DPM-100 | DPM-200 | DPM-500 | DPM-1000 | DPM-1500 |
YAG Diameter (mm) | 3 | 3 | 3 | 3 | 4 | 5 | 6/7 | 7 | 8 |
Output Power (W) | 25 | 50 | 50 | 75 | 100 | 200 | 500 | 1000 | 1500 |
Operating Current (A) | 29 | 15 | 18 | 29 | 29 | 29 | 29 | 29 | 29 |
Operating Voltage (V) | <6 | <24 | <18 | <18 | <24 | <42 | <100 | <180 | <250 |
For other power diode laser modules, please send us an email.

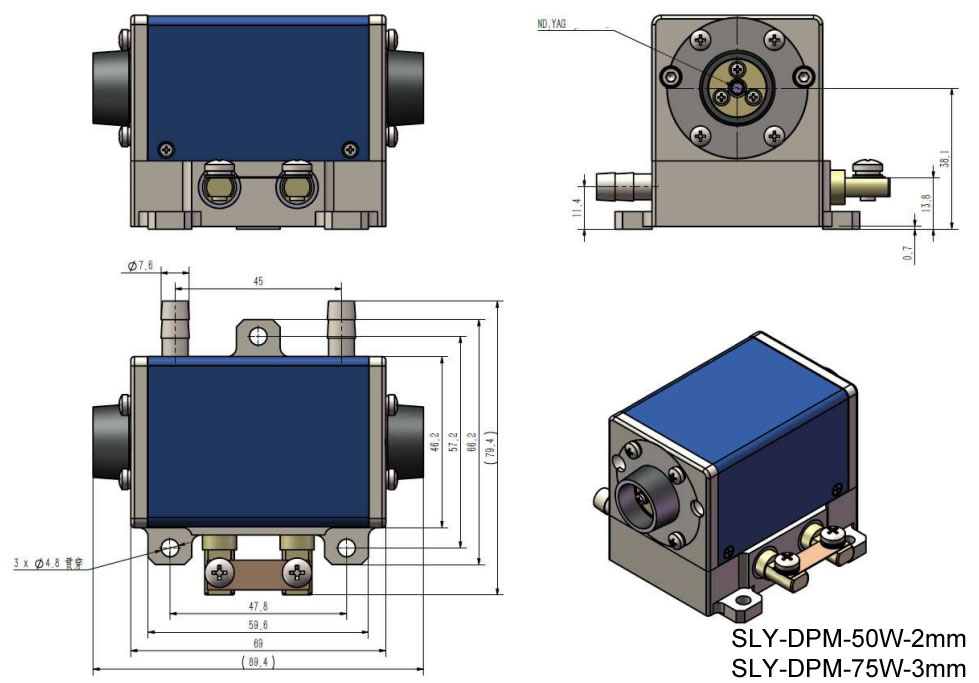

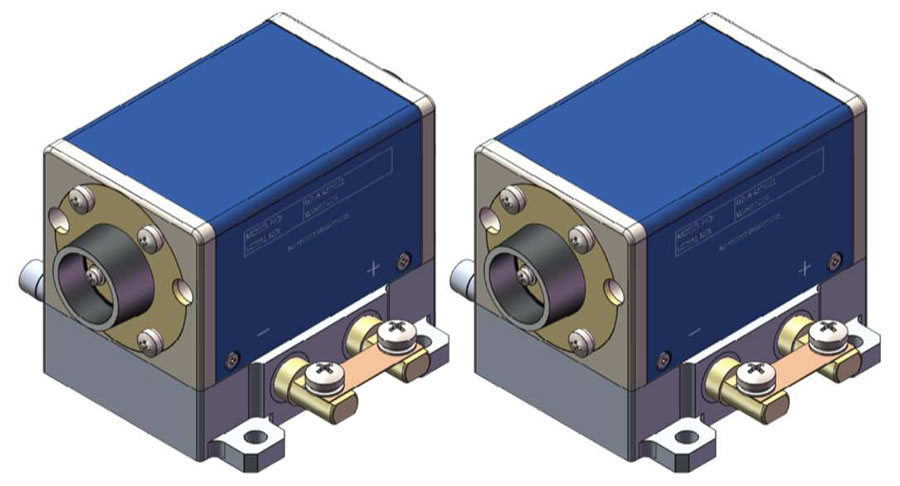

Part Number | SLY-DPM-50W-2mm | SLY-DPM-75W-3mm |
Wavelength (nm) | 1064 | 1064 |
Output Power (W) | 50 | 75 |
Operating Mode | Continuous Wave | Continuous Wave |
Threshold Current (A) | ≤15 | ≤10 |
Operating Current (A) | ≤30 | ≤30 |
Operating Voltage (V) | ≤24 | ≤24 |
Rod Dimensions (mm) | Ø2 | Ø3 |
Beam Height from Base (mm) | 38.1 | 38.1 |
Suggested Water Cooling (l/min) | ³8 | ³8 |
Operating Temperature (°C) | 22 – 28 | 22 – 28 |
Storage Temperature (°C) | 5 – 50 | 5 – 50 |
Weight (kg) | ≤1.0 | ≤1.0 |

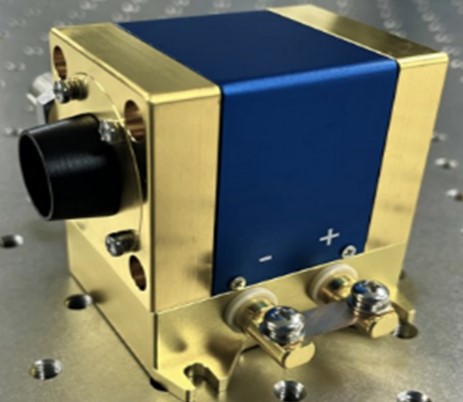

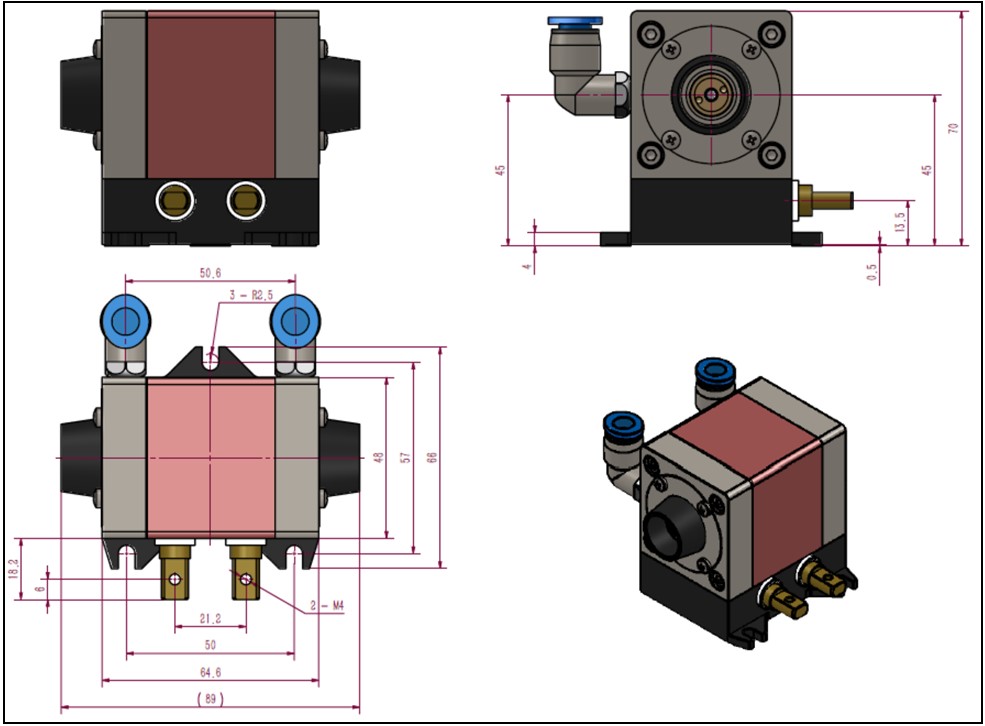

Part Number: SLY-DPM-100W-3mm
Parameter | Value |
Wavelength (nm) | 1064 |
Output Power (W) | 100 |
Operating Mode | Continuous Wave |
Beam Height (mm) | 45 |
Threshold Current (A) | ≤ 10 |
Operating Current (A) | ≤ 30 |
Operating Voltage (V) | ≤ 24 |
Rod Diameter (mm) | Ø3 |
Operating Temperature (°C) | 22~28 |
Storage Temperature (°C) | 5 – 50 |
Water Flow (L/min) | ≥8 |
Water Pressure (Mpa) | ≤ 0.35 |
A leading supplier and manufacturer of a wide range of photonics products such as lasers,laser parts & machines.
Office: 10 Bukit Batok Crescent #07-02 The Spire Singapore 658079
Tel: +65 63167112
Fax: +65 63167113
Whatsapp: +6591904616
